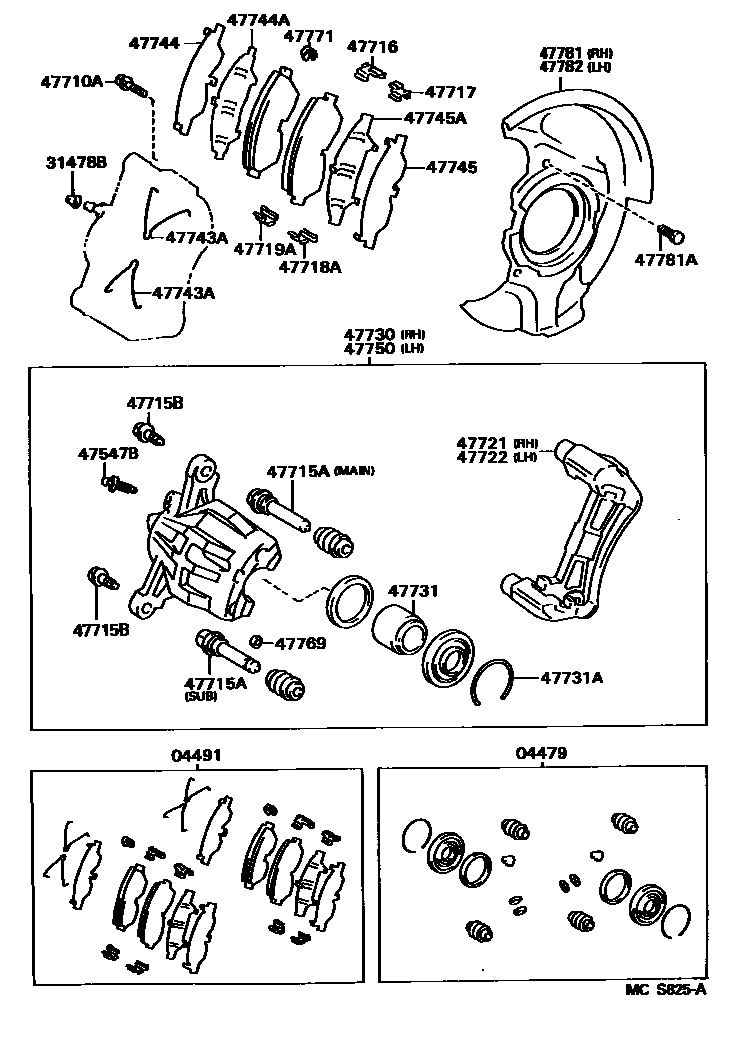

Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

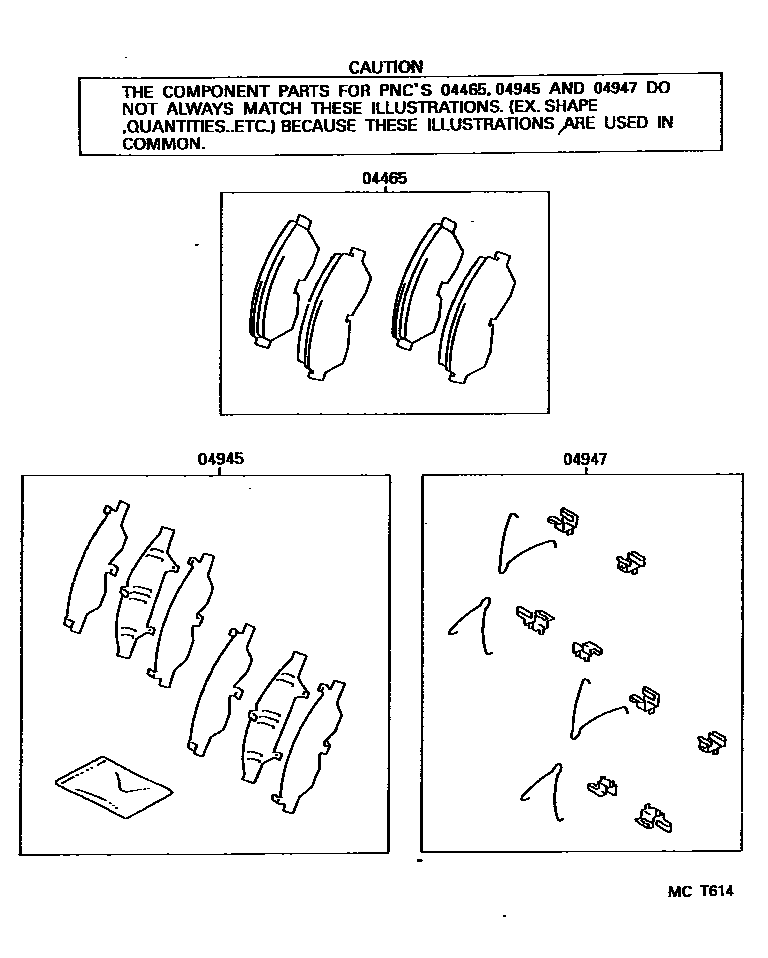

| 04465 | Front disc brake pad assembly | 04465-33050 · 04465-33070 |
| 04479 | Front disc brake cylinder assembly | 04479-06010 · 04479-07030 · 04479-50080 |
| 04491 | Front disc brake pad assembly | 04491-06030 · 04491-06040 · 04491-06100 · 04491-33091 |
| 04945 | Front silencer gasket assembly | 04945-06010 · 04945-06020 · 04945-06050 · 04945-33010 |
| 04947 | Front disc brake mounting kit | 04947-06010 · 04947-06020 · 04947-06030 · 04947-33060 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-03010 · 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47715-02010 · 47715-02020 · 47715-06010 · 47715-24010 · 47715-33010 · 47715-50030 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90080-10034 · 90080-10043 · 90109-08214 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-06010 · 47716-06030 · 47716-33031 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47716-06020 · 47716-06040 · 47716-33041 |
| 47718A | No. 3 pad support plate (for front disc brake) | 47717-06010 · 47717-06030 · 47717-33031 |
| 47719A | No. 4 pad support plate (for front disc brake) | 47717-06020 · 47717-06040 · 47717-33041 |
| 47721 | Right front disc brake cylinder retainer | 47721-06010 · 47721-06020 · 47721-07010 · 47721-33050 |
| 47722 | Left front disc brake cylinder retainer | 47722-06010 · 47722-06020 · 47722-07010 · 47722-33050 |
| 47730 | Right front disc brake cylinder assembly | 47730-06010 · 47730-06020 · 47730-07020 · 47730-33080 |
| 47731 | Front disc brake piston | 47731-06010 · 47731-07020 · 47731-33030 |
| 47731A | retaining ring (for front disc brake piston) | 90080-52009 · 90080-52064 · 90522-49001 |
| 47743A | Silencer spring (for front disc brake) | 47743-07010 · 47743-33010 · 47743-50030 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47745-06010 · 47745-06020 · 47745-07010 · 47745-33030 |
| 47744A | No. 3 silencer gasket (for front disc brake) | 47744-06010 · 47744-06020 · 47744-07010 · 47744-33030 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47745-06010 · 47745-06020 · 47745-07010 · 47745-33030 |
| 47745A | No. 4 silencer gasket (for front disc brake) | 47744-06010 · 47744-06020 · 47744-07010 · 47744-33030 |
| 47750 | Left disc brake cylinder assembly | 47750-06010 · 47750-06020 · 47750-07020 · 47750-33080 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-06010 · 47769-50010 |
| 47771 | No. 1 pad wear indicator plate | 47771-06010 · 47771-33010 · 47771-50010 |
| 47775 | Bushing boot (for front disc brake) | 47775-50010 |
| 47781 | Right front disc brake dust cover | 47703-06010 · 47703-06020 · 47703-33010 · 47703-33020 · 47781-06010 · 47781-06020 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 |
| 47782 | Left front disc brake dust cover | 47704-06010 · 47704-06020 · 47704-33010 · 47704-33020 · 47782-06010 · 47782-06020 · 47782-32070 |
