Toyota CAMRY 速度表从动齿轮(ATM) — Figure 3505

Toyota CAMRY EPC diagram 3505, 速度表从动齿轮(ATM), with 2 images and 3 PNC and OE references.

Toyota CAMRY 速度表从动齿轮(ATM) EPC diagram — MCM019C
速度表从动齿轮(ATM) — MCM019C (199106 – 999999)

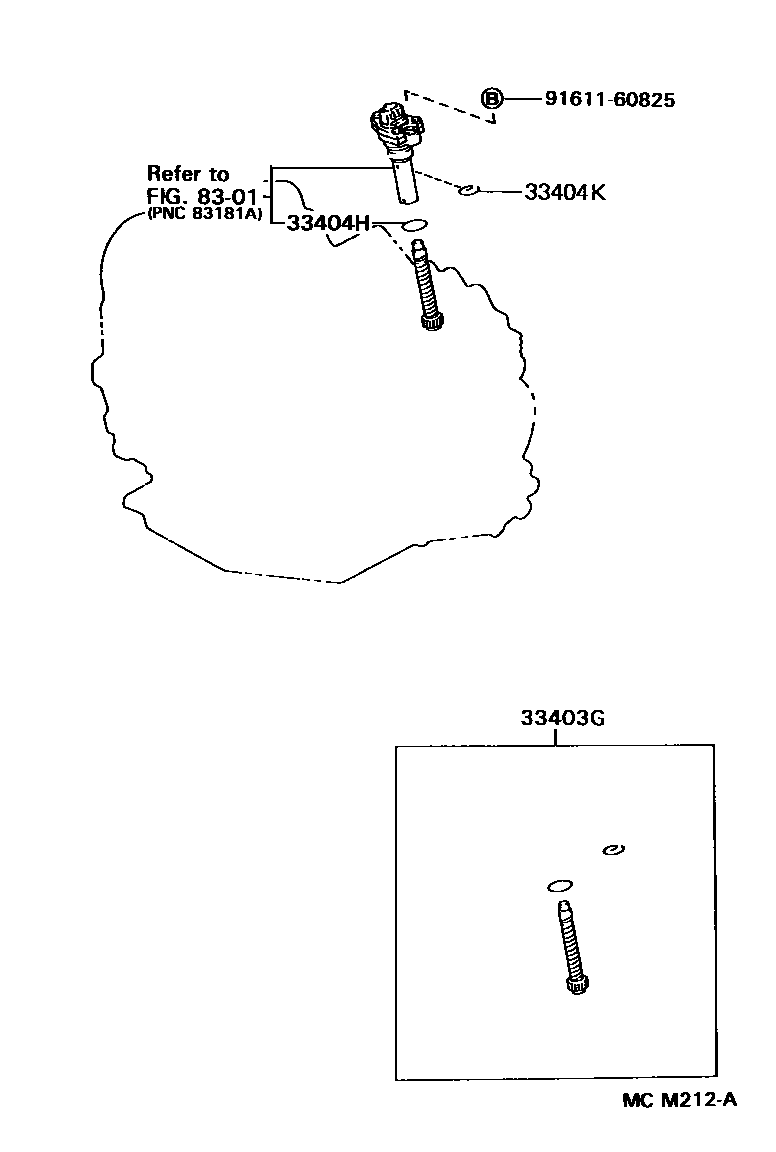

Toyota CAMRY 速度表从动齿轮(ATM) EPC diagram — MCM212A
速度表从动齿轮(ATM) — MCM212A (199106 – 999999)

PNC and OE references

PNCPart nameOE numbers
33403GSpeedometer driven gear sub-assembly (ATM)33403-39275 · 33403-39285
33404HO-ring (for automatic transmission speedometer shaft sleeve)96711-24030
33404KClamp (for automatic transmission speedometer shaft sleeve)90468-12005
