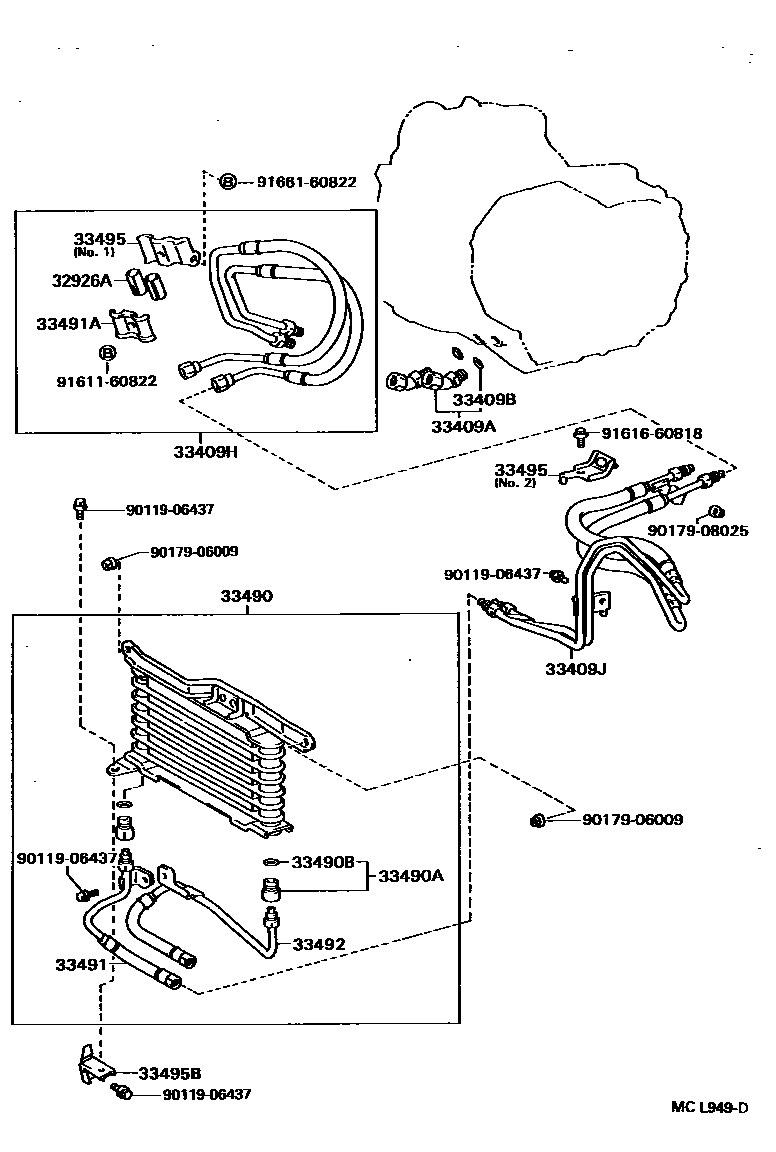

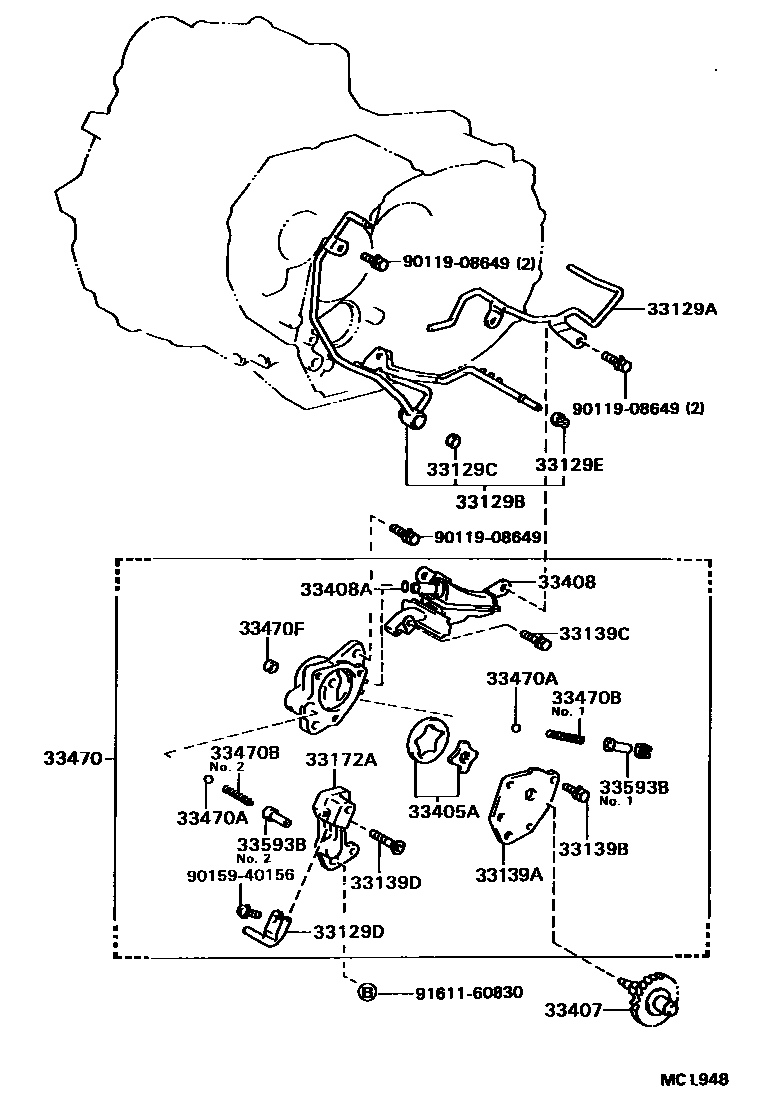

Toyota CAMRY 油泵、油冷却器和配管(MTM) — Figure 3308
Toyota CAMRY EPC diagram 3308, 油泵、油冷却器和配管(MTM), with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32926A | Manual transmission oil cooler pipe cushion | 32926-30020 |
| 33129A | No. 1 manual transmission oil pipe | 33129-32010 |
| 33129B | No. 2 manual transmission oil pipe | 33106-33010 |
| 33129C | Gasket (for manual transmission oil pipe) | 90430-09004 |
| 33129D | No. 3 transmission oil pipe | 33129-20040 |
| 33129E | Bushing (for manual transmission oil pipe) | 90389-05012 |
| 33139A | Oil pump cover (for manual transmission) | 33139-20020 |
| 33139B | Bolt (for manual transmission oil pump cover) | 90119-06199 |
| 33139C | Bolt (for transmission oil pump cover) | 90119-06268 |
| 33139D | Screw (for transmission oil pump cover) | 90149-60064 |
| 33172A | Transmission oil pump bypass pipe | 33172-20020 |
| 33405A | Manual transmission oil pump rotor sub-assembly | 33405-20020 |
| 33407 | Manual transmission oil pump driving gear sub-assembly | 33407-33010 |
| 33408 | Manual transmission oil filter sub-assembly | 33408-20020 |
| 33408A | O-ring (for manual transmission oil filter) | 96721-19012 |
| 33409A | Bend pipe (for manual transmission oil cooler pipe) | 90407-16017 |
| 33409B | O-ring (for manual transmission oil cooler pipe elbow) | 90301-11006 |
| 33409H | No. 1 transmission oil cooler pipe assembly | 33409-33011 |
| 33409J | No. 2 transmission oil cooler pipe assembly | 33409-33021 |
| 33470 | Manual transmission oil pump assembly | 33470-20021 · 33470-20030 |
| 33470A | Steel ball (for manual transmission oil pump) | 90360-09001 |
| 33470B | Compression spring (for manual transmission oil pump) | 90501-07062 · 90501-08094 |
| 33470F | Gasket (for transmission oil pump) | 90430-09004 |
| 33490 | Manual transmission oil cooler assembly | 33490-33011 |
| 33490A | Fitting (for manual transmission oil cooler pipe) | 90404-16023 |
| 33490B | O-ring (for manual transmission oil cooler pipe joint) | 90301-11006 |
| 33491 | No. 1 manual transmission oil cooler pipe | 33491-33051 |
| 33491A | No. 1 manual transmission oil cooler pipe clamp | 90462-16066 |
| 33492 | No. 2 manual transmission oil cooler pipe | 33491-33061 |
| 33495 | No. 2 manual transmission oil cooler pipe clamp | 33495-20010 · 33495-33011 |
| 33495B | No. 3 manual transmission oil cooler pipe clamp | 33495-33020 |
| 33593B | Spring retainer (for manual transmission oil pump) | 33593-20020 · 33593-20030 |
