Toyota CAMRY 离合器踏板和挠性软管 — Figure 3102

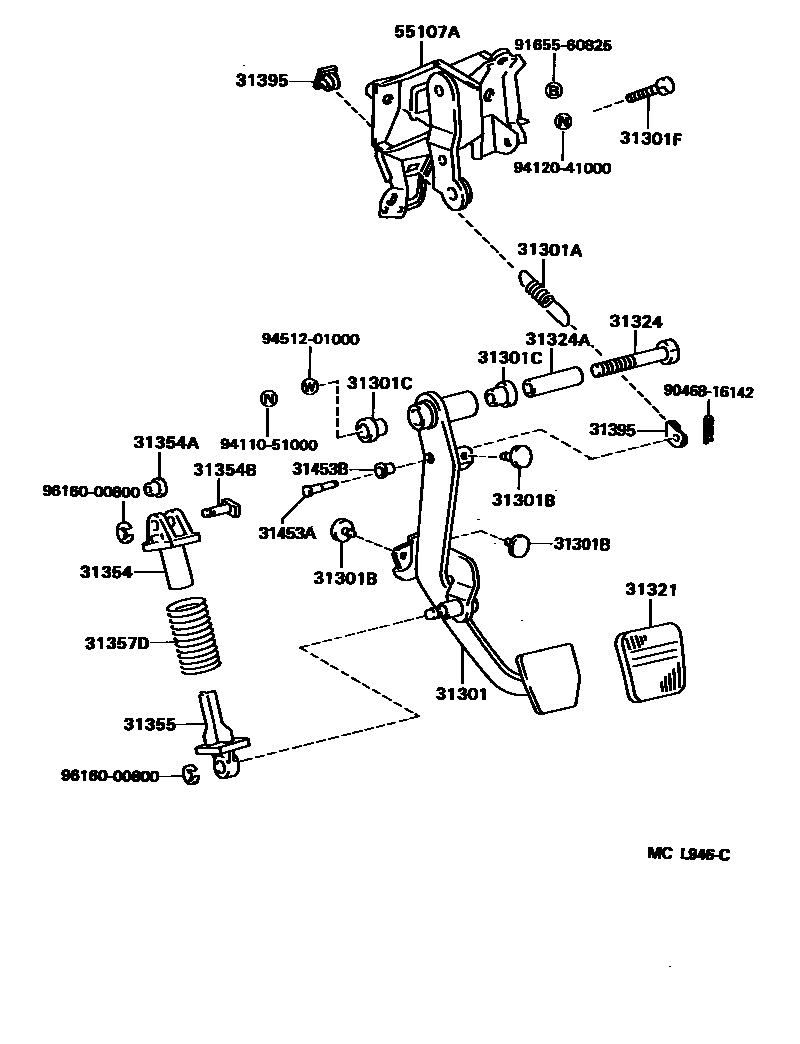

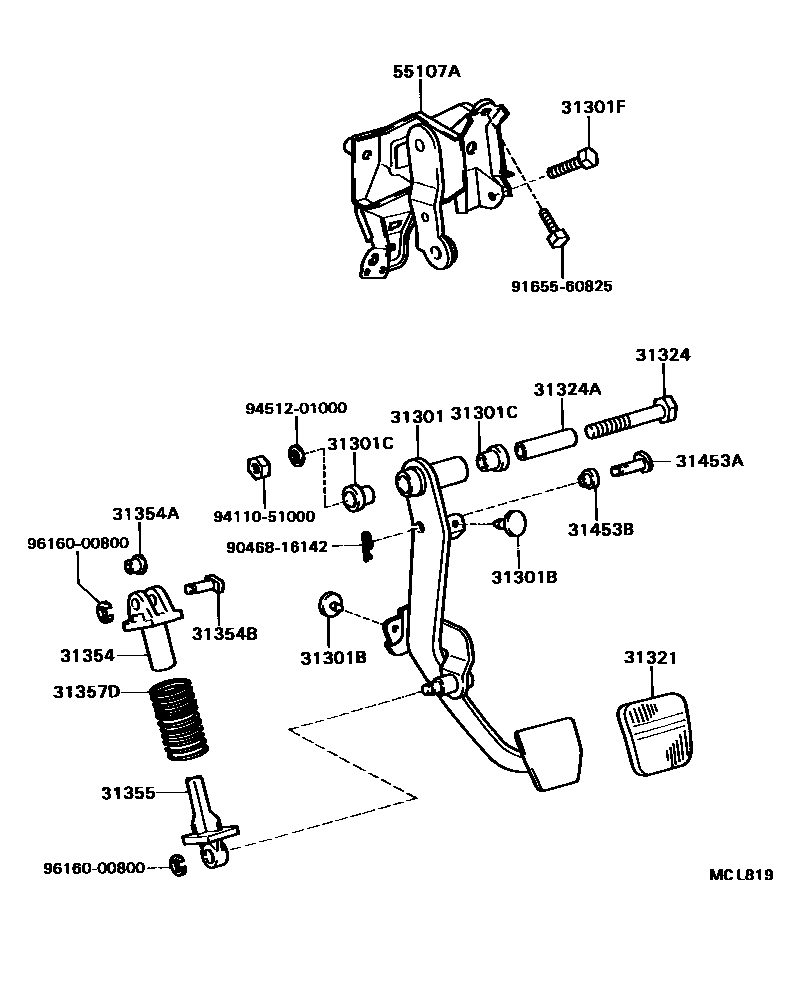

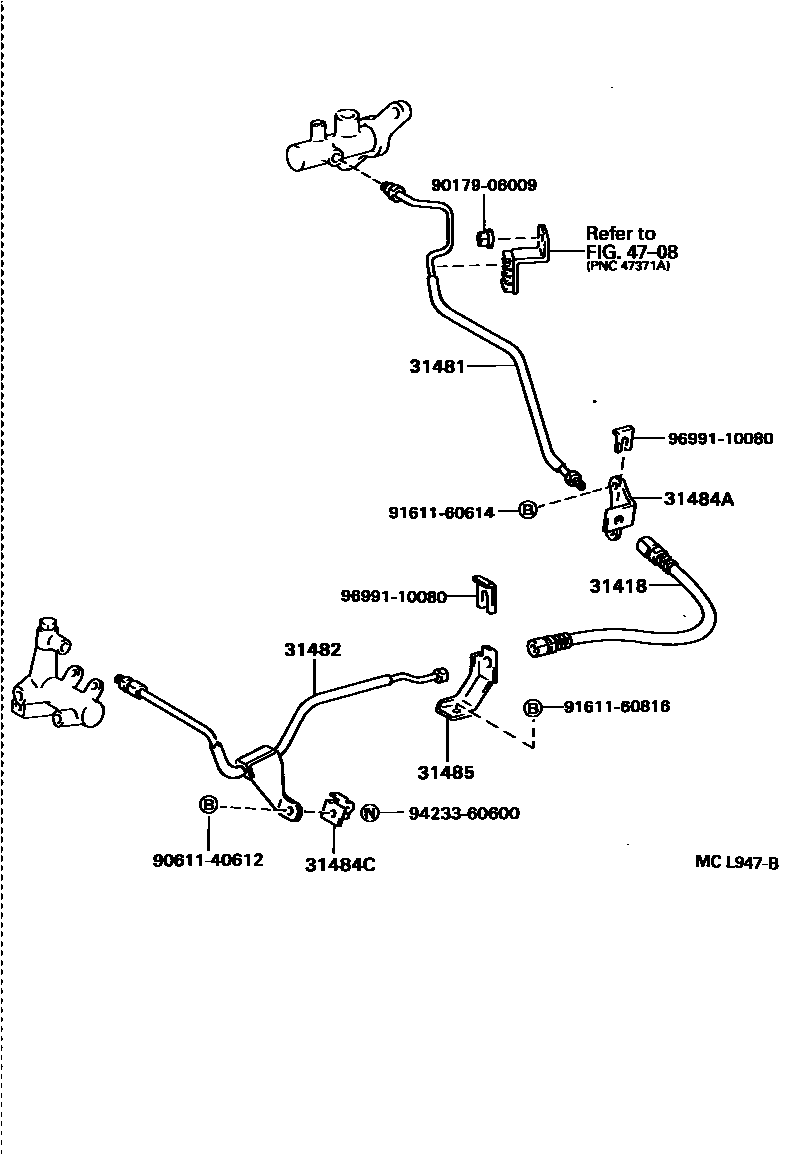

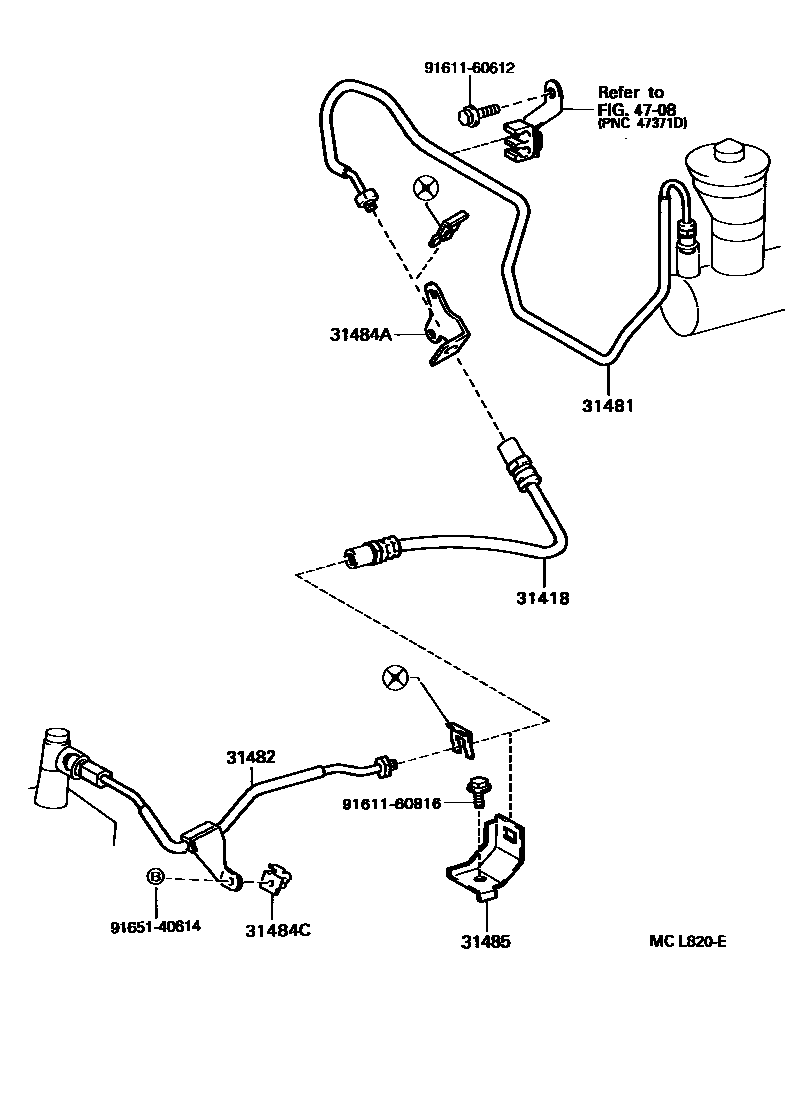

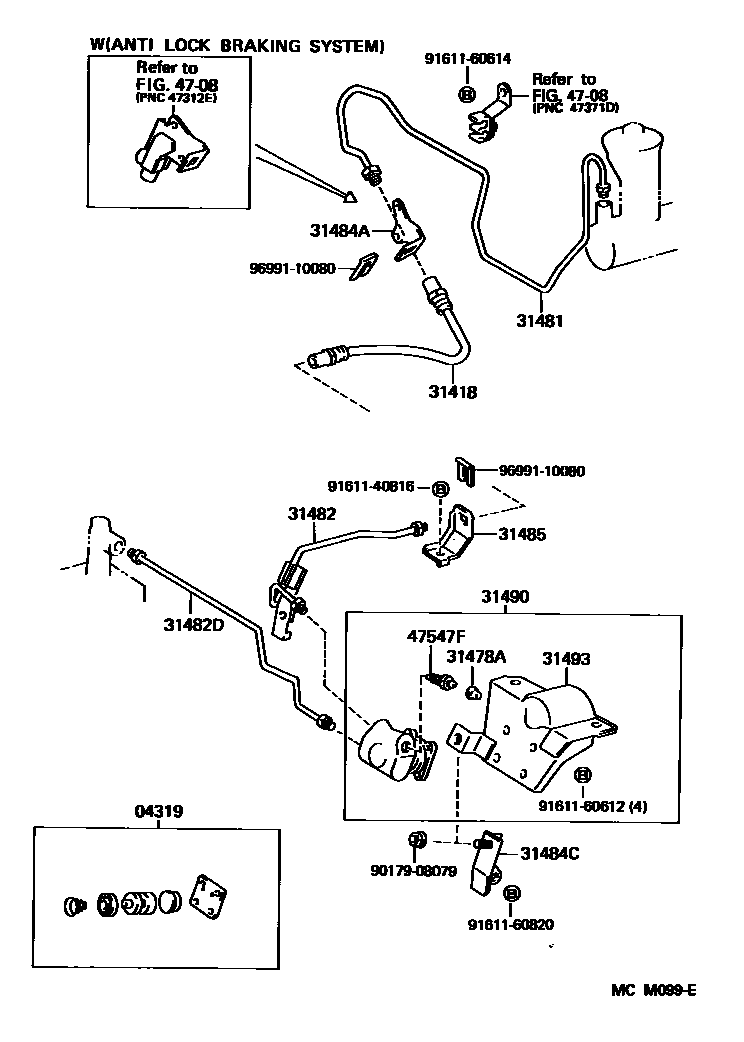

Toyota CAMRY EPC diagram 3102, 离合器踏板和挠性软管, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04319 | Clutch accumulator cover assembly | 04319-36020 |
| 31301 | Clutch pedal sub-assembly | 31301-33010 · 31301-33020 |
| 31301A | Spring (for clutch pedal) | 90507-18027 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06032 · 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31321 | clutch pedal pad | 31321-14020 |
| 31324 | clutch pedal shaft | 90101-10273 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31354 | Clutch pedal spring upper seat | 31354-20030 · 31354-33010 |
| 31354A | Bushing (for clutch pedal spring upper seat) | 90386-10019 |
| 31354B | Pin with hole (for clutch pedal spring upper seat) | 90249-10127 |
| 31355 | Clutch pedal spring lower seat | 31355-20030 |
| 31357D | Compression spring (for center adjustment lever) | 90501-35018 · 90501-40029 |
| 31395 | pedal spring hook | 31395-33010 · 31395-33020 |
| 31418 | clutch hose | 90931-01077 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08143 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08036 |
| 31478A | Bleed plug cap (for clutch accumulator) | 31478-30010 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-06010 · 31481-06020 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-06010 · 31482-06020 |
| 31482D | Pipe from clutch release cylinder to pressure accumulator | 31482-06040 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-32080 · 31484-33010 |
| 31484C | No. 1 clutch tube bracket | 31484-32050 · 31484-33021 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-32101 |
| 31490 | Clutch pressure accumulator assembly | 31490-33010 |
| 31493 | clutch accumulator bracket | 31493-33010 |
| 47547F | Bleed plug (for clutch accumulator) | 47547-12010 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-33010 · 55107-33020 |
