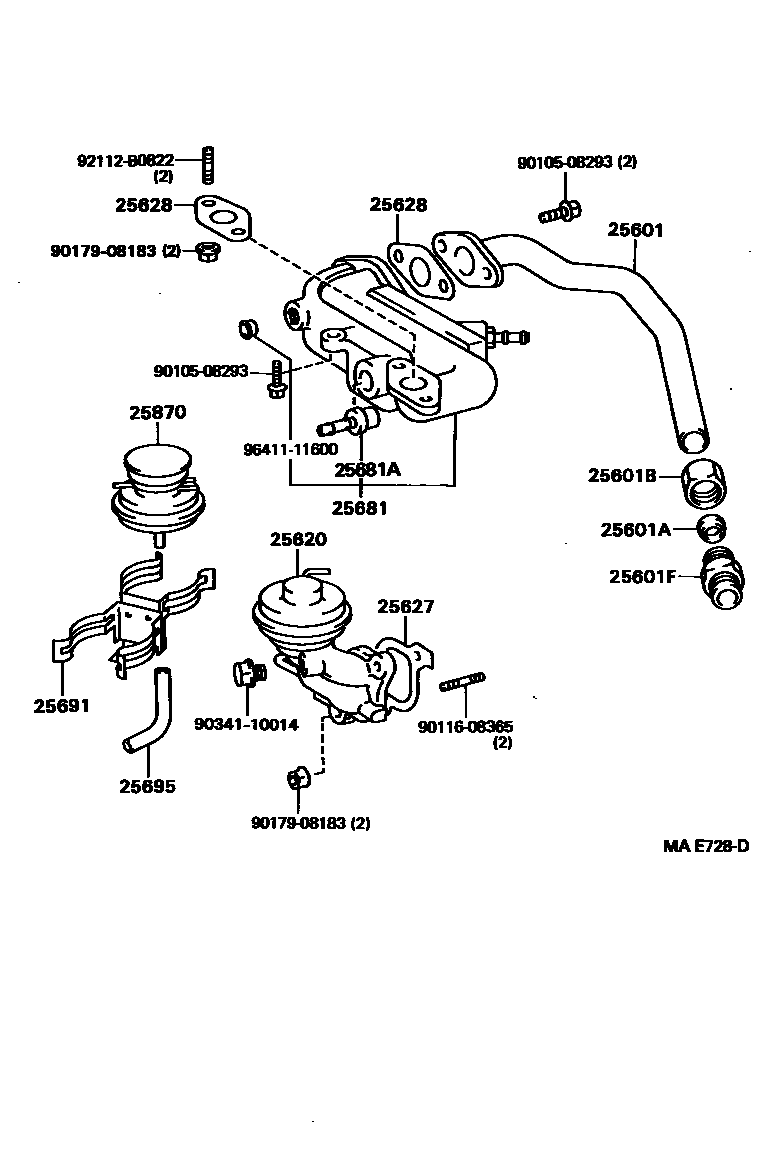

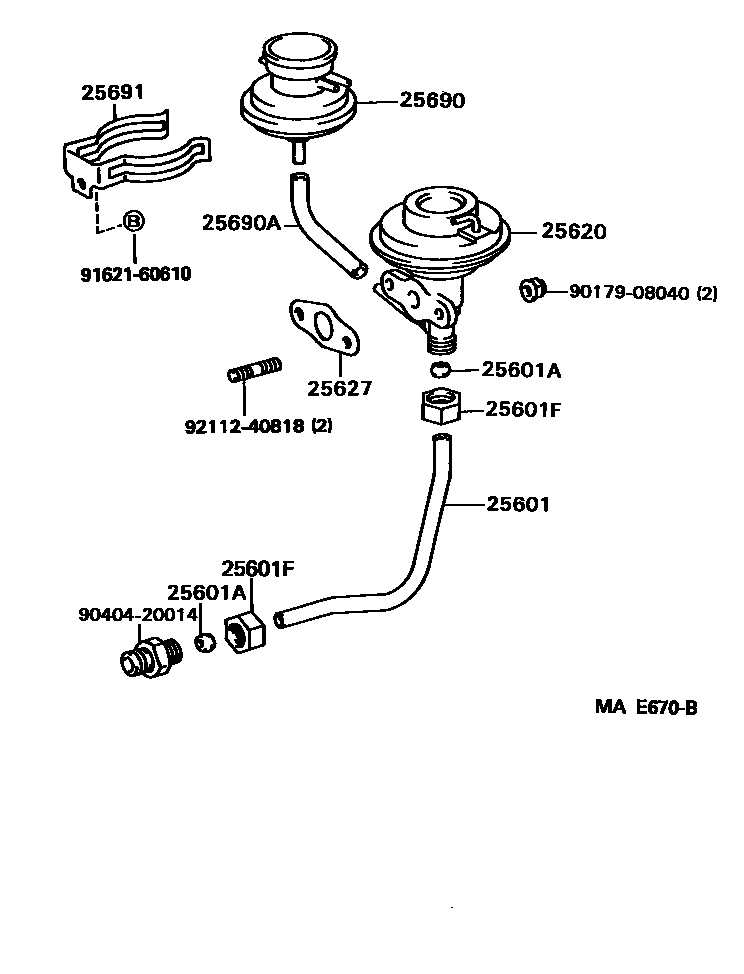

Toyota CAMRY 废气再循环系统 — Figure 2501
Toyota CAMRY EPC diagram 2501, 废气再循环系统, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25611-03020 · 25611-62020 · 25611-74030 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-12042 · 90410-16001 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-22005 |
| 25601F | Connector (for No. 1 EGR tube) | 90402-20073 · 90404-22003 |
| 25620 | EGR valve assembly | 25620-62030 · 25620-62040 · 25620-74201 · 25620-74211 · 25620-74250 · 25620-74260 · 25620-74300 · 25620-74310 |
| 25627 | EGR valve gasket | 25627-62020 · 25627-74011 |
| 25628 | EGR air intake gasket | 25628-62010 |
| 25681 | No. 1 EGR cooler | 25681-62010 |
| 25681A | Connector (for EGR cooler) | 90404-08003 |
| 25690 | EGR vacuum regulator assembly | 25870-74090 · 25870-74100 |
| 25690A | Hoses (for EGR vacuum regulator) | 90445-11065 |
| 25691 | EGR vacuum regulator bracket | 25691-62020 · 25691-74040 · 25691-74080 |
| 25695 | EGR vacuum regulator hose | 25695-62020 |
| 25870 | EGR vacuum regulator valve assembly | 25870-62020 |
