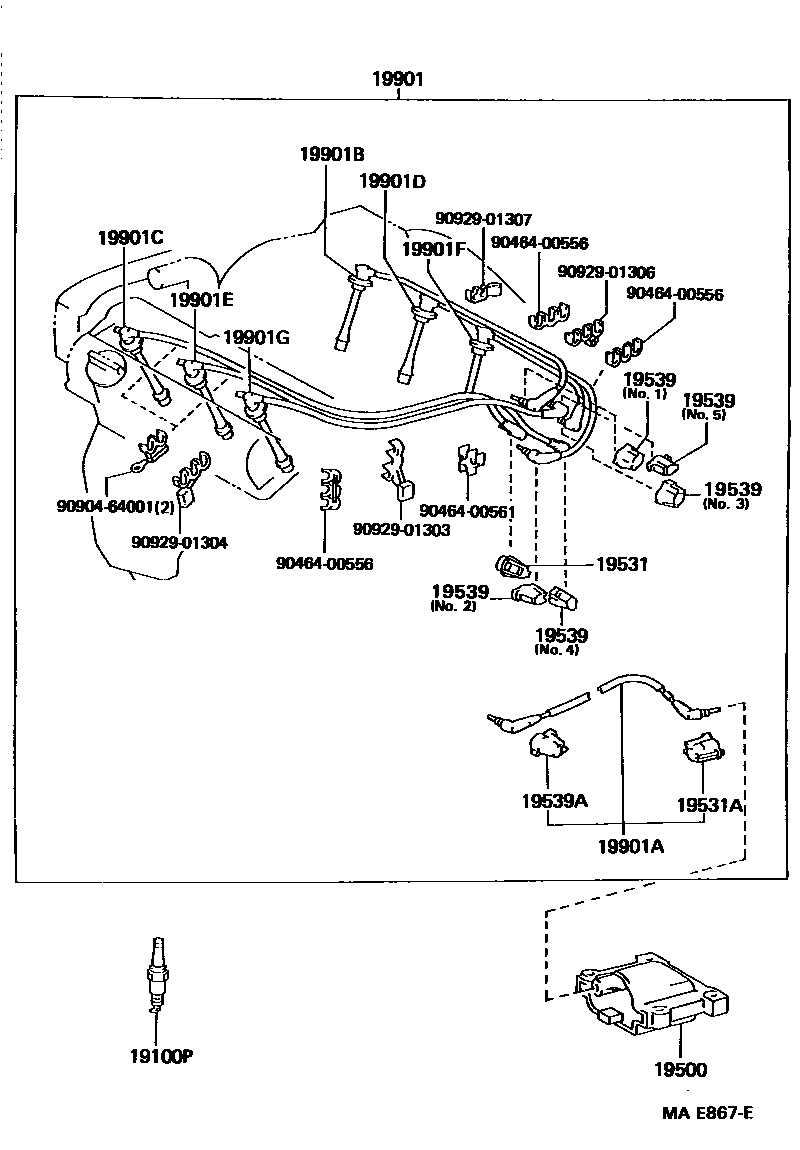

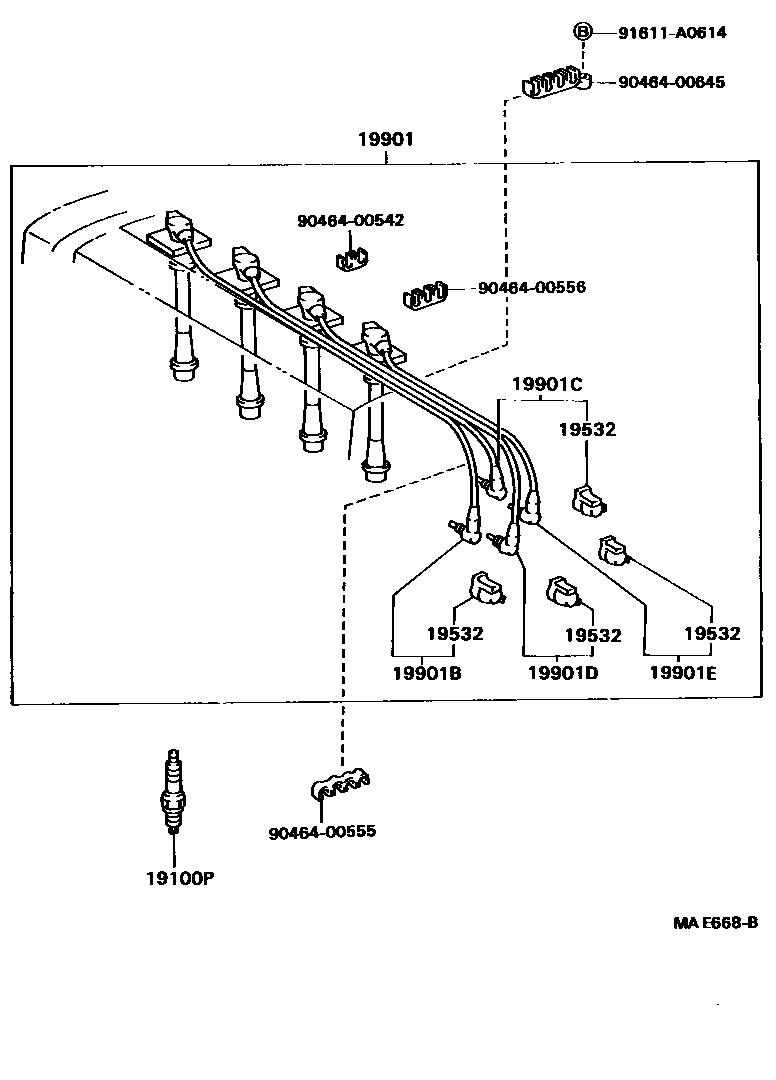

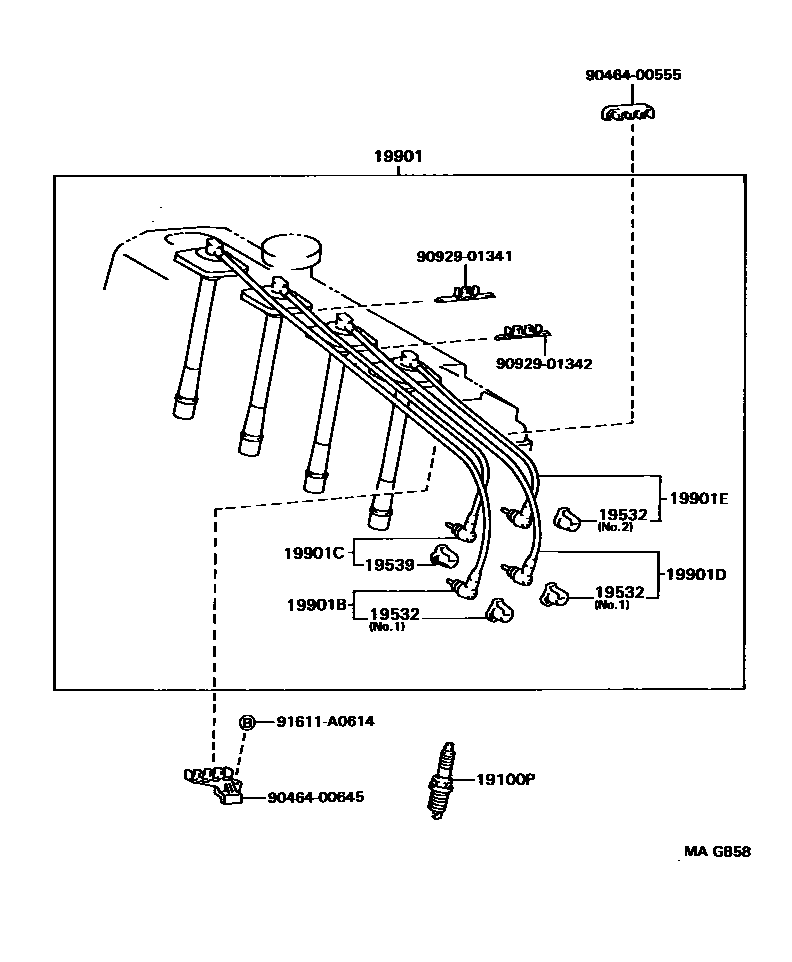

Toyota CAMRY 点火线圈和火花塞 — Figure 1901
Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01127 · 90919-01184 |
| 19500 | Ignition coil assembly | 90919-02207 |
| 19531 | No. 1 damping wire fixing piece | 19531-46010 |
| 19531A | No. 3 damping wire fixing piece | 19531-74010 |
| 19532 | No. 2 damping wire fixing piece | 19532-46010 · 19532-50010 · 19539-74030 |
| 19539 | No. 4 damping wire fixing piece | 19539-50010 · 19539-62010 · 19539-62020 · 19539-70010 · 19539-74040 |
| 19539A | No. 5 damping wire fixing piece | 19539-11010 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21519 · 90919-22319 · 90919-22370 |
| 19901A | coil damping line | 19590-62030 |
| 19901B | No. 1 spark plug damper wire | 90080-91038 · 90919-15165 · 90919-15169 · 90919-15173 · 90919-15406 · 90919-15409 |
| 19901C | No. 2 spark plug damper wire | 90080-91039 · 90919-15166 · 90919-15170 · 90919-15176 · 90919-15411 |
| 19901D | No. 3 spark plug damper wire | 90080-91040 · 90919-15167 · 90919-15171 · 90919-15174 · 90919-15410 |
| 19901E | No. 4 spark plug damper wire | 90080-91041 · 90919-15168 · 90919-15172 · 90919-15177 · 90919-15261 |
| 19901F | No. 5 spark plug damper wire | 90919-15175 |
| 19901G | No. 6 spark plug damper wire | 90919-15178 |
