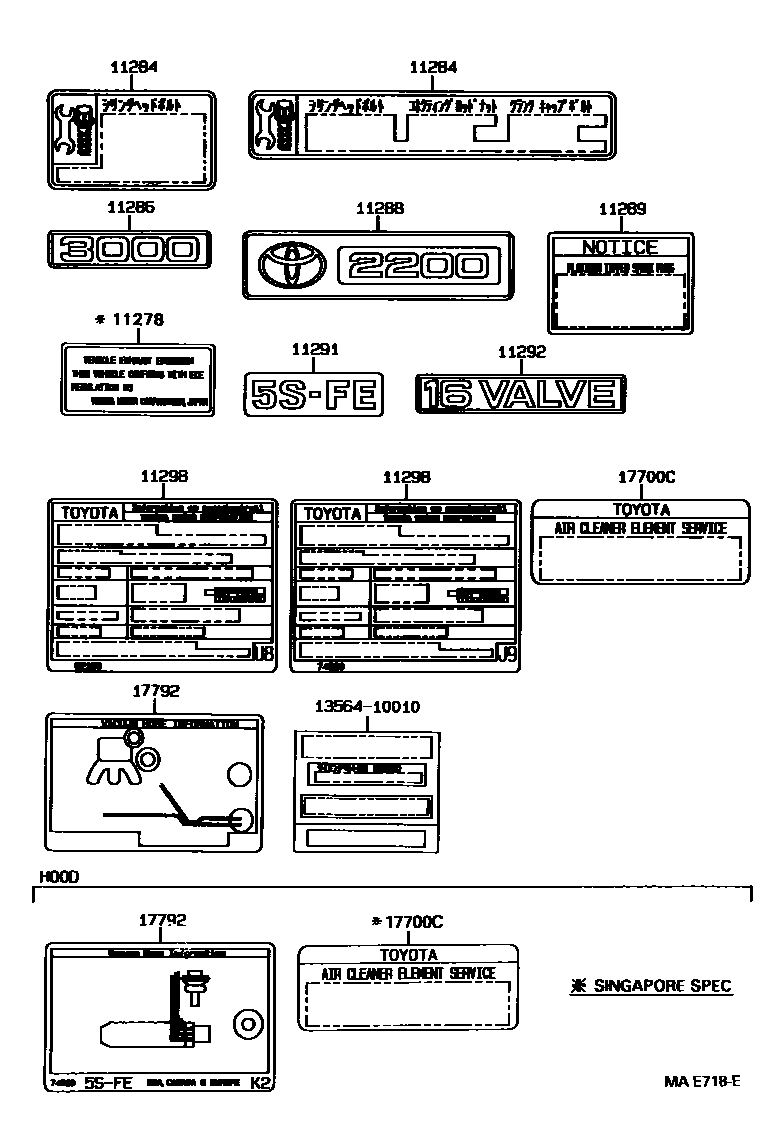

Toyota CAMRY 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota CAMRY EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11284 | Engine bolt information plate | 11284-62010 · 11284-74040 |
| 11286 | Engine specification plate | 11286-62020 |
| 11288 | Engine system nameplate | 11288-74040 · 11288-74041 |
| 11289 | Spark plug warning nameplate | 11289-73020 |
| 11291 | Engine name plate | 11291-74060 |
| 11292 | Engine No. 2 name plate | 11292-74120 · 11292-74130 |
| 11298 | Emission control information plate | 11298-62110 · 11298-74820 · 11298-74870 |
| 17700C | Air filter warning plate (for engine models) | 17791-74010 |
| 17792 | Engine vacuum hose information plate | 17792-62040 · 17792-62041 · 17792-74320 |
