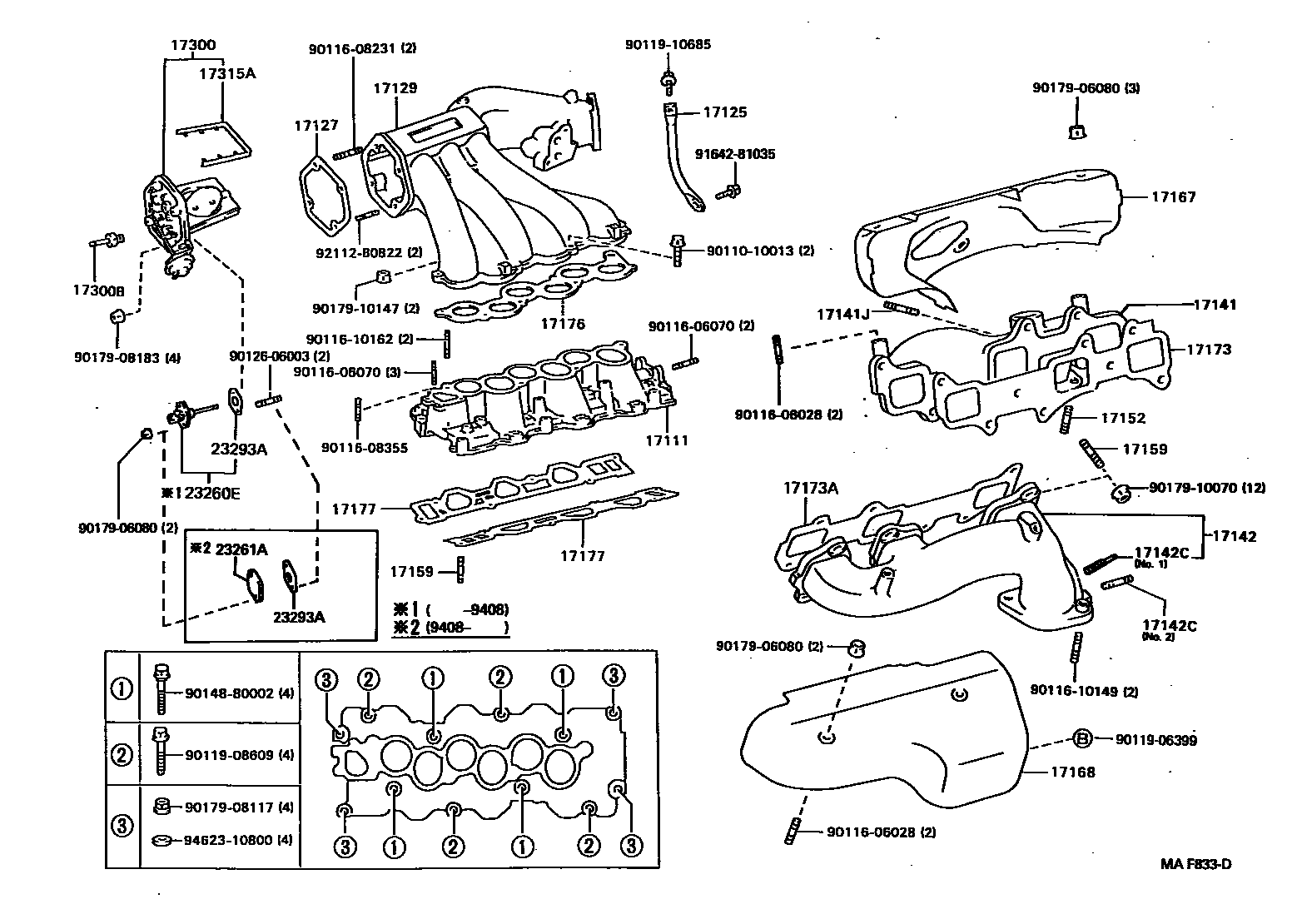

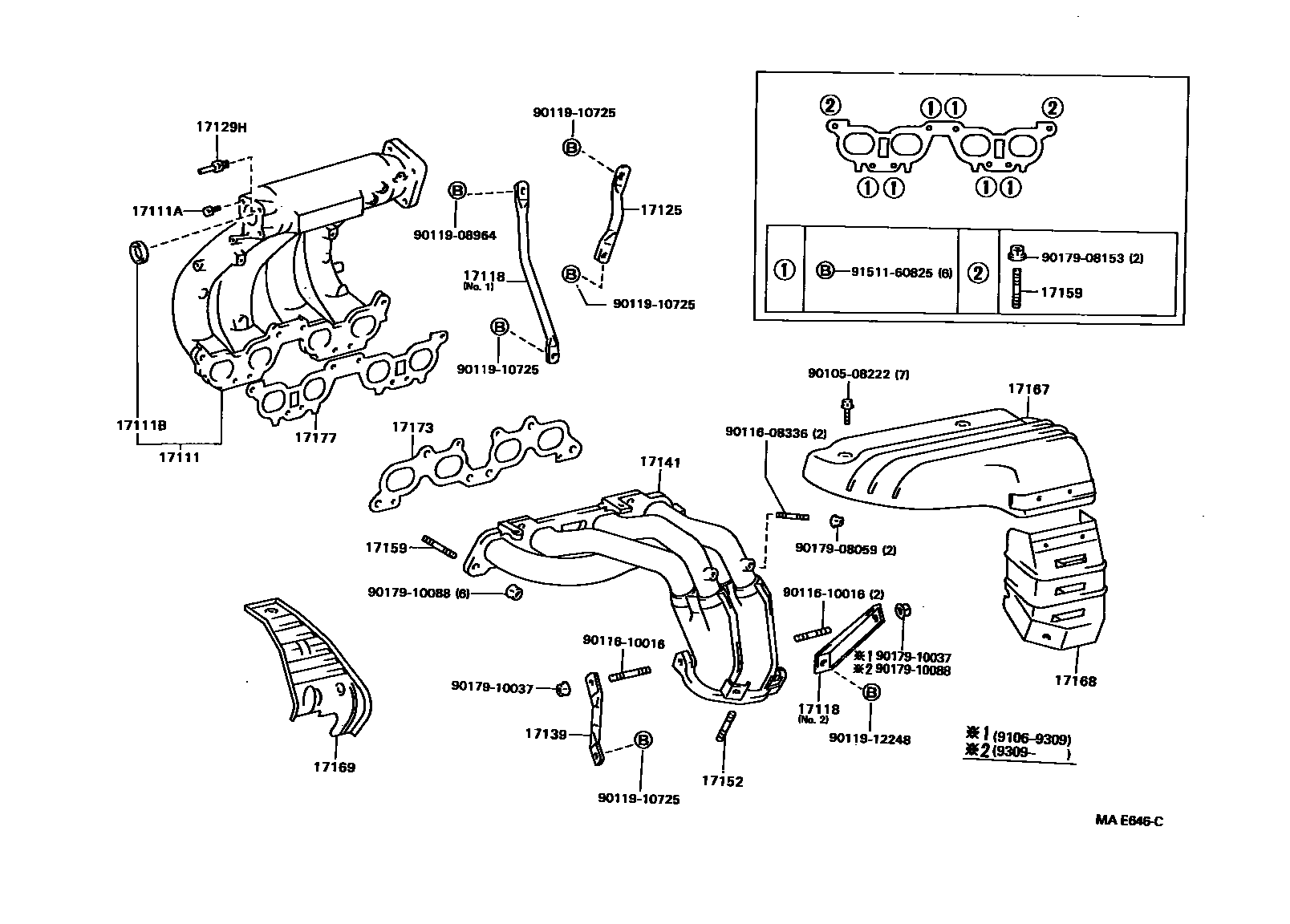

Toyota CAMRY Manifold — Figure 1701
Toyota CAMRY EPC diagram 1701, Manifold, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-62010 · 17101-74180 |
| 17111A | No. 1 screw plug | 90345-51006 |
| 17111B | No. 2 screw plug | 96411-44000 |
| 17118 | Manifold stays | 17118-03031 · 17118-74200 · 17118-74240 · 17118-74290 |
| 17125 | No. 1 pressure tank stay | 17125-03020 · 17125-62020 · 17125-74090 |
| 17127 | Pressure tank cover gasket | 17127-62030 |
| 17129 | Intake pressure tank | 17109-62030 |
| 17129H | Connector No. 4 | 90404-51026 |
| 17139 | No. 2 manifold stay | 17139-74120 |
| 17141 | exhaust manifold | 17141-62040 · 17141-74140 |
| 17141J | Studs (for right exhaust manifold) | 90116-08128 · 90126-08007 |
| 17142 | No. 2 exhaust manifold housing | 17142-62040 |
| 17142C | Studs (for left exhaust manifold) | 90116-08128 · 90126-08006 · 90126-08007 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 · 90116-10149 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08251 · 90116-10063 · 90116-10150 · 92122-60822 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-62030 · 17167-62031 · 17167-74190 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-62030 · 17168-74090 |
| 17169 | Exhaust manifold No. 3 heat shield | 17169-74020 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-62040 · 17173-74040 |
| 17173A | Left side gasket (exhaust manifold to cylinder head) | 17173-62040 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-62030 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-62050 · 17177-74070 |
| 17300 | Intake control valve assembly | 17300-62020 · 17300-62021 |
| 17300B | Connector (for intake control valve) | 90404-51072 |
| 17315A | Intake control valve gasket | 17315-62020 |
| 23260E | Cold start injector assembly | 23260-69065 |
| 23261A | Injector cover | 23261-62010 |
| 23293A | Cold start injector gasket | 23293-62030 |
