Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603

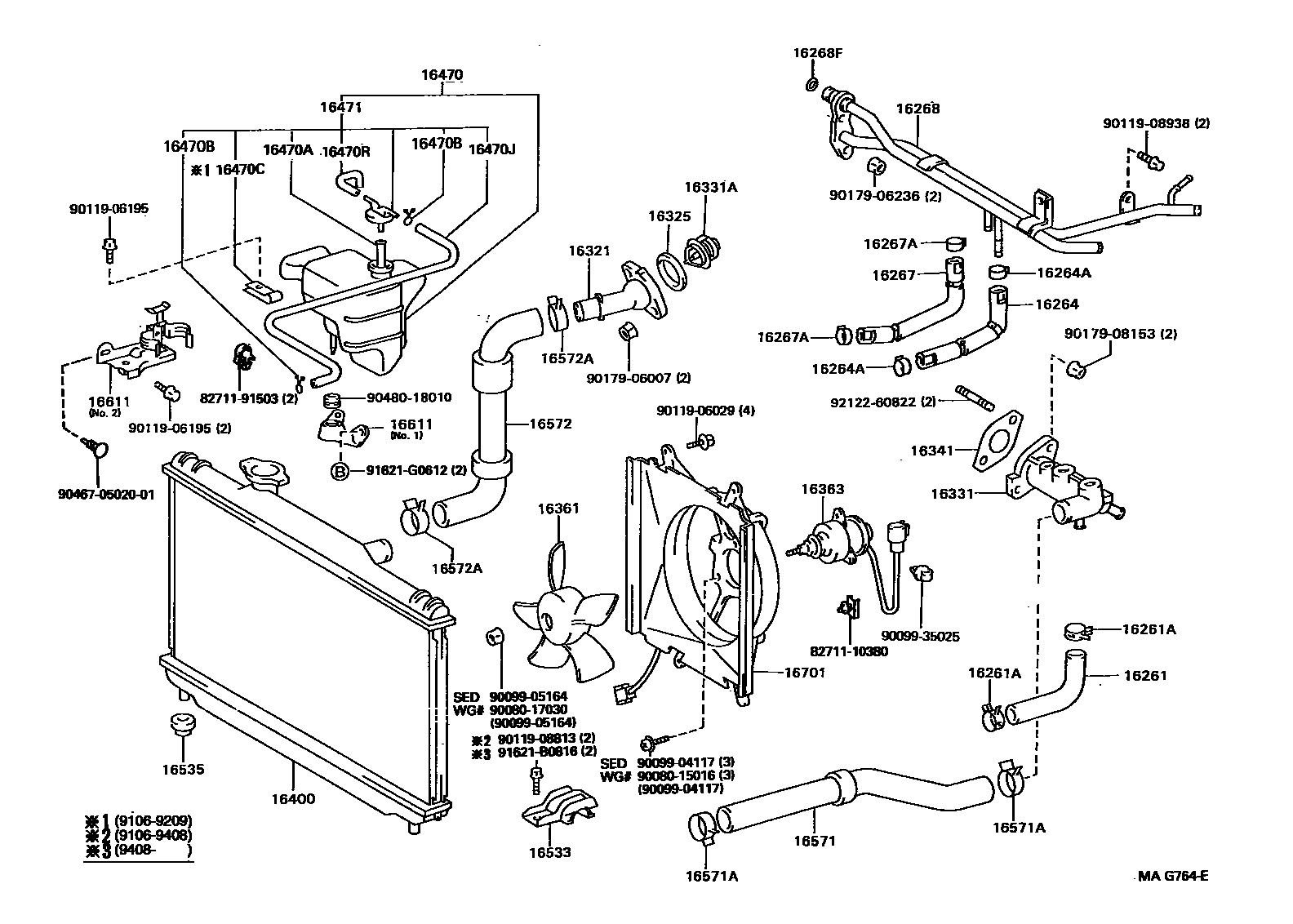

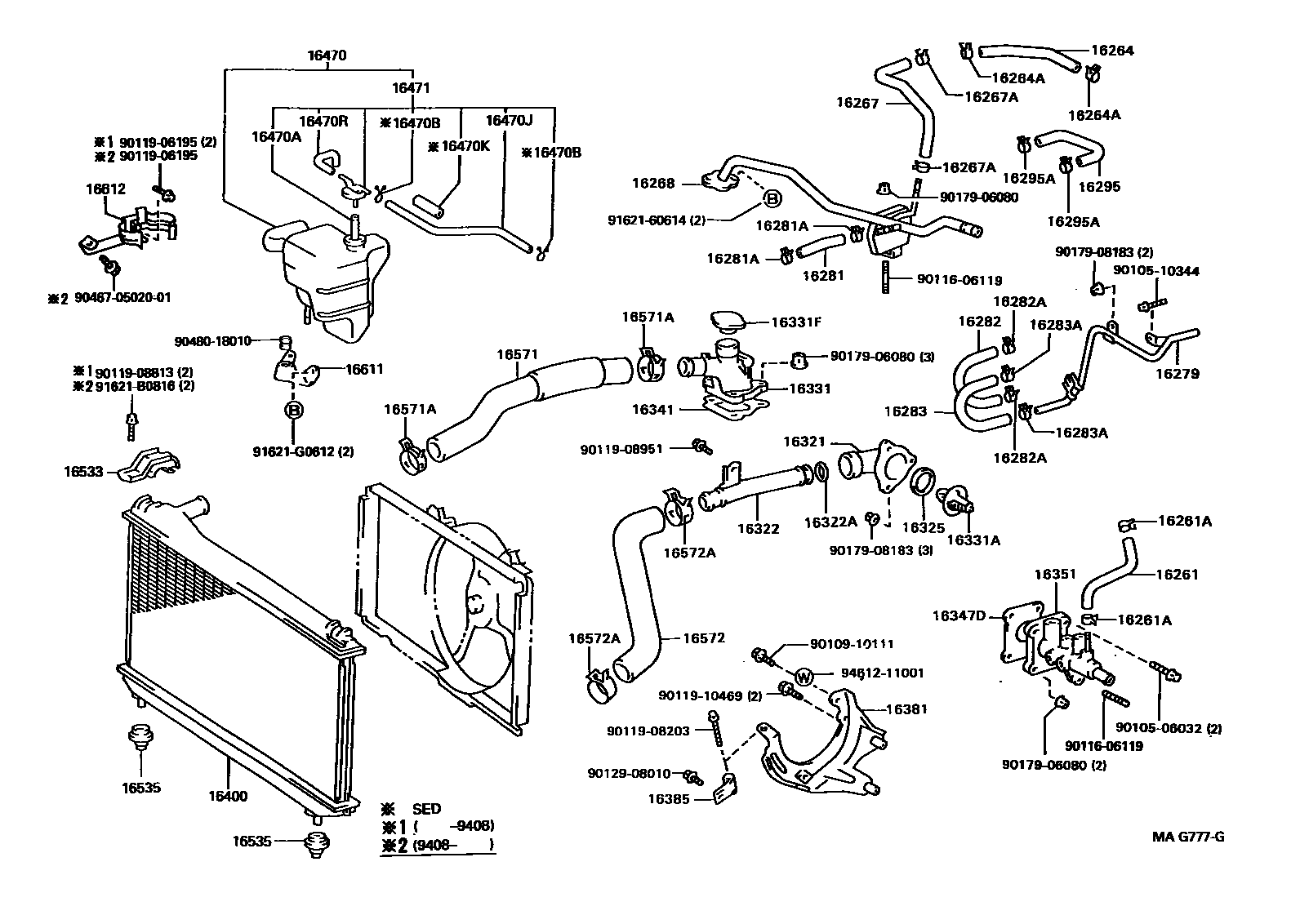

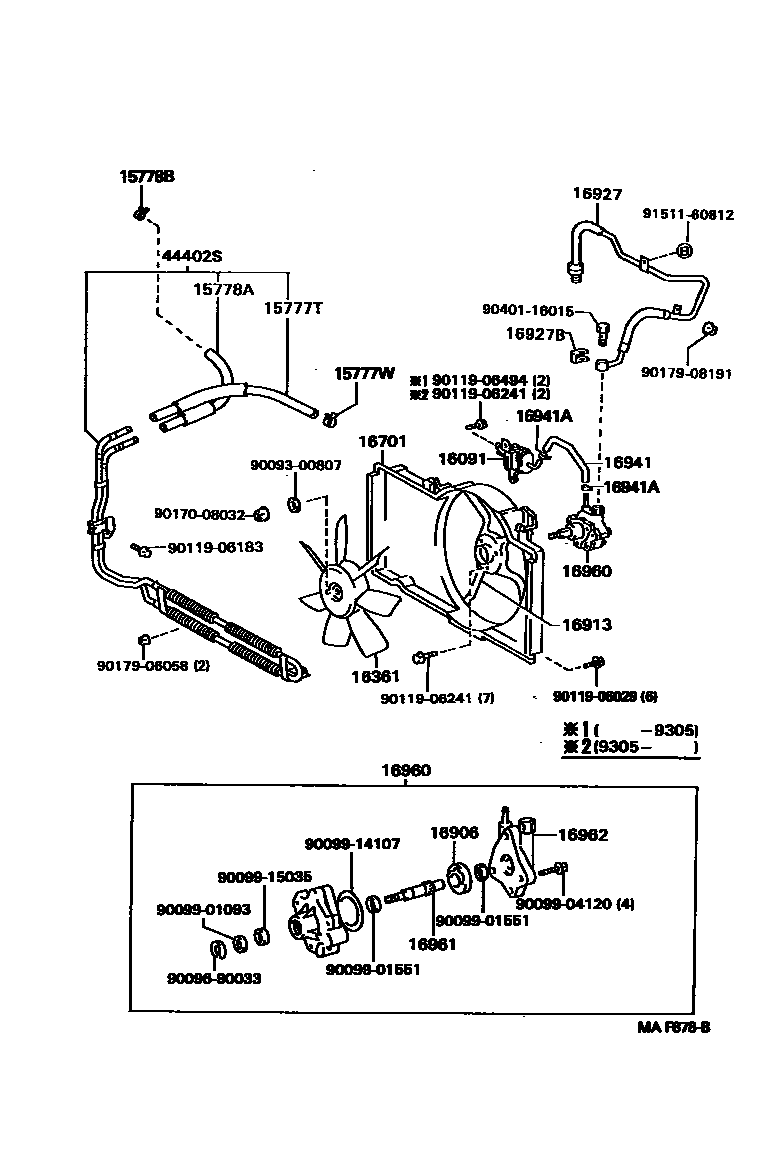

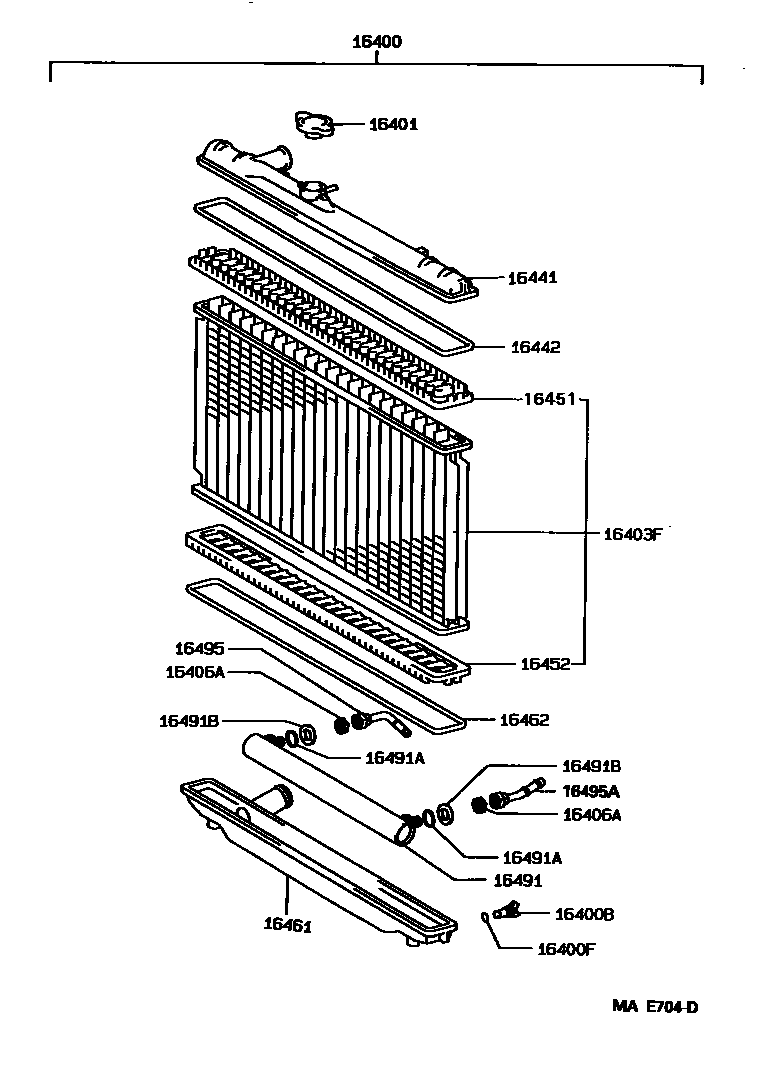

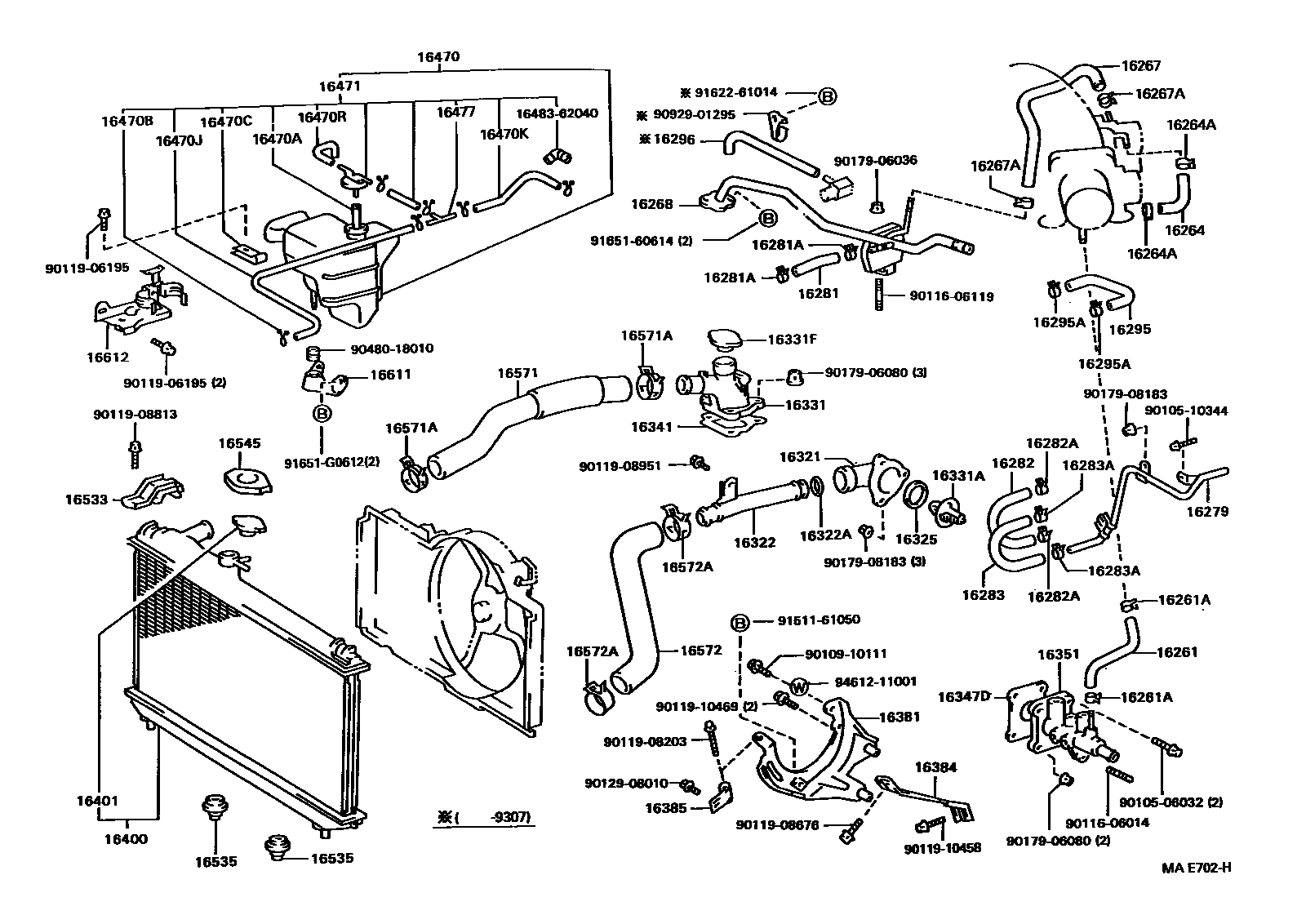

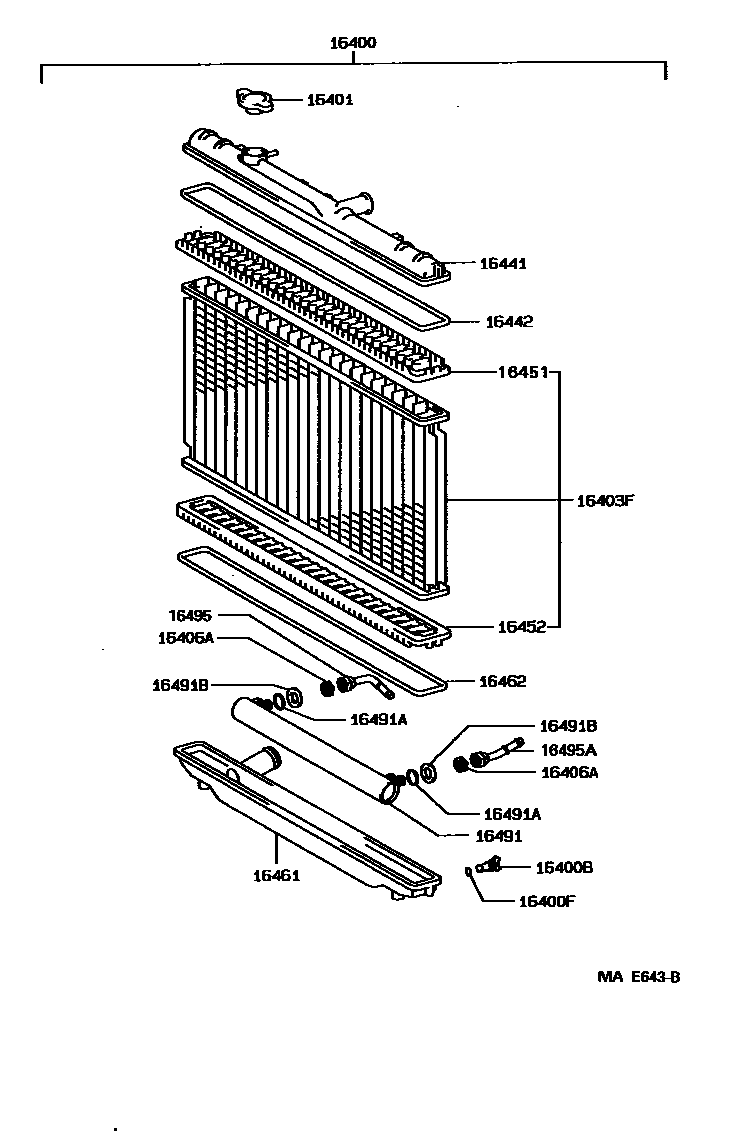

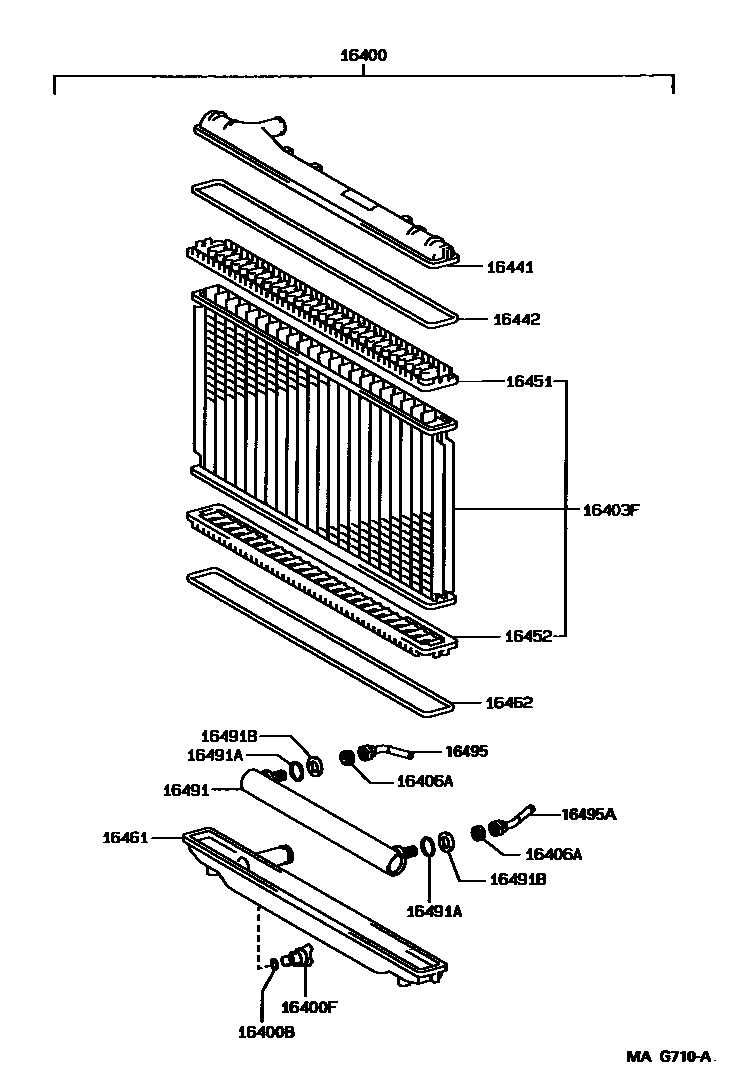

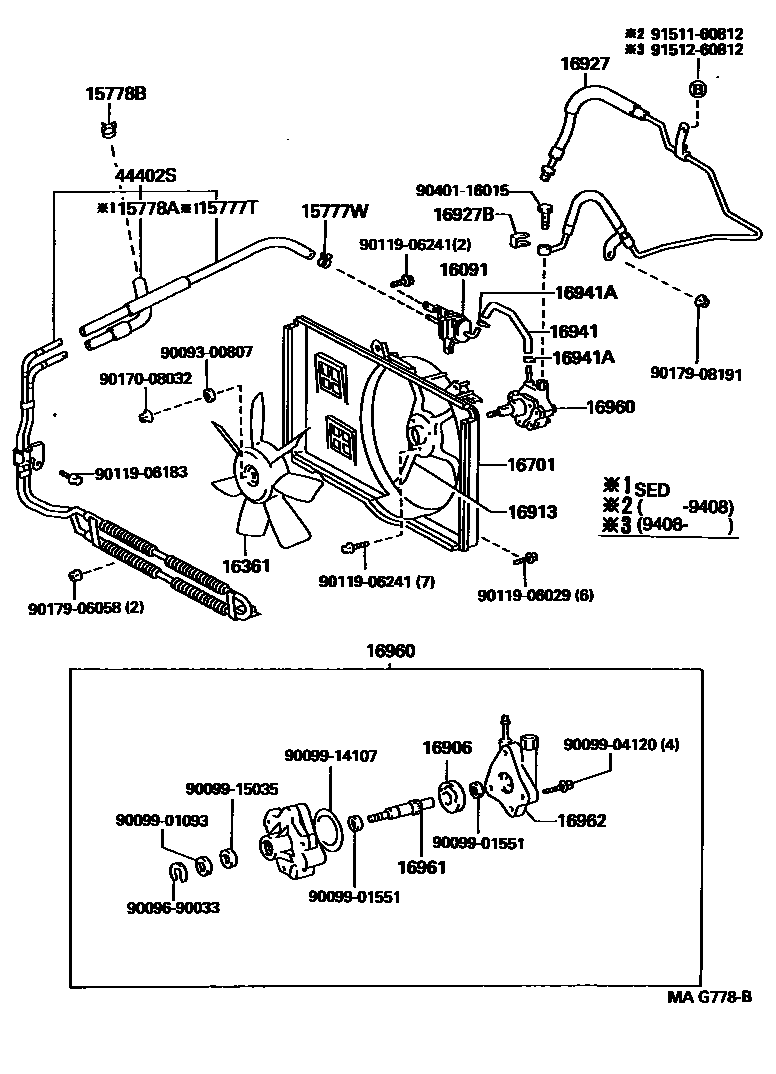

Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 8 images and 82 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15777W | Clamp (for oil return hose) | 90467-16008 · 90467-16013 |
| 15778B | Clamp (for oil return hose) | 90467-16007 |
| 16091 | Hydraulic motor oil filter sub-assembly | 16091-20010 · 16091-62020 |
| 16261 | HOSE, WATER BY-PASS | 16261-03030 · 16261-62020 · 16261-74010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-22003 · 96135-41300 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-62030 · 16264-74101 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-20005 · 96135-41300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-62020 · 16267-74081 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-20005 · 96135-41300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-03052 · 16268-62040 · 16268-74162 · 16268-74163 |
| 16268F | O-ring (for water bypass pipe) | 96761-24017 |
| 16279 | No. 3 water bypass pipe | 16279-62020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-62020 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96135-41300 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-62020 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-20005 · 90467-20011 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-62020 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90467-20005 · 90467-20011 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-62020 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 90467-20005 · 90467-20011 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-62010 |
| 16321 | water inlet | 16321-03030 · 16321-62010 · 16321-74030 |
| 16322 | PIPE, WATER INLET | 16322-62020 |
| 16322A | O-RING, WATER INLET | 96711-35031 · 96761-35031 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 · 16325-63010 · 16325-63011 |
| 16331 | Water outlet | 16331-03042 · 16331-03043 · 16331-62030 · 16331-74170 |
| 16331A | thermostat | 90916-03060 · 90916-03075 · 90916-03090 |
| 16331F | Cover assembly (for water outlet) | 16401-62090 |
| 16341 | GASKET, WATER OUTLET | 16341-03020 · 16341-62030 · 16341-63011 · 16341-74020 |
| 16347D | water bypass liner | 16347-62030 |
| 16351 | water bypass outlet | 16351-62040 · 16351-62041 |
| 16361 | Fan | 16361-03050 · 16361-74060 · 16911-64010 |
| 16363 | cooling fan motor | 16363-03040 · 16363-11020 |
| 16381 | Fan belt adjustment lever | 16381-62020 · 16381-62021 |
| 16384 | Fan belt adjustment lever bracket | 16384-62040 · 16384-62050 · 88444-33012 |
| 16385 | Fan belt adjustment slider | 16385-62010 |
| 16400 | Radiator assembly | 16400-03050 · 16400-03060 · 16400-03061 · 16400-07030 · 16400-07040 · 16400-07060 · 16400-07070 · 16400-07071 · 16400-74750 · 16400-74760 |
| 16400B | Radiator drain switch screw plug | 23322-54010 · 90080-34002 |
| 16400F | Seal (for radiator drain switch) | 90080-30011 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-62100 · 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-03020 · 16403-74760 |
| 16406A | Bracket (for transmission oil cooler) | 16406-03010 · 16406-62060 |
| 16441 | Radiator water tank | 16441-03020 · 16441-07020 · 16441-07030 · 16441-74760 |
| 16442 | O-ring (for radiator tank) | 16442-03010 · 16442-74760 |
| 16451 | Radiator core upper plate | 16451-03010 · 16451-74760 |
| 16452 | Radiator core lower plate | 16452-03010 · 16452-74760 |
| 16461 | Radiator lower tank | 16461-03050 · 16461-03060 · 16461-07030 · 16461-07040 · 16461-74750 · 16461-74760 |
| 16462 | O-ring (for radiator lower tank) | 16462-03010 · 16462-46040 |
| 16470 | Radiator reservoir assembly | 16470-03030 · 16470-03050 · 16470-07020 · 16470-0A010 · 16470-62040 · 16470-74180 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16472-03010 · 90445-12078 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470C | Bracket (for radiator reservoir) | 16471-74180 |
| 16470J | No. 3 hose (for radiator reservoir) | 16472-03030 · 16472-0A020 · 16478-74180 · 16479-62040 · 90099-33534 · 90445-12078 |
| 16470K | No. 4 hose (for radiator reservoir) | 16478-62040 |
| 16470R | No. 2 hose (for radiator reservoir) | 16472-03020 · 16472-0A010 · 16477-74180 · 16479-74180 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-03050 · 16405-07020 · 16405-0A010 · 16405-62030 · 16405-74170 |
| 16477 | Tube (for radiator reservoir) | 16477-62040 |
| 16491 | Oil cooler (for ATM) | 16491-03010 · 16491-0A020 · 16491-54790 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-03010 · 16492-50020 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-03010 · 16493-62060 |
| 16495 | Oil line nut (for automatic transmission oil cooler) | 16495-03010 · 16495-0A040 · 16495-74760 |
| 16495A | No. 2 oil pipe nut (for automatic transmission oil cooler) | 16495-03030 · 16495-03050 · 16497-74760 |
| 16533 | Radiator upper bracket | 16533-74190 |
| 16535 | Radiator lower support | 16535-0A010 · 16535-62030 · 16535-62031 · 16535-74120 · 16535-74121 · 16535-74122 |
| 16545 | radiator cover | 16545-62011 |
| 16571 | Radiator water inlet hose | 16571-03030 · 16571-03031 · 16571-07010 · 16571-74190 · 16571-74191 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-33002 · 90467-33004 · 90467-34003 · 90467-37002 |
| 16572 | Radiator outlet hose | 16572-03030 · 16572-03031 · 16572-03032 · 16572-07010 · 16572-74180 · 16572-74181 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-33002 · 90467-33004 · 90467-34003 · 90467-37002 |
| 16611 | Radiator reservoir bracket | 16611-03020 · 16611-74080 · 16612-03010 · 16612-03020 · 16612-74010 · 16612-74020 |
| 16612 | No. 2 radiator reservoir bracket | 16612-03010 · 16612-03020 |
| 16701 | Fan cover sub-assembly | 16711-03050 · 16711-74410 · 16912-20010 · 16912-62020 |
| 16906 | Hydraulic gear set | 16906-50010 · 16906-50020 · 16906-50030 |
| 16913 | Hydraulic motor fan cover stay | 16913-62020 |
| 16927 | hydraulic motor pressure hose | 16927-07010 |
| 16927B | Gasket (for pressure hose) | 44327-12010 · 44327-30030 |
| 16941 | No. 1 hydraulic motor oil return hose | 16941-62020 |
| 16941A | Clamp (for No. 1 oil return hose) | 90467-16008 · 90467-16013 |
| 16960 | Hydraulic gear motor assembly | 16960-62010 |
| 16961 | Hydraulic gear motor shaft | 16961-50010 |
| 16962 | Hydraulic gear motor cover | 16962-62010 |
| 44402S | Oil cooler sub-assembly | 44402-06010 |
