Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 2 images and 2 PNC and OE references.

Toyota CAMRY Oil Filter EPC diagram — MAD372A
Oil Filter — MAD372A (199106 – 999999)

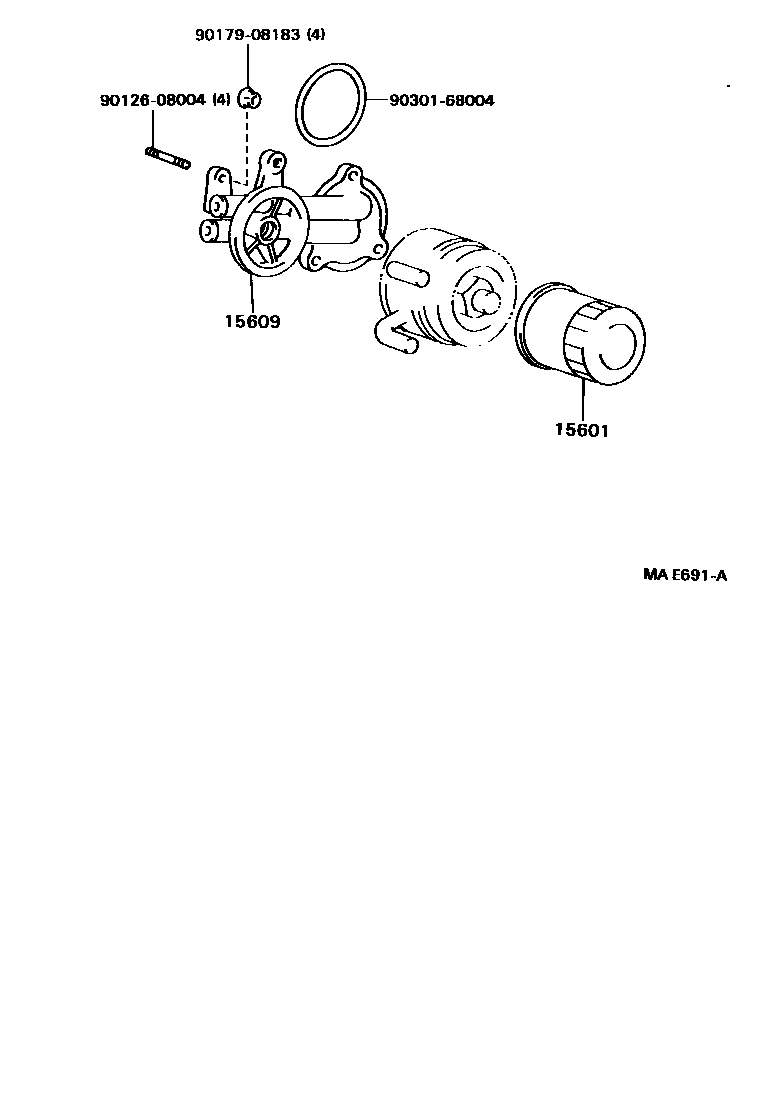

Toyota CAMRY Oil Filter EPC diagram — MAE691A
Oil Filter — MAE691A (199106 – 999999)

PNC and OE references

PNCPart nameOE numbers
15601Oil filter sub-assembly90080-91034 · 90080-91058 · 90915-03001 · 90915-03002 · 90915-10001 · 90915-20001
15609Oil filter bracket sub-assembly15671-62030
