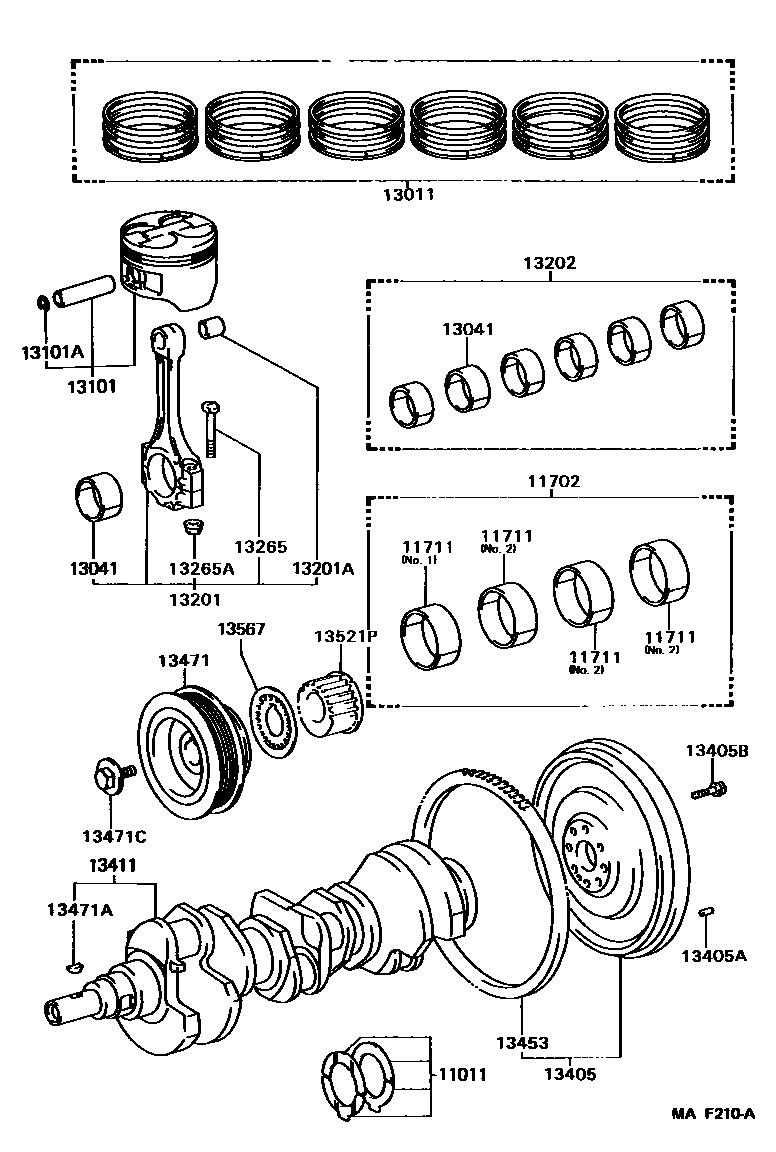

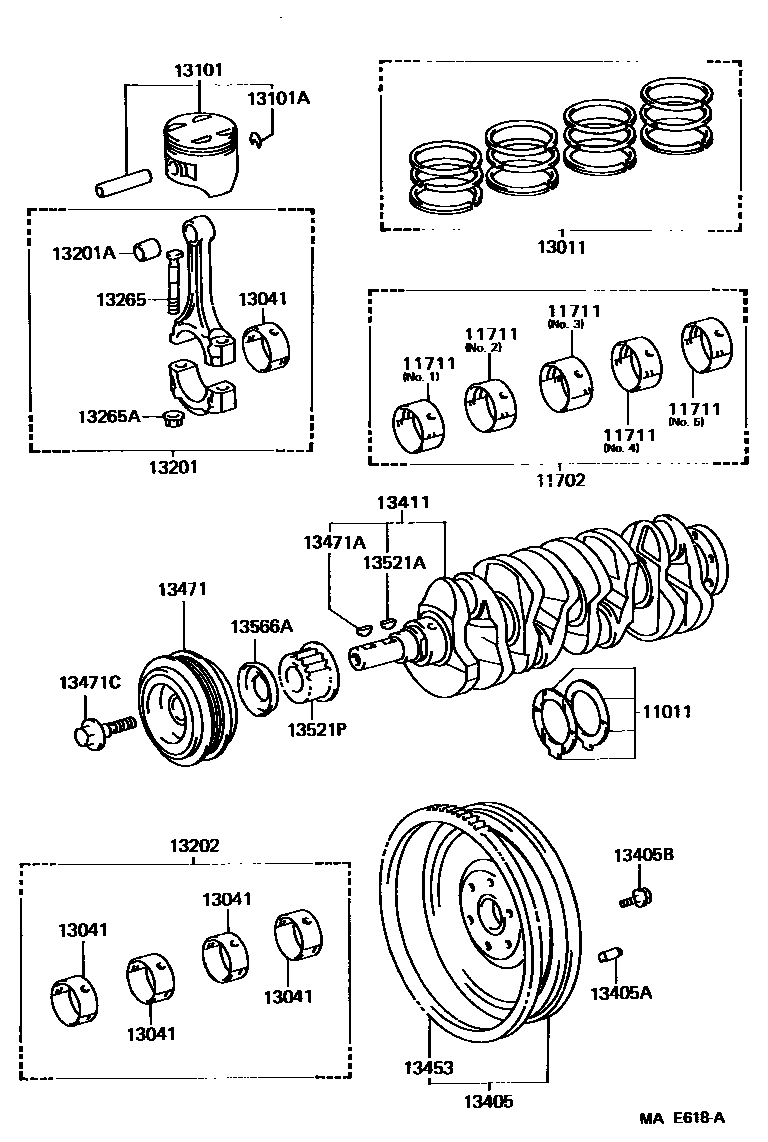

Toyota CAMRY Crankshaft & Piston — Figure 1301
Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-62010 · 11011-74020 |
| 11702 | crankshaft bearing assembly | 11704-62020 · 11704-62021 · 11704-62022 · 11704-63021 |
| 13011 | Piston ring assembly | 13011-62060 · 13011-65021 · 13011-74190 · 13011-74290 · 13013-62060 · 13013-65021 · 13013-74190 · 13013-74290 |
| 13101 | Piston sub-assembly with pin | 13103-62040 · 13103-74140 |
| 13101A | Bore snap ring (for piston pin) | 90521-25004 |
| 13201 | Connecting rod sub-assembly | 13201-09040 · 13201-69125 · 13201-79146 |
| 13201A | Bushing (for connecting rod small end) | 90999-73112 · 90999-73130 |
| 13202 | Connecting rod bearing assembly | 13204-62020 · 13204-74030 |
| 13265 | Connecting rod bolts | 13265-62030 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-08118 |
| 13405 | Flywheel sub-assembly | 13405-03010 · 13405-62020 · 13405-74120 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10071 · 90105-10138 |
| 13411 | crankshaft | 13401-03010 · 13401-03011 · 13401-62010 · 13401-74010 · 13401-74011 |
| 13453 | flywheel ring gear | 13453-03020 · 13453-74011 |
| 13471 | crankshaft pulley | 13408-03010 · 13408-62030 · 13408-74041 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05005 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-16031 · 90119-14015 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 |
| 13521P | crankshaft timing pulley | 13521-03020 · 13521-62020 · 13521-74020 |
| 13566A | timing belt guide | 13567-74010 |
| 13567 | No. 2 timing belt guide | 13567-62010 |

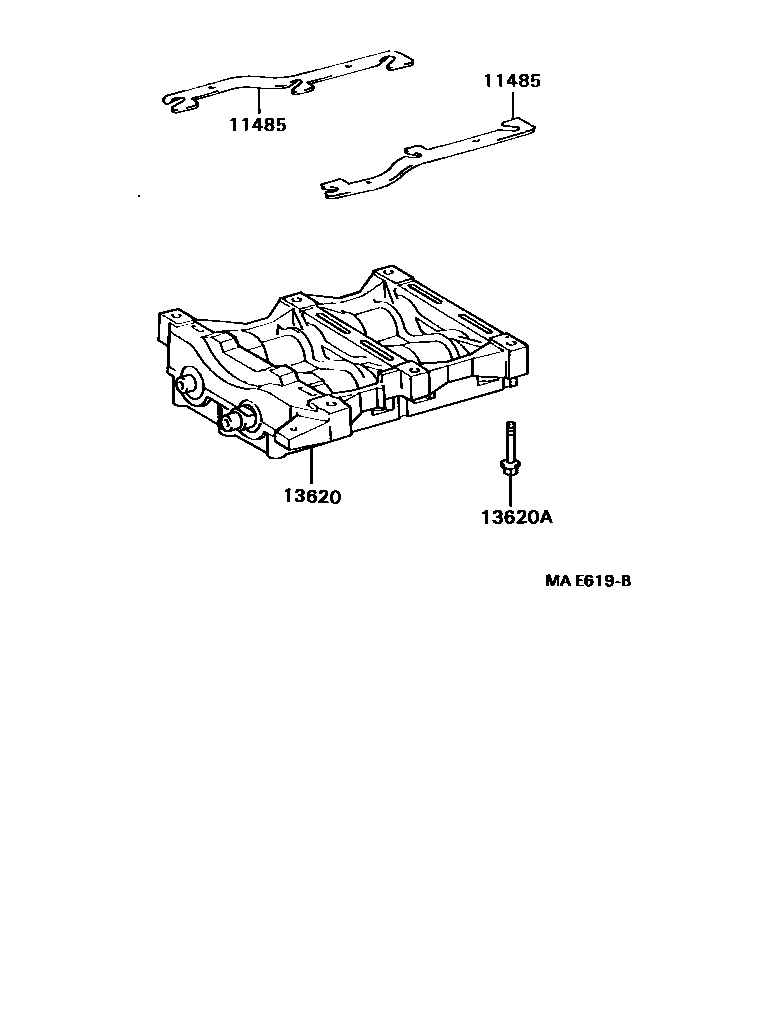

| 13620 | Engine balancer assembly | 13620-74010 · 13620-74011 |
| 13620A | Bolt with washer (for balancer assembly assembly) | 90119-10687 |
