Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 3 images and 2 PNC and OE references.

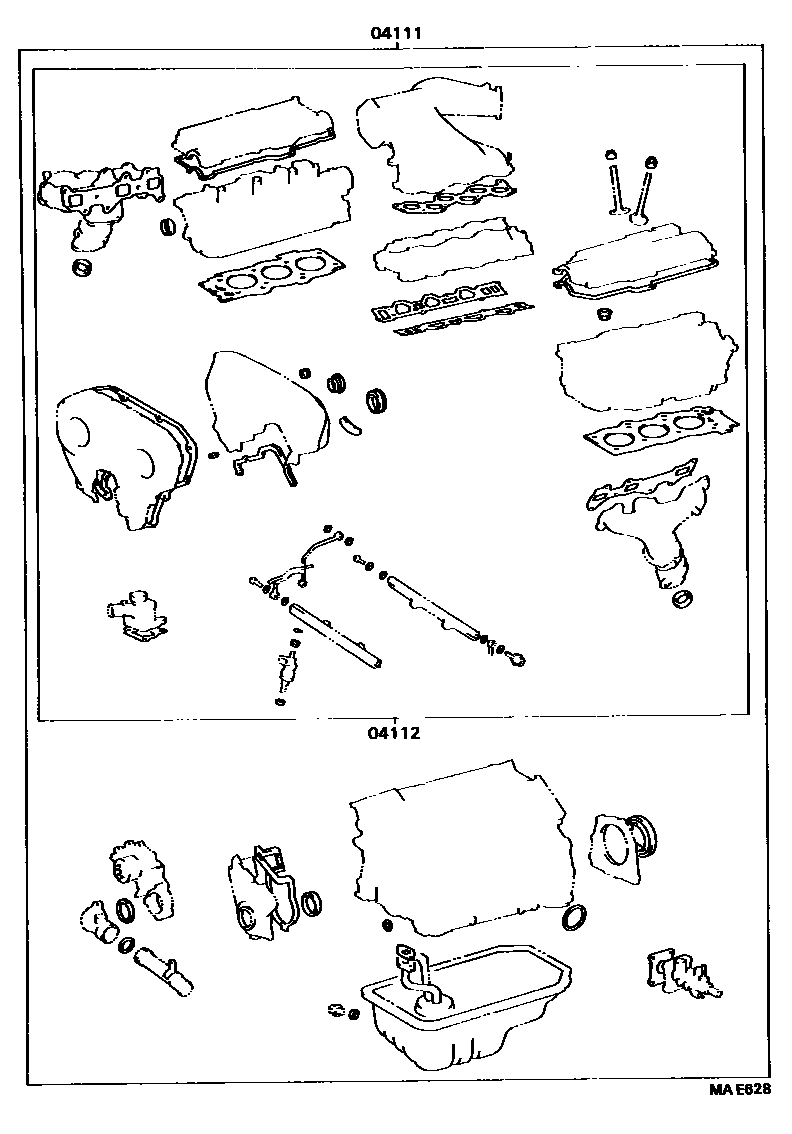

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MAE628 — Engine Overhaul Gasket Kit — MAE628 (199106 – 999999)

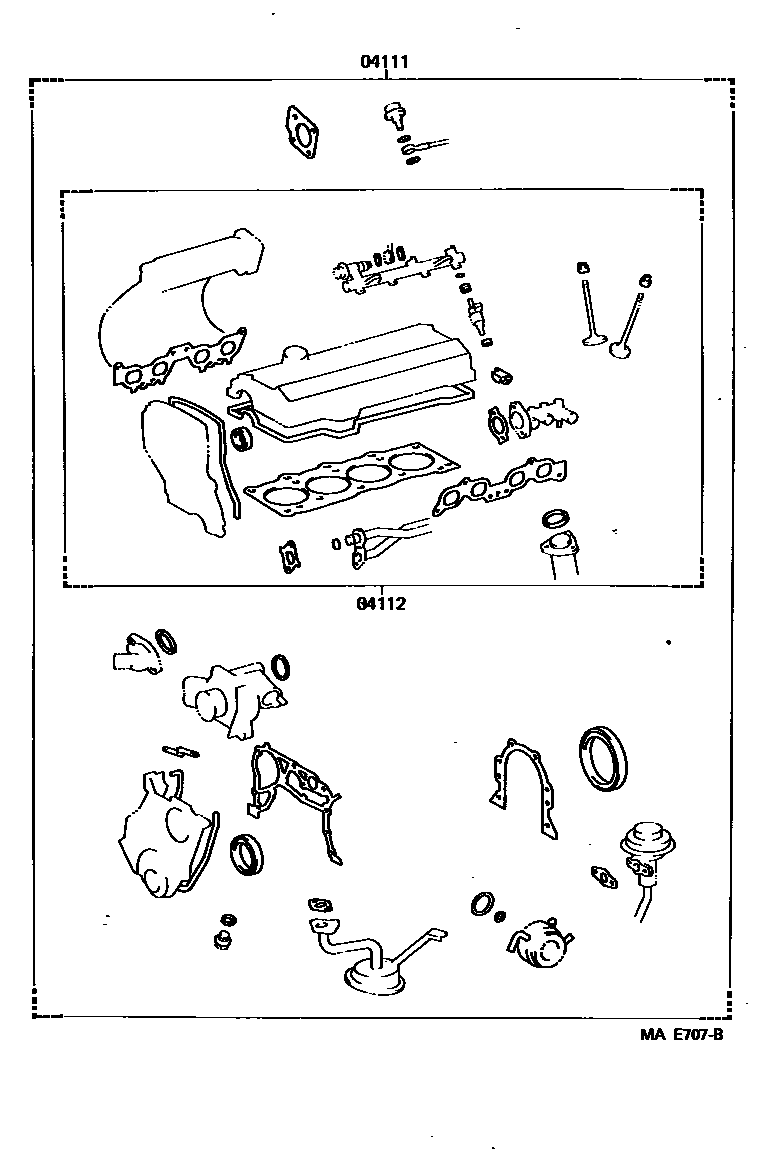

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MAE707B — Engine Overhaul Gasket Kit — MAE707B (199106 – 199508)

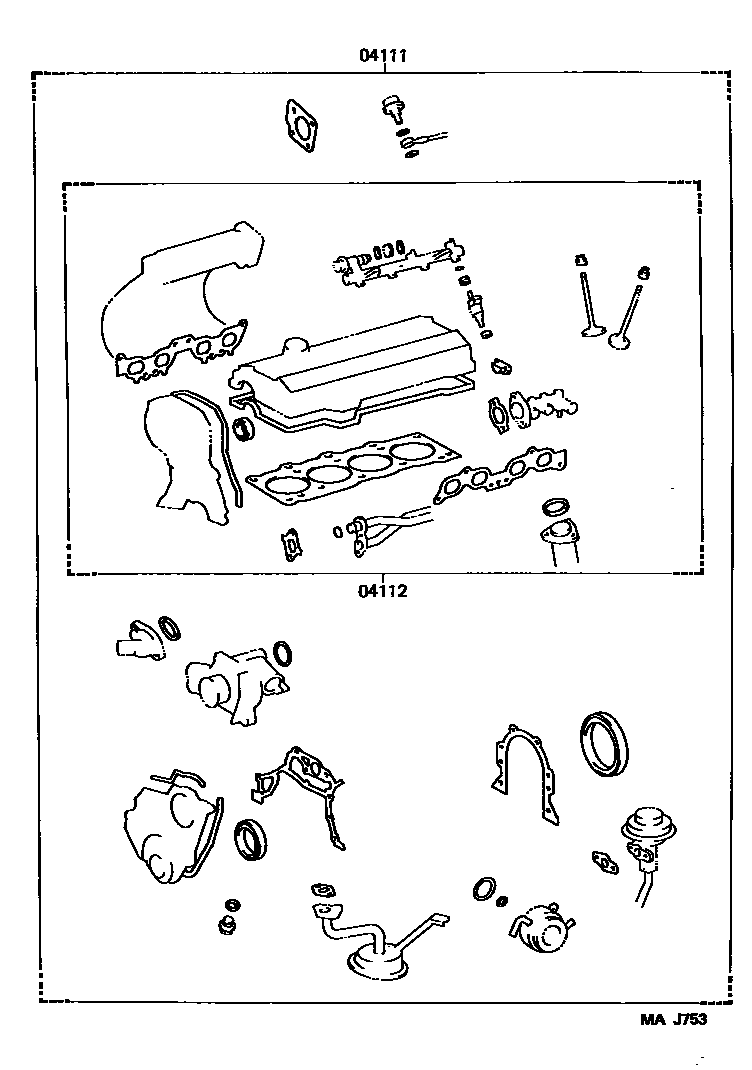

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MAJ753 — Engine Overhaul Gasket Kit — MAJ753 (199508 – 999999)

PNC and OE references

PNC	Part name	OE numbers
04111	Engine overhaul gasket assembly	04111-62050 · 04111-74300 · 04111-74620
04112	Engine valve grinding pad assembly	04112-62040 · 04112-74290 · 04112-74580
