Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

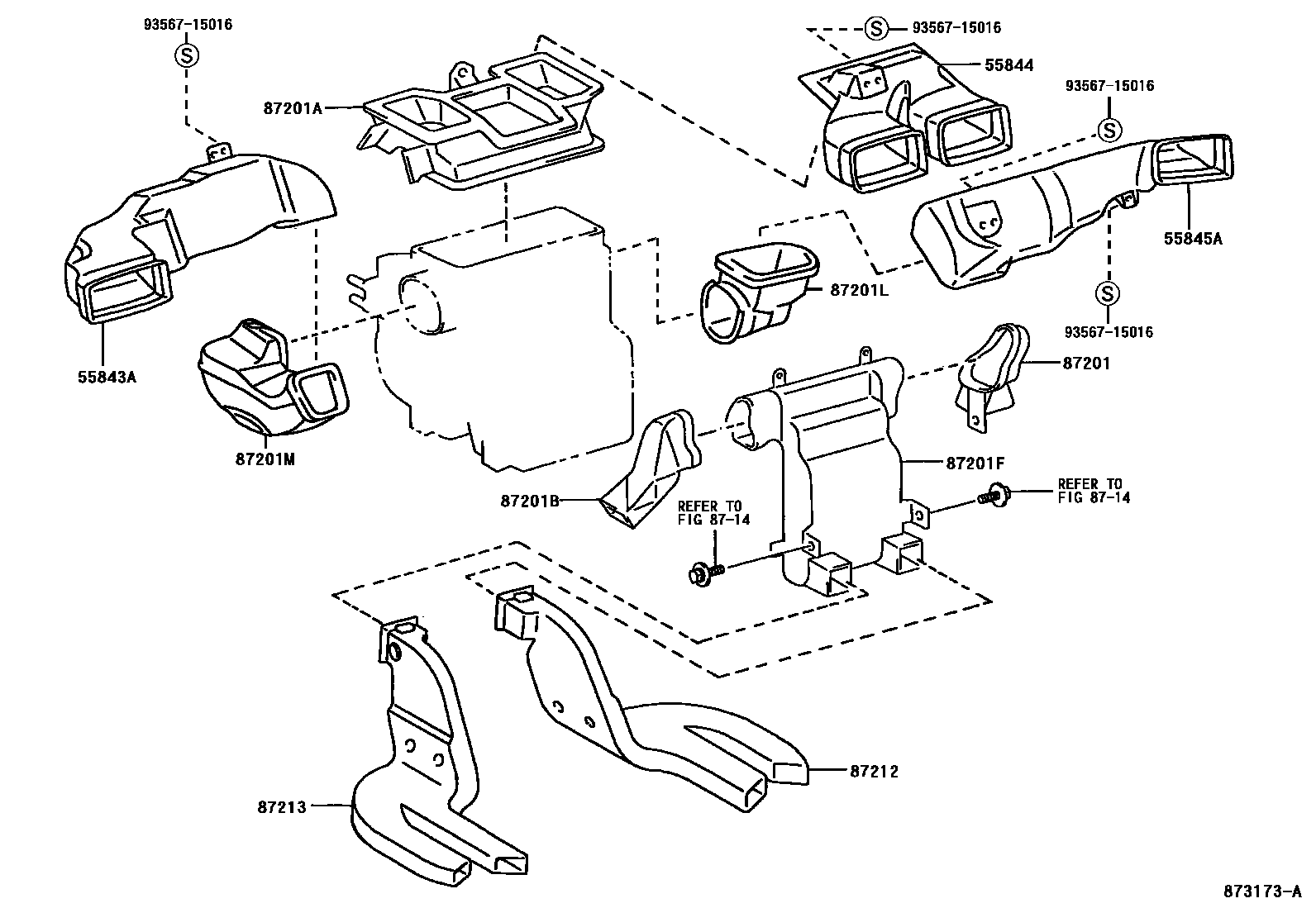

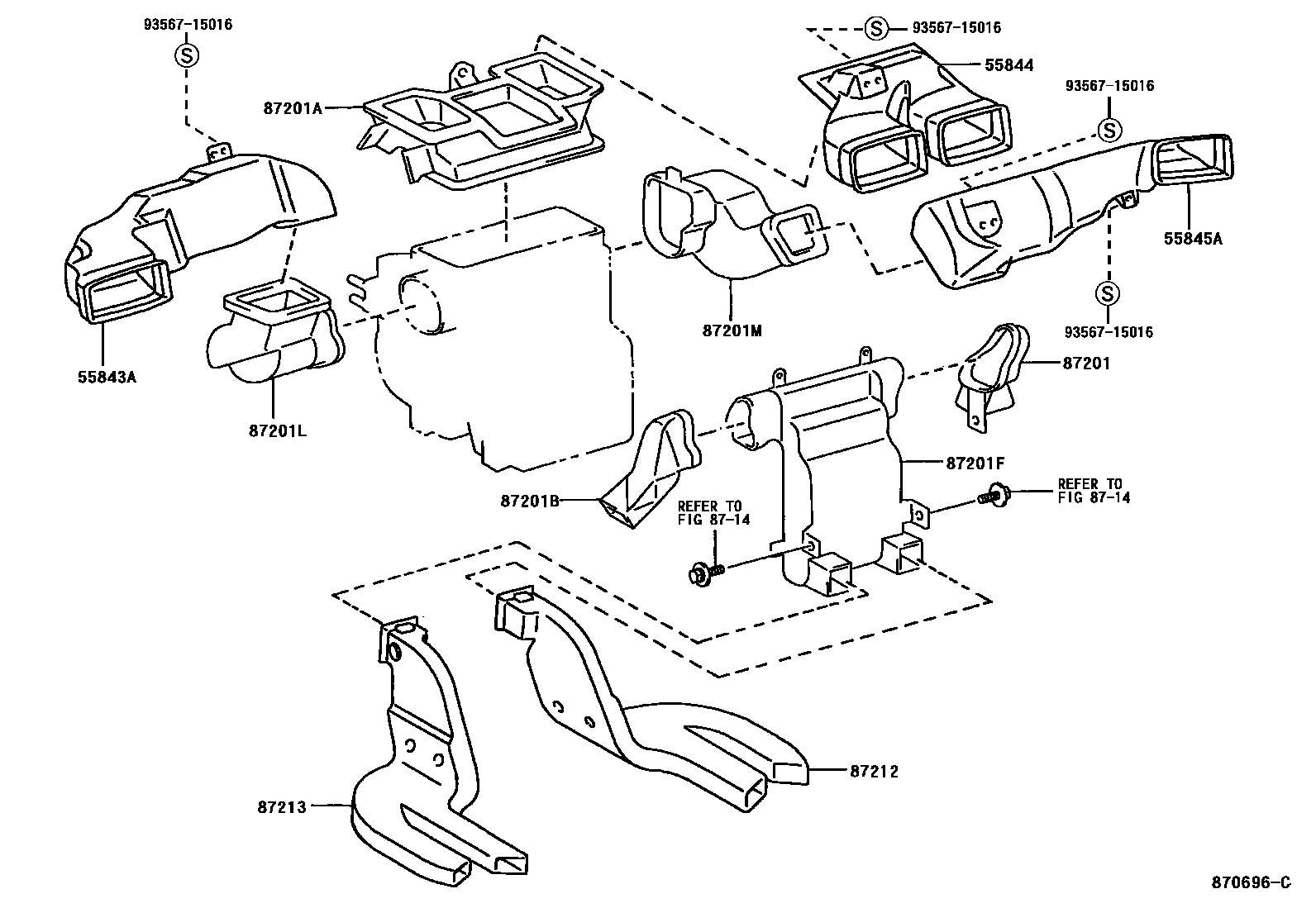

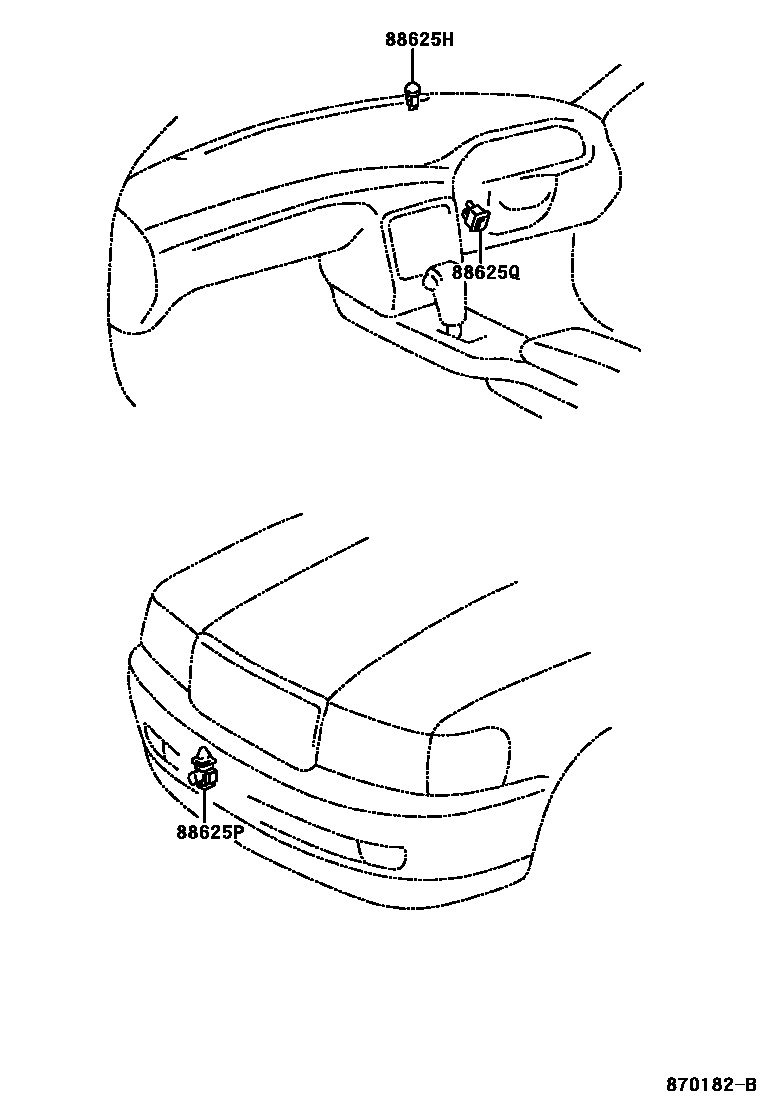

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-33050 · 55843-33060 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-33070 · 55844-33080 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-33050 · 55845-33060 |
| 55900B | air conditioning control light bulb | 90010-03003 · 90010-03004 |
| 55902B | Heater control sub-assembly | 55902-33170 |
| 55905A | Heater control button | 55905-33230 |
| 55912A | heater control housing | 55912-33020 |
| 55912C | heater control housing | 55912-33030 |
| 55941 | heater controller bracket | 55938-33010 · 55938-33020 |
| 87201 | No. 1 air duct sub-assembly | 87201-33130 · 87211-41010 |
| 87201A | Air duct sub-assembly | 87201-33150 · 87201-33160 |
| 87201B | No. 2 air duct sub-assembly | 87201-33140 · 87201-33210 |
| 87201F | No. 3 air duct sub-assembly | 87201-33100 · 87201-33220 |
| 87201L | No. 4 air duct sub-assembly | 87201-33170 · 87201-33180 |
| 87201M | No. 5 air duct sub-assembly | 87201-33190 · 87201-33200 |
| 87212 | No. 1 rear air duct | 87212-06010 · 87212-33010 |
| 87213 | No. 2 rear air duct | 87213-06010 · 87213-33010 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-41010 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88625-16200 · 88790-22130 · 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-20490 |
| 88650M | Air conditioning ECU assembly | 88650-33260 · 88650-33340 |
