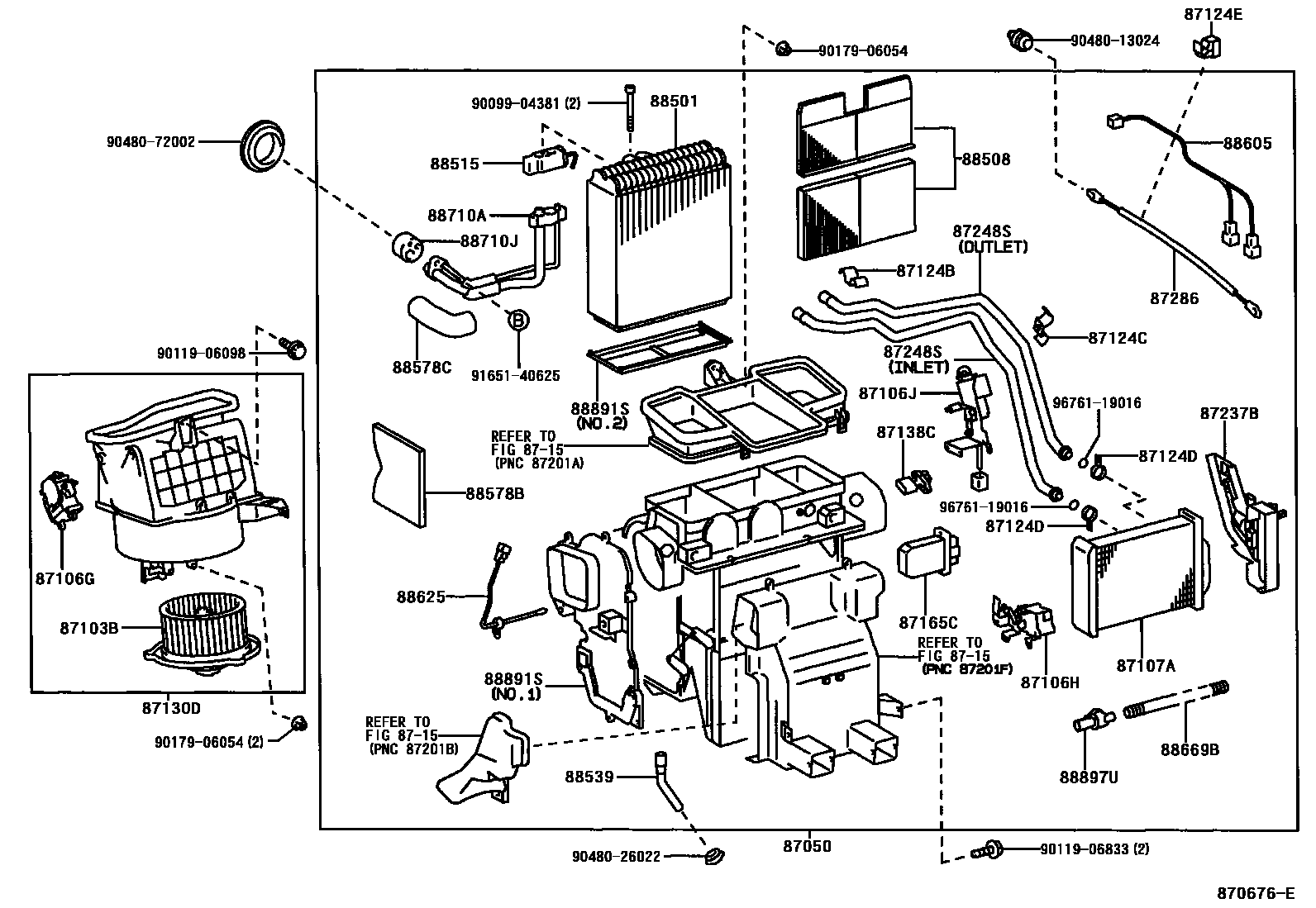

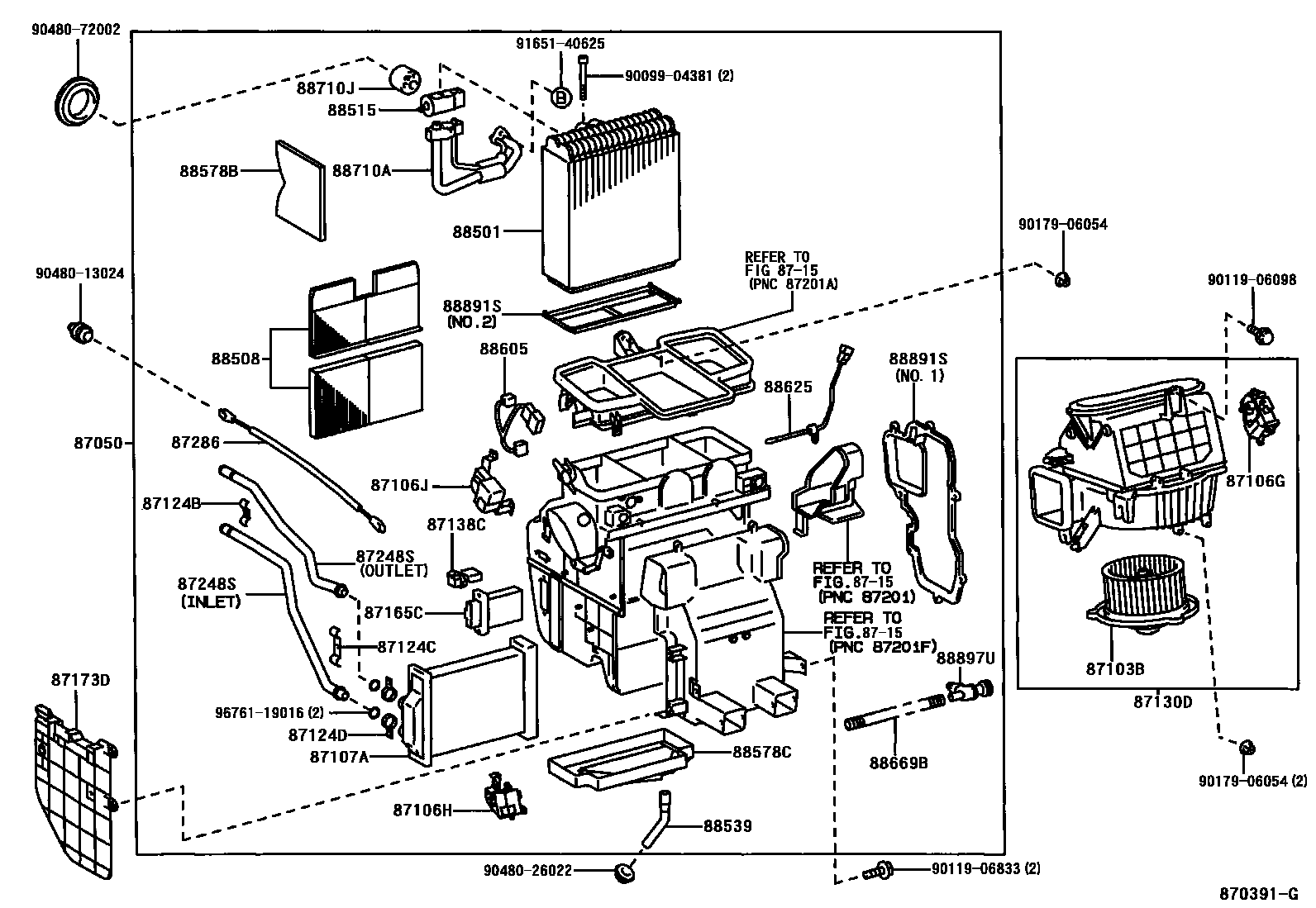

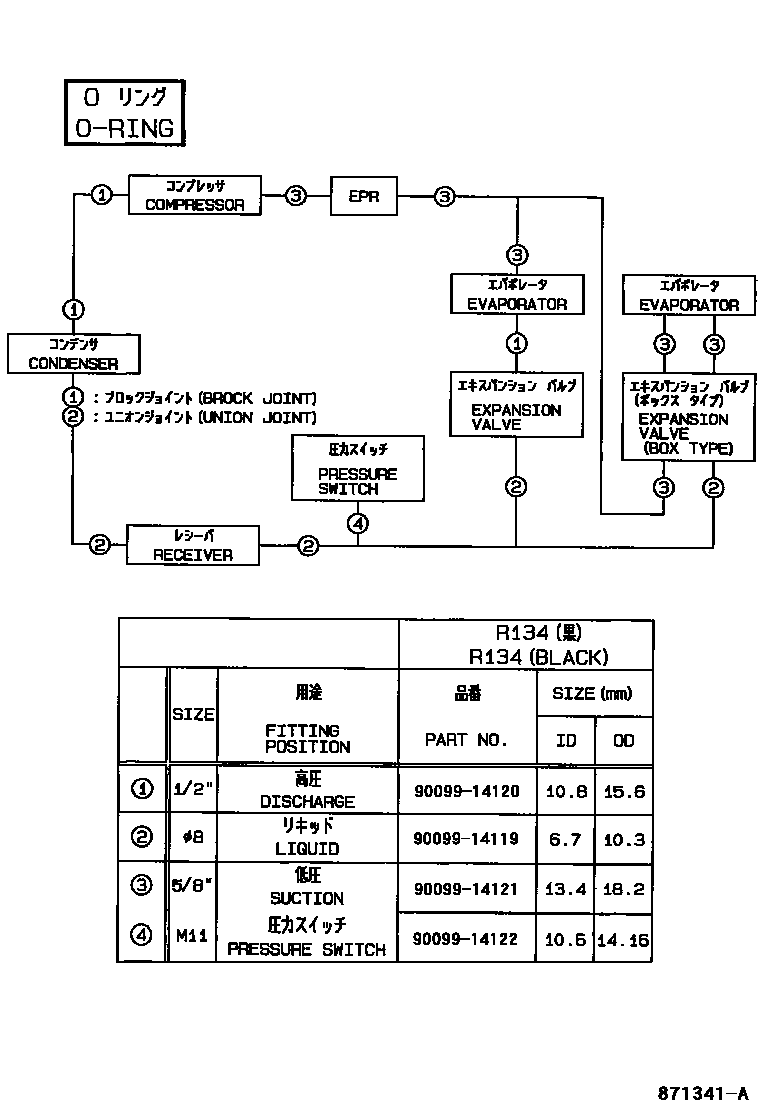

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-33370 · 87050-33380 · 87050-33410 |
| 87103B | Blower motor sub-assembly with fan | 87103-33030 · 87103-33031 · 87103-33040 · 87103-33041 · 87103-33050 · 87103-33060 · 87103-44010 · 87103-44020 |
| 87106G | Damper servo mechanism sub-assembly (for blower) | 87106-33170 · 87106-33190 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-33150 · 87106-33160 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-33010 · 87106-33130 |
| 87107A | Heater radiator device sub-assembly | 87107-33040 · 87107-33050 |
| 87124B | heater clip | 87124-33020 · 87124-33040 |
| 87124C | heater clip | 87124-33030 · 87124-33040 |
| 87124D | No. 3 heater clip | 87124-35040 |
| 87124E | heater clip | 87124-33010 |
| 87130D | Blower assembly | 87130-33110 · 87130-33111 · 87130-33130 · 87130-33131 |
| 87138C | Blower resistor | 87138-33040 |
| 87165C | Blower motor control device | 87165-32010 · 87165-33010 |
| 87173D | Heater protection device | 87173-33010 |
| 87237B | Heater connection cover | 87237-33020 |
| 87248S | Front heater radiator water pipe | 87156-33010 · 87156-33020 · 87156-33030 · 87156-33040 |
| 87286 | control cable | 87286-33040 · 87286-33050 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-33070 |
| 88508 | Air purification filter sub-assembly | 88880-33040 · 88880-33060 |
| 88515 | Cooler expansion valve | 88515-20100 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-33010 · 88539-33030 |
| 88578B | Cooling unit seal No. 1 | 88578-33020 |
| 88578C | No. 2 cooling unit seal | 88578-33040 · 88578-33070 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-33070 · 88605-33080 |
| 88625 | Cooler No. 1 Thermistor | 88625-33060 · 88625-33070 |
| 88669B | Cooler air hose | 88669-33050 |
| 88710A | Air conditioning pipe assembly | 88710-33100 · 88710-33110 |
| 88710J | air conditioning connector tube | 88710-33160 · 88710-33170 |
| 88891S | Cooler cover No. 1 | 88891-33011 · 88891-33021 · 88891-33030 |
| 88897U | aspirator tube | 88897-12210 |
