Toyota CAMRY 前大灯清洗器 — Figure 8505

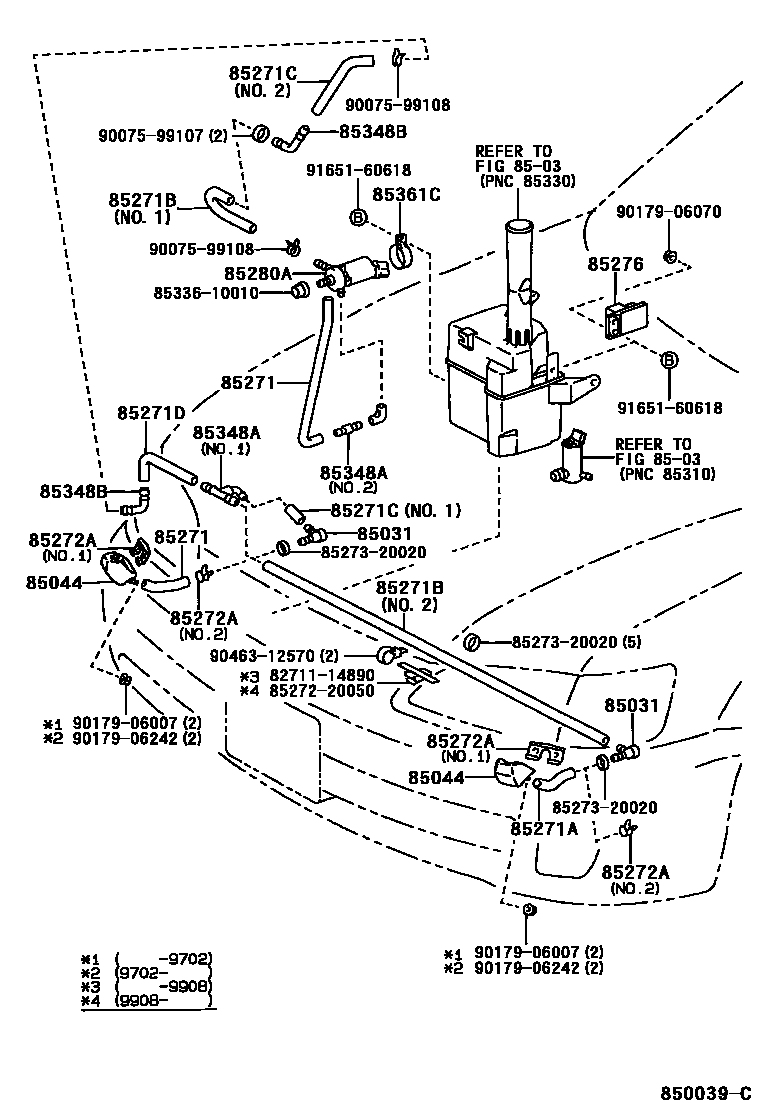

Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-30020 |
| 85044 | Right type 1 headlight washer nozzle sub-assembly | 85044-33040 · 85044-33050 |
| 85271 | No. 1 headlight washer hose | 85275-42010 · 85336-12230 · 85375-16020 |
| 85271A | No. 2 headlight washer hose | 85275-33060 · 85275-42010 · 85375-16020 |
| 85271B | No. 3 headlight washer hose | 85271-14100 |
| 85271C | No. 4 headlight washer hose | 85275-33020 · 85275-41030 |
| 85271D | No. 5 headlight washer hose | 85375-14400 · 90445-14048 |
| 85272A | Headlight washer No. 1 clip | 85272-12060 · 85272-14010 · 85272-20080 |
| 85276 | Cleaner control relay | 85942-33010 |
| 85280A | Headlight washer motor and pump assembly | 85280-33020 |
| 85348A | Headlight washer hose connector No. 1 | 85279-33020 · 85279-33200 · 85349-89122 |
| 85348B | No. 2 headlight washer hose connector | 85279-30010 · 85379-89131 |
| 85361C | Cleaner stand | 85366-33030 |
