Toyota CAMRY 防盗装置 — Figure 8424

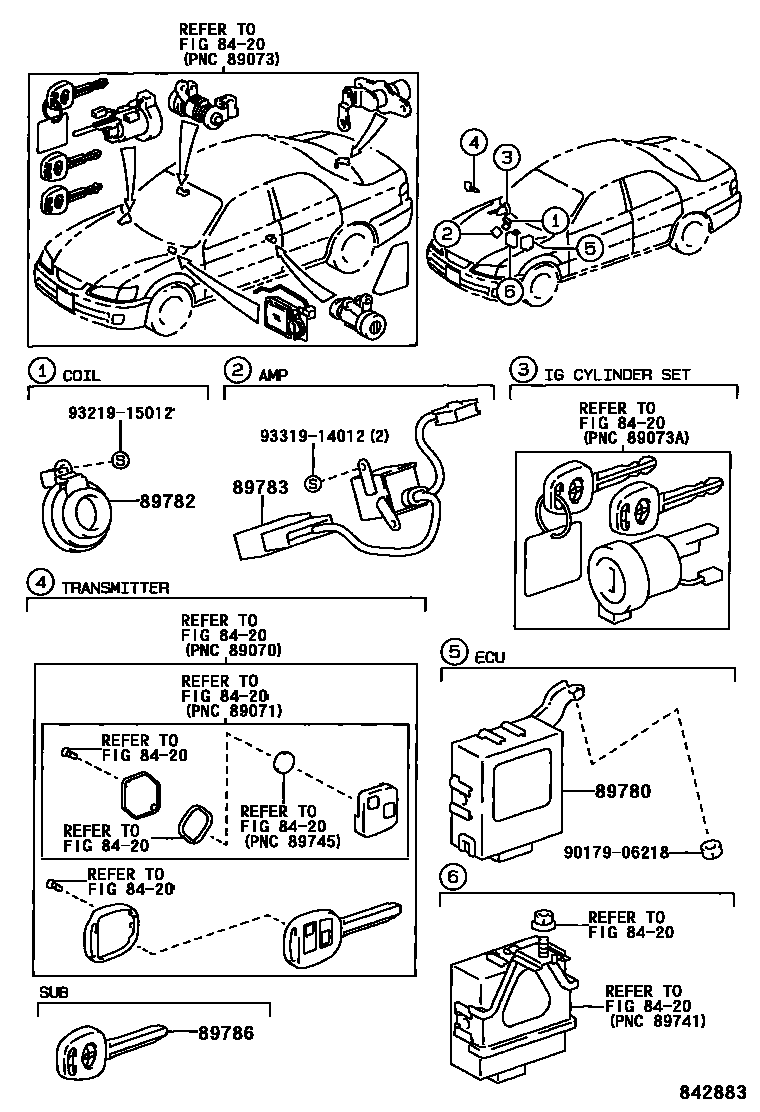

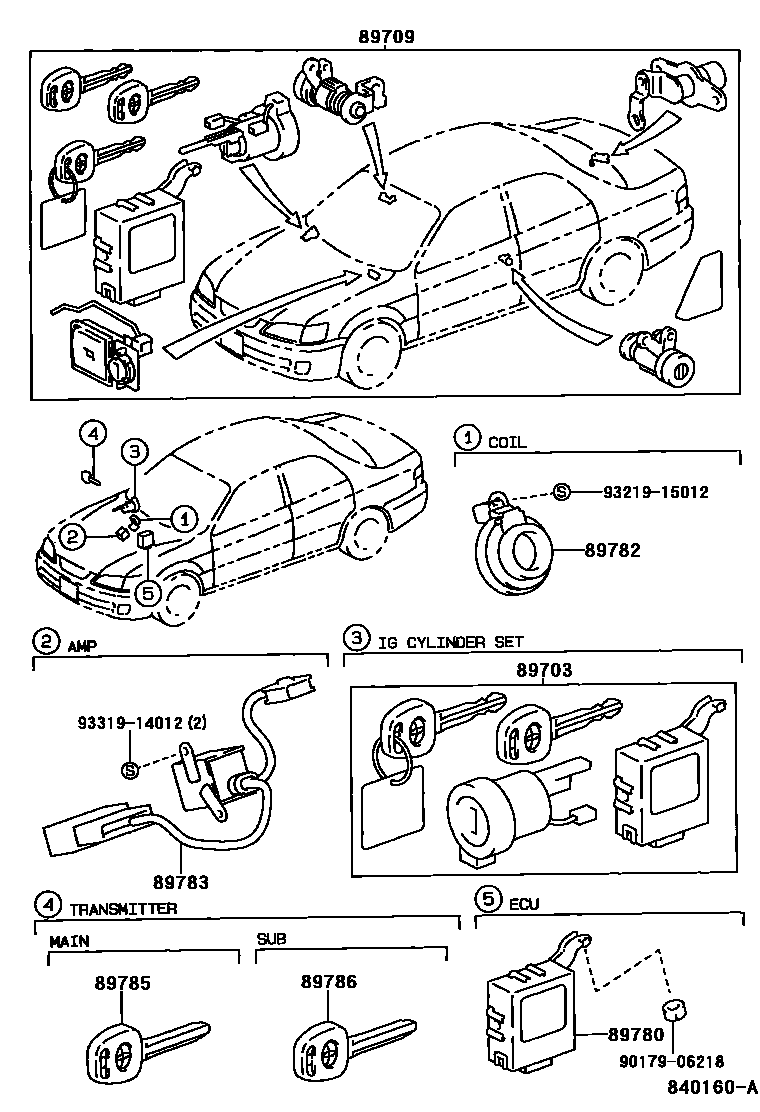

Toyota CAMRY EPC diagram 8424, 防盗装置, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89703 | Ignition lock cylinder and key assembly with transceiver | 89703-33010 |
| 89709 | Transceiver key ECU assembly | 89709-33010 |
| 89780 | Transceiver key ECU assembly | 89780-33010 · 89780-33050 |
| 89782 | transceiver key coil | 89782-33010 |
| 89783 | transceiver key amplifier | 89783-33010 · 89783-33040 · 89783-33080 |
| 89785 | transceiver key master transmitter | 89785-26020 |
| 89786 | transceiver key secondary transmitter | 89786-60050 |
