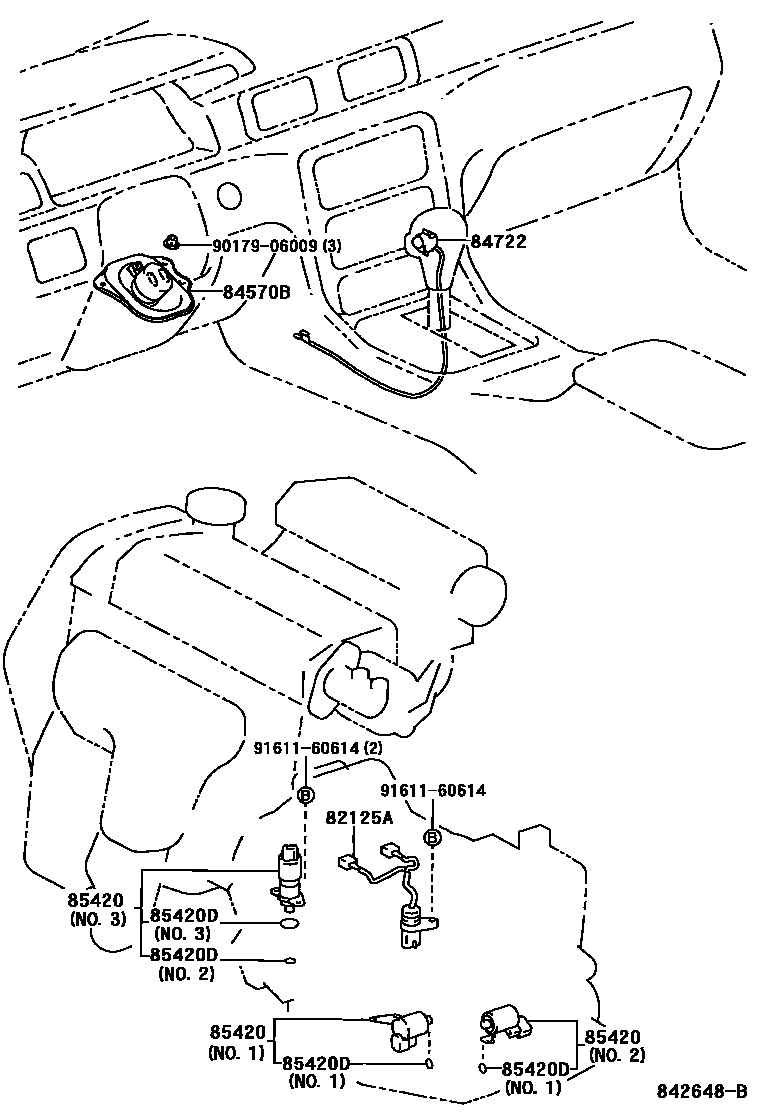

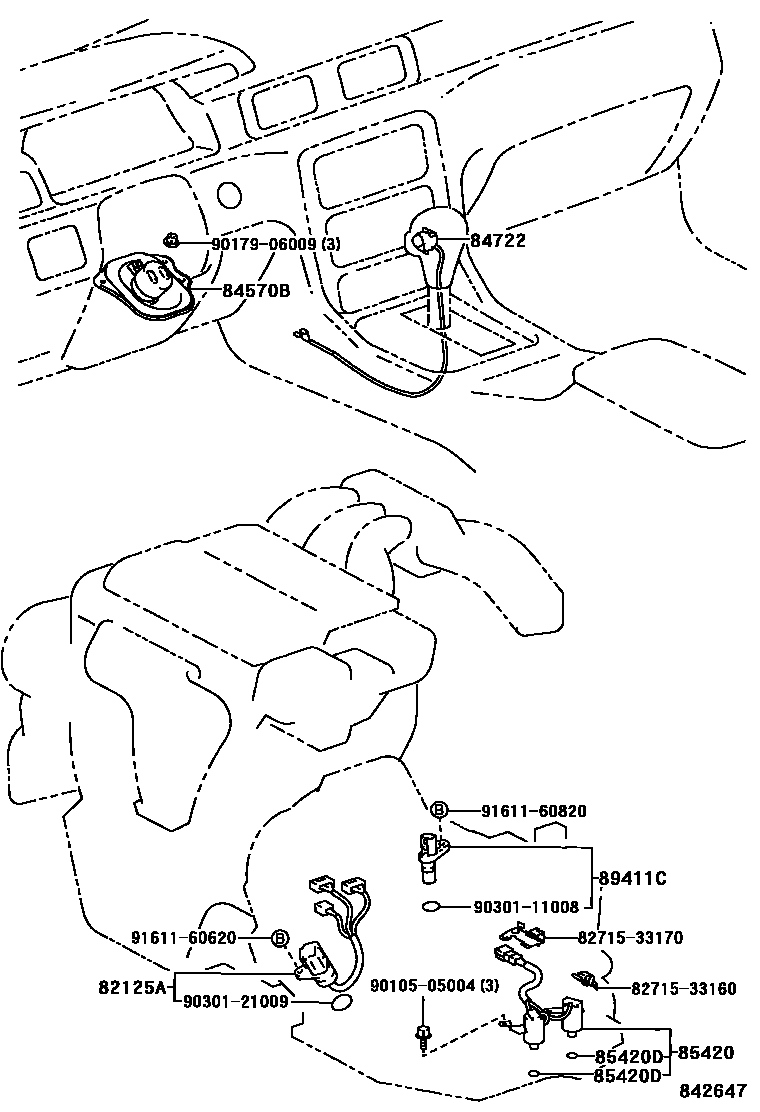

Toyota CAMRY 超速档和电子控制变速器 — Figure 8410
Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125A | Transmission wiring harness | 82125-20150 · 82125-33010 |
| 84570B | Forced downshift switch assembly | 84570-33010 |
| 85420 | Transmission solenoid valve assembly | 85420-20110 · 85420-32021 · 85420-32140 · 85420-33010 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 · 90301-06005 · 96721-19017 |
| 89411C | Speed sensor | 89411-33010 · 89413-24010 |
