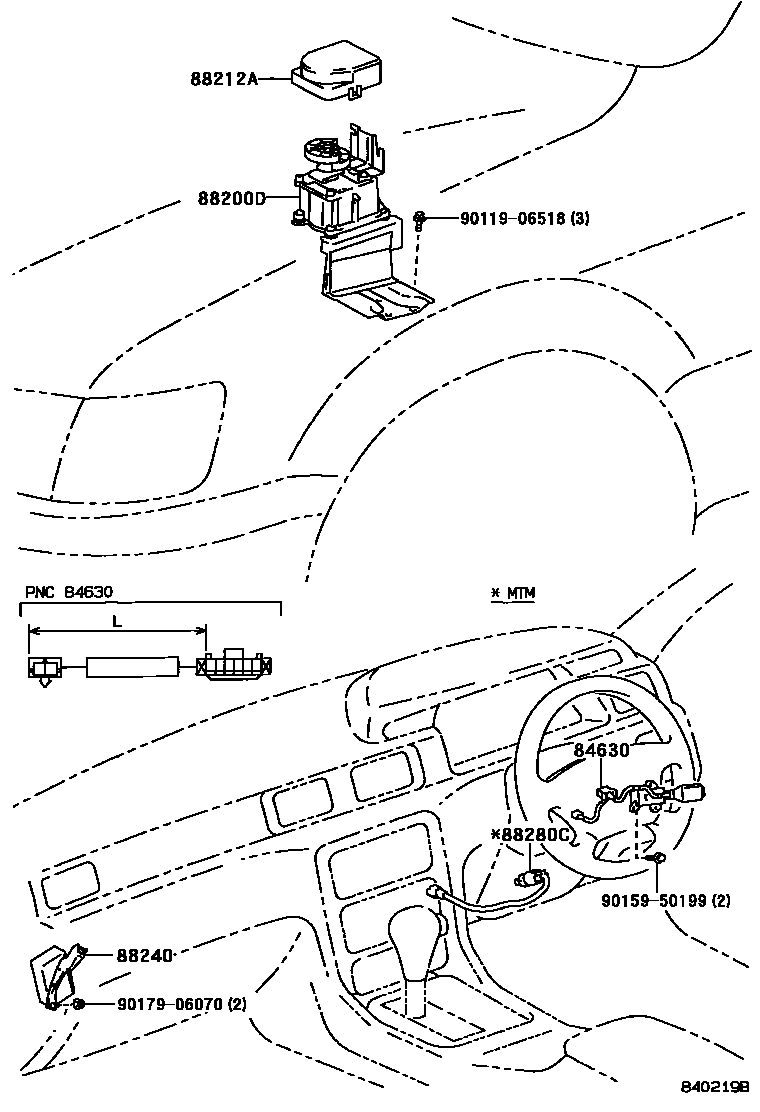

Toyota CAMRY 巡航控制(自动行驶) — Figure 8408
Toyota CAMRY EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84630 | Cruise control main switch assembly | 84630-06030 · 84630-0W010 · 84630-33010 · 84630-33060 |
| 88200D | Cruise control actuator assembly | 88200-33030 |
| 88212A | cruise control actuator cover | 88212-33010 |
| 88240 | Cruise control ECU assembly | 88240-33090 · 88240-33100 · 88240-33140 · 88240-33150 |
| 88280C | Clutch switch assembly | 88280-14030 · 88280-20030 |
