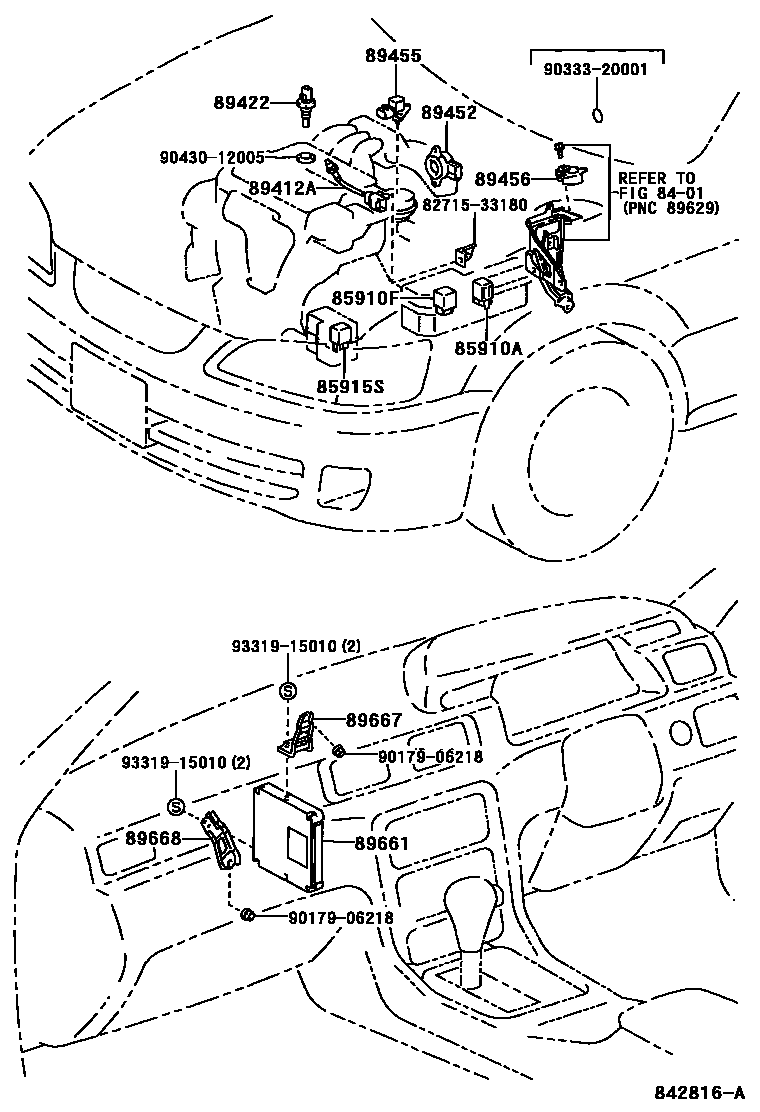

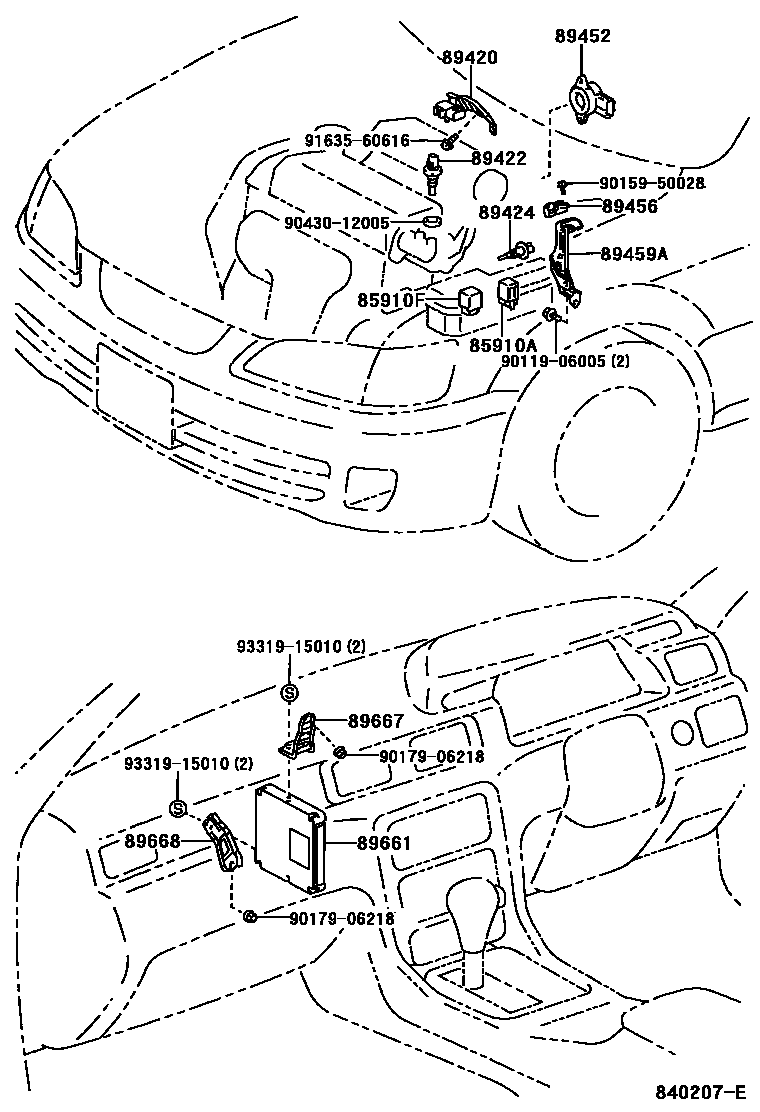

Toyota CAMRY 电子燃油喷射系统 — Figure 8404
Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02012 |
| 85910F | ECU relay (for EFI) | 90987-02012 |
| 85915S | Heater relay (for air-fuel ratio sensor) | 90987-02012 |
| 89412A | E.G.R exhaust gas temperature sensor | 89412-33050 |
| 89420 | Vacuum sensor assembly | 89420-06040 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-20010 · 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 · 89424-33010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-33030 · 89452-33040 |
| 89455 | EGR valve position sensor | 89455-33020 |
| 89456 | variable resistor | 89456-30010 |
| 89459A | Variable resistor bracket | 89459-33010 |
| 89661 | Engine control ECU | 89661-33830 · 89661-33840 · 89661-33850 · 89661-33860 · 89661-33880 · 89661-3T050 · 89661-3T060 · 89661-3T061 · 89661-3T070 · 89661-3T080 · 89661-3T090 · 89661-3T100 · 89661-3T150 · 89666-33100 · 89666-33110 · 89666-33180 · 89666-33190 · 89666-33200 |
| 89667 | Engine control ECU bracket | 89667-33070 · 89667-33080 · 89667-33100 |
| 89668 | No. 2 engine control ECU bracket | 89668-33060 · 89668-33070 · 89668-33080 · 89668-33120 · 89668-33130 |
