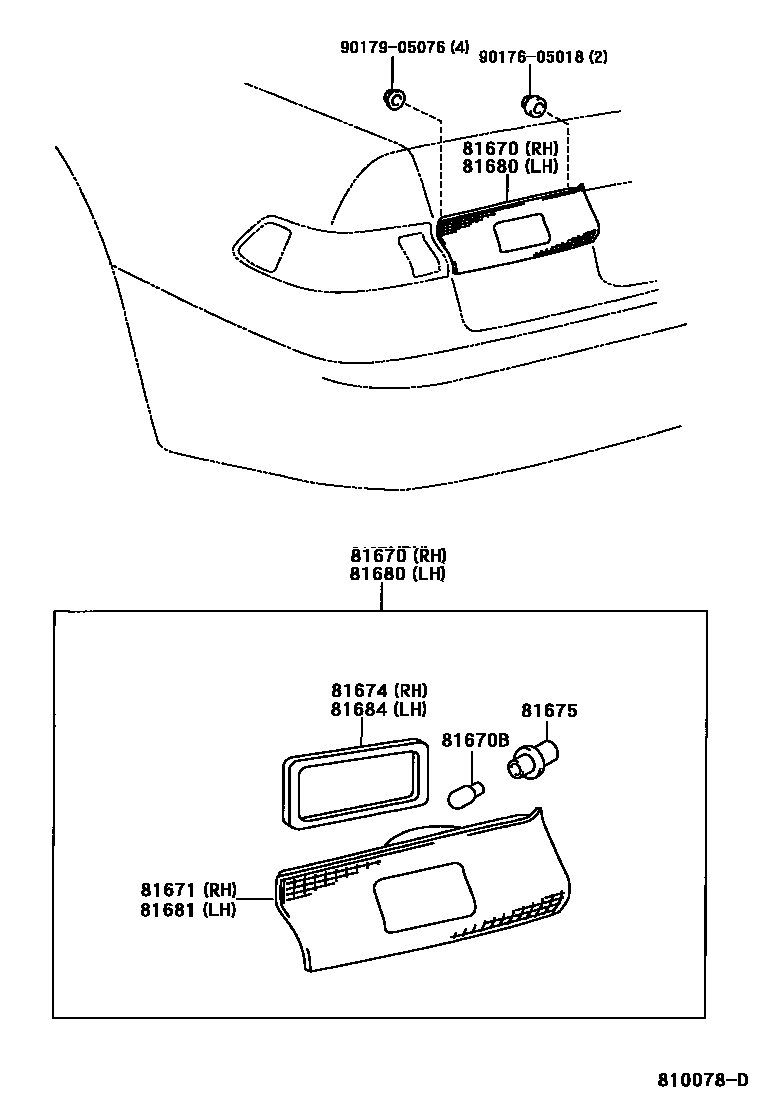

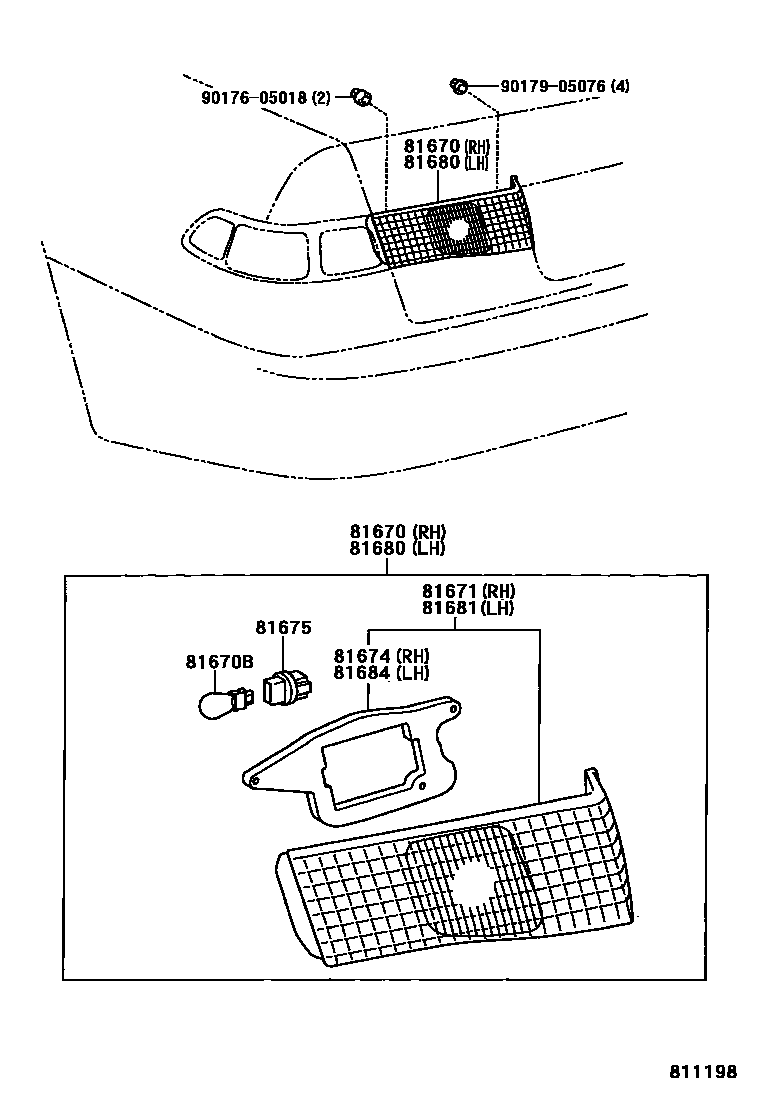

Toyota CAMRY 倒车灯 — Figure 8112
Toyota CAMRY EPC diagram 8112, 倒车灯, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670 | Right reversing light assembly | 81580-33010 · 81580-33070 · 81670-33050 · 81670-33090 |
| 81670B | Bulb (for reversing lights) | 90981-13043 |
| 81671 | Right reversing light cover | 81581-33010 · 81581-33070 · 81671-33012 · 81671-33090 |
| 81674 | Right reversing light body gasket | 81674-33012 · 81674-33090 |
| 81675 | Reversing light holder and wiring harness | 90075-60001 · 90075-60003 |
| 81680 | Left reversing light assembly | 81590-33010 · 81590-33070 · 81680-33040 · 81680-33090 |
| 81681 | Left reversing light cover | 81591-33010 · 81591-33070 · 81681-33040 · 81681-33090 |
| 81684 | Left reversing light body gasket | 81674-33012 · 81674-33090 |
