Toyota CAMRY 后组合灯 — Figure 8111

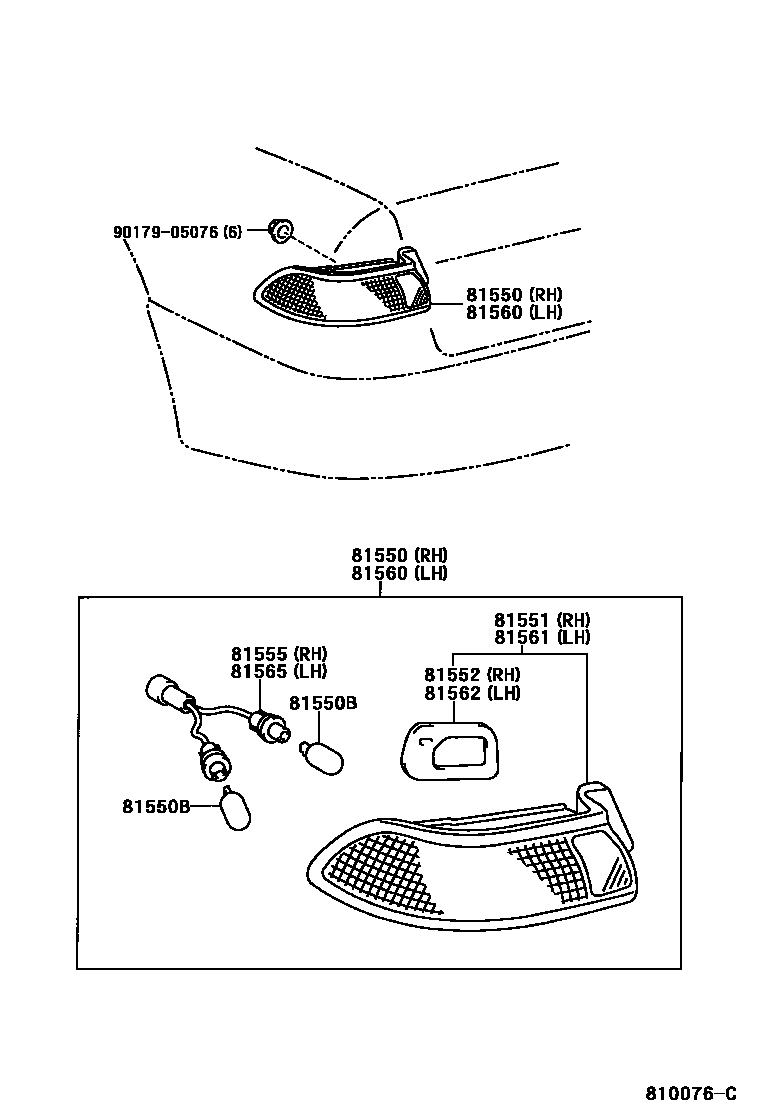

Toyota CAMRY EPC diagram 8111, 后组合灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-33030 · 81550-33210 |
| 81550B | Bulb (for rear combination lights) | 90981-13043 · 90981-13044 |
| 81551 | Right rear combination lamp shade | 81551-33030 · 81551-33210 |
| 81552 | Right rear combination lamp shade gasket | 81552-33030 · 81552-33210 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-33030 · 81555-33210 |
| 81560 | Left rear combination light assembly | 81560-33030 · 81560-33210 |
| 81561 | Left rear combination lamp shade | 81561-33030 · 81561-33210 |
| 81562 | Left rear combination lamp shade gasket | 81552-33210 · 81562-33030 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-33030 · 81555-33210 |
