Toyota CAMRY 前转向灯 — Figure 8103

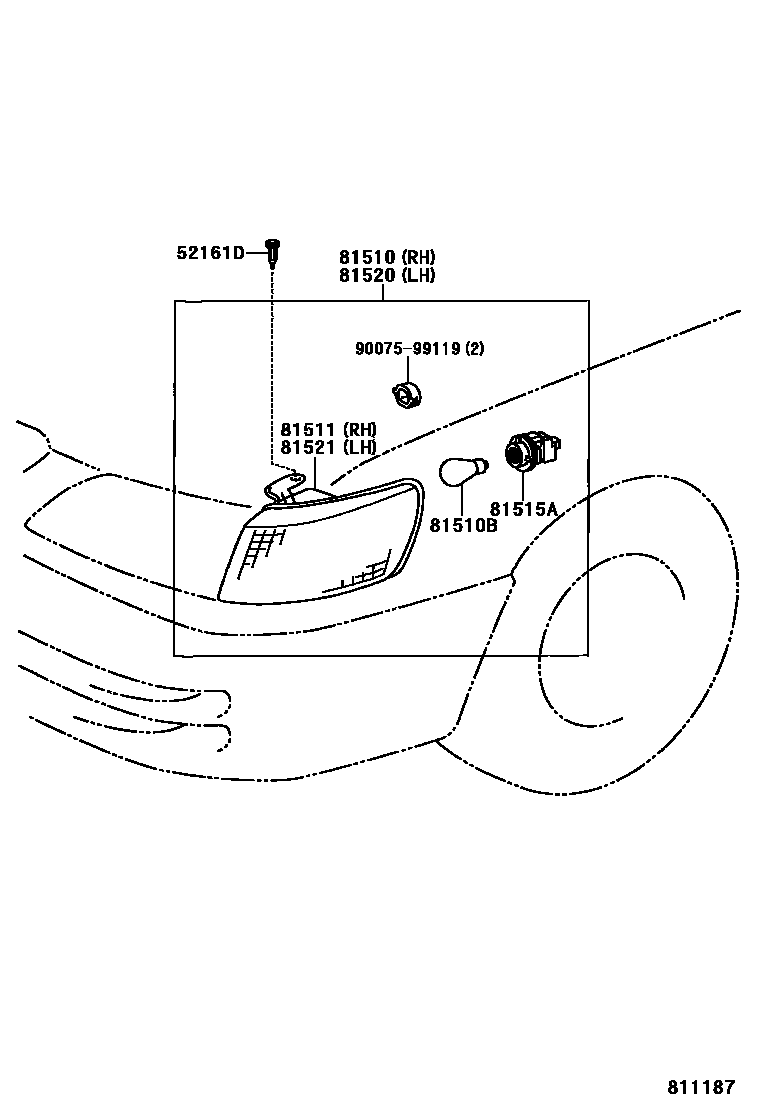

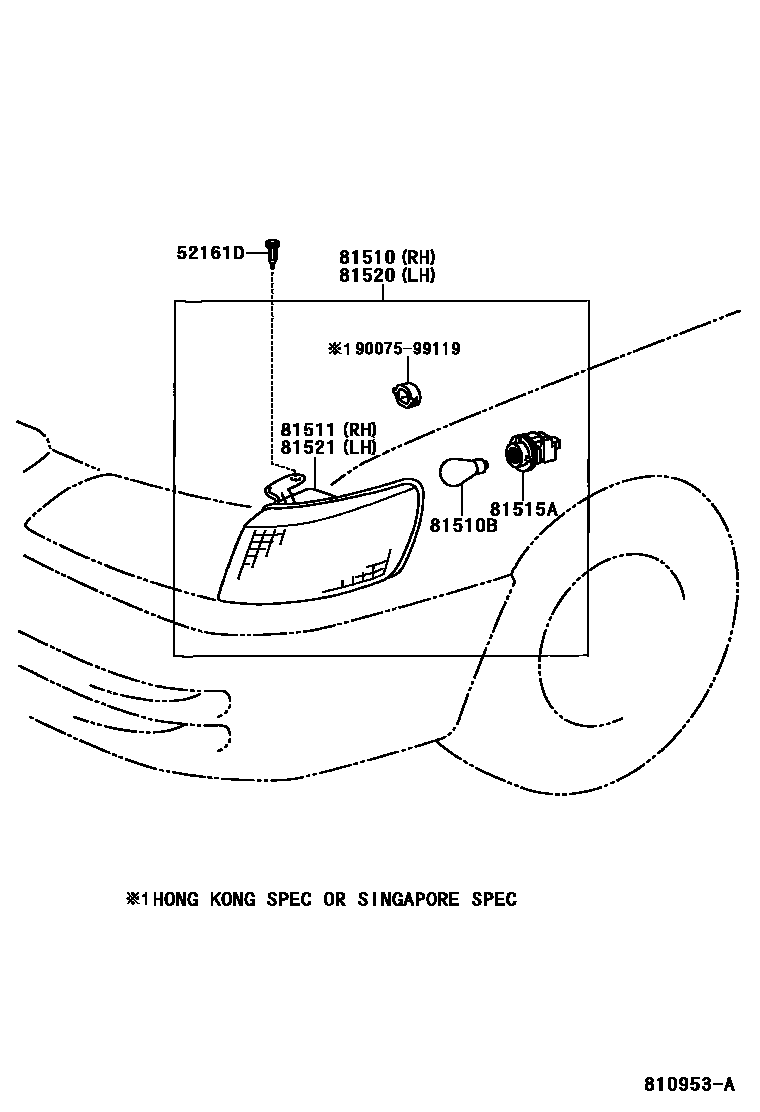

Toyota CAMRY EPC diagram 8103, 前转向灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161D | Front turn signal light insert | 52161-16010 |
| 81510 | Right front turn signal lamp assembly | 81510-33030 · 81510-33031 · 81510-33080 · 81510-33090 |
| 81510B | Bulb (for front turn signal lamp) | 90981-15009 |
| 81511 | Right front turn signal lamp cover | 81511-33030 · 81511-33031 · 81511-33080 · 81511-33090 |
| 81515A | Front turn signal light plug assembly | 99159-10248 |
| 81520 | Left front turn signal lamp assembly | 81520-33030 · 81520-33031 · 81520-33070 · 81520-33090 |
| 81521 | Left front turn signal lamp cover | 81521-33030 · 81521-33031 · 81521-33070 · 81521-33090 |
