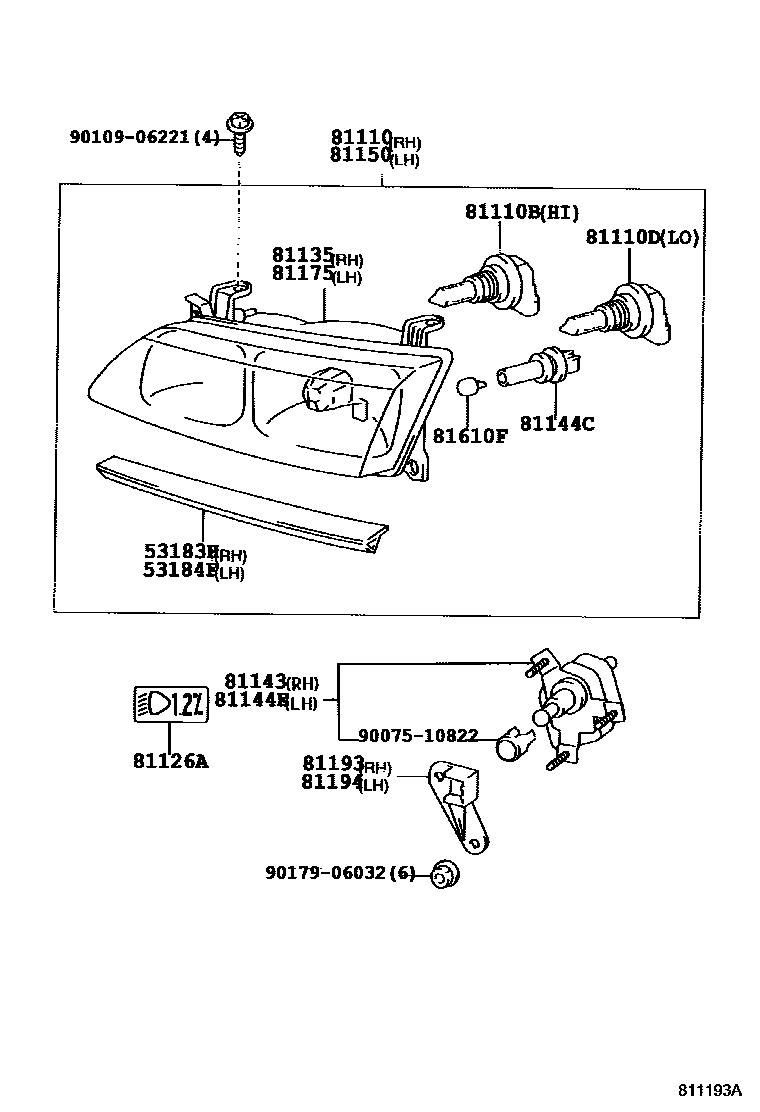

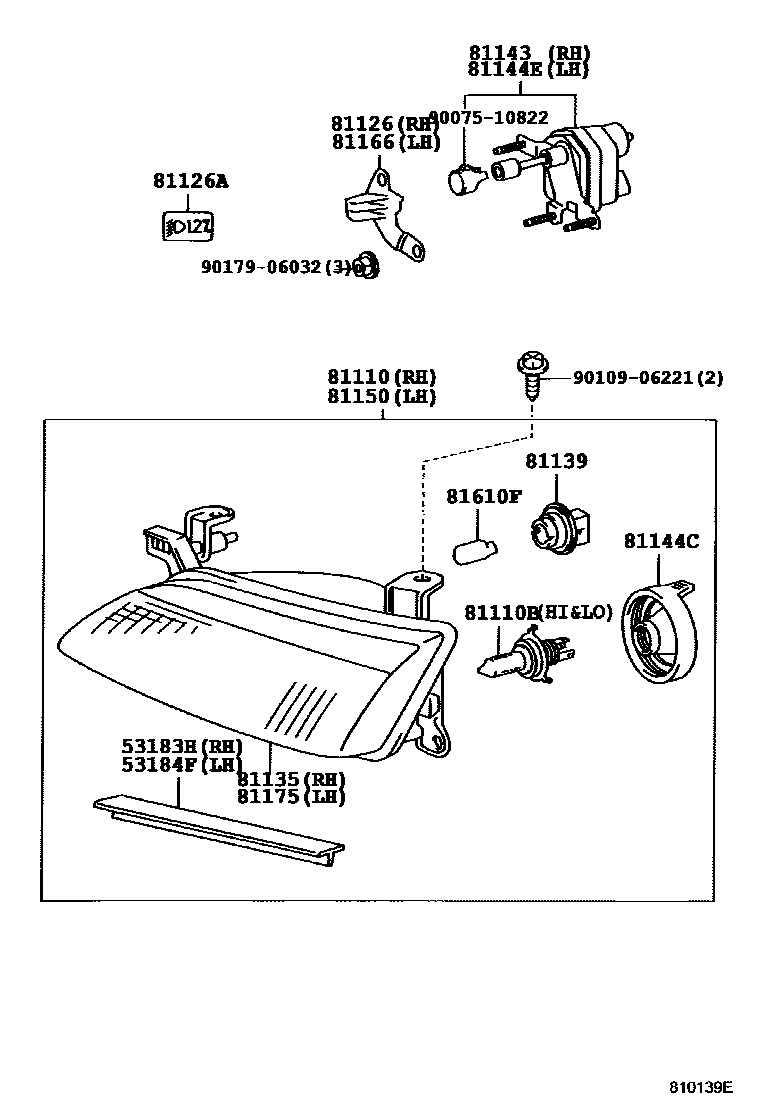

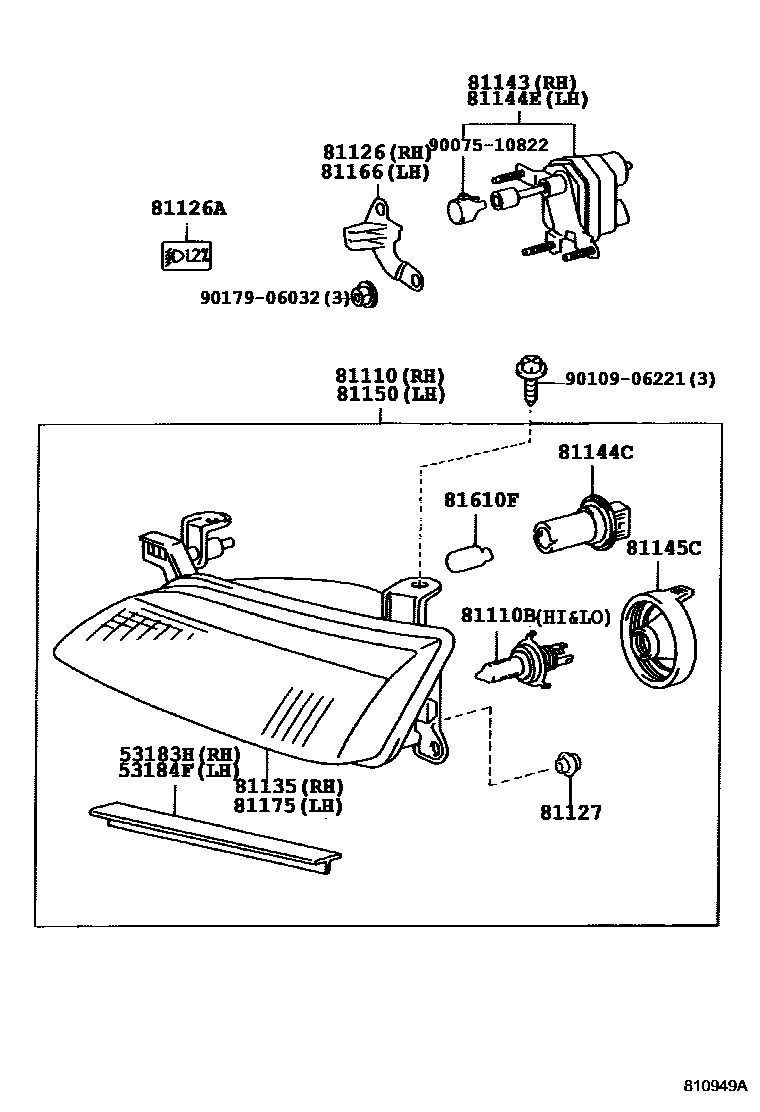

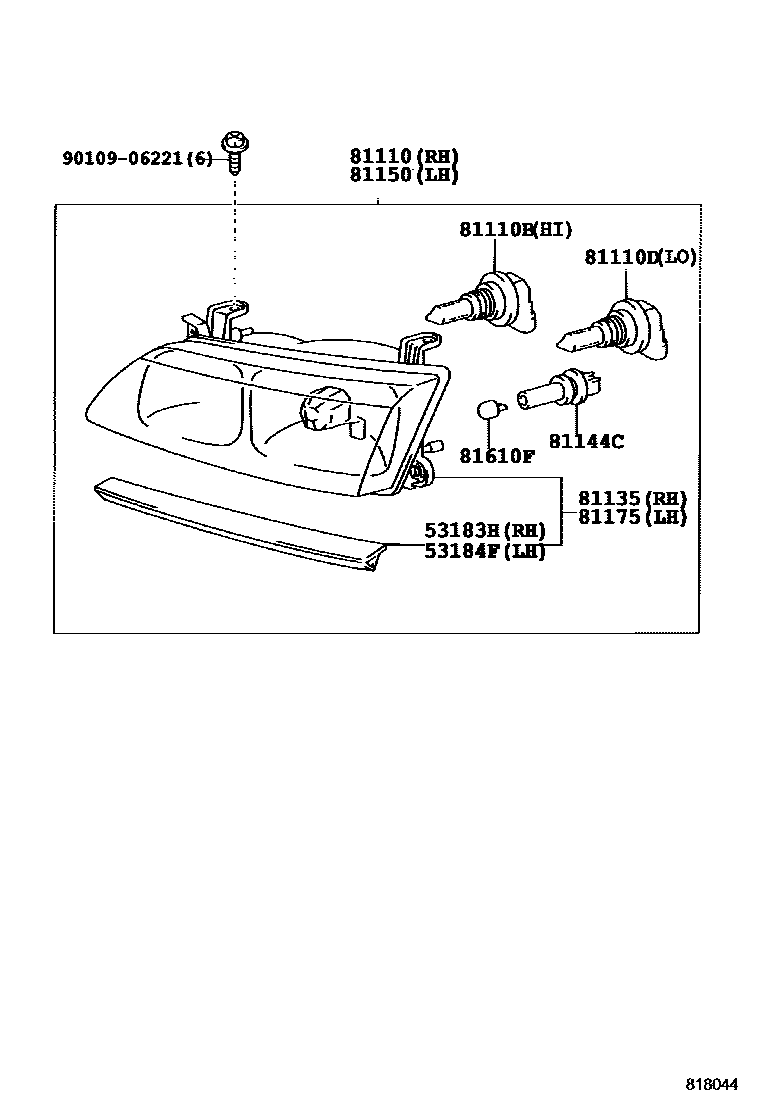

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183H | Right headlight cover seal | 53183-33060 · 53183-33070 |
| 53184F | Left headlight cover seal | 53184-33060 · 53184-33070 |
| 81110 | Right headlight assembly | 81110-33200 · 81110-33210 · 81110-33270 · 81110-33310 · 81110-33320 · 81110-33330 · 81110-33390 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-22004 |
| 81110D | Bulb (for headlight No. 2) | 90080-81040 |
| 81126 | headlight panel | 81126-33200 |
| 81126A | Right headlight panel | 81126-95J00 |
| 81127 | No. 1 headlight support | 81128-22630 |
| 81135 | Right headlight assembly | 81130-33200 · 81130-33210 · 81130-33270 · 81130-33310 · 81130-33320 · 81130-33330 · 81130-33390 |
| 81139 | Headlight lamp holder cover | 90075-99109 |
| 81143 | headlight motor | 81143-33010 · 81143-33020 |
| 81144C | Headlight lamp holder cover | 90075-60004 · 90075-65009 |
| 81144E | Left headlight motor | 81144-33010 · 81144-33020 |
| 81145C | No. 2 headlight lamp holder cover | 90075-65012 |
| 81150 | Left headlight assembly | 81150-33200 · 81150-33210 · 81150-33270 · 81150-33300 · 81150-33310 · 81150-33320 · 81150-33380 |
| 81166 | Left headlight panel | 81166-33200 |
| 81175 | Left headlight assembly | 81170-33200 · 81170-33210 · 81170-33270 · 81170-33300 · 81170-33310 · 81170-33320 · 81170-33380 |
| 81193 | Right headlight upper protective ring | 81193-33010 |
| 81194 | Left headlight upper protective ring | 81194-33010 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
