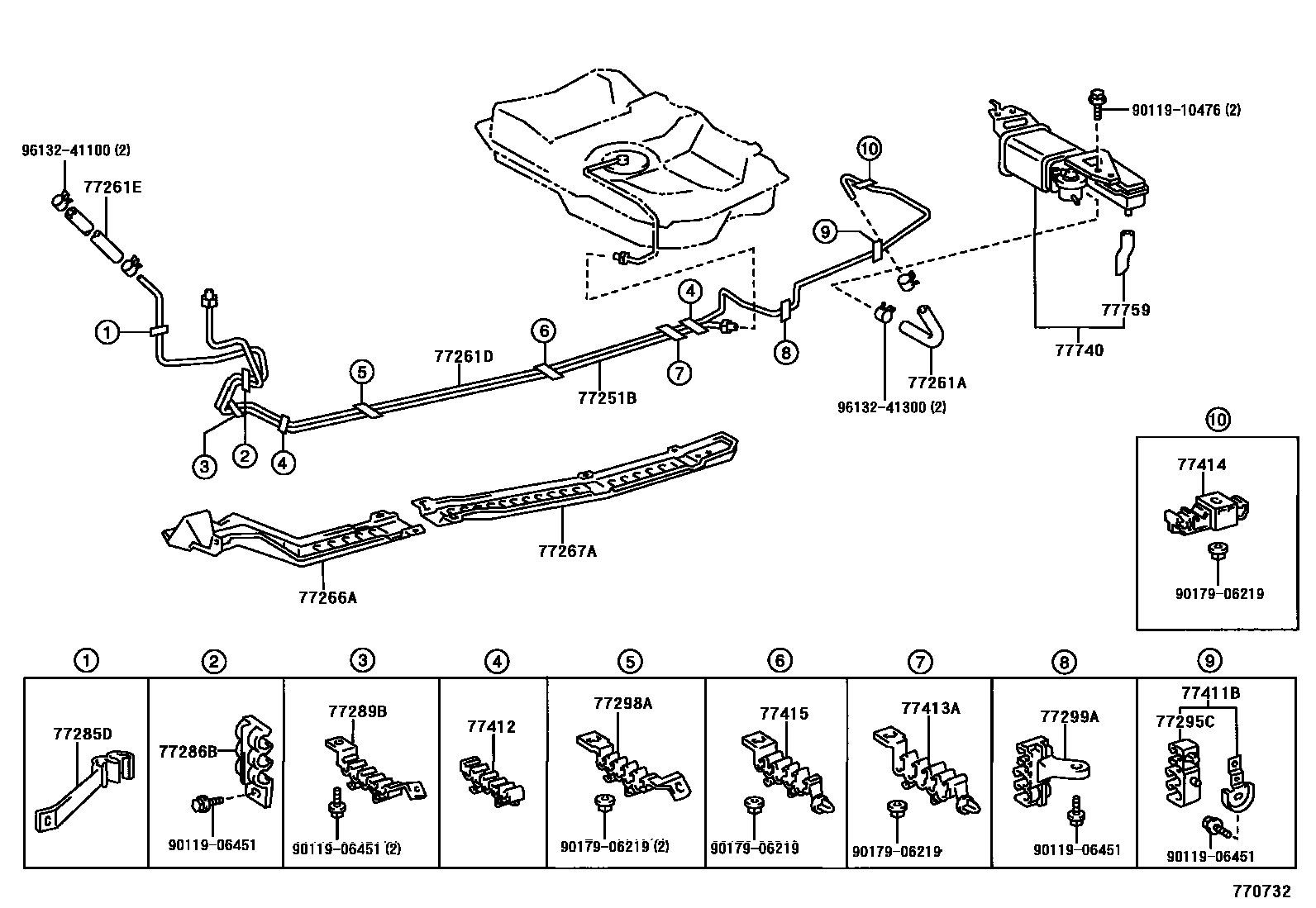

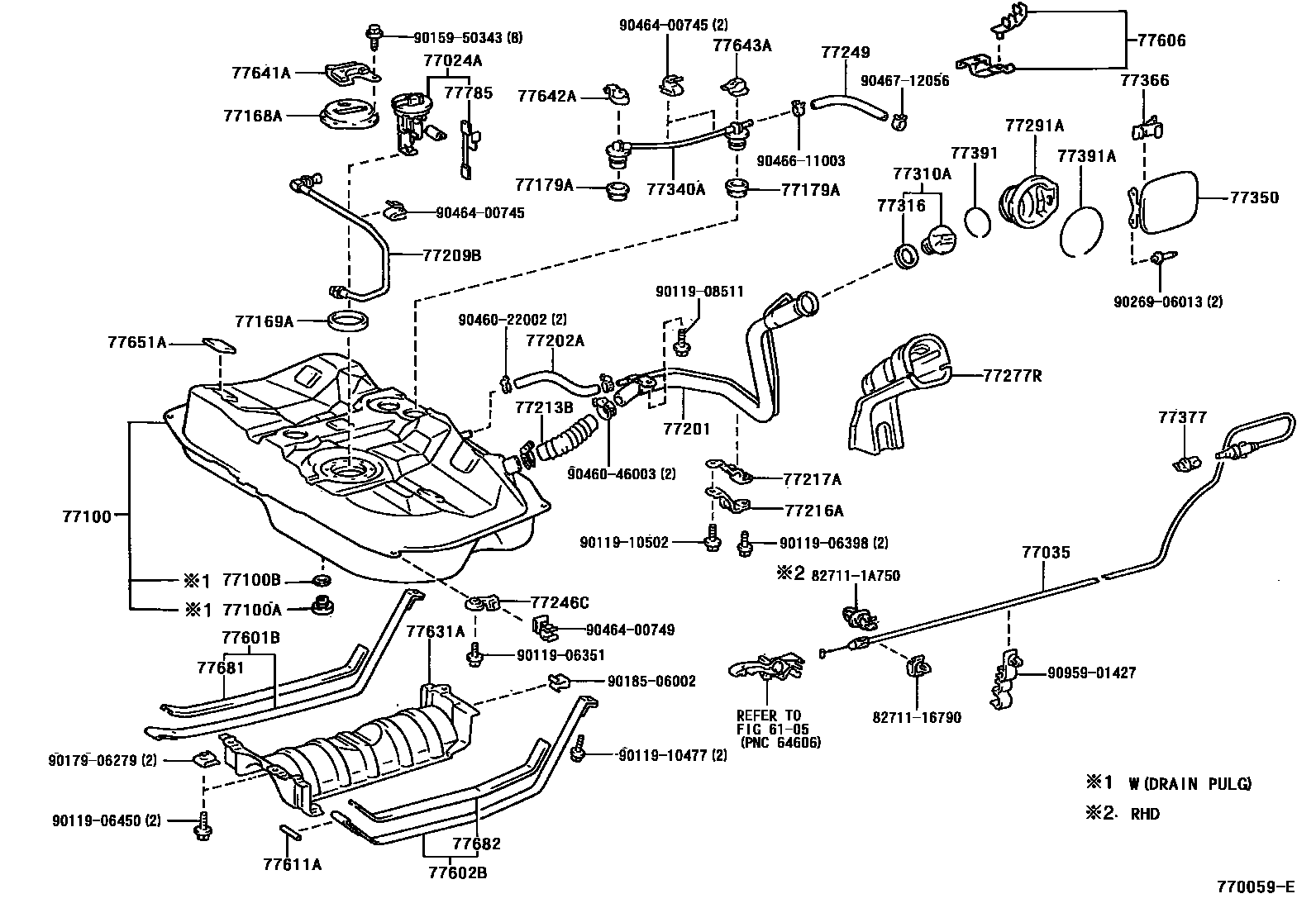

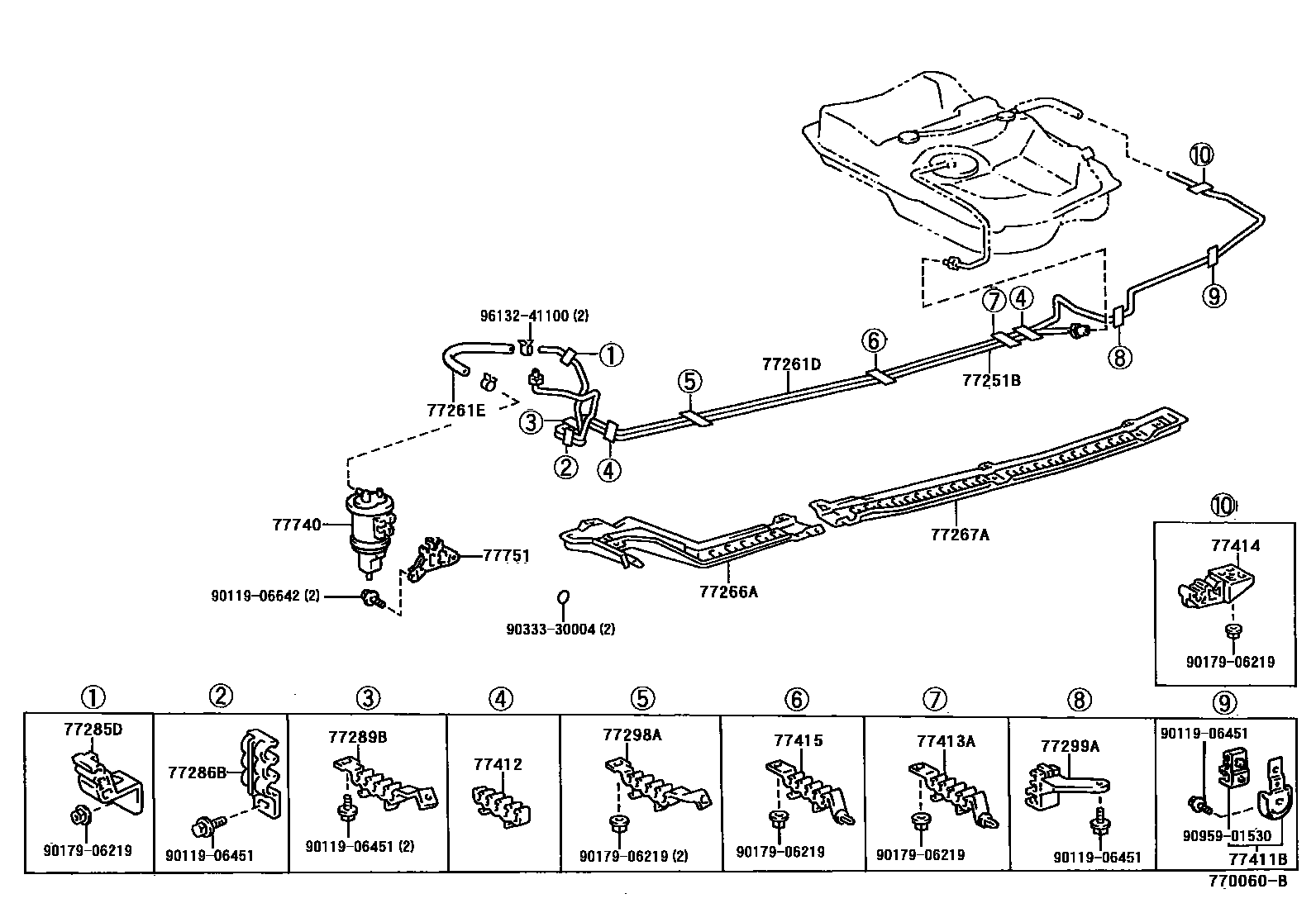

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 3 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77024A | Fuel absorber sub-assembly | 77024-33010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-33070 · 77035-33080 |
| 77100 | fuel tank assembly | 77001-39335 · 77001-39345 · 77001-39355 · 77001-39365 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33010 |
| 77179A | fuel tank breather gasket | 77179-33010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-33020 · 77201-33040 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95312-13024 · 95313-13024 |
| 77209B | Fuel pump pipe sub-assembly | 77209-33010 |
| 77213B | Fuel tank to filler pipe hose | 77213-33050 · 77213-33060 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-33010 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-33010 |
| 77246C | Main fuel pipe bracket | 77246-33010 |
| 77249 | fuel drain hose | 95327-06030 · 95333-06020 |
| 77251B | main fuel pipe | 77251-33050 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-33040 · 77261-33100 · 77261-33101 |
| 77266A | No. 1 fuel line protection device | 77266-33020 |
| 77267A | No. 2 fuel pipe protection device | 77267-33020 |
| 77277R | Fuel tank filler pipe protection device | 77277-33040 · 77277-33041 |
| 77285D | No. 1 fuel pipe clamp | 77285-33020 · 77285-33050 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-33010 · 77286-33020 |
| 77289B | No. 3 fuel pipe clamp | 77289-33020 · 77289-33030 |
| 77291A | Fuel tank filler pipe cover | 77291-33010 |
| 77295C | Fuel pipe retaining ring | 77295-33010 |
| 77298A | No. 4 fuel pipe clamp | 77298-33020 · 77298-33030 |
| 77299A | No. 5 fuel pipe clamp | 77299-33020 · 77299-33030 |
| 77310A | Fuel tank cap assembly | 77300-28010 · 77300-52010 · 77310-16011 · 77310-48010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77340A | Fuel shut-off valve assembly with fuel pipe | 77340-33020 |
| 77350 | Fuel filler cap assembly | 77350-33030 |
| 77366 | Fuel filler cap hinge spring | 77360-22020 · 77360-33020 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-20030 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-33020 · 77411-33030 |
| 77412 | No. 2 fuel pipe retaining ring bracket | 77412-33020 · 77412-33030 |
| 77413A | No. 3 fuel pipe retaining ring bracket | 77413-33020 · 77413-33030 |
| 77414 | No. 4 fuel pipe retaining ring bracket | 77414-33020 · 77414-33030 |
| 77415 | No. 5 fuel pipe retaining ring bracket | 77415-33020 · 77415-33030 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-33010 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-33010 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-33010 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77631A | Fuel tank center lower protective shell | 77631-33020 · 77631-33021 |
| 77641A | No. 1 fuel tank protective shell | 77641-33010 |
| 77642A | No. 2 fuel tank protective shell | 77606-33010 · 77642-33010 |
| 77643A | No. 3 fuel tank protective shell | 77643-33010 |
| 77651A | No. 1 fuel tank liner | 77652-32030 |
| 77681 | Fuel tank right side strap seat | 77681-32060 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77740 | Carbon canister assembly | 77740-33090 · 77740-41040 · 77740-41041 |
| 77751 | Carbon canister base bracket | 77751-33040 |
| 77759 | Carbon canister hose | 77759-41010 |
| 77785 | fuel pump wiring harness | 77785-33020 |
