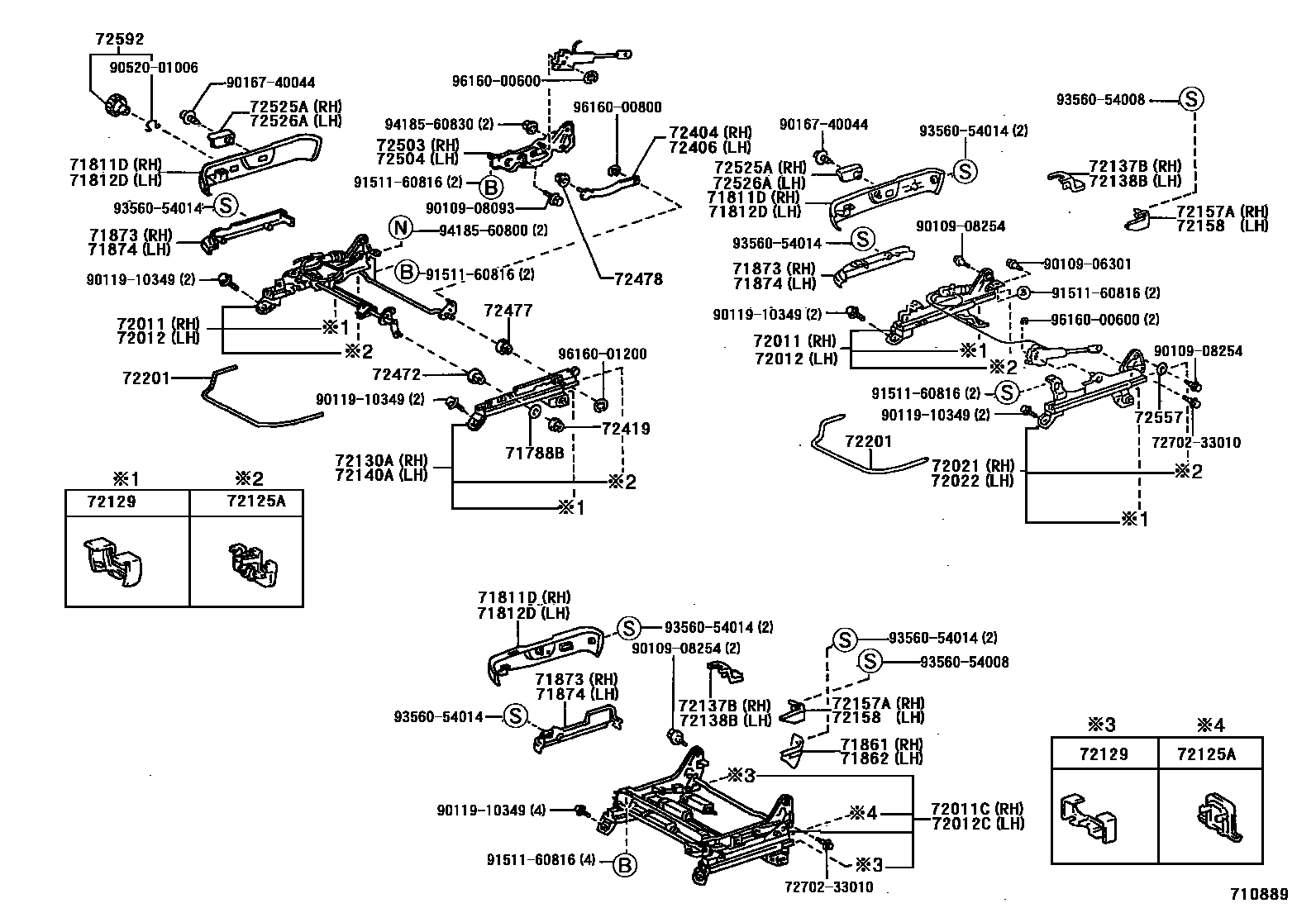

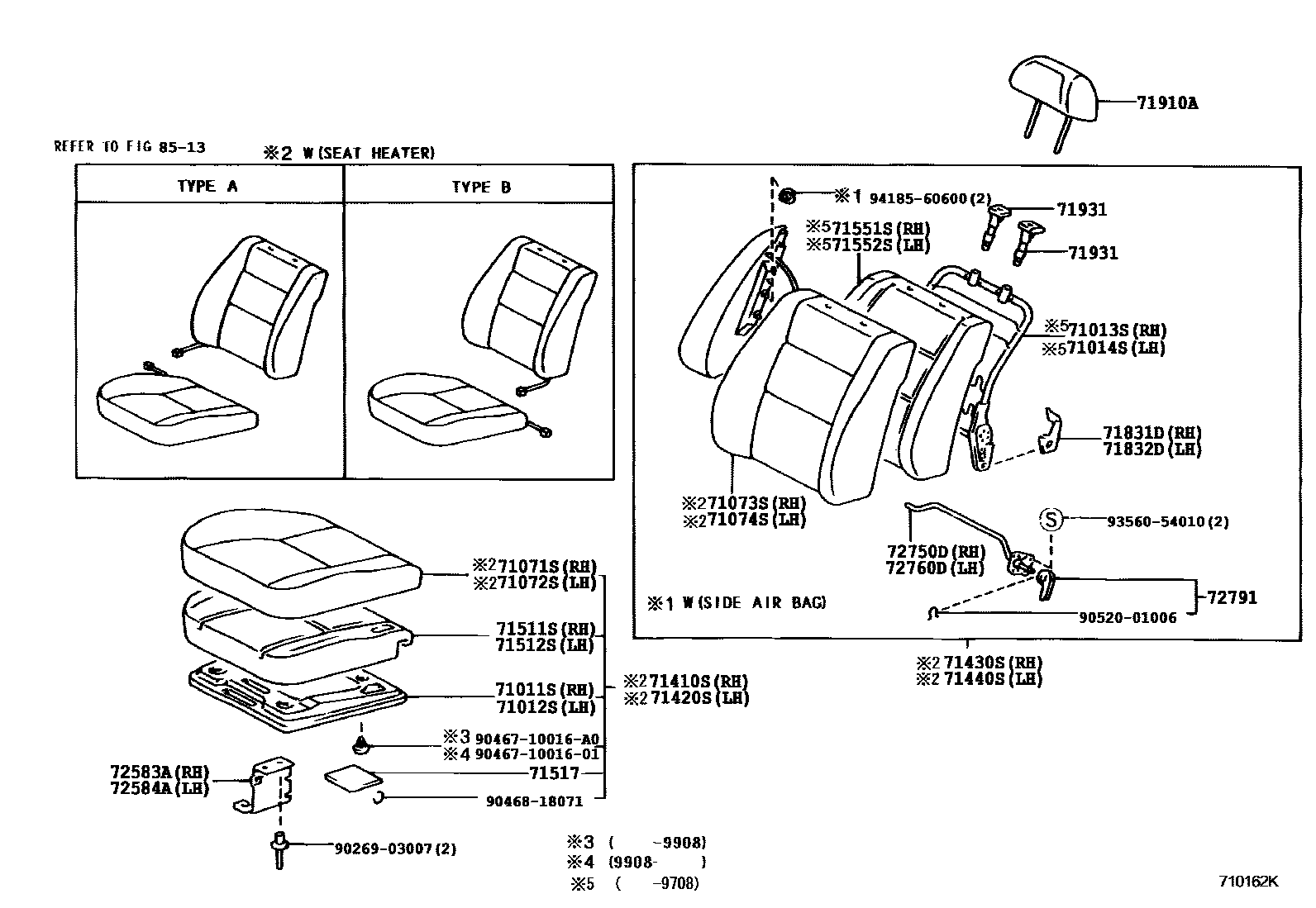

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-33010 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-33010 |
| 71013S | Front right seat back frame sub-assembly | 71013-33070 |
| 71014S | Front left seat back frame sub-assembly | 71013-33070 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-33090 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-33090 |
| 71517 | Front seat cushion lower lining | 71517-33010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-33050 |
| 71552S | Front left seat back cushion (for split seats) | 71551-33050 |
| 71788B | Front seat back panel fixing washer | 71788-33010 |
| 71831D | Front right seat hinge cover | 71831-33010 · 71831-33020 · 71831-33021 |
| 71832D | Front left seat hinge cover | 71832-33010 · 71832-33020 · 71832-33021 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-33070 · 72011-33071 · 72011-33080 · 72011-33081 |
| 72011C | Front right seat adjuster sub-assembly | 72010-33050 · 72010-33051 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-33060 · 72012-33061 · 72012-33070 · 72012-33071 |
| 72012C | Front left seat adjuster sub-assembly | 72020-33090 · 72020-33091 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-33070 · 72021-33071 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-33060 · 72022-33061 |
| 72125A | Rear seat upper slide rail cover | 72125-20020 · 72125-33010 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-12010 · 72129-20040 · 72129-33030 |
| 72130A | Front right seat inner slide rail assembly | 72130-33010 · 72130-33011 |
| 72140A | Front left seat inner slide rail assembly | 72140-33010 · 72140-33011 |
| 72201 | Seat slide rail handle sub-assembly | 72201-33010 |
| 72404 | Vertical seat link sub-assembly | 72404-33030 · 72404-33031 |
| 72406 | Vertical seat left link sub-assembly | 72406-33030 · 72406-33031 |
| 72419 | Front seat vertical gear nut | 72419-33010 |
| 72472 | No. 1 Height Adjuster Lever Pin | 72472-33010 |
| 72477 | Height adjuster spacer | 72477-33020 |
| 72478 | height adjuster bushing | 72478-33010 |
| 72503 | Right seat back recline adjuster lower arm sub-assembly | 72503-33010 |
| 72504 | Left seat back tilt adjuster lower arm sub-assembly | 72504-33010 |
| 72557 | Seat back recliner spacer | 72557-33010 |
| 72583A | Right seat side trim bracket | 72583-33020 |
| 72584A | Left side seat side trim bracket | 72584-33010 |
| 72750D | Right lumbar support adjuster assembly | 72750-33020 |
| 72760D | Left lumbar support adjuster assembly | 72760-33020 |
