Toyota CAMRY 前门车窗升降器和合页 — Figure 6704

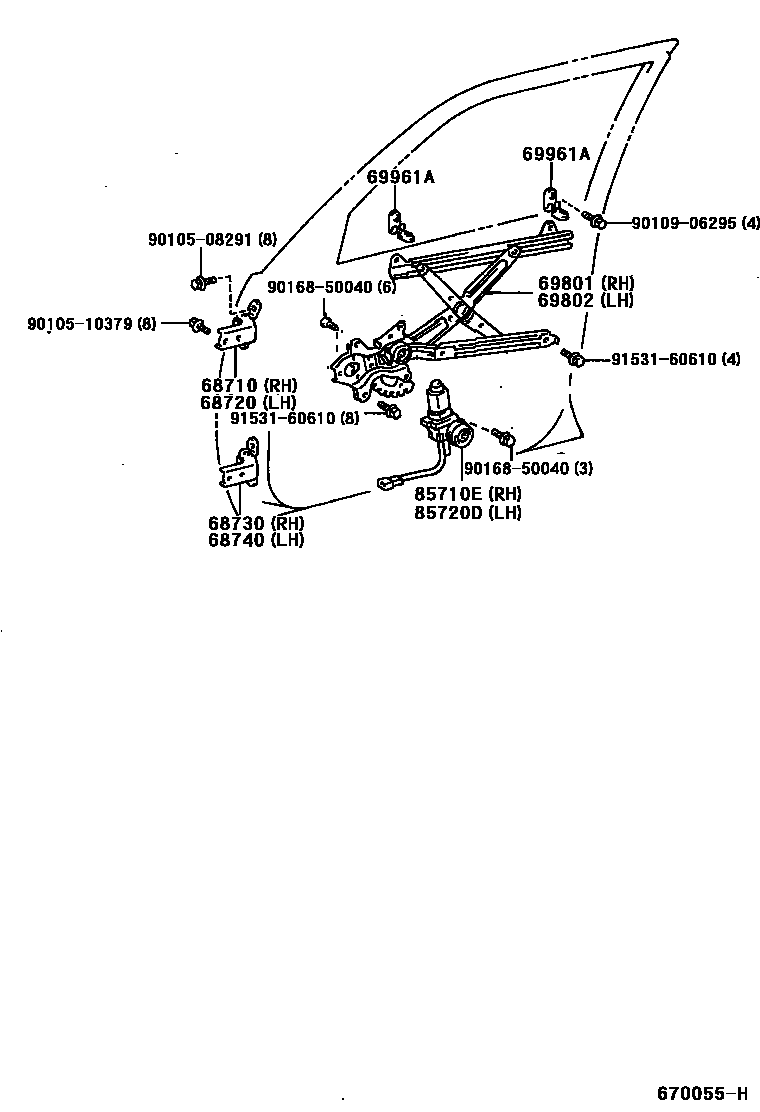

Toyota CAMRY EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-33010 |
| 68720 | Left front door upper hinge assembly | 68720-33010 |
| 68730 | Right front door lower hinge assembly | 68720-33010 |
| 68740 | Left front door lower hinge assembly | 68710-33010 |
| 69801 | Right front door window lifter sub-assembly | 69801-33010 |
| 69802 | Left front door window lifter sub-assembly | 69802-33010 |
| 69961A | Front door glass fixings | 69961-33010 · 69961-33020 · 69963-33010 · 69963-33020 |
| 85710E | Right power window lift motor assembly | 85710-33040 · 85710-33050 · 85710-33070 |
| 85720D | Left electric window lift motor assembly | 85720-33040 · 85720-33050 · 85720-33070 |
