Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 4 images and 36 PNC and OE references.

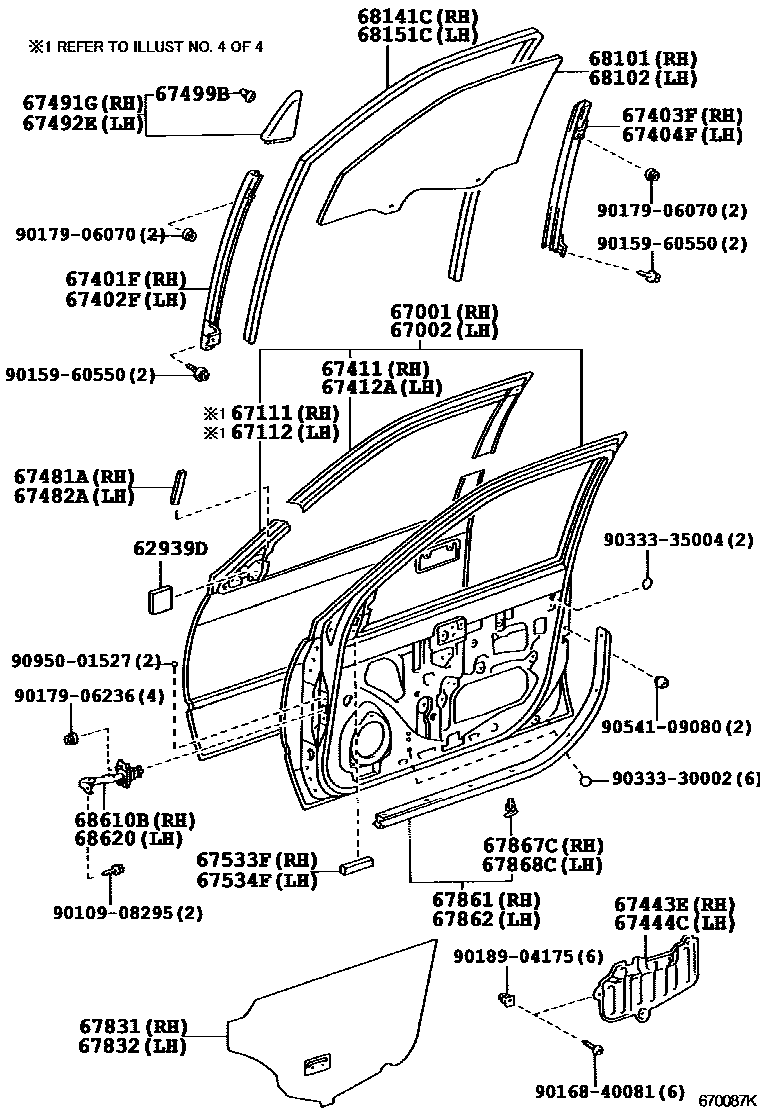

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 670087K
前门板和前门玻璃 — 670087K (199608 – 999999)

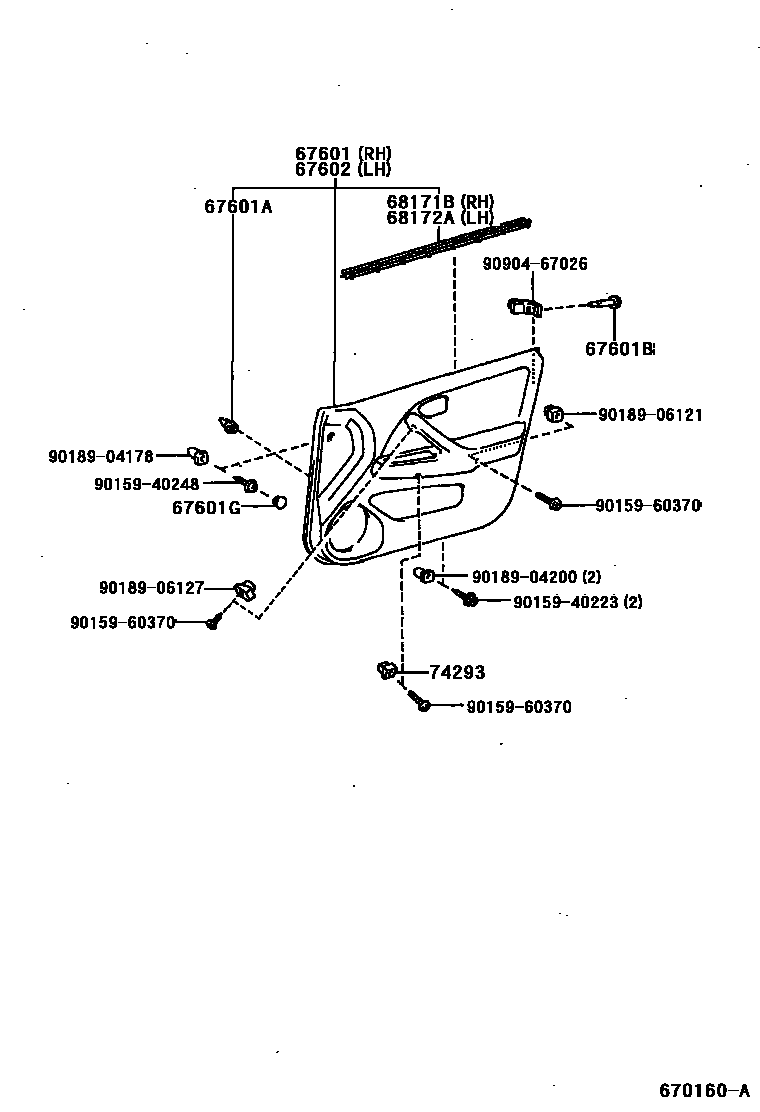

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 670160A
前门板和前门玻璃 — 670160A (199608 – 999999)
Toyota CAMRY 前门板和前门玻璃 EPC diagram — 672481
前门板和前门玻璃 — 672481 (199908 – 999999)

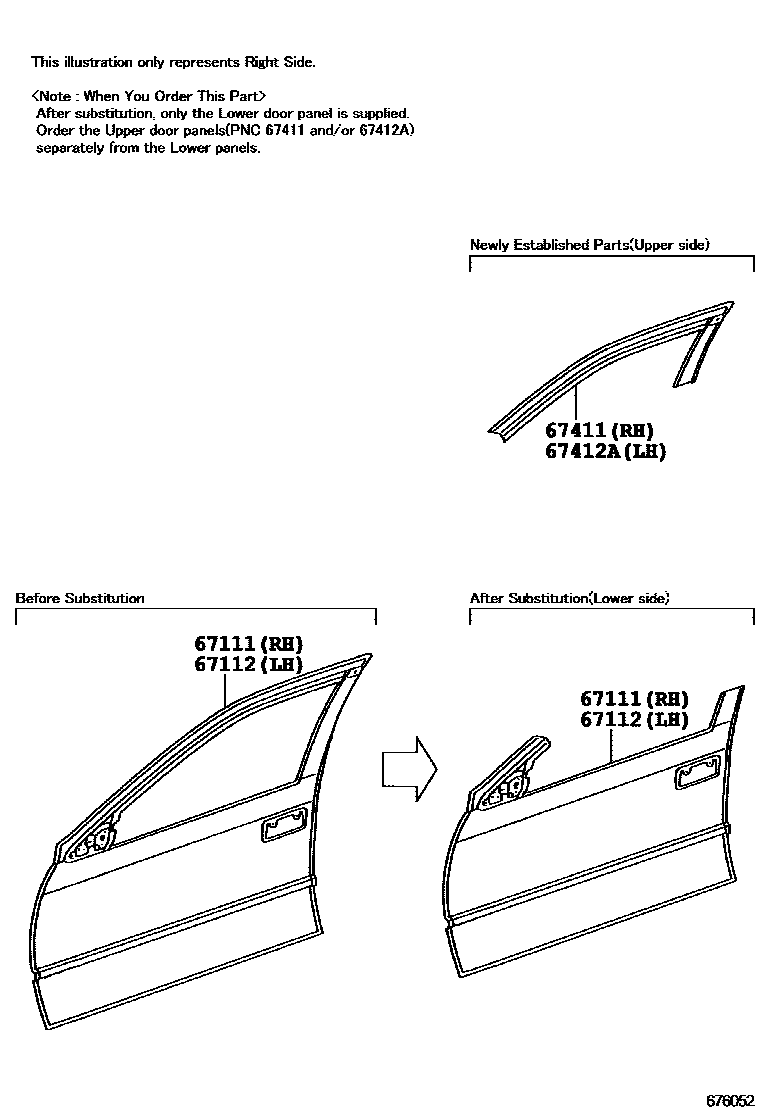

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 676052
前门板和前门玻璃 — 676052 (199608 – 999999)

PNC and OE references

PNCPart nameOE numbers
62939DSide ventilation silencers62939-32030
67001Right front door panel sub-assembly67001-33060
67002Left front door panel sub-assembly67002-33060
67111Outer right front door panel67111-33030
67112Outer left front door panel67112-33030
67401FRight front door front lower door frame sub-assembly67401-33020
67402FLeft front door front lower door frame sub-assembly67402-33020
67403FRight front door rear lower door frame sub-assembly67403-33010
67404FLeft front door rear lower door frame sub-assembly67404-33010
67411Right front door window upper frame67411-33050
67412ALeft front door upper window frame67412-33050
67443ERight front door inner panel67443-33020
67444CLeft front door inner panel67444-33020
67481ARight front door front lower door frame seal67481-33020
67482ALeft front door front lower door frame seal67481-33020
67491GRight front door lower door frame bracket decorative strip67491-33040 · 67491-33050
67492ELeft front door lower door frame bracket decorative strip67492-33040 · 67492-33050
67499BNo. 2 front door lower door frame bracket decorative strip fixing67499-12030 · 67499-33010
67533FRight front door lower door frame decorative pad67533-33030
67534FLeft front door lower door frame decorative pad67533-33030
67601AFixings (for front door trim)67771-12050 · 90467-10161
67831Right front door access hole cover67831-33030
67832Left front door access hole cover67832-33030
67861Right front door seal67861-33020
67862Left front door seal67862-33020
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
68101Right front door glass sub-assembly68111-33050 · 68111-33070
68102Left front door glass sub-assembly68112-33050 · 68112-33070
68141CRight front door glass lift channel68141-33030 · 68141-33060
68151CLeft front door glass lift channel68151-33030 · 68151-33050
68171BRight front door glass inner sealing strip68171-33010
68172ALeft front door glass inner sealing strip68172-33010
68610BRight front door opening limiter assembly68610-33030 · 68610-33031
68620Left front door opening limiter assembly68620-33030 · 68620-33031
74293No. 1 front door armrest panel74294-32010
