Toyota CAMRY 车顶内衬和消声垫 — Figure 6402

Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 7 PNC and OE references.

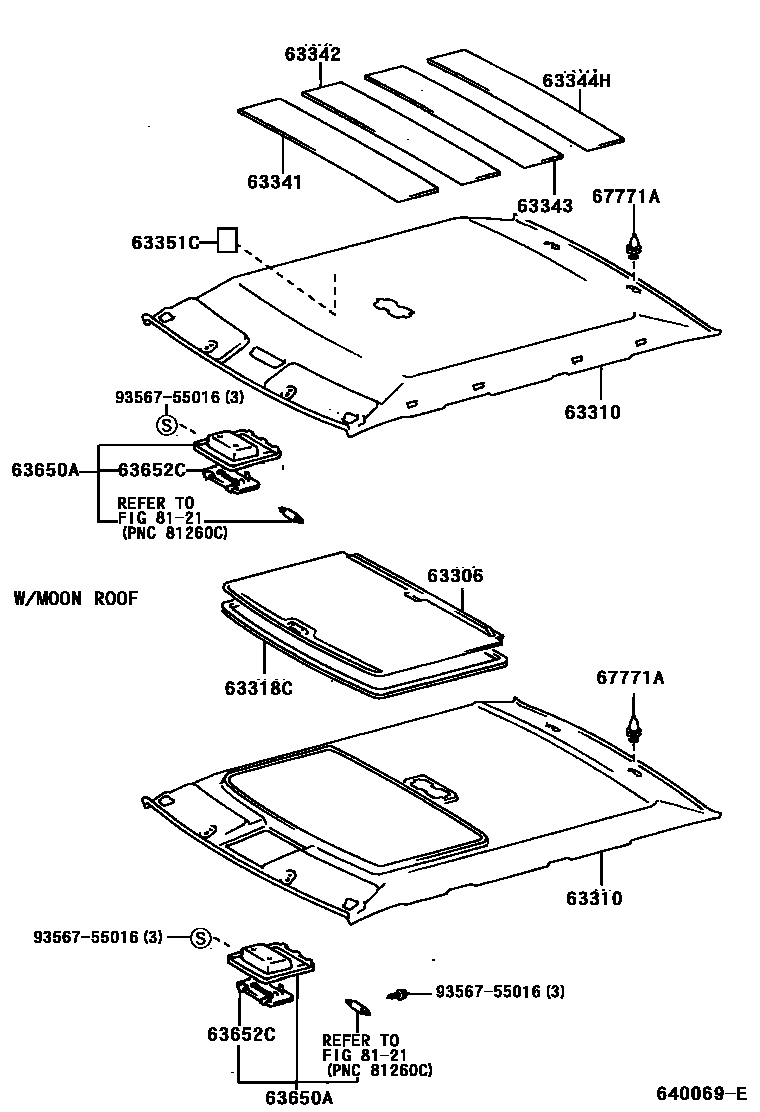

Toyota CAMRY 车顶内衬和消声垫 EPC diagram — 640069E
车顶内衬和消声垫 — 640069E (199608 – 999999)

PNC and OE references

PNCPart nameOE numbers
63341No. 1 roof silencer mat63343-32070
63342No. 2 roof muffler pad63343-32070
63343No. 3 roof muffler pad63343-32070
63344HNo. 4 roof silencer mat63343-32070
63351Croof lining pads63351-33010
63652Croof console cover63652-AA021
67771Aheadliner fixings67771-12040
