Toyota CAMRY 侧梁 — Figure 6101

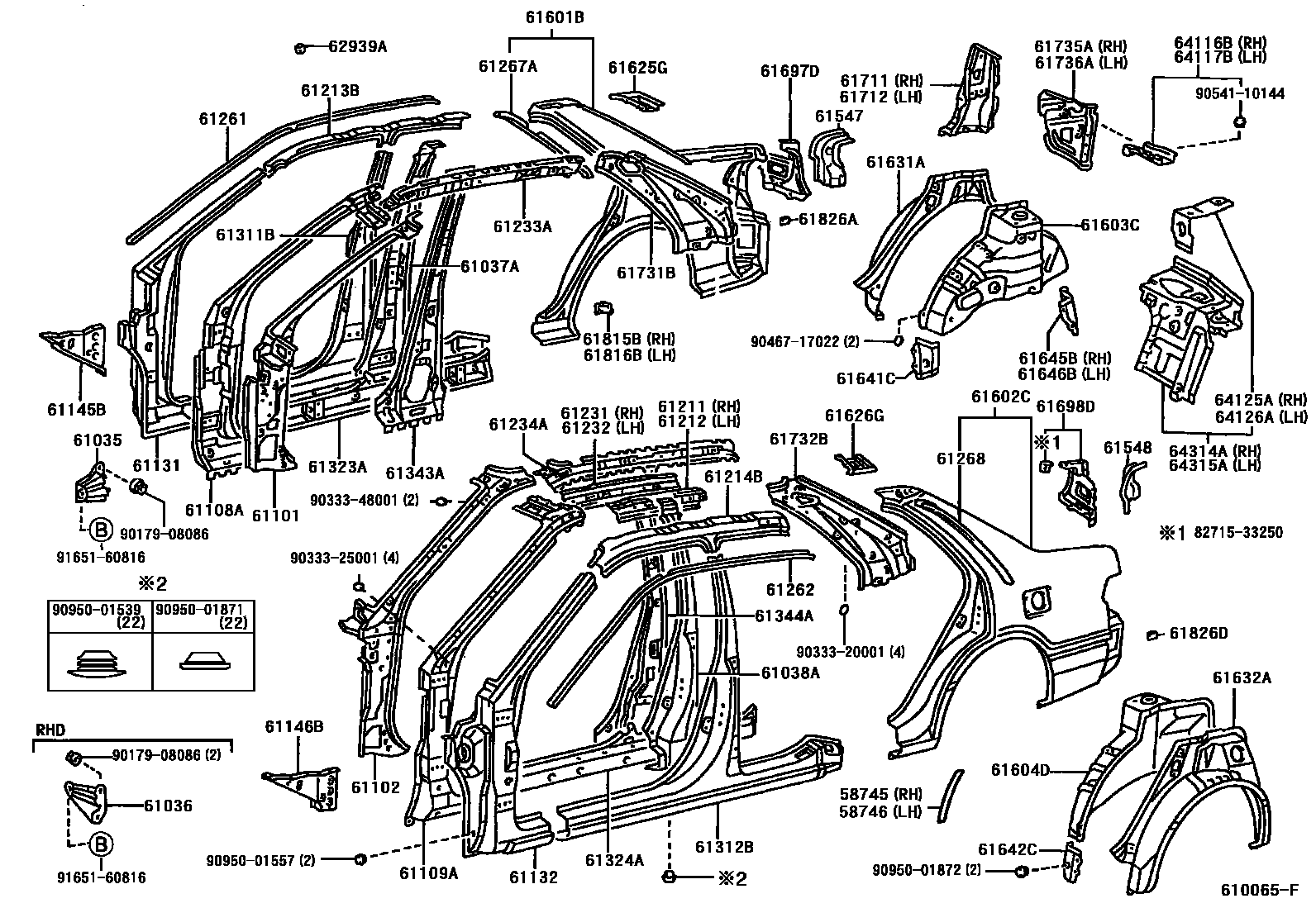

Toyota CAMRY EPC diagram 6101, 侧梁, with 1 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58745 | Right front side panel protector | 58745-33010 |
| 58746 | Left front side panel protector | 58746-33010 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61165-33020 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61166-33020 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61047-33030 · 61047-33031 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61048-33030 · 61048-33031 |
| 61101 | Right front wall side panel sub-assembly | 61101-33020 · 61101-33030 |
| 61102 | Left front wall side panel sub-assembly | 61102-33030 · 61102-33040 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61106-33010 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61107-33010 |
| 61131 | Right body outer front upper pillar | 61131-33020 |
| 61132 | Left body outer front upper pillar | 61132-33020 |
| 61145B | Right body front pillar lower corner panel | 61145-33020 |
| 61146B | Left body front pillar lower corner panel | 61146-33020 |
| 61211 | Roof right outer longitudinal beam | 61211-AA020 |
| 61212 | Roof left outer longitudinal beam | 61212-AA020 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-33020 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-33020 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-AA020 · 61231-AA021 |
| 61232 | Roof left inner longitudinal beam | 61232-AA020 · 61232-AA021 |
| 61233A | No. 2 longitudinal beam inside the right side of the roof | 61233-33020 · 61233-33021 |
| 61234A | No. 2 longitudinal beam on the inner left side of the roof | 61234-33060 · 61234-33061 |
| 61261 | Drainage channel on the right side of the roof | 61261-33010 |
| 61262 | Drainage channel on the left side of the roof | 61262-33010 |
| 61267A | Roof right rear gutter | 61267-33020 |
| 61268 | Roof left rear gutter | 61268-33020 |
| 61311B | Right body outer center pillar | 61311-33010 |
| 61312B | Left body outer center pillar | 61312-33010 |
| 61323A | Right body center pillar lower reinforcement | 61305-33010 |
| 61324A | Left body center pillar lower reinforcement | 61306-33010 |
| 61343A | Right body inner center pillar | 61307-33010 · 61307-33020 · 61307-33021 |
| 61344A | Left body inner center pillar | 61308-33010 · 61308-33020 · 61308-33021 |
| 61547 | Inner right corner window pillar reinforcement | 61547-AA010 |
| 61548 | Inner left corner window pillar reinforcement | 61548-AA010 |
| 61601B | Right side enclosure sub-assembly | 61601-33909 |
| 61602C | Left side enclosure sub-assembly | 61602-33904 · 61602-33907 |
| 61603C | Right wheel cover sub-assembly | 61607-33901 |
| 61604D | Left side wheel cover sub-assembly | 61608-33901 |
| 61625G | Right rear side panel extension | 61625-33020 · 61625-33021 |
| 61626G | Left rear side panel extension | 61626-33020 · 61626-33021 |
| 61631A | Right wheel cover outer panel | 61631-33900 |
| 61632A | Left side wheel cover outer panel | 61632-33900 |
| 61641C | Right front side wheel housing corner panel | 61641-33010 |
| 61642C | Left front side wheel housing corner panel | 61642-33010 |
| 61645B | Right rear side wheel housing corner panel | 61645-33010 |
| 61646B | Left rear side wheel housing corner panel | 61646-33010 |
| 61697D | Right side enclosure end cover | 61697-33900 · 61697-33902 · 61697-33903 |
| 61698D | Left side enclosure end cover | 61698-33900 · 61698-33902 |
| 61711 | Roof right side outer panel | 61711-33020 |
| 61712 | Roof left outer panel | 61712-33020 |
| 61731B | Roof right inner panel | 61731-33060 · 61731-33061 |
| 61732B | Roof left inner panel | 61732-33050 · 61732-33051 |
| 61735A | Right rear roof inner panel | 61735-33010 · 61735-33011 · 61735-33012 |
| 61736A | Left rear roof inner panel | 61736-33010 · 61736-33012 |
| 61815B | Right inner upper cover of the roof | 61815-33040 |
| 61816B | Roof left inner upper cover | 61815-33040 |
| 61826A | Noise Control Panel No. 3 | 61825-12010 |
| 61826D | Noise Control Panel No. 3 | 61825-12010 · 61826-30030 |
| 62939A | Side ventilation silencers | 62939-32020 |
| 64116B | Right rear upper reinforcement | 64116-33030 |
| 64117B | Left rear upper reinforcement | 64117-33030 |
| 64125A | Upper right back panel bracket | 64125-33020 |
| 64126A | Upper left back panel bracket | 64126-33020 |
| 64314A | Glove box bracket right reinforcement | 64304-33900 |
| 64315A | Glove box bracket left reinforcement | 64305-33900 |
