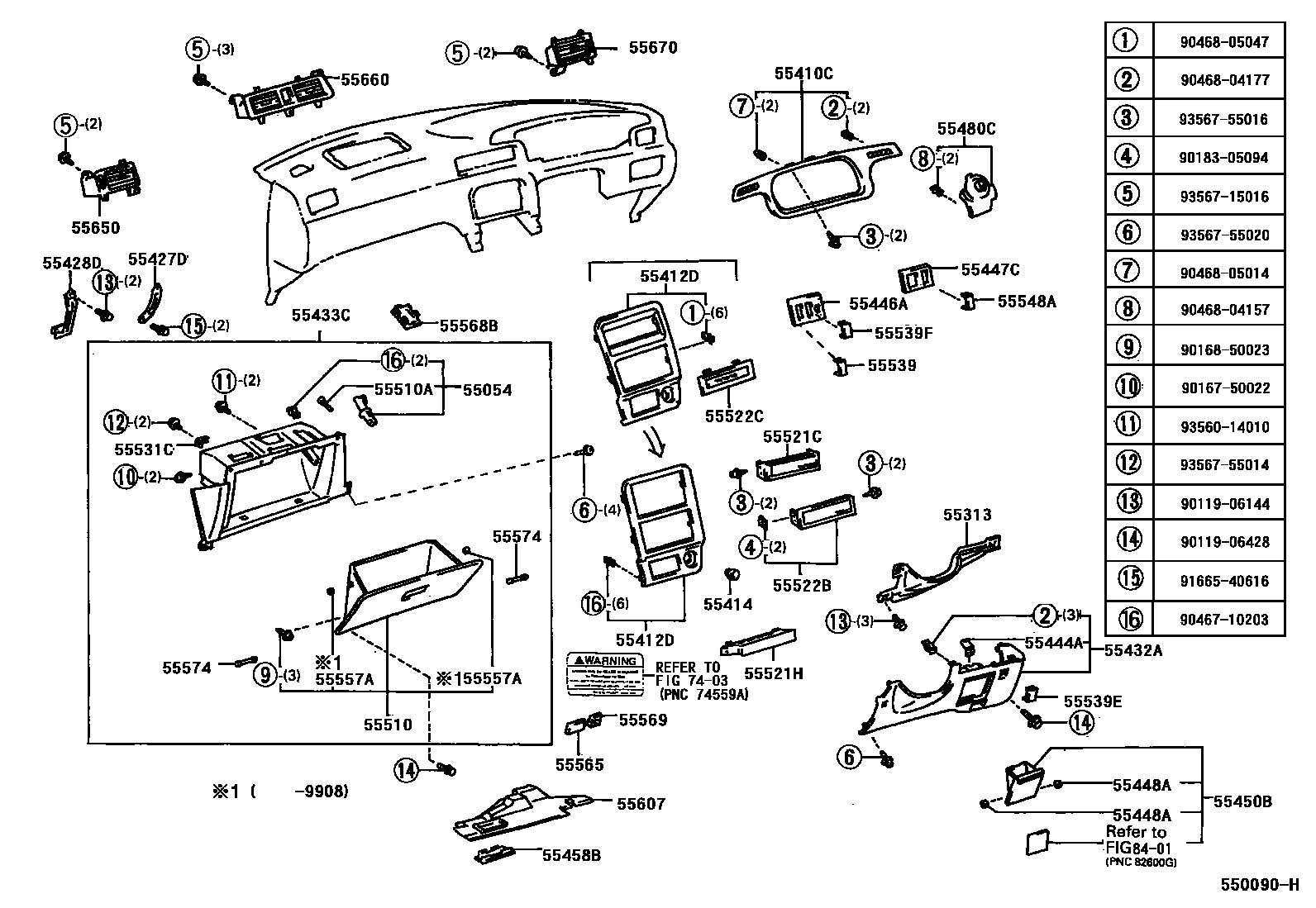

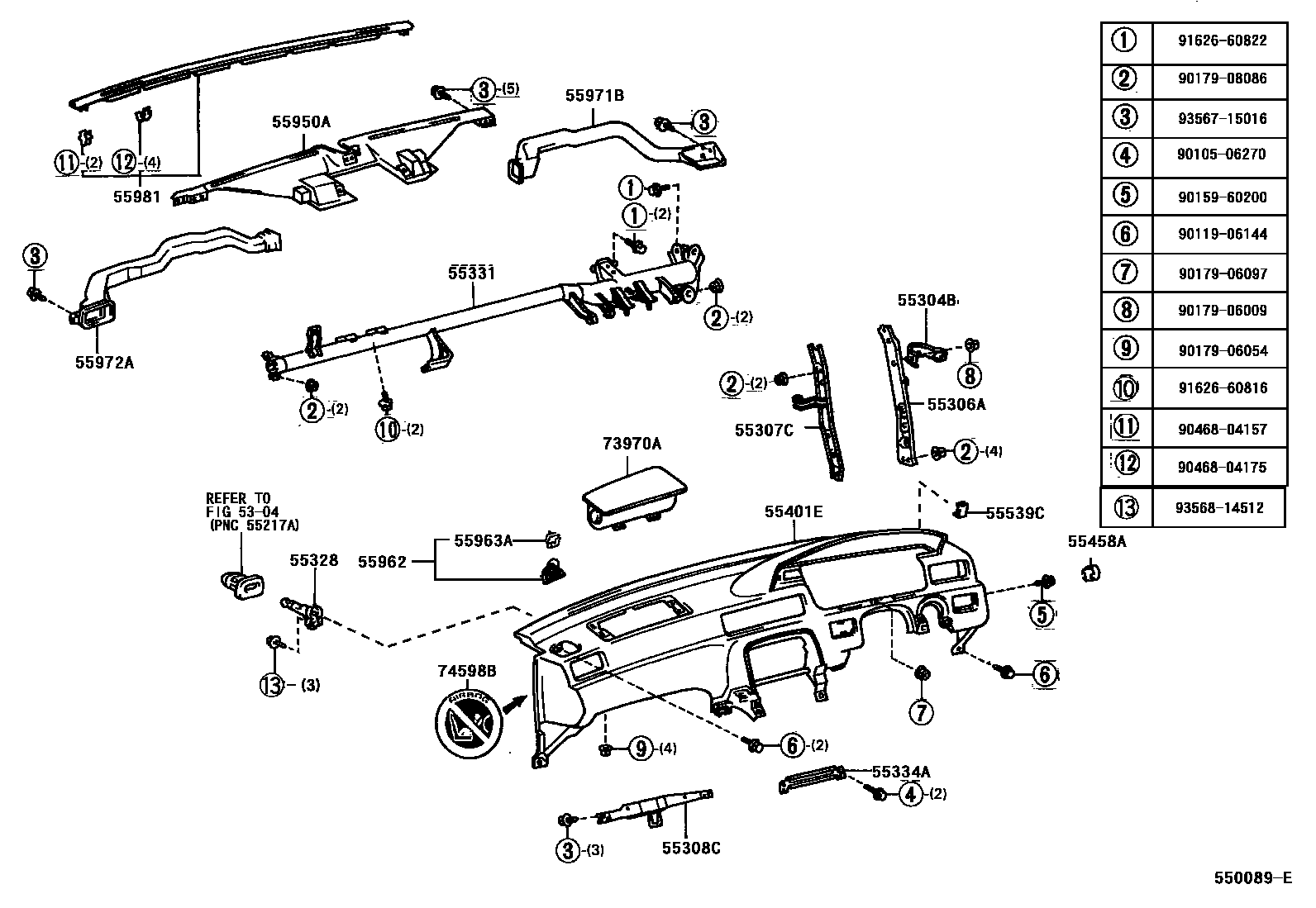

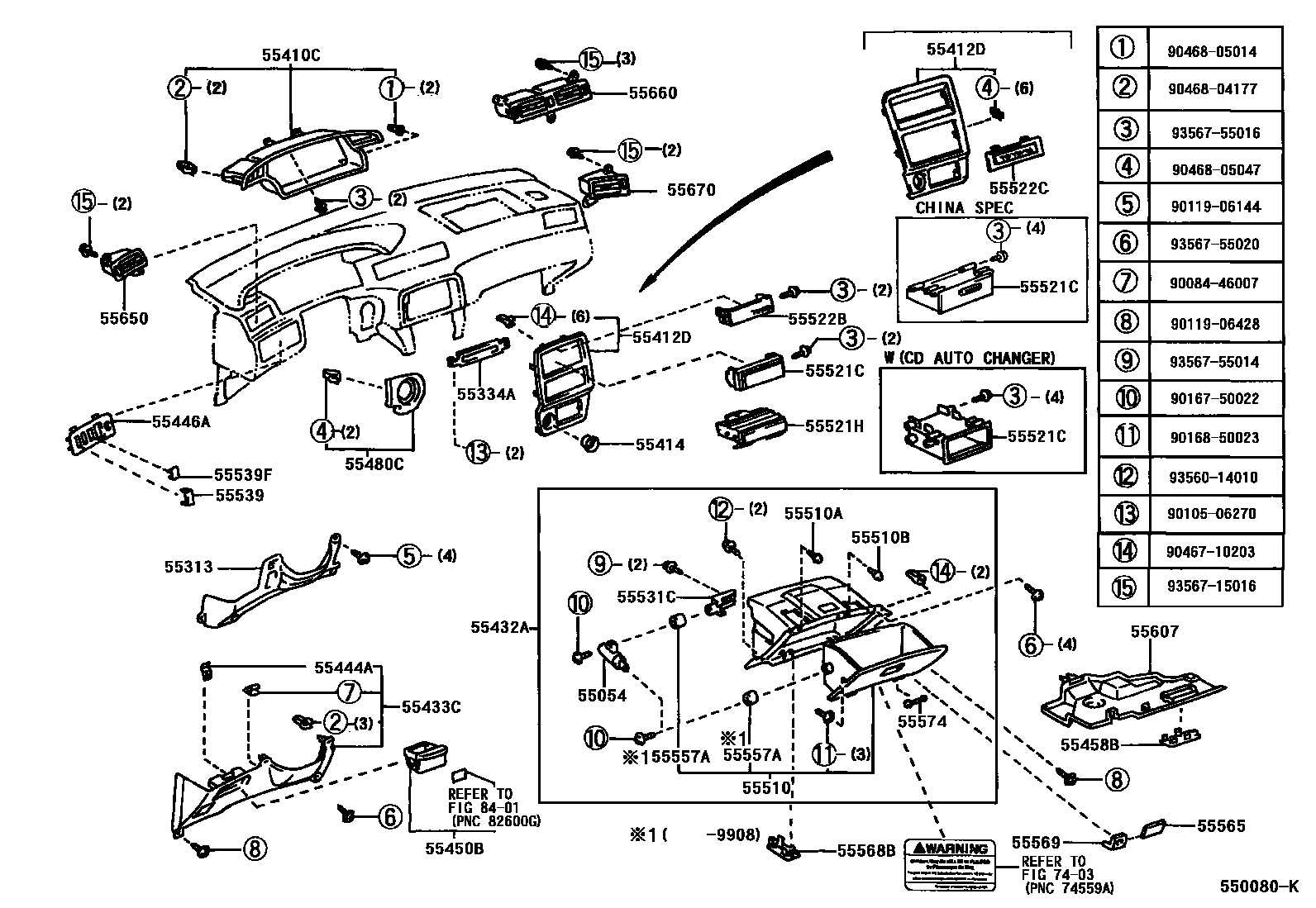

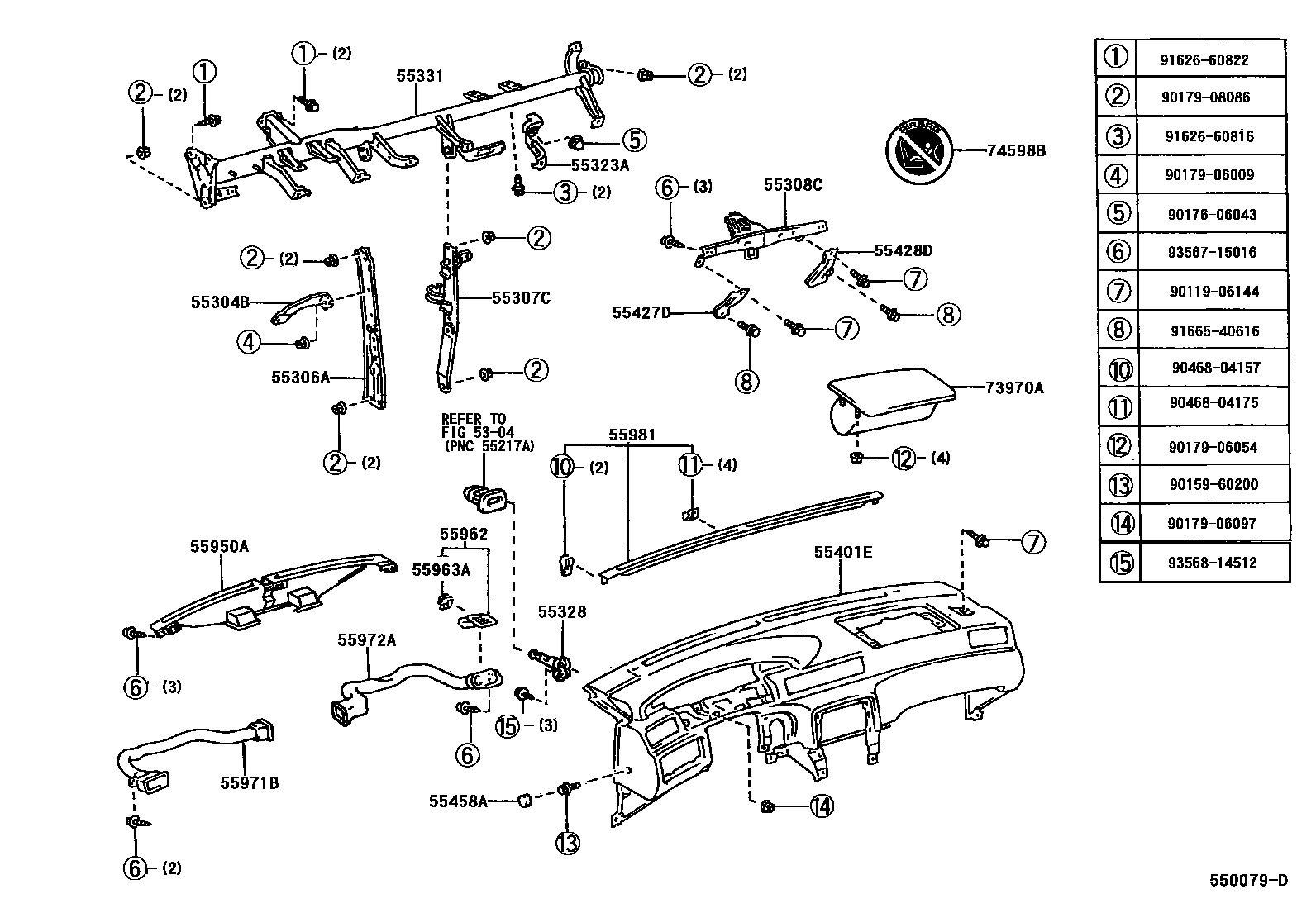

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 4 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-30010 |
| 55304B | Instrument panel bracket mounting bracket sub-assembly | 55381-33050 · 55381-33060 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55351-33050 · 55351-33060 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-33070 · 55307-33080 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-33050 · 55308-33060 |
| 55313 | lower left instrument panel | 55406-33030 · 55406-33040 |
| 55323A | Dashboard No. 3 Bracket | 55323-33040 |
| 55328 | Instrument panel pin 1 | 55328-24010 |
| 55331 | Dashboard reinforcement | 55330-33130 · 55330-33140 |
| 55334A | Reinforcements on dashboard | 55334-33010 |
| 55410C | Instrument cluster decorative panel assembly | 55410-33040 · 55410-33050 |
| 55412D | Center instrument cluster decorative panel | 55405-33040 · 55405-33050 · 55405-33080 · 55405-33090 |
| 55414 | Cigarette lighter hole frame | 55477-33010 |
| 55427D | Instrument panel No. 1 decorative panel lower fixing part | 55427-33030 · 55427-33040 |
| 55428D | Instrument panel No. 2 decorative panel lower fixing piece | 55428-33030 · 55428-33040 |
| 55444A | Dashboard storage box spring | 55444-33030 · 55444-33040 |
| 55446A | No. 1 switch hole seat | 55446-33040 · 55446-33050 · 55446-33070 · 55446-33080 |
| 55447C | No. 2 switch hole seat | 55447-33050 · 55447-33060 |
| 55448A | Instrument panel decorative cushion No. 1 | 55448-33050 |
| 55458B | Dashboard lower cover | 55458-33070 |
| 55510A | Cushion (for glovebox lid) | 90541-05020 |
| 55510B | Cushion (for glovebox lid) | 90541-03015 |
| 55521C | stereo system hole cover | 55022-17010 · 55520-33020 · 55521-32020 |
| 55521H | Stereo system hole cover assembly | 55520-33010 · 55520-33050 |
| 55522B | Radio tuner opening cover | 55522-33030 |
| 55522C | radio opening cover | 55522-12120 |
| 55531C | Glove box cover limit pin | 55531-33010 |
| 55539 | Spare switch hole cover | 55539-33050 · 55539-33060 |
| 55539F | Spare switch hole cover | 55539-33050 · 55539-33060 |
| 55557A | Glove box cover limit pad | 55557-16010 |
| 55568B | Glove box cover decorative panel | 55568-24020 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-33040 · 55607-33050 |
| 55950A | Defroster nozzle assembly | 55950-33060 · 55950-33061 · 55950-33070 · 55950-33071 |
| 55963A | Side defroster fixings | 55963-33020 |
| 55971B | Side defroster No. 1 nozzle air duct | 55971-33030 · 55971-33040 |
| 55972A | Side defroster No. 2 nozzle air duct | 55972-33030 · 55972-33040 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-33050 · 55981-33060 |
| 74598B | Passenger air bag warning label | 74598-20010 |
