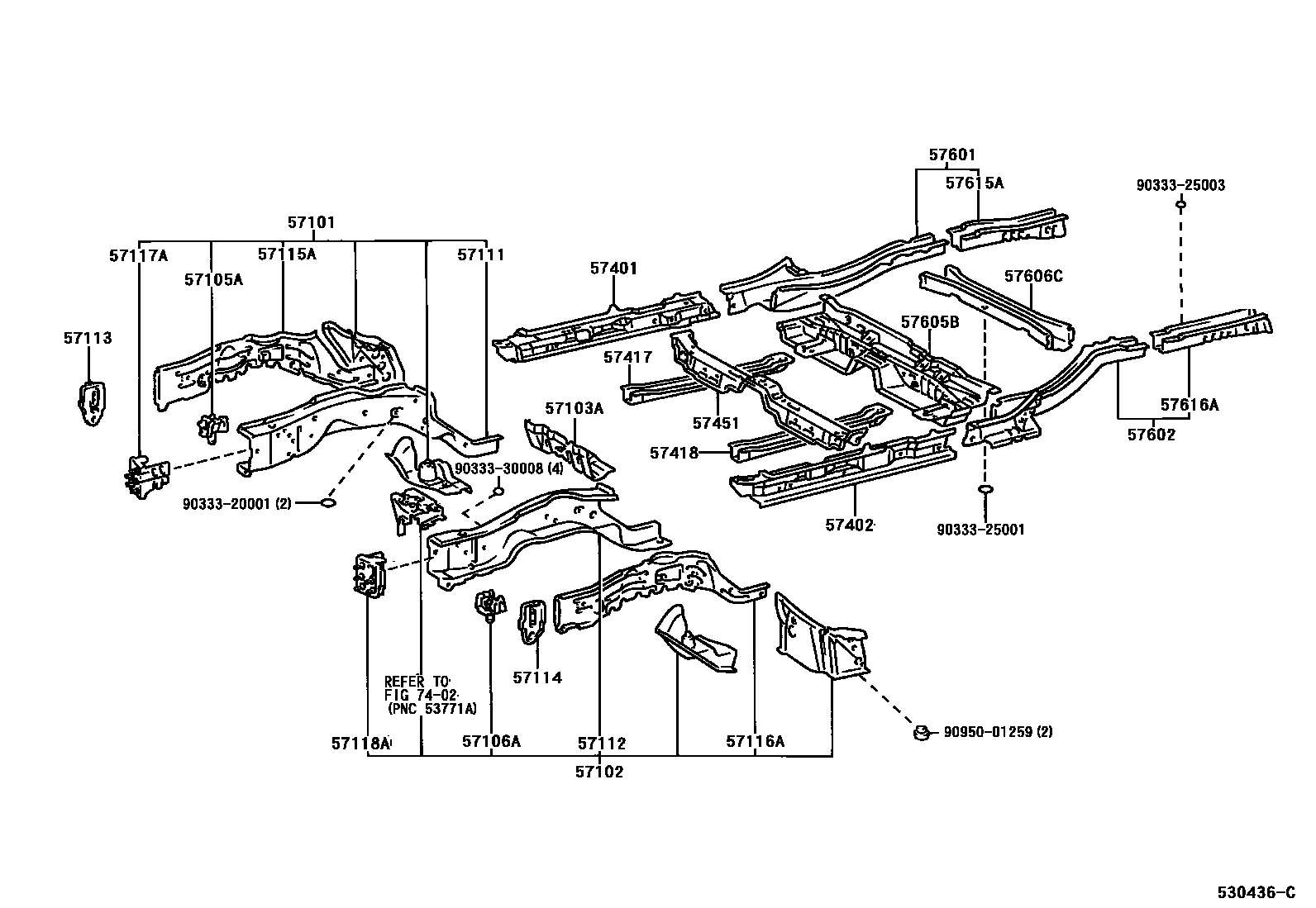

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57101 | Right front longitudinal beam sub-assembly | 57101-33020 · 57101-33021 · 57101-33022 · 57101-33023 · 57101-33024 · 57101-33025 · 57101-33026 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-33030 · 57102-33031 · 57102-33032 · 57102-33033 · 57102-33034 · 57102-33037 · 57102-33038 |
| 57103A | Floor No. 3 beam sub-assembly | 57103-33010 |
| 57105A | Right front longitudinal beam plate sub-assembly | 57105-33011 · 57105-33020 |
| 57106A | Left front longitudinal beam plate sub-assembly | 57106-33011 · 57106-33020 |
| 57111 | Right front longitudinal beam | 57111-33010 · 57111-33011 · 57111-33012 · 57111-33013 |
| 57112 | Left front longitudinal beam | 57112-33020 · 57112-33021 · 57112-33022 · 57112-33023 · 57112-33024 · 57112-33025 |
| 57113 | Right front longitudinal beam extension | 57113-33020 · 57113-33030 |
| 57114 | Left front longitudinal beam extension | 57114-33020 · 57114-33030 |
| 57115A | Right front longitudinal beam outer panel | 57115-33010 |
| 57116A | Left front longitudinal beam outer panel | 57116-33010 |
| 57117A | Front bumper mounting reinforcement | 57033-33010 · 57033-33020 · 57117-33020 |
| 57118A | Install reinforcement on the left side of the front bumper | 57034-33010 · 57034-33020 · 57118-33020 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-33050 · 57401-33090 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-33050 · 57402-33090 |
| 57417 | Front floor lower right reinforcement | 57419-33900 |
| 57418 | Front floor lower left reinforcement | 57419-33901 |
| 57451 | front floor cross member | 57451-33030 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-33040 · 57601-33070 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-33081 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-33030 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-33021 · 57606-33030 |
| 57615A | Rear floor right rear longitudinal member | 57615-33901 · 57615-33904 |
| 57616A | Rear floor left rear longitudinal member | 57616-33903 · 57616-33905 |
