Toyota CAMRY 发动机盖锁和铰链 — Figure 5303

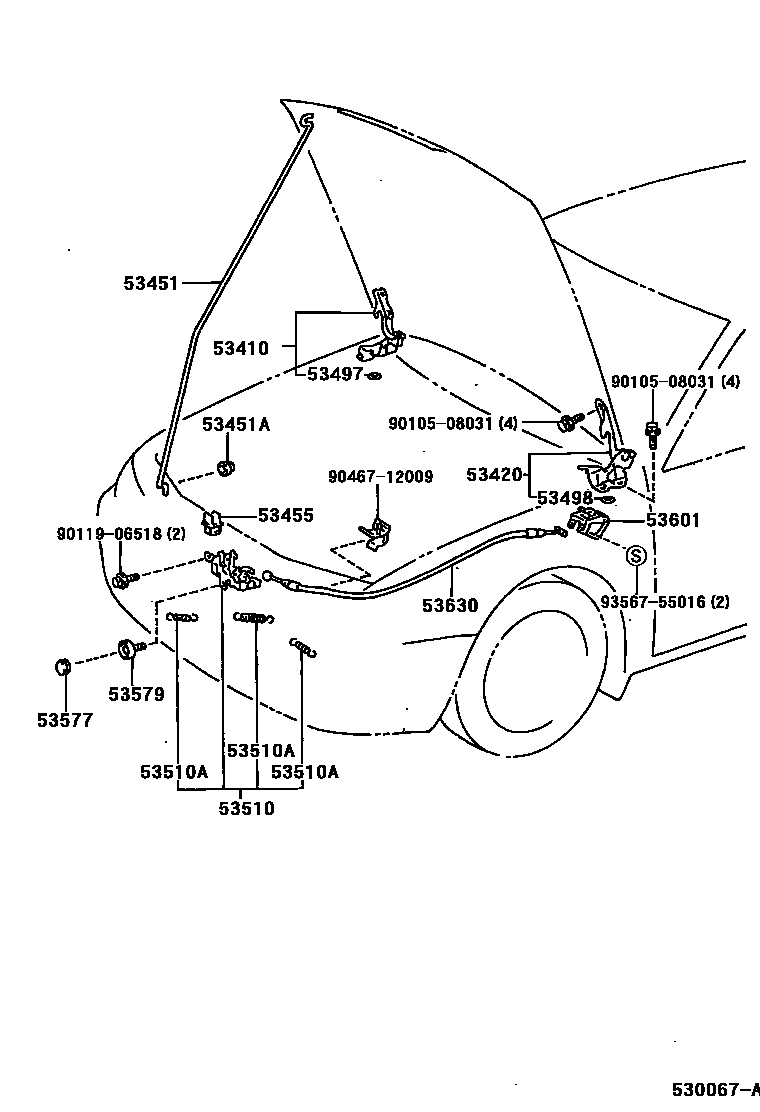

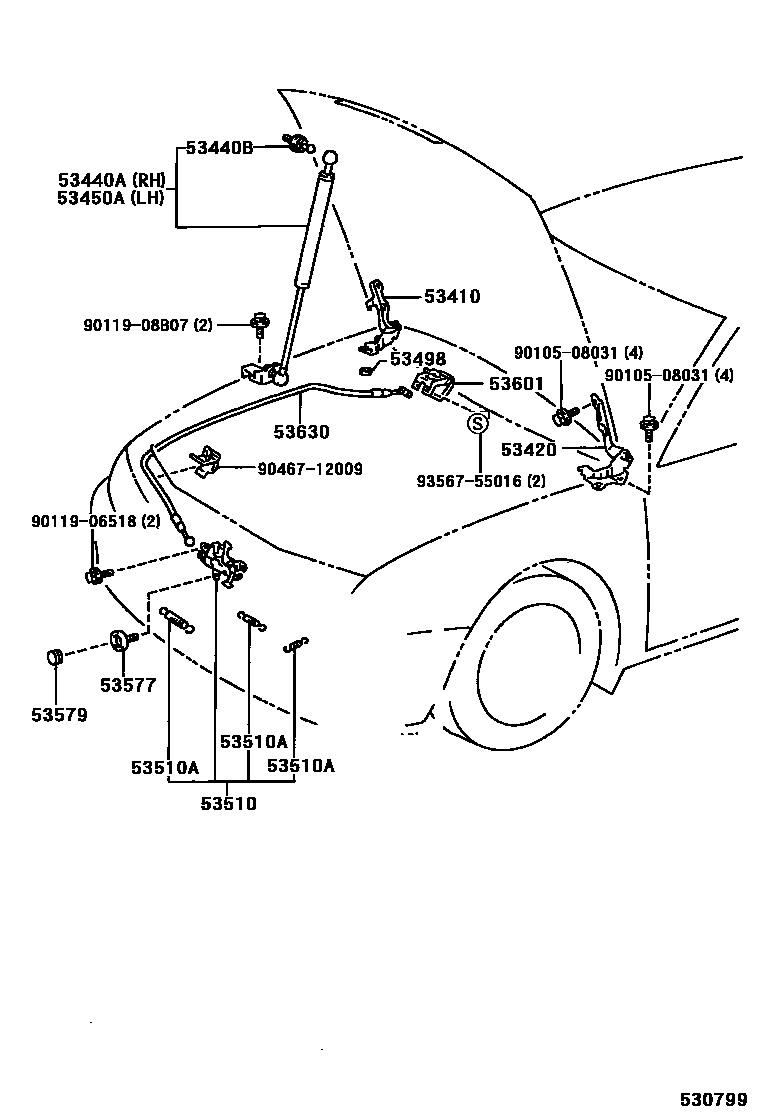

Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-33030 · 53410-33070 |
| 53420 | Engine cover left hinge assembly | 53420-33030 · 53420-33070 |
| 53440A | Engine cover right support rod assembly | 53440-69045 |
| 53440B | No. 1 engine cover support rod bolt | 68961-23010 |
| 53450A | Engine cover left support rod assembly | 53450-69045 |
| 53451 | Engine cover support rod | 53451-33010 |
| 53451A | Gasket (for engine cover support rod) | 53454-33010 |
| 53455 | Engine cover support rod clip | 53455-12080 · 53455-33010 · 53455-33011 |
| 53497 | No. 1 engine cover hinge gasket | 53497-12070 · 53497-20070 |
| 53498 | No. 2 engine cover hinge gasket | 53497-12050 · 53497-12060 · 53497-12070 · 53497-20070 · 53498-12060 |
| 53510 | Engine cover lock assembly | 53510-33070 · 53510-33110 · 53510-33130 · 53510-33170 |
| 53510A | Tension spring (for hood lock) | 90506-09055 · 90506-09057 · 90506-12067 · 90506-14064 · 90506-20065 · 90506-20066 |
| 53577 | engine cover lock bolt | 53577-33010 |
| 53579 | Engine hood lock nut cover | 53579-50010 |
| 53630 | Engine hood lock control cable assembly | 53630-33100 · 53630-33130 |
