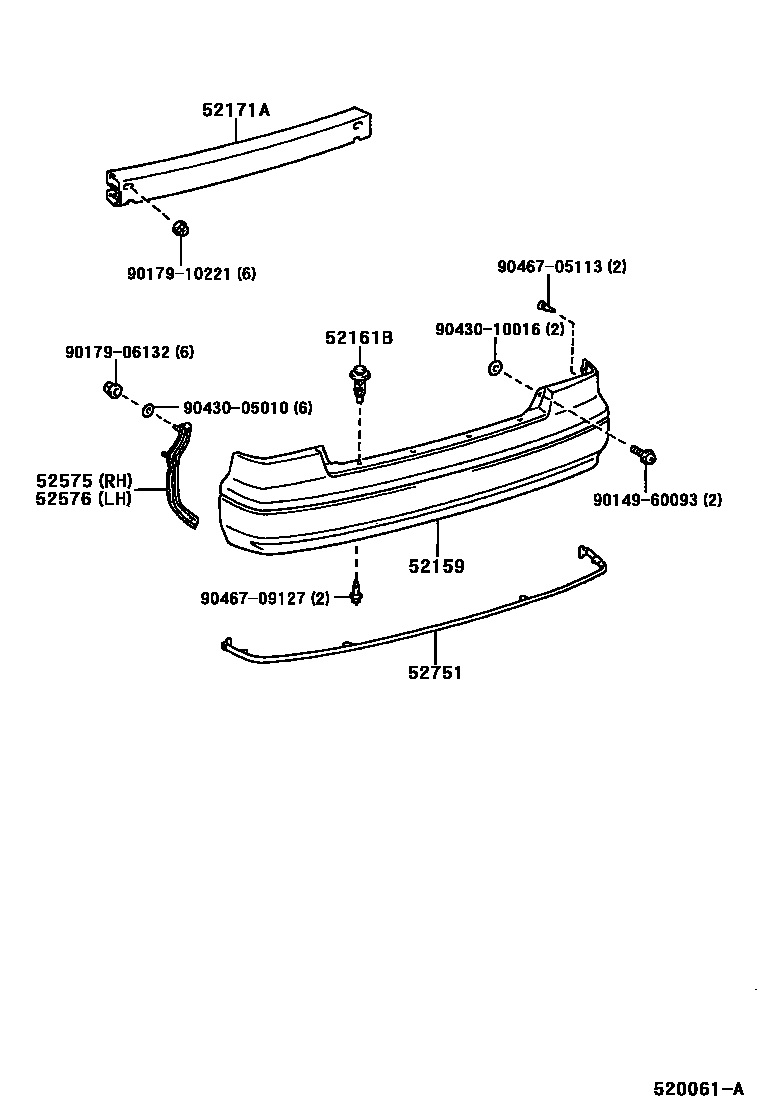

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-33905 · 52159-33908 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-33030 |
| 52575 | Rear bumper right side fixing bracket | 52575-33060 |
| 52576 | Rear bumper left side fixing bracket | 52576-33060 |
| 52751 | Rear bumper protection strip | 52751-33010 · 52751-33040 |
