Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

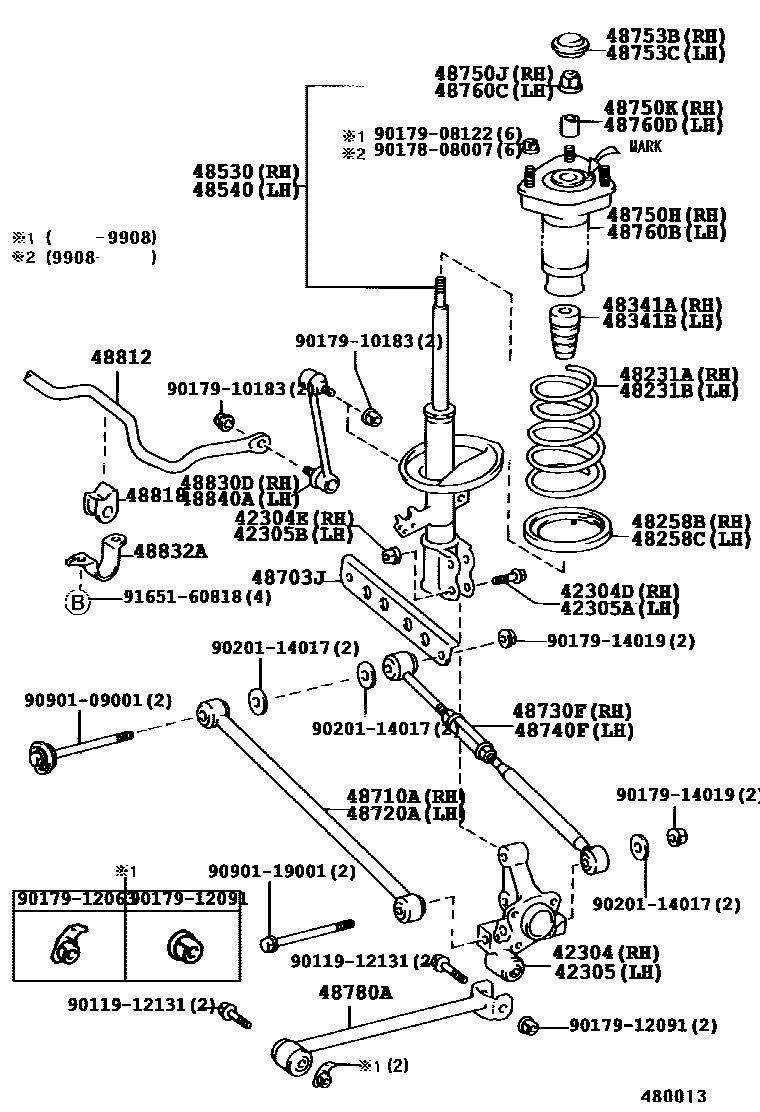

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-20090 |
| 42304D | Bolt (for rear axle right bracket) | 90105-15001 · 90901-05001 |
| 42304E | Nut (for rear axle right bracket) | 90178-15001 · 90179-15001 |
| 42305 | Rear axle left bracket sub-assembly | 42305-20090 |
| 42305A | Bolt (for left rear axle bracket) | 90105-15001 · 90901-05001 |
| 42305B | Nut (for left rear axle bracket) | 90178-15001 · 90179-15001 |
| 48231A | Right rear coil spring | 48231-33240 · 48231-33260 · 48231-33320 · 48231-33340 · 48231-33390 · 48231-33420 · 48231-33440 · 48231-33610 · 48231-AA070 |
| 48231B | Left rear coil spring | 48231-33240 · 48231-33260 · 48231-33320 · 48231-33340 · 48231-33390 · 48231-33420 · 48231-33440 · 48231-33610 · 48231-AA070 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-32020 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-32020 |
| 48341A | No. 1 right rear spring buffer block | 48341-32052 · 48341-32053 |
| 48341B | No. 1 left rear spring buffer block | 48341-32052 · 48341-32053 |
| 48530 | Right rear shock absorber assembly | 48530-39356 · 48530-39366 · 48530-39376 · 48530-39565 · 48530-39575 |
| 48540 | Left rear shock absorber assembly | 48540-39236 · 48540-39246 · 48540-39256 · 48540-39345 · 48540-39355 |
| 48703J | Washer No. 2 (for rear suspension arm) | 48715-33020 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-33050 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-33050 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-33050 |
| 48740F | Left rear suspension No. 2 arm assembly | 48740-33060 |
| 48750H | Right rear suspension support assembly | 48750-33020 · 48750-33040 · 48750-33041 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90177-14001 |
| 48750K | Collar (for rear mount to right rear shock absorber) | 90387-15027 |
| 48753B | Right rear suspension support cover No. 1 | 48753-33010 |
| 48753C | Left rear suspension support cover No. 1 | 48753-33010 |
| 48760B | Left rear suspension support assembly | 48760-33020 · 48760-33040 · 48760-33041 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90177-14001 |
| 48760D | Collar (for rear mount to left rear shock absorber) | 90387-15027 |
| 48780A | Rear support rod assembly | 48780-12020 |
| 48812 | rear stabilizer bar | 48812-33090 · 48812-33100 · 48812-33110 |
| 48818 | Rear stabilizer bar bushing | 48818-33040 · 48818-33050 · 48818-33060 |
| 48830D | Right rear stabilizer bar link assembly | 48830-33010 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-33020 |
| 48840A | Left rear stabilizer bar link assembly | 48830-33010 |
