Toyota CAMRY 动力转向配管 — Figure 4503

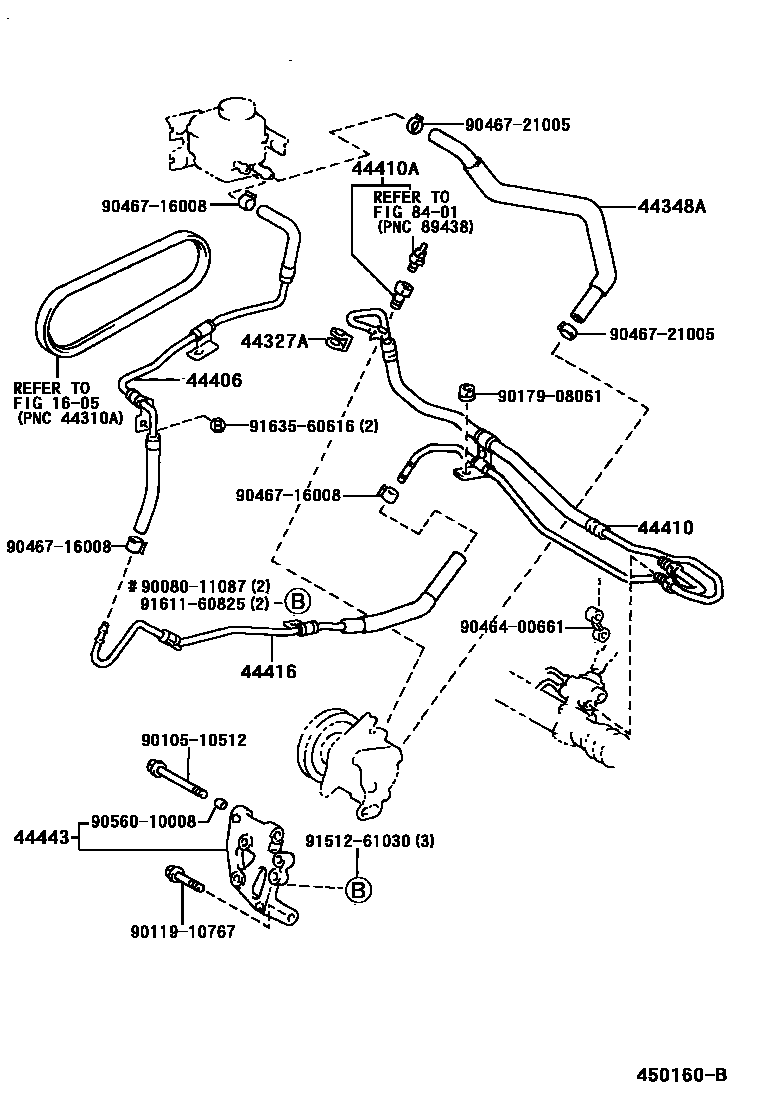

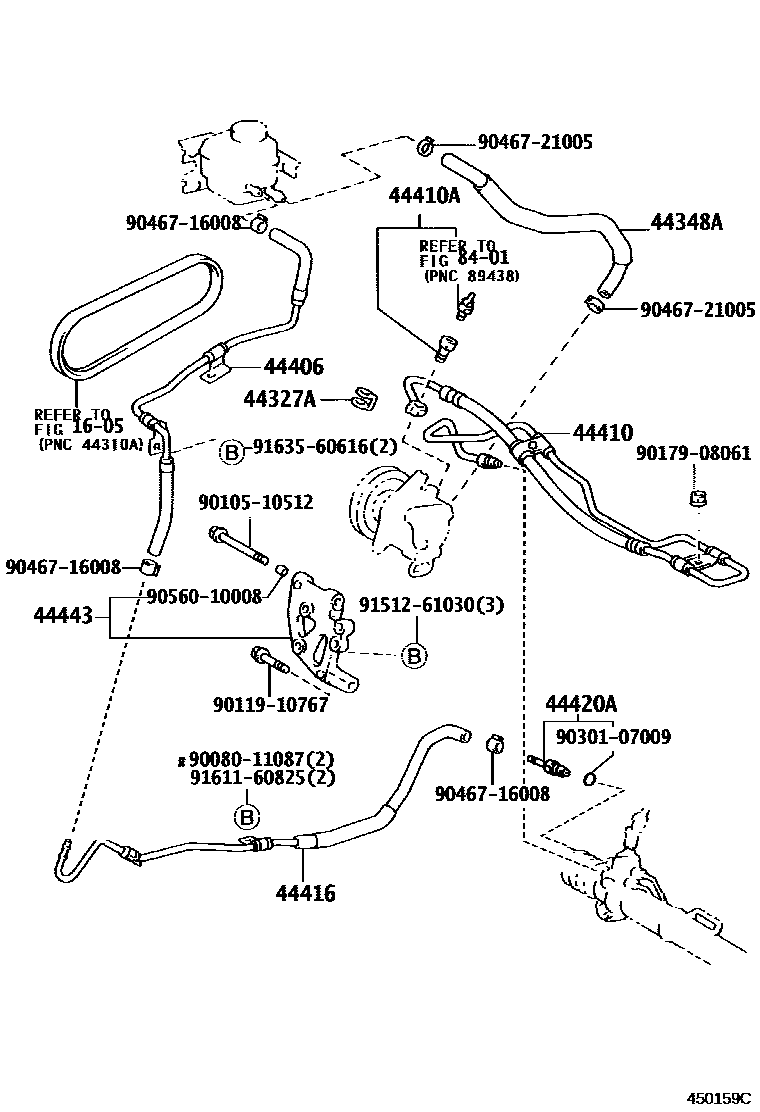

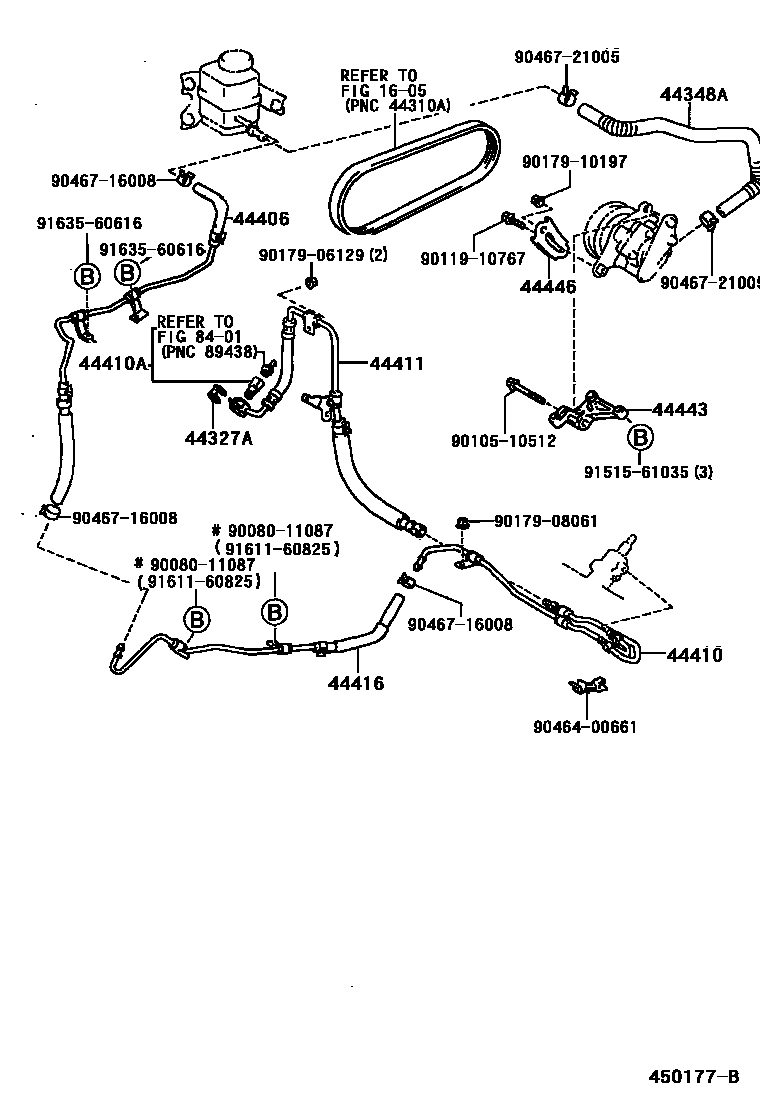

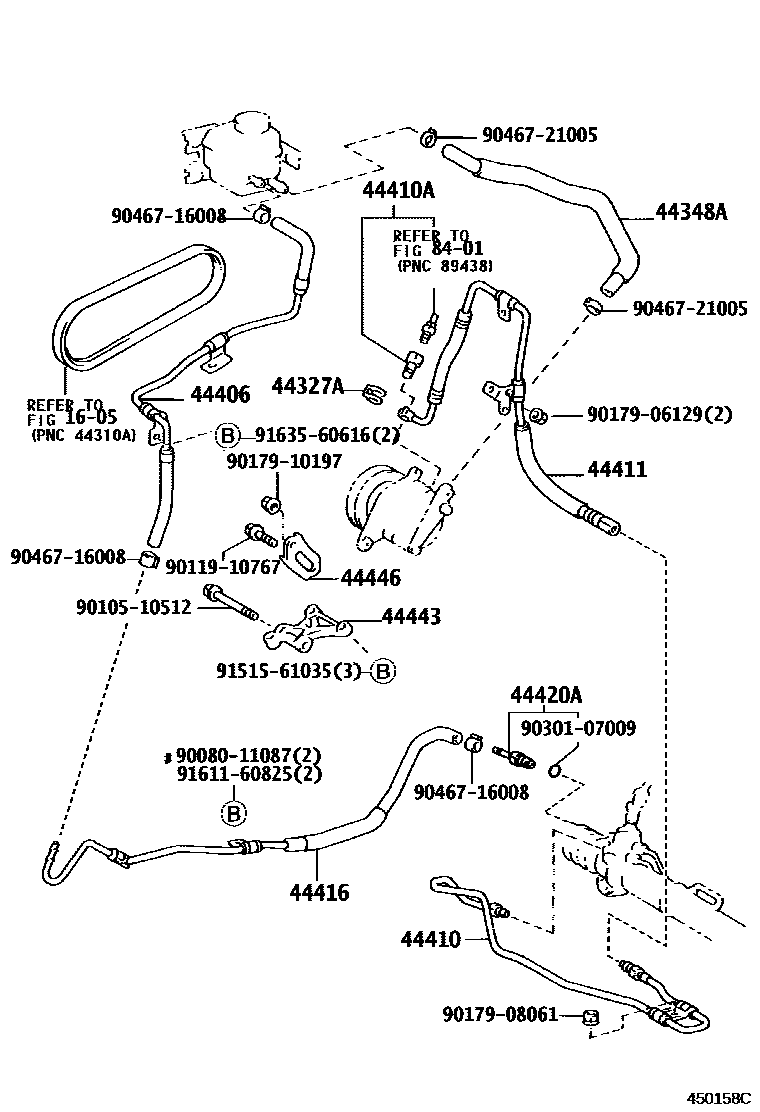

Toyota CAMRY EPC diagram 4503, 动力转向配管, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 · 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-33120 · 44348-33130 · 44348-33140 |
| 44406 | Oil return pipe sub-assembly | 44406-33060 · 44406-33061 |
| 44410 | Pressure supply pipe assembly | 44410-33110 · 44410-33120 · 44410-33130 · 44410-33140 |
| 44410A | Connector bolt (for pressure supply pipe) | 44338-33090 |
| 44411 | pressure supply hose | 44411-33060 · 44411-33070 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-33080 · 44416-33090 |
| 44420A | Oil return pipe assembly | 44420-17010 |
| 44443 | pump bracket | 44443-33020 · 44443-33040 · 44443-33041 |
| 44446 | Adjust the stand | 44446-33010 |
