Toyota CAMRY Front Drive Shaft — Figure 4302

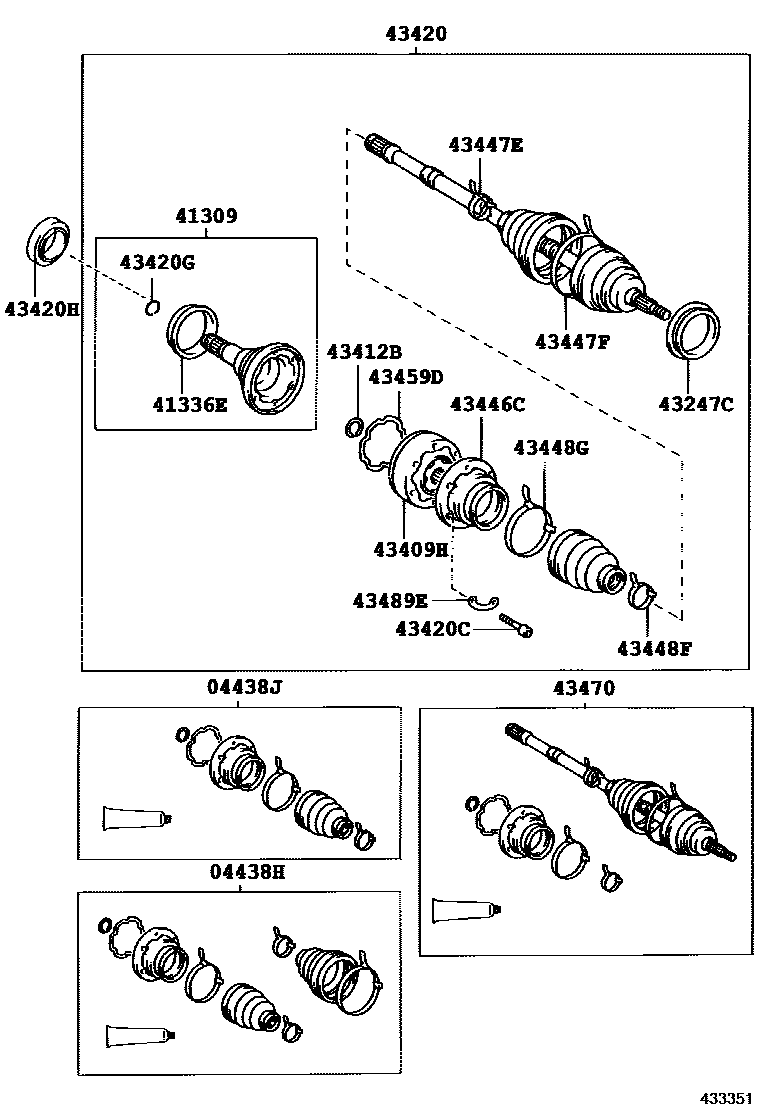

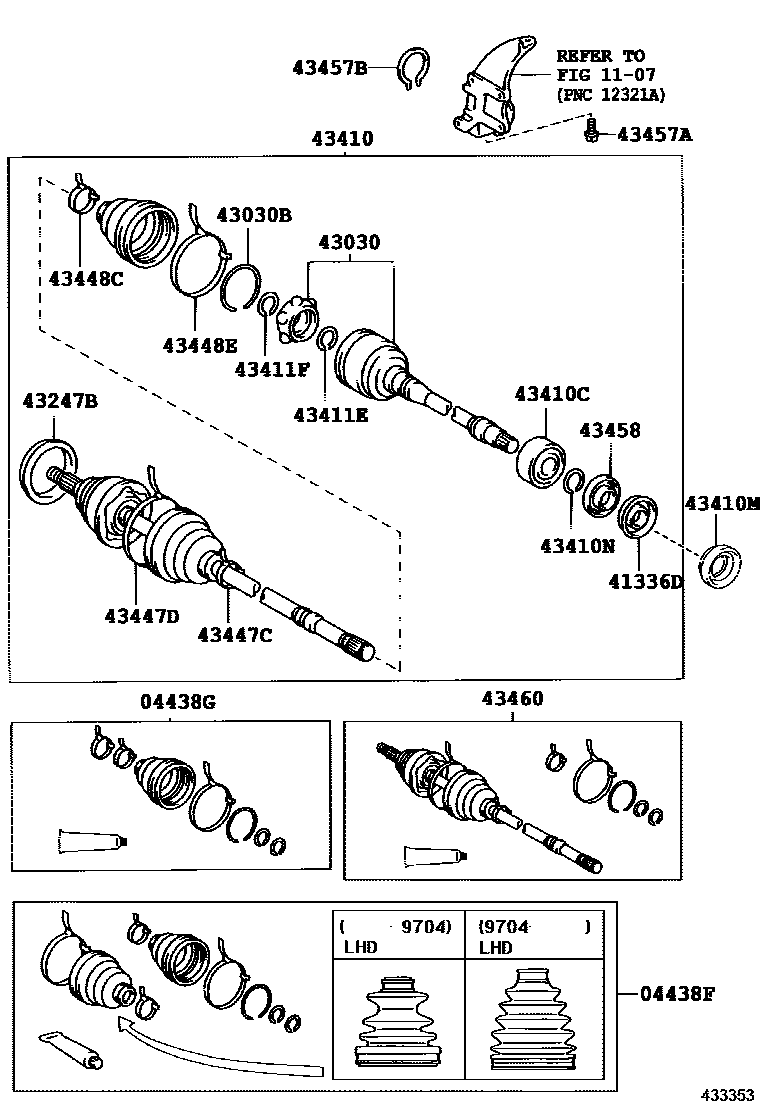

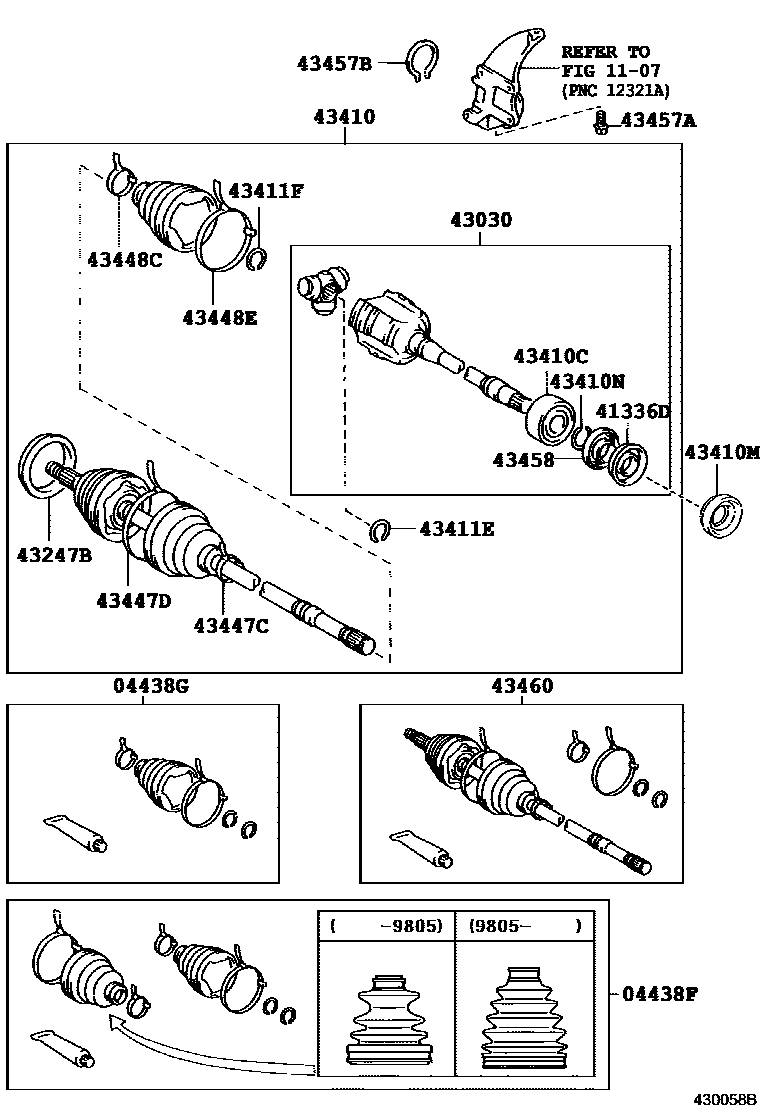

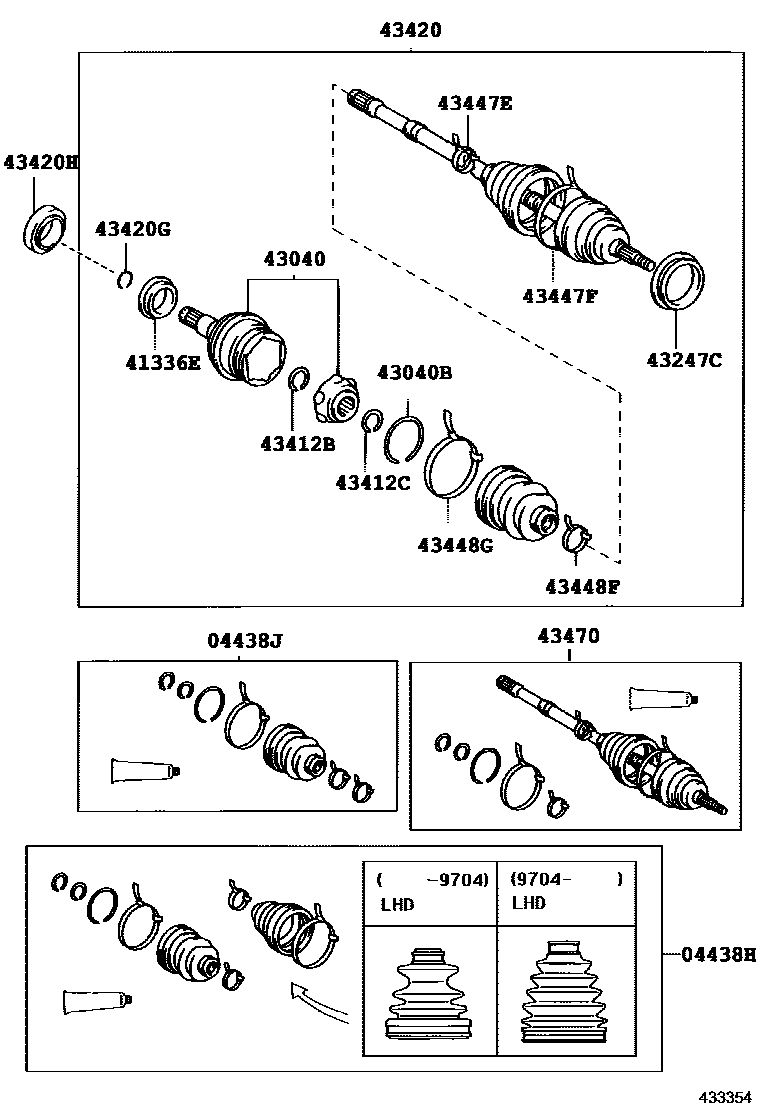

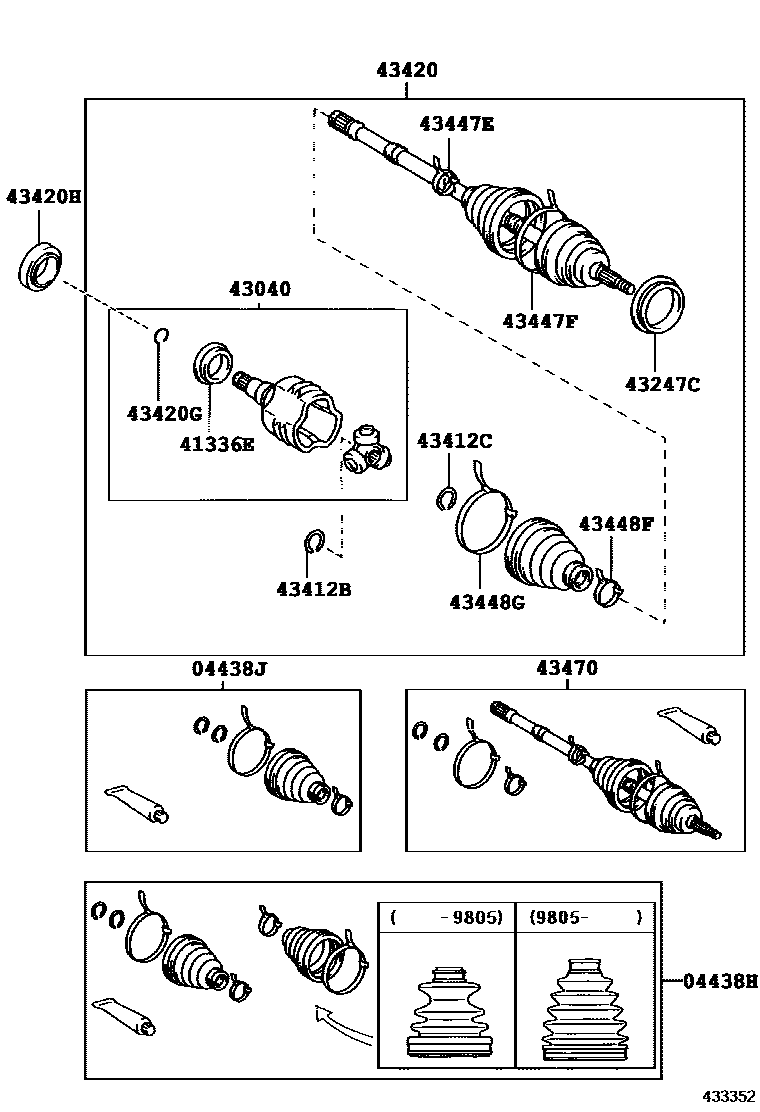

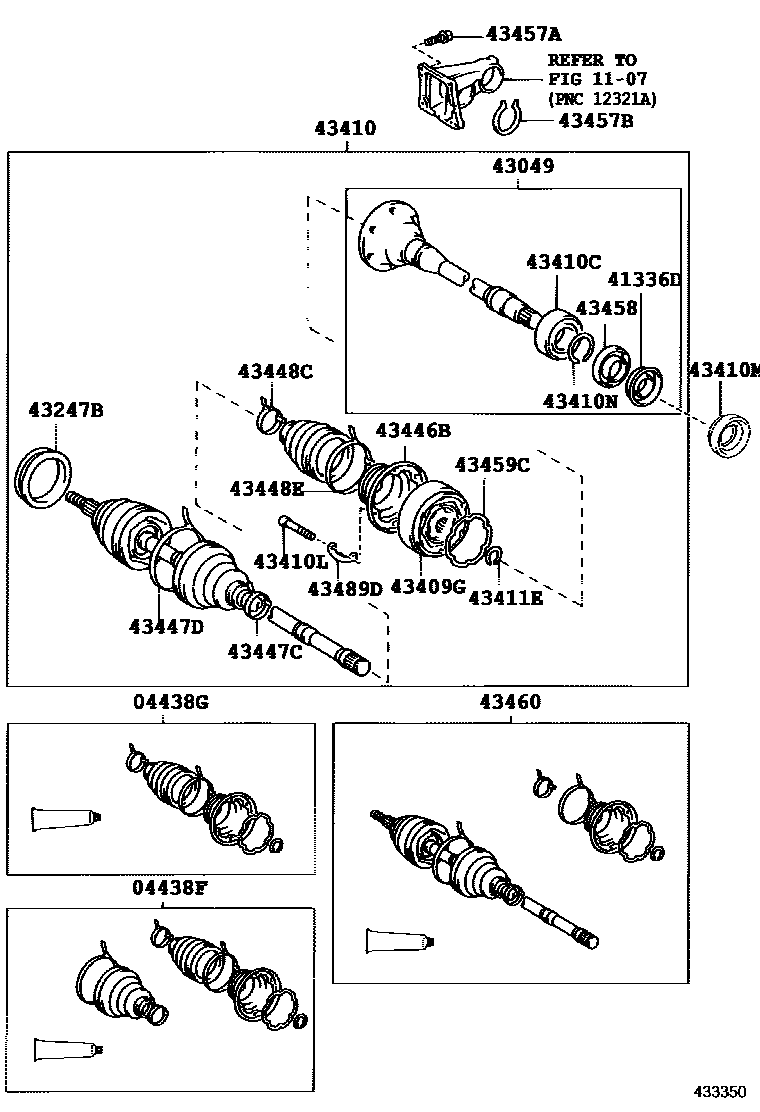

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 6 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-20070 · 04438-20090 · 04438-20370 · 04438-20371 · 04438-33021 · 04438-33040 · 04438-33090 · 04438-48030 · 04438-48031 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-20080 · 04438-20081 · 04438-20330 · 04438-20360 · 04438-20361 · 04438-33011 · 04438-33012 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-20070 · 04438-20090 · 04438-20370 · 04438-20371 · 04438-33021 · 04438-33040 · 04438-33090 · 04438-48030 · 04438-48031 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-20080 · 04438-20081 · 04438-20330 · 04438-20360 · 04438-20361 · 04438-33011 · 04438-33012 |
| 41309 | Left differential side gear shaft sub-assembly | 41309-28030 · 41309-33010 · 41309-33030 |
| 41336D | Right front driveshaft dust cover | 41336-12020 · 41336-20011 · 41336-20050 |
| 41336E | Left front driveshaft dust cover | 41336-17020 · 41336-32020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-33010 · 43030-33020 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-79001 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-20020 · 43040-32010 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-79001 |
| 43049 | Front drive flange shaft sub-assembly | 43049-33020 · 43049-33050 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-12010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-12010 |
| 43409G | Right front drive shaft cross-slot universal joint sub-assembly | 43409-17010 · 43409-28010 |
| 43409H | Left front drive shaft cross-slot universal joint sub-assembly | 43409-17010 · 43409-28010 |
| 43410 | Right front driveshaft assembly | 43410-33020 · 43410-33021 · 43410-33022 · 43410-33060 · 43410-33070 · 43410-33100 · 43410-33101 · 43410-33150 · 43410-33200 · 43410-33201 · 43410-33202 |
| 43410C | Bearings (for front driveshaft) | 90363-36001 · 90363-36004 · 90363-41002 · 90369-36001 · 90369-41001 |
| 43410L | Bolt (for right front driveshaft cross-recessed universal joint) | 90110-10007 · 90110-10015 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-35019 · 90311-35033 · 90311-35049 · 90311-40010 · 90311-40028 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-33008 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-25034 · 90520-26028 · 90520-26048 |
| 43411F | Outer shaft snap ring (for right front axle inner drive shaft) | 90520-25033 · 90520-25037 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90520-25034 · 90520-26028 · 90520-26048 |
| 43412C | Outer shaft snap ring (for left front axle inner drive shaft) | 90520-25033 · 90520-25037 |
| 43420 | Left front drive shaft assembly | 43420-33020 · 43420-33021 · 43420-33022 · 43420-33060 · 43420-33070 · 43420-33100 · 43420-33101 · 43420-33140 · 43420-33180 · 43420-33181 · 43420-48041 · 43420-48042 |
| 43420C | Bolt (for left front driveshaft cross-recessed universal joint) | 90110-10007 · 90110-10015 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-27005 · 90521-33002 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-35019 · 90311-35033 · 90311-35048 · 90311-50011 · 90311-50029 |
| 43446B | Right front axle inner universal joint cover | 43446-17010 · 43446-28010 |
| 43446C | Left front axle inner universal joint cover | 43446-17010 · 43446-28010 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-14010 · 42345-16050 · 42345-20040 · 42345-48030 · 90949-01108 · 90949-01A65 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-16060 · 42345-16070 · 42345-20030 · 42345-44010 · 42345-44020 · 42345-48040 · 90949-01107 · 90949-01937 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-14010 · 42345-16050 · 42345-20040 · 42345-48030 · 90949-01108 · 90949-01A65 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-16060 · 42345-16070 · 42345-20030 · 42345-44010 · 42345-44020 · 42345-48040 · 90949-01107 · 90949-01937 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-14010 · 42345-16050 · 90949-01108 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-16090 · 42345-16100 · 42345-30010 · 42346-22010 · 90949-01340 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-14010 · 42345-16050 · 90949-01108 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16090 · 42345-16100 · 42345-30010 · 42346-22010 · 90949-01340 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 · 90521-78002 |
| 43458 | Front drive shaft dust cover | 43458-12010 · 43458-20011 |
| 43459C | Right front driveshaft cross-recessed universal joint gasket | 43459-17010 |
| 43459D | Left front driveshaft cross-recessed universal joint gasket | 43459-17010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-39195 · 43470-39196 · 43470-39197 · 43470-39198 · 43470-39206 · 43470-39207 · 43470-39209 · 43470-39245 · 43470-39275 · 43470-39276 · 43470-39365 · 43470-39366 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-39195 · 43470-39196 · 43470-39197 · 43470-39198 · 43470-39206 · 43470-39207 · 43470-39209 · 43470-39245 · 43470-39275 · 43470-39276 · 43470-39365 · 43470-39366 |
| 43489D | Right front driveshaft cross-recessed universal joint washer | 43489-17010 |
| 43489E | Left front driveshaft cross-recessed universal joint washer | 43489-17010 |
