Toyota CAMRY 阀体和滤油网(ATM) — Figure 3512

Toyota CAMRY EPC diagram 3512, 阀体和滤油网(ATM), with 9 images and 163 PNC and OE references.

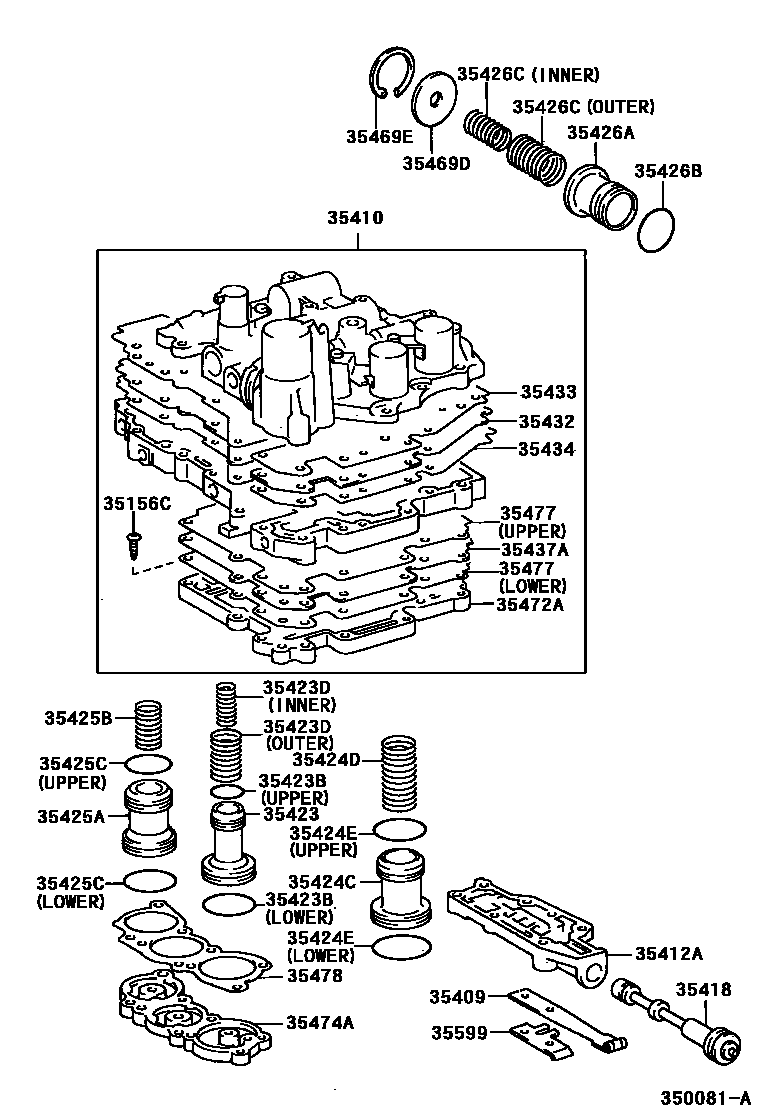

Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 350081A
阀体和滤油网(ATM) — 350081A (199608 – 999999)

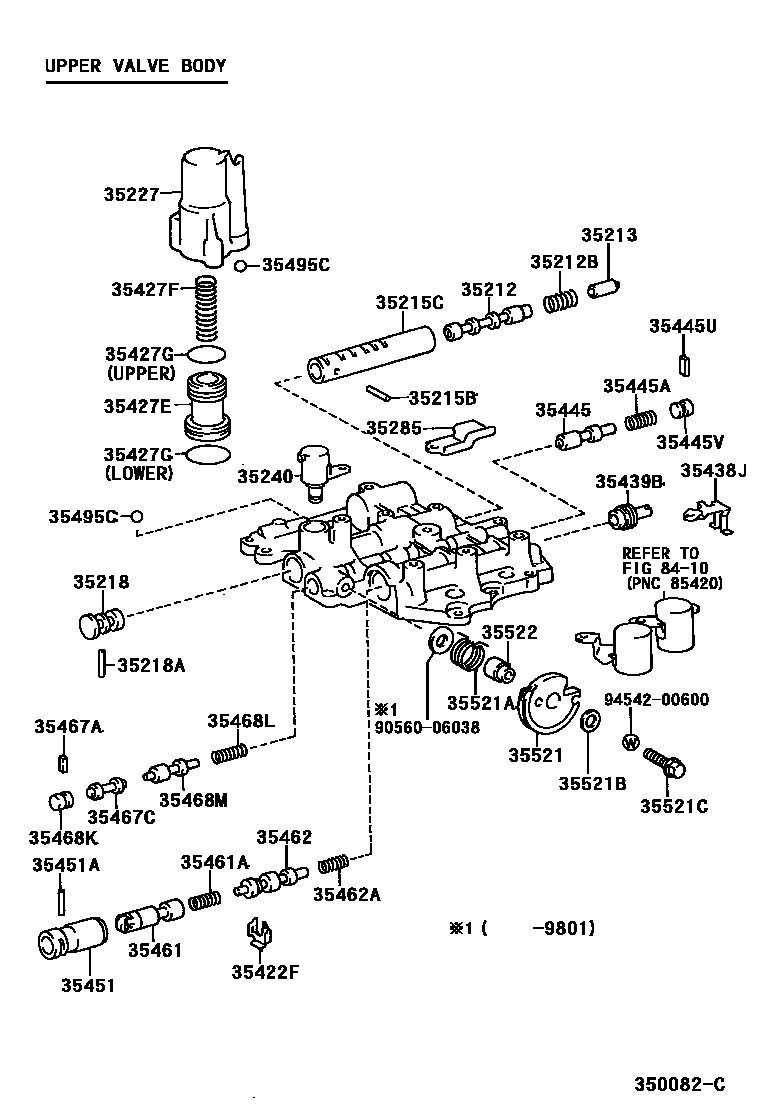

Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 350082C
阀体和滤油网(ATM) — 350082C (199608 – 999999)

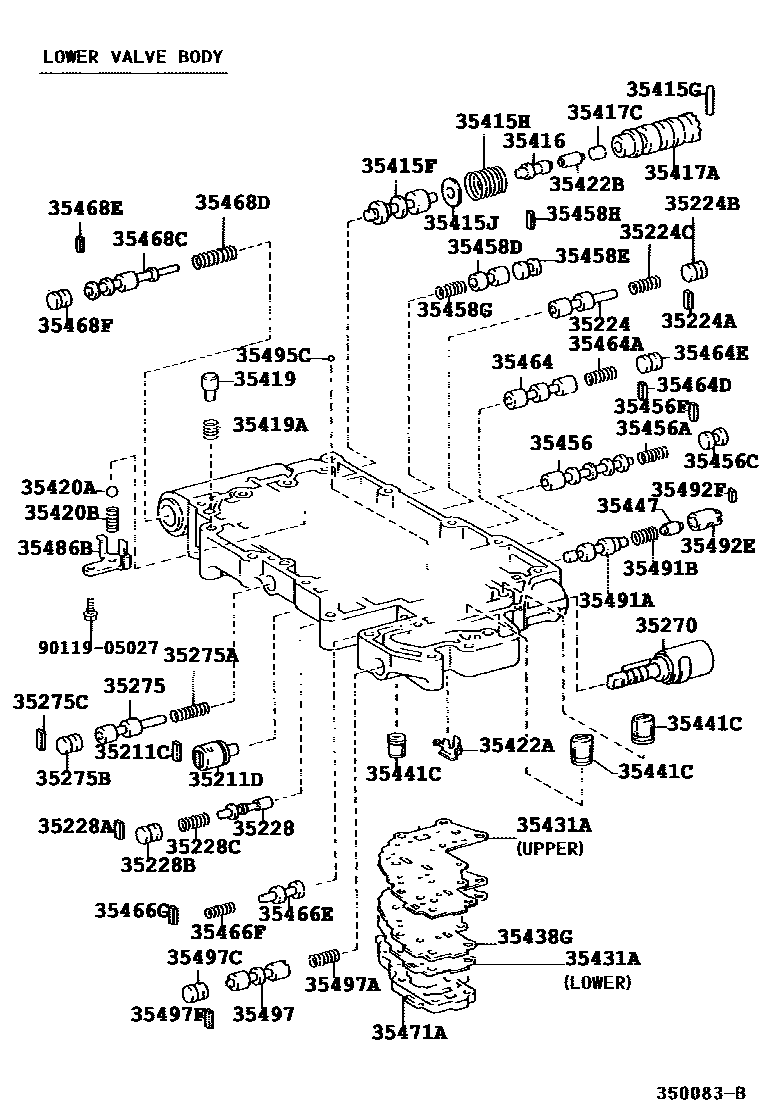

Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 350083C
阀体和滤油网(ATM) — 350083C (199608 – 999999)

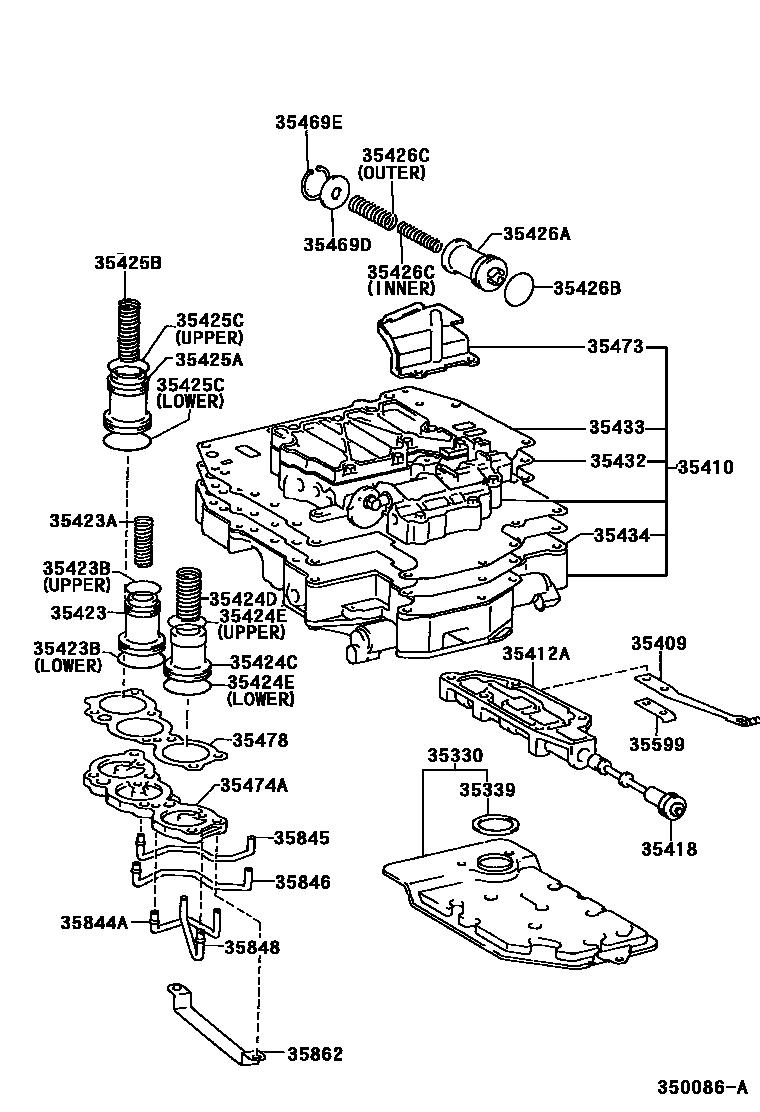

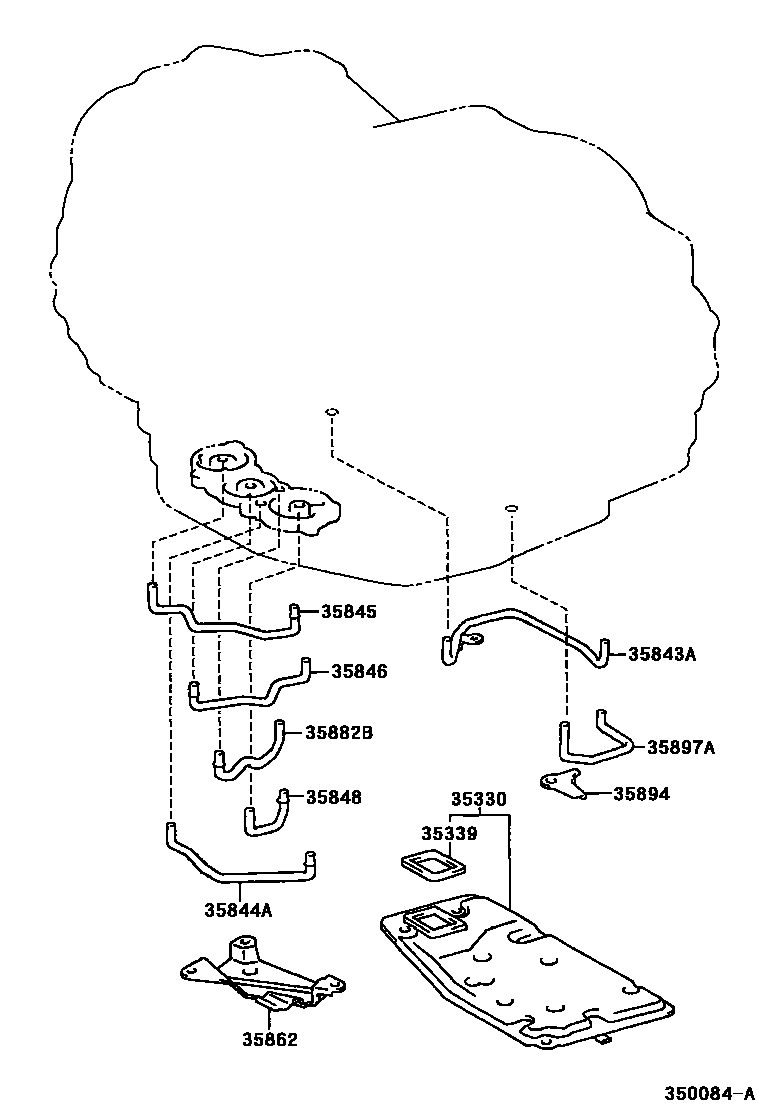

Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 350084A
阀体和滤油网(ATM) — 350084A (199608 – 999999)

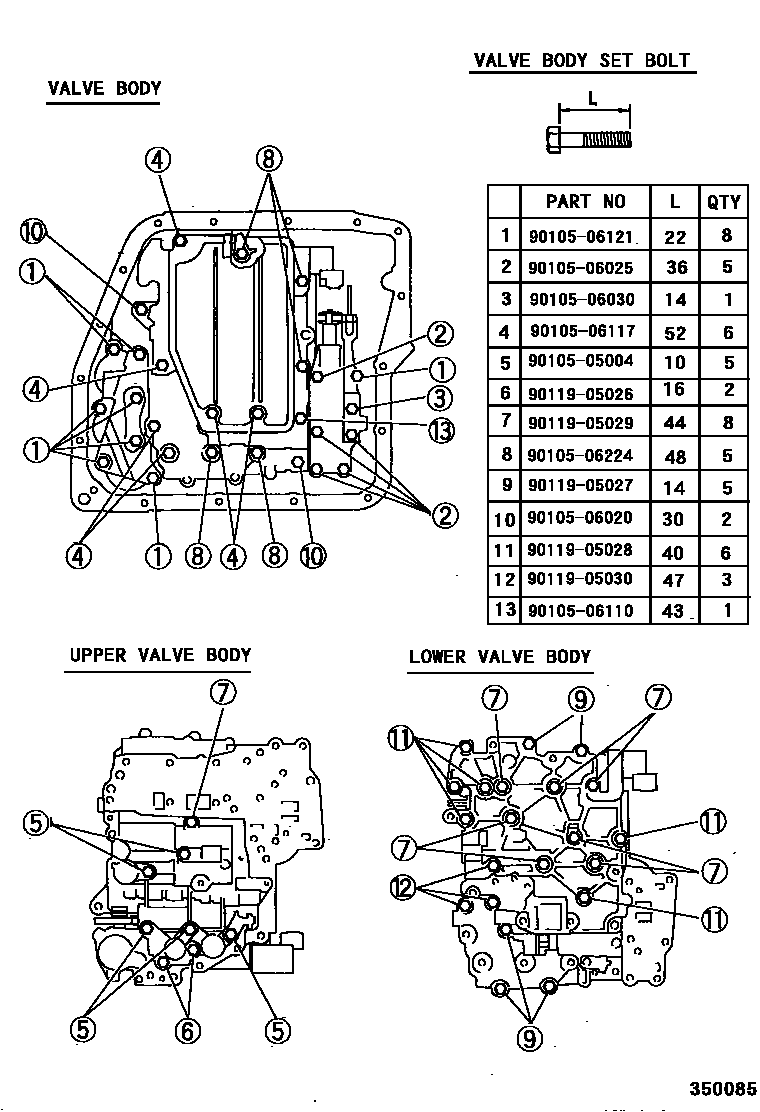

Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 350085
阀体和滤油网(ATM) — 350085 (199608 – 999999)
Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 350086A
阀体和滤油网(ATM) — 350086A (199608 – 999999)

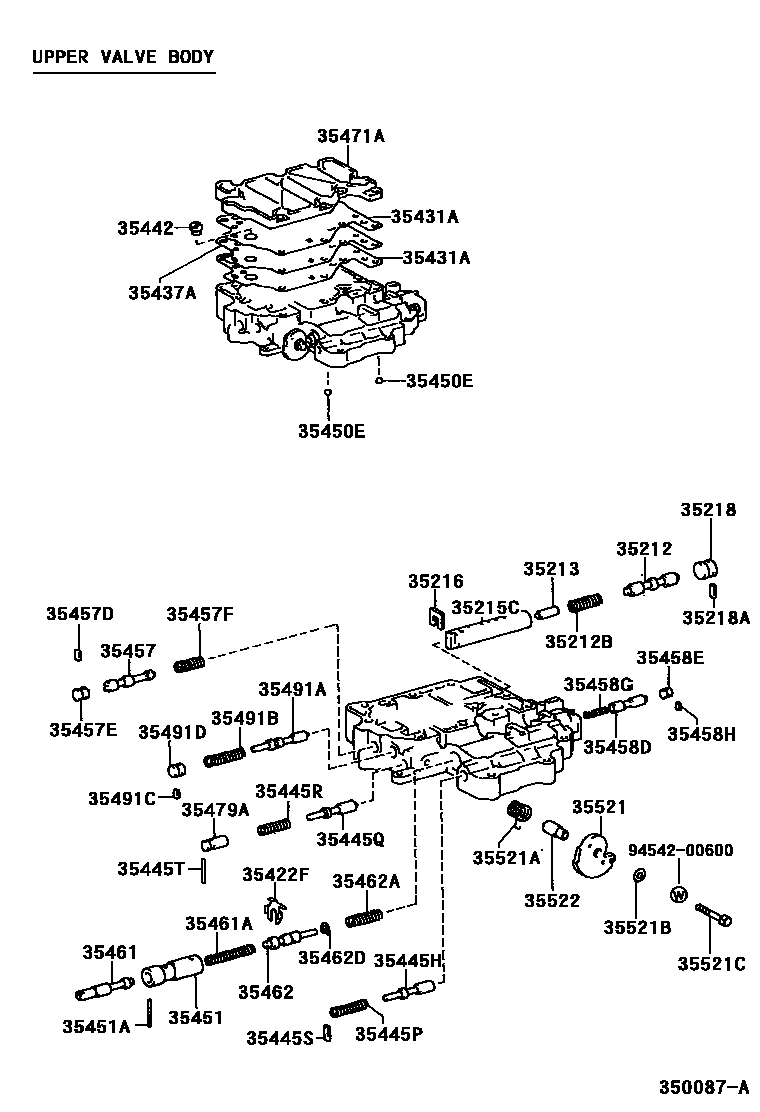

Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 350087A
阀体和滤油网(ATM) — 350087A (199608 – 999999)

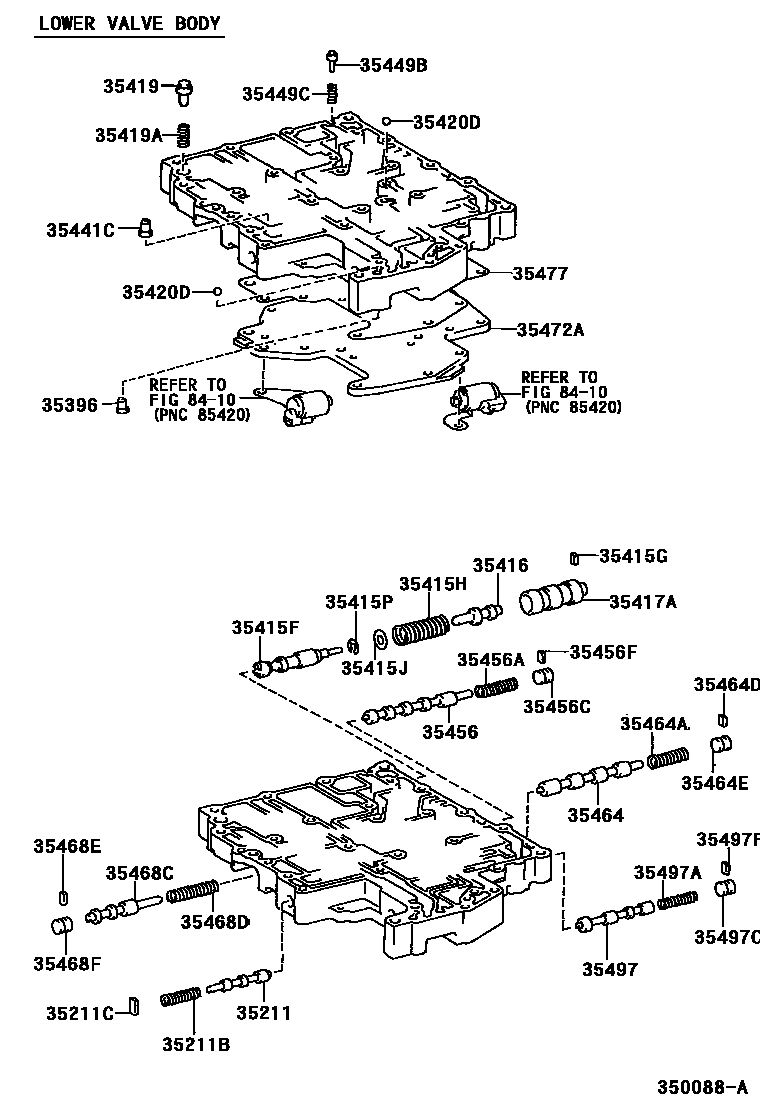

Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 350088A
阀体和滤油网(ATM) — 350088A (199608 – 999999)

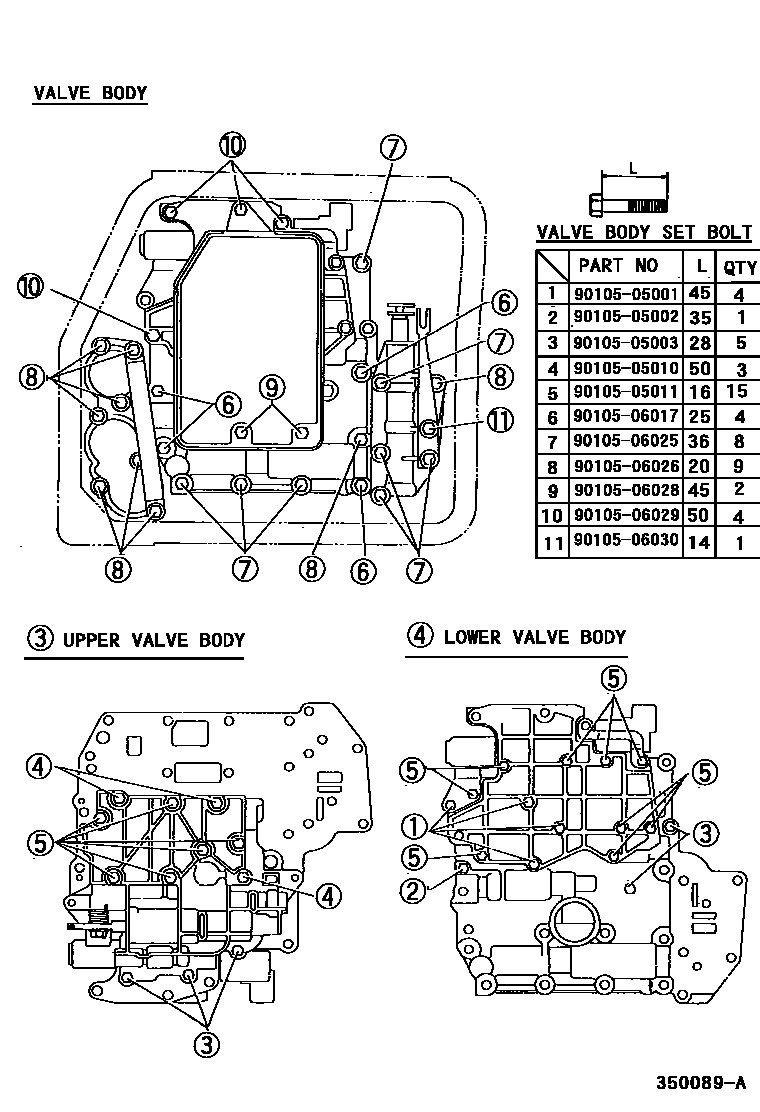

Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 350089A
阀体和滤油网(ATM) — 350089A (199608 – 999999)

PNC and OE references

PNCPart nameOE numbers
35156CBolt (for gearbox block No. 2)90149-40030
35211lock signal valve35211-32020
35211BCompression spring (for locking signal valve)90501-07020
35211CStraight key (for locking signal valve)90282-03001 · 90282-03003
35211DLock control valve sleeve35211-33010
35212lock relay valve35212-32010 · 35212-33010
35212BCompression spring (for locking relay valve)90501-07023 · 90501-08149
35213Lock relay control valve35213-32010 · 35213-33010
35215BDirect pin (for locking relay valve sleeve)90250-04101
35215CNo. 1 locking relay valve sleeve35215-32010 · 35215-33011
35216Valve sleeve stop35216-32010
35218Lock relay valve plunger35218-32010 · 35218-33011 · 35218-33020
35218AStraight key (for locking the relay valve plunger)90250-03083 · 90282-03003
35224reverse gear control valve35224-33010
35224AStraight key (for reverse gear control valve)90282-03007
35224BPlunger (for reverse control valve)90339-04003
35224CCompression spring (for reverse control valve)90501-10192
35227B-0 accumulator cylinder35227-33010
35228Second gear regulator valve35228-32010
35228AStraight key (for second-speed regulator valve)90282-03018
35228BPlunger (for second-speed regulator valve)90339-04047
35228CCompression spring (for second-speed regulator valve)90501-09127
35240Automatic transmission three-way solenoid valve assembly35240-33010
35270Shift control solenoid valve assembly35270-33010 · 35270-33011
35275Solenoid regulator valve35275-33010
35275ACompression spring (for solenoid regulator valve)90501-12154
35275BPlunger (for solenoid regulator valve)90339-04028
35275Cdirect key90282-03007
35285Solenoid valve lock plate35285-33010
35330Valve body oil filter assembly35330-32022 · 35330-33010 · 35330-33030
35339Oil filter gasket35339-32010 · 35339-33010
35396Throttle valve oil filter35396-32010
35409Manual lock spring sub-assembly35409-32030
35410Transmission valve body assembly35410-33020 · 35410-33050
35412AManual valve body35412-32010 · 35412-32020
35415FMain regulator valve35415-32010 · 35415-33010
35415GStraight key (for main regulator valve)90250-03085 · 90282-03001
35415HCompression spring (for main regulator valve)90501-13037 · 90501-16065
35415JGasket (for main regulator valve)90201-06041 · 94614-10600
35415PE-ring (for main regulator valve)90523-06004
35416No. 1 main regulator valve plunger35416-33010 · 35416-33020
35417AMain regulator valve sleeve35417-33010 · 35417-33020 · 35417-33021
35417CPlunger (for main regulator valve)90339-06020 · 90339-06021
35418Manual valve35418-32010
35419No. 1 one-way valve35419-32010 · 35419-33010
35419ACompression spring (for one-way valve)90501-10056
35420ABall (for pressure reducing valve)90360-10006
35420BSpring (for pressure reducing valve)90501-15013
35420DBall (for lower valve body)35495-22020
35422AValve damping stop35422-33010
35422BNo. 2 main regulator valve plunger35422-33030
35422FValve damping stop35422-32010 · 35422-33020
35423B-2 Accumulator Piston35403-20010 · 35403-33030
35423ACompression spring (for B-2 accumulator piston)90501-24022
35423BO-ring (for B-2 accumulator piston)90301-21006 · 90301-22185 · 90301-29011 · 90301-29187 · 90301-30005
35423DCompression spring (for B-2 accumulator piston)90501-14152 · 90905-01017
35424CC-1 Accumulator Piston35424-20020 · 35424-20021 · 35424-33010
35424DCompression spring (for C-1 accumulator piston)90501-20132 · 90501-27024
35424EO-ring (for C-1 accumulator piston)90301-23194 · 90301-24009 · 90301-29011 · 90301-29187 · 90301-30005 · 90301-36006
35425AC-2 Accumulator Piston35405-20010 · 35405-33020 · 35405-33021
35425BCompression spring (for C-2 accumulator piston)90501-21020 · 90501-21032 · 90501-22017
35425CO-ring (for C-2 accumulator piston)90301-26010 · 90301-26190 · 90301-29011 · 90301-29187 · 90301-34007
35426AC-0 Accumulator Piston35426-20010 · 35426-32020
35426BO-ring (for C-0 accumulator piston)90301-22185 · 90301-30005
35426CCompression spring (for C-0 accumulator piston)90501-18064 · 90501-19004 · 90501-26036 · 90501-29019
35427EB-0 accumulator piston35401-33020
35427FCompression spring (for B-0 accumulator piston)90501-16148
35427GO-ring (for B-0 accumulator piston)90301-17010 · 90301-25002
35431AUpper body cover gasket35431-32010 · 35435-33010 · 35436-33010
35432No. 1 valve body plate35432-33020 · 35432-33031 · 35432-33070
35433No. 1 valve body gasket35433-20040 · 35433-33011
35434No. 2 valve body gasket35434-20020 · 35434-33011 · 35434-33012
35437AUpper valve body cover35437-32010 · 35437-33030
35438GNo. 2 valve body plate35438-33020
35438JThrottle valve spring seat35438-33030
35439BThrottle valve screw35439-33010
35441CSolenoid valve oil filter35441-32020
35442Throttle regulator oil filter35442-32010
35445Low speed regulator valve35445-33010 · 35445-33020
35445ACompression spring (for low speed regulator valve)90501-08154
35445HSecond gear slide regulator valve35445-32010
35445PCompression spring (for second gear coast regulator valve)90501-11013
35445QLow gear coast regulator valve35445-32010
35445RCompression spring (for low range coast regulator valve)90501-09034
35445SStraight key (for second gear slide regulator valve)90282-03003
35445TDirect sales (for low speed coasting regulator valve)90250-03035
35445UStraight key (for low speed coast regulator valve)90282-03007
35445VPlunger (for low range coast regulator valve)90339-04028
35447Accumulator control valve plunger35447-33010
35449BPressure reducing valve35449-32010
35449CCompression spring (for pressure reducing valve)90501-09032
35450EBall (for upper valve body)90360-06023
35451Throttle valve sleeve35451-32010 · 35451-33010
35451ADirect sales (with throttle sleeve)90250-03036 · 90250-03086
354562nd-3rd gear shift valve35456-32020 · 35456-33010
35456ACompression spring (for 2-3 gear shift valve)90501-09033 · 90501-09088
35456CPlunger (for 2-3 gear shift valve)90339-04026
35456FStraight key (for 2-3 gear shift valve)90282-03004 · 90282-03007
35457Throttle regulator valve35457-32010
35457DStraight key (for throttle regulator valve)90282-03001
35457EPlunger (for throttle regulator valve)90339-04026
35457FCompression spring (for throttle regulator valve)90501-09037
35458Dreverse valve35458-32010 · 35458-33010 · 35458-33011
35458EPlunger (for reverse valve)90339-04028
35458GCompression spring (for reverse valve)90501-06026
35458HStraight key (for reverse valve)90282-03001 · 90282-03011
35461Downshift plug35408-32010 · 35408-33010
35461ACompression spring (for downshift plug)90501-10054 · 90501-10190
35462throttle valve35462-32010 · 35462-33010
35462ACompression spring (for throttle valve)90501-07022 · 90501-08148
35462DE-ring (for throttle valve)90523-06023
354641-2 gear shift valve35464-32010 · 35464-33010
35464ACompression spring (for 1-2 gear shift valve)90501-09033 · 90501-09083
35464DStraight key (for 1-2 gear shift valve)90282-03001 · 90282-03007
35464EPlunger (for 1-2 gear shift valve)90339-04026
35466ESecond gear lock valve35466-33010
35466FCompression spring (for second gear lock valve)90501-07106
35466GStraight key (for second gear lock valve)90282-03002
35467AStraight key (for intermediate shift valve)90282-03001 · 90282-03017
35467CThrottle control valve plunger35467-33010
35468CSecondary regulator valve35468-20010 · 35468-33040
35468DCompression spring (for secondary regulator valve)90501-13020 · 90501-14144
35468EStraight key (for secondary regulator valve)90282-03012 · 90282-03014
35468FPlunger (for secondary regulator valve)90339-04026 · 90339-04047
35468KPlunger (for B-1 throttle control valve)90339-04048 · 90339-04068
35468LCompression spring (for B-1 throttle control valve)90501-08100
35468MB-1 Throttle Control Valve35468-33030
35469DSpacer (for C-0 accumulator piston)35469-20010 · 35469-33010
35469ESnap ring (for C-0 accumulator piston spacer)96151-03000 · 96151-03700
35471AUpper valve body cover35471-32010 · 35471-33010 · 35471-33011
35472ALower valve body cover35472-32010 · 35472-33020
35473Transmission valve body cover35473-32010
35474AAccumulator cover35474-20010 · 35474-33010 · 35474-33011
35477Valve body cover gasket35477-32010 · 35477-33021 · 35488-33010
35478Accumulator cover gasket35478-32010 · 35478-33010
35479ALow speed regulator valve spring seat35479-32010
35486BPressure reducing valve spring seat35486-33010
35491ANo. 1 accumulator control valve35491-32010 · 35491-33010
35491BCompression spring (for No. 1 accumulator control valve)90501-10145 · 90501-10191
35491CStraight key (for No. 1 accumulator control valve)90282-03002
35491DPlunger (for No. 1 accumulator control valve)90339-04026
35492EAccumulator control valve sleeve35492-33011
35492FStraight key (for overdrive exhaust valve)90282-03007
35495COne-way ball No. 135495-22020
354973rd-4th gear shift valve35497-32010 · 35497-33010 · 35497-33020
35497ACompression spring (for 3-4 gear shift valve)90501-09033 · 90501-09083
35497CPlunger (for 3-4 gear shift valve)90339-04026
35497FStraight key (for 3-4 gear shift valve)90282-03004 · 90282-03011
35521throttle cam35521-20040 · 35521-33020
35521ASpring (for throttle cam return)90508-11003 · 90949-03008
35521BGasket (for throttle cam assembly)90201-06472
35521CBolt (for throttle cam assembly)90101-06021 · 90101-06037
35522Throttle valve cam pin35522-22010 · 35522-33010
35599Manual locking spring cover35599-32010 · 35599-32020
35843ATransfer case lubricating oil supply pipe35843-33010
35844ANo. 1 accumulator back pressure pipe35844-32011 · 35844-33020
35845Rear clutch accumulator tube35845-32012 · 35845-33010
35846brake accumulator pipe35846-20010 · 35846-33010
35848Forward clutch accumulator tube35848-32011 · 35848-33010
35862Accumulator fuel supply pipe bracket35862-32011 · 35862-33020
35882BRear servo oil supply pipe35882-33010
35894Accumulator tube bracket35894-33010
35897ANo. 1 first and reverse brake pipe35897-33010
