Toyota CAMRY 变速器齿轮(MTM) — Figure 3305

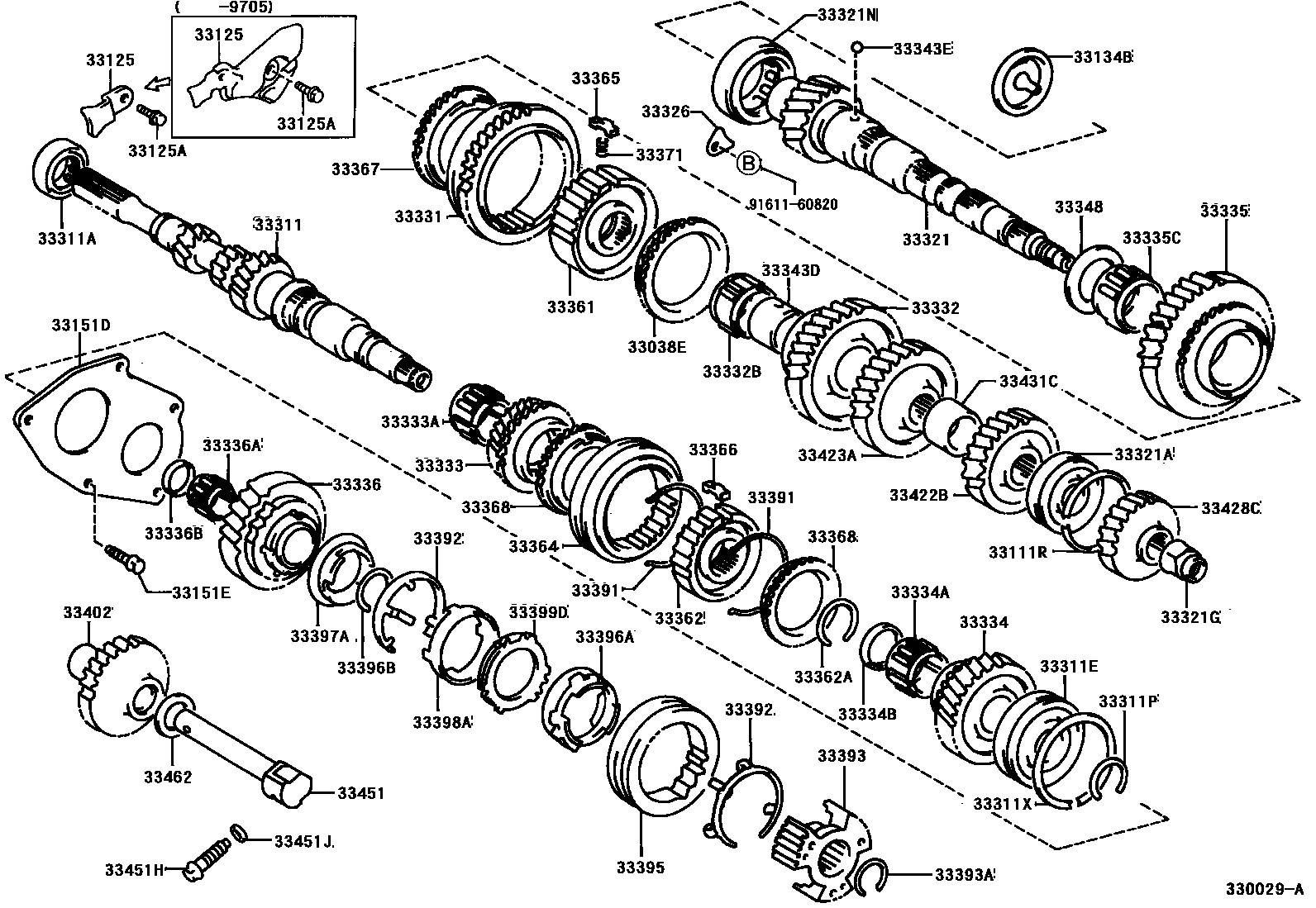

Toyota CAMRY EPC diagram 3305, 变速器齿轮(MTM), with 1 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33038E | No. 2 synchronizer lock ring assembly | 33038-33011 |
| 33111R | Hole snap ring (for output shaft rear bearing) | 90521-66004 |
| 33125 | Manual transmission axle housing oil collection tank | 33125-32011 · 33326-21010 |
| 33125A | Bolt (for transaxle housing oil sump) | 91611-60616 |
| 33134B | Output shaft cover (MTM) | 33134-33010 |
| 33151D | Rear bearing retainer (MTM) | 33151-32012 |
| 33151E | Bolt (for rear bearing retainer) | 90105-08237 |
| 33311 | input shaft | 33311-33041 · 33311-33042 |
| 33311A | Bearing (for front input shaft) | 90365-30017 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-29006 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-27018 · 90520-27019 · 90520-27020 · 90520-27021 · 90520-27022 |
| 33311X | Hole snap ring (for input shaft rear bearing) | 90521-76001 |
| 33321 | output shaft | 33321-33030 |
| 33321A | Bearings (for rear output shaft) | 90363-25056 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-18003 |
| 33321N | Bearing (for front output shaft) | 90365-32013 |
| 33326 | Bearing locking plate | 33326-32010 |
| 33331 | reverse gear | 33331-33021 · 33331-33022 |
| 33332 | Second gear | 33332-33031 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-39013 |
| 33333 | Third gear | 33034-32032 |
| 33333A | Needle roller bearing (for third gear) | 90364-33001 |
| 33334 | fourth gear | 33035-32050 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-32013 |
| 33334B | Spacer (for fourth gear bearing) | 90560-32007 |
| 33335 | first gear | 33032-32030 · 33032-32032 |
| 33335C | Needle roller bearing (for first gear) | 90364-38004 |
| 33336 | fifth gear | 33336-33030 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-27005 |
| 33336B | Spacer (for fifth gear bearing) | 90560-27004 |
| 33343D | Second gear bushing | 33343-33010 |
| 33343E | Steel ball (for second gear bushing) | 90360-05012 |
| 33348 | First gear thrust washer | 33348-32010 |
| 33361 | No. 1 transmission clutch hub | 33361-33020 · 33361-33021 |
| 33362 | No. 2 transmission clutch hub | 33362-33011 |
| 33362A | Shaft snap ring (used to secure No. 2 clutch hub) | 90520-30002 · 90520-30003 · 90520-30004 · 90520-30005 · 90520-30006 · 90520-30007 |
| 33364 | No. 2 transmission hub sleeve | 33364-32013 |
| 33365 | No. 1 synchromesh shift key | 33365-33020 |
| 33366 | No. 2 synchromesh shift key | 33366-32020 |
| 33367 | Synchronizer lock ring No. 1 | 33367-33010 |
| 33368 | Synchronizer lock ring No. 2 | 33368-17011 · 33368-32020 |
| 33371 | No. 1 synchromesh shift key spring | 90501-08141 |
| 33391 | No. 2 synchromesh shift key spring | 33391-32010 |
| 33392 | No. 3 synchromesh shift key spring | 33392-33010 · 33392-33021 |
| 33393 | No. 3 transmission clutch hub | 33393-33010 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-20034 · 90520-20035 · 90520-20036 · 90520-20051 · 90520-20052 · 90520-20053 · 90520-20054 · 90520-20055 · 90520-20056 · 90520-20057 · 90520-20058 · 90520-20059 · 90520-20060 · 90520-20061 · 90520-20062 |
| 33395 | No. 3 transmission hub sleeve | 33395-33010 |
| 33396A | synchronizer extension ring | 33396-33012 |
| 33396B | Snap ring (for synchronizer extension ring) | 90520-46035 |
| 33397A | No. 5 synchronizer inner locking ring | 33397-33012 |
| 33398A | No. 5 synchronizer intermediate locking ring | 33398-12010 |
| 33399D | No. 5 synchronizer outer locking ring | 33399-33010 |
| 33402 | Reverse idler gear sub-assembly | 33402-33010 · 33402-33011 |
| 33422B | Fourth gear driven gear | 33422-32050 |
| 33423A | Third gear driven gear | 33423-32030 |
| 33428C | fifth speed driven gear | 33428-32050 |
| 33431C | Output gear spacer | 33431-32020 |
| 33451 | Reverse gear idler shaft | 33451-32010 |
| 33451H | Bolt (for reverse idler shaft) | 90105-08041 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08010 |
| 33462 | Reverse idler thrust washer | 33462-12010 |
