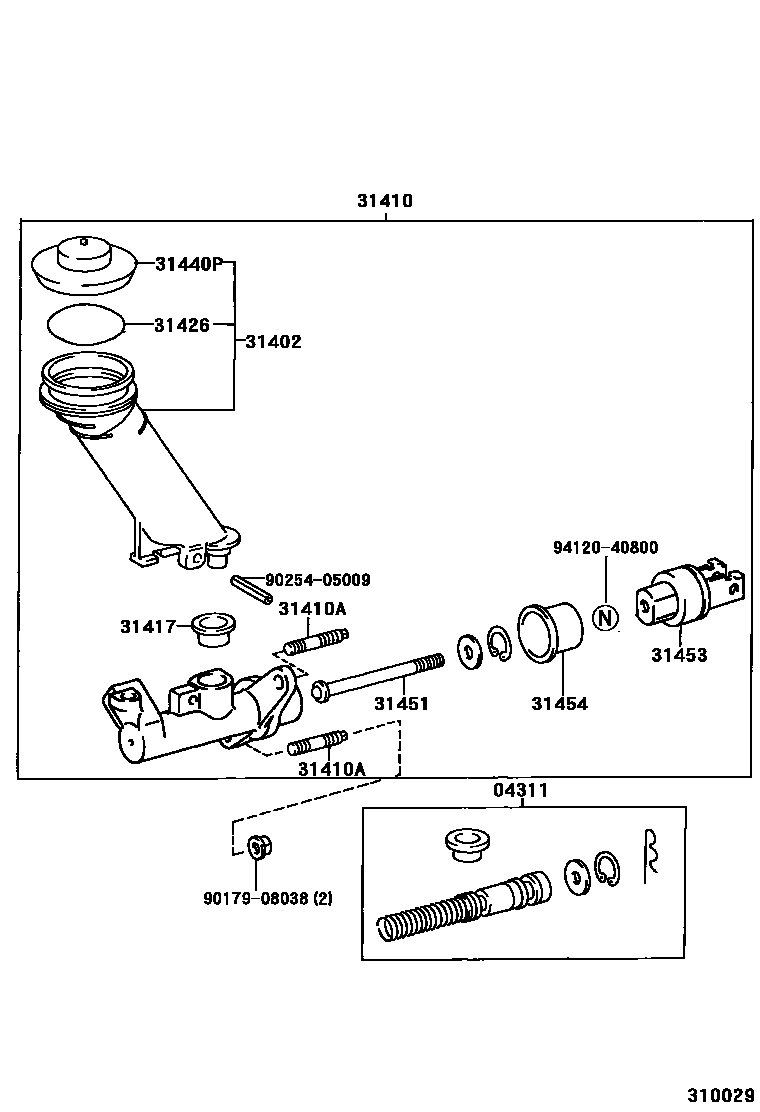

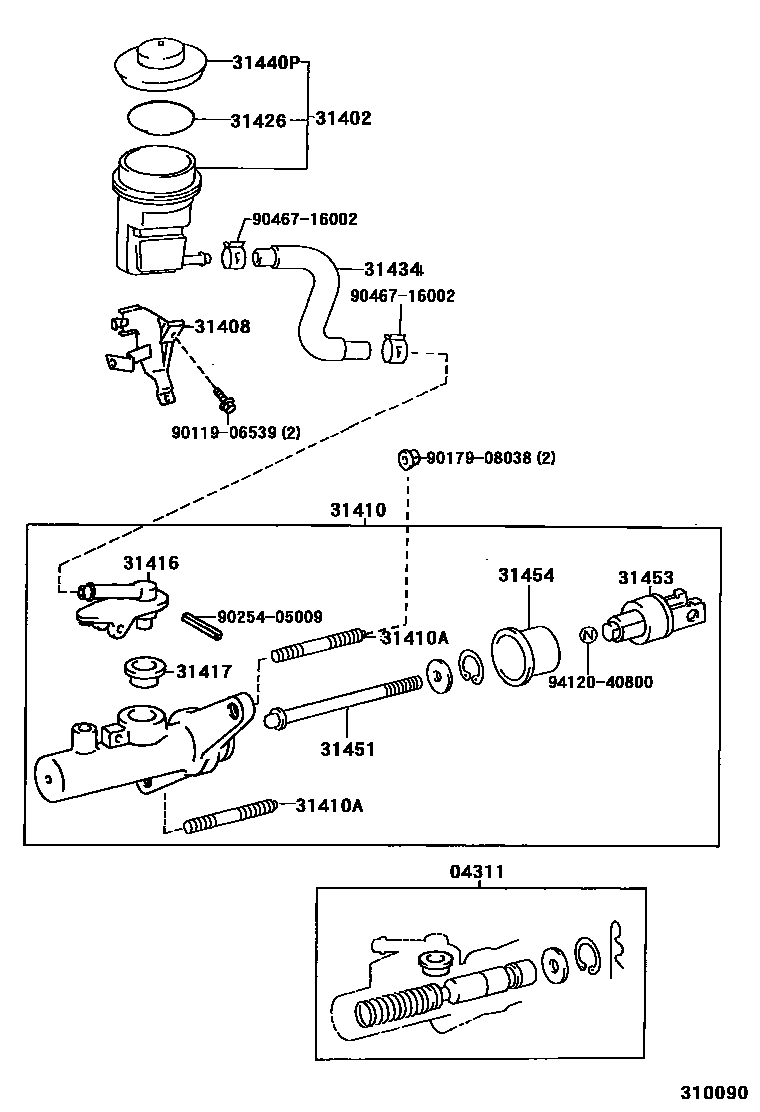

Toyota CAMRY 离合器总泵 — Figure 3103
Toyota CAMRY EPC diagram 3103, 离合器总泵, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-12110 |
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-33020 · 31402-33030 |
| 31408 | Clutch reservoir tank fixing frame sub-assembly | 31408-33011 |
| 31410 | Clutch master cylinder assembly | 31410-33030 · 31420-33010 |
| 31410A | Bolt (for securing clutch master cylinder) | 90116-08357 |
| 31416 | Clutch master cylinder oil inlet joint | 31416-42010 |
| 31417 | Clutch reservoir retaining ring | 31417-35010 |
| 31426 | Clutch master cylinder reservoir float | 31426-22020 · 31426-30011 |
| 31434 | Clutch reservoir connecting pipe | 31434-33010 |
| 31440P | Clutch master cylinder fluid reservoir filler cap assembly | 47230-20040 |
| 31451 | Clutch master cylinder push rod | 31451-36040 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-17010 |
| 31454 | Clutch master cylinder dust boot | 31454-16010 |
