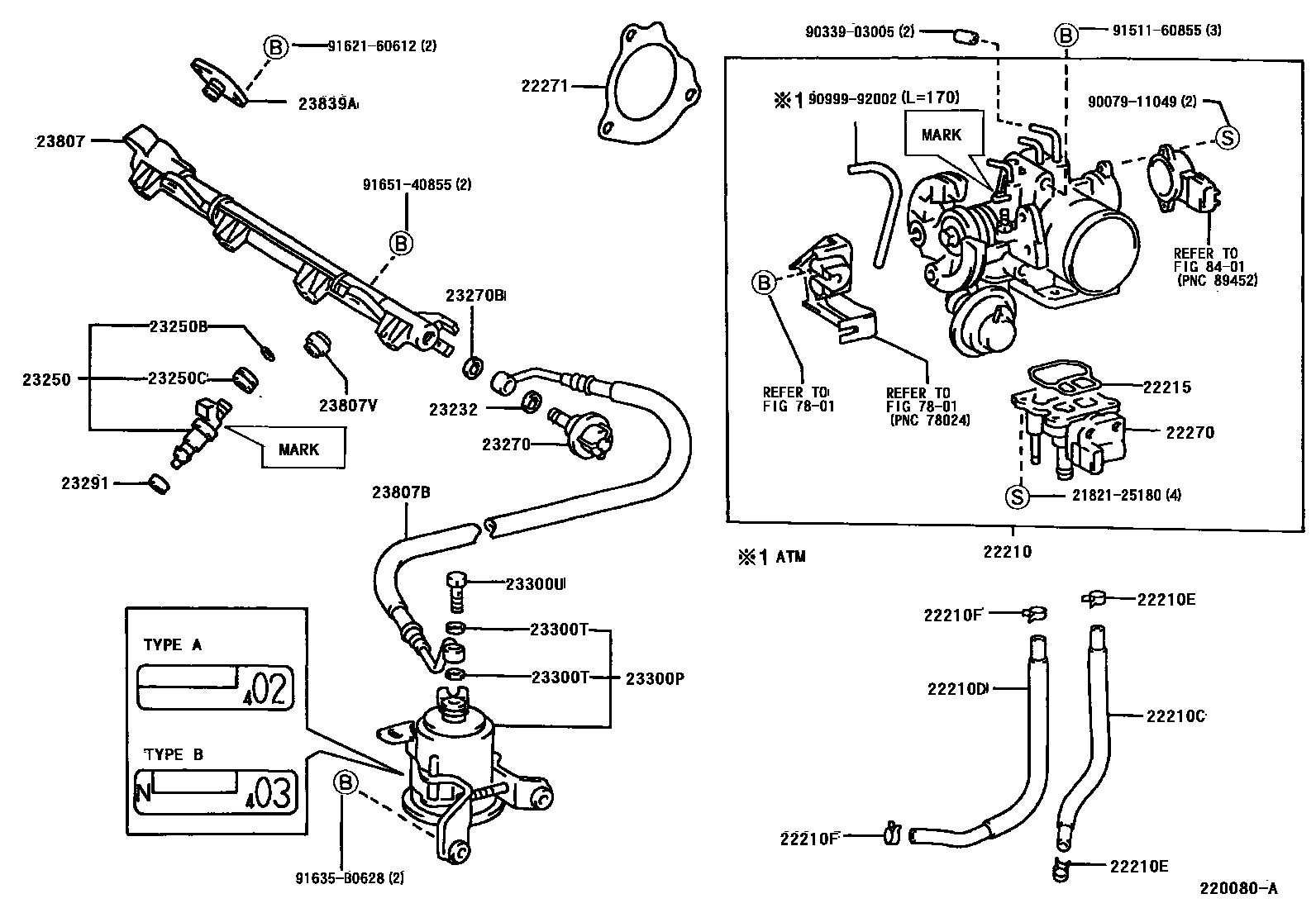

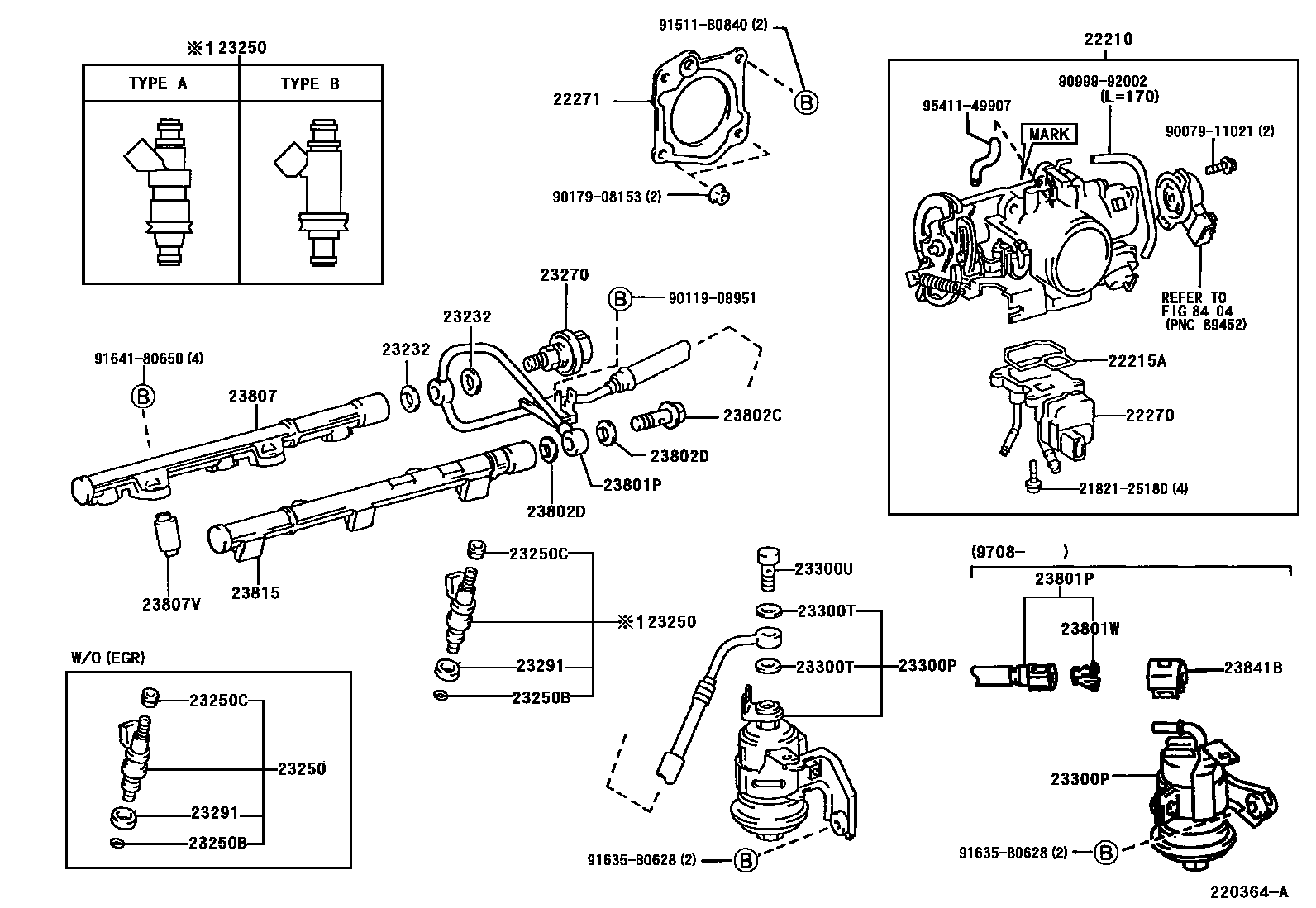

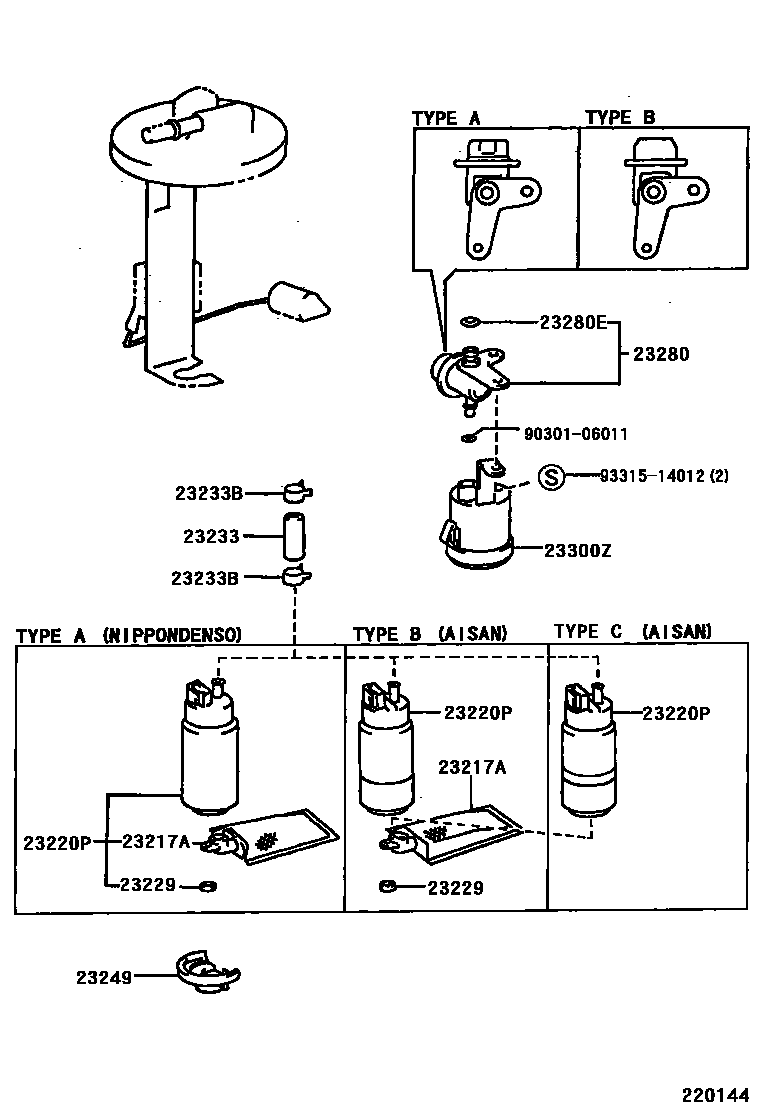

Toyota CAMRY 燃油喷射系统 — Figure 2211
Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22210-20061 · 22210-20070 · 22210-20080 · 22210-7A350 · 22210-7A590 · 22210-7A850 · 22210-7A860 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16283-74050 |
| 22210D | HOSE, WATER BY-PASS, NO.2 | 16282-74100 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 90467-13050 |
| 22210F | Hose clamp or clip (for No. 2 water bypass hose) | 90467-13050 |
| 22215 | Throttle body cover gasket | 22215-20010 · 22215-74400 |
| 22215A | Idle speed control valve gasket | 22215-20010 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-20020 · 22270-20030 · 22270-20031 · 22270-74340 · 22270-74400 |
| 22271 | Throttle body gasket | 22271-20010 · 22271-74070 |
| 23217A | fuel pump filter | 23217-03030 · 23217-74021 |
| 23220P | fuel pump assembly | 23221-03030 · 23221-15040 · 23221-16490 |
| 23229 | Clip (for fuel pump filter) | 23219-03010 · 23229-16010 |
| 23232 | Gasket (for fuel pump hose) | 23232-41081 · 23279-74010 |
| 23233 | fuel pump hose | 23239-74010 |
| 23233B | Clamp (for fuel pump hose) | 90467-12067 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-03010 · 23209-11070 · 23209-20010 · 23209-20020 · 23209-74100 · 23209-74250 |
| 23250B | O-ring (for fuel injector) | 90301-07001 · 90301-07024 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-46010 · 23270-62010 |
| 23270B | Gasket (for pulsation damper hose) | 23279-74010 |
| 23280 | Fuel pressure regulator assembly | 23280-74170 · 23280-74190 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07020 |
| 23291 | Injector vibration isolation pad | 23291-20010 · 23291-41010 · 23291-62010 |
| 23300P | Fuel filter (for EFI) | 23300-20040 · 23300-20070 · 23300-29055 · 23300-79545 |
| 23300T | Gasket (for fuel filter) | 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23300Z | Fuel filter (for fuel tank) | 23300-74280 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-20030 · 23801-20041 |
| 23801W | Fuel pipe connector clip | 90923-07010 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-12015 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-12026 |
| 23807 | Oil pipe sub-assembly | 23814-20020 · 23814-74110 |
| 23807B | Fuel line hose | 23271-74520 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08020 · 90561-08053 |
| 23815 | No. 2 oil pipeline | 23815-20020 |
| 23839A | No. 1 fuel pipe plug | 23839-74010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-20020 |
