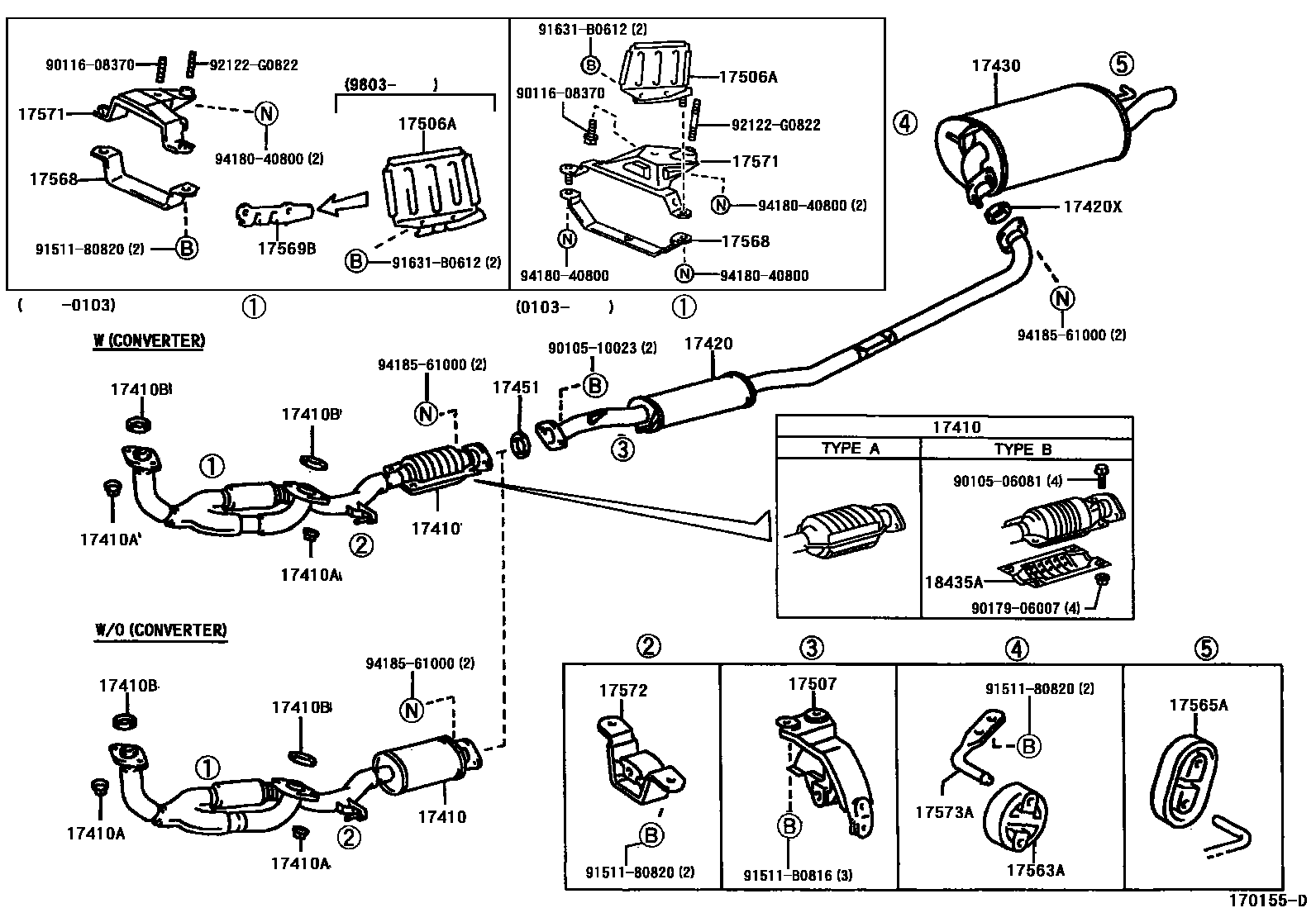

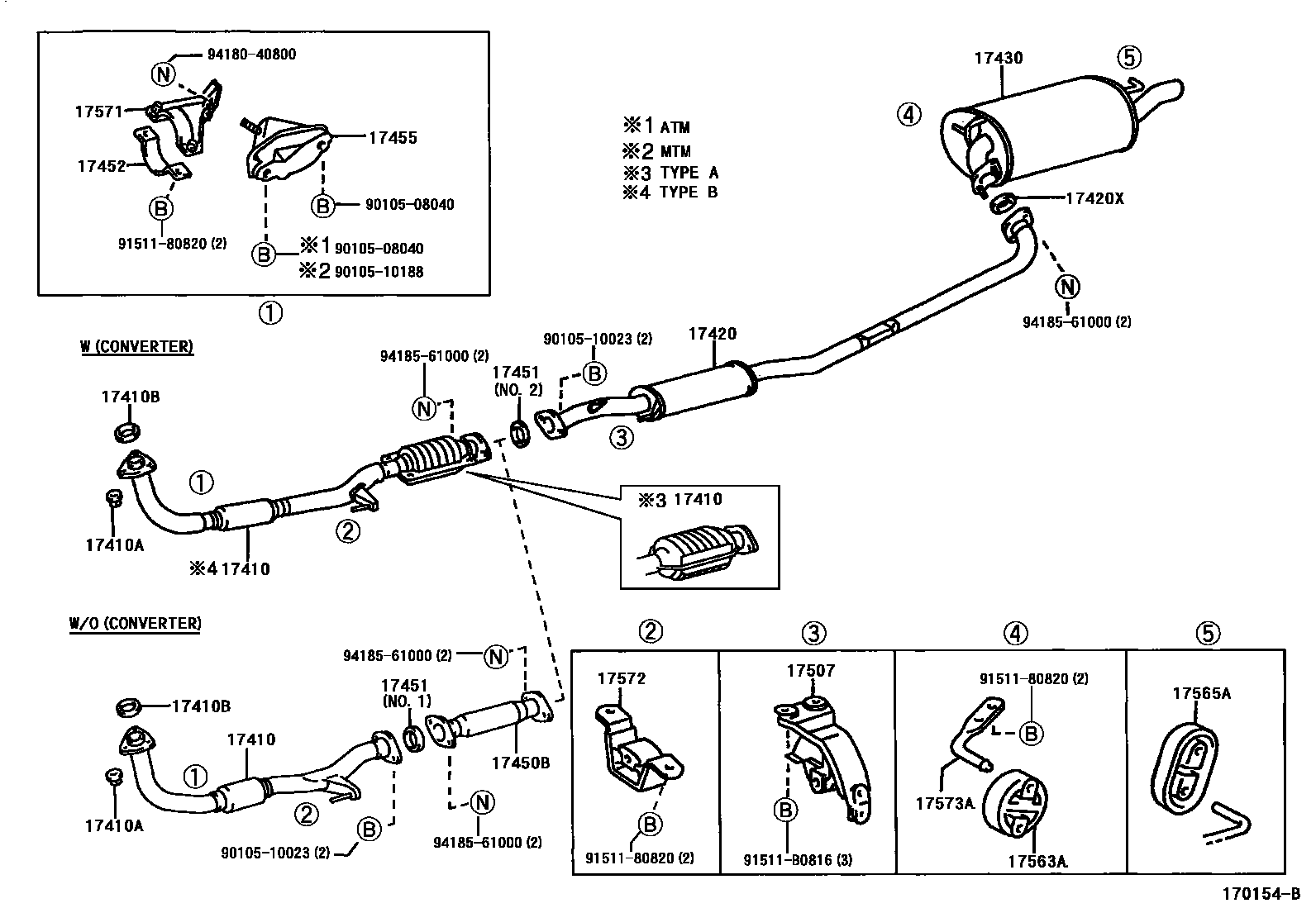

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-20070 · 17410-20110 · 17410-20111 · 17410-20270 · 17410-7A380 · 17410-7A440 · 17410-7A660 · 17410-7B040 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06065 · 90917-06066 |
| 17420 | Central exhaust pipe assembly | 17420-20050 · 17420-20080 · 17420-20180 · 17420-7A010 · 17420-7A020 · 17420-7A040 |
| 17420X | Center exhaust pipe liner | 90917-06045 · 90917-06073 |
| 17430 | Exhaust tailpipe assembly | 17430-20050 · 17430-20051 · 17430-20052 · 17430-7A680 · 17430-7A681 · 17430-7A682 · 17430-7A700 · 17430-7A701 · 17430-7A702 · 17440-20020 · 17440-20021 · 17440-20022 · 17440-20032 |
| 17450B | No. 2 front exhaust pipe assembly | 17450-62010 |
| 17451 | Exhaust pipe gasket | 90917-06043 · 90917-06054 · 90917-06073 |
| 17452 | Exhaust pipe clamp | 17452-74080 · 17452-74120 |
| 17455 | Exhaust pipe bracket | 17455-74080 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-20060 · 17506-20061 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-20030 · 17507-20040 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-20060 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-11160 · 17565-20050 · 17565-74290 |
| 17568 | Exhaust pipe bracket stay | 17568-20080 |
| 17569B | No. 2 exhaust pipe bracket stay | 17569-20040 |
| 17571 | No. 1 exhaust pipe bracket | 17571-20070 · 17571-20071 · 17571-74370 · 17571-74410 |
| 17572 | No. 1 exhaust pipe bracket | 17572-20040 · 17572-74090 |
| 17573A | No. 3 exhaust pipe bracket | 17573-74210 · 17573-74211 |
| 18435A | Integrated three-way catalytic converter protection device | 18435-20020 |
