Toyota CAMRY Manifold — Figure 1701

Toyota CAMRY EPC diagram 1701, Manifold, with 6 images and 34 PNC and OE references.

Toyota CAMRY Manifold EPC diagram — 170053A — Manifold — 170053A (199608 – 200008)

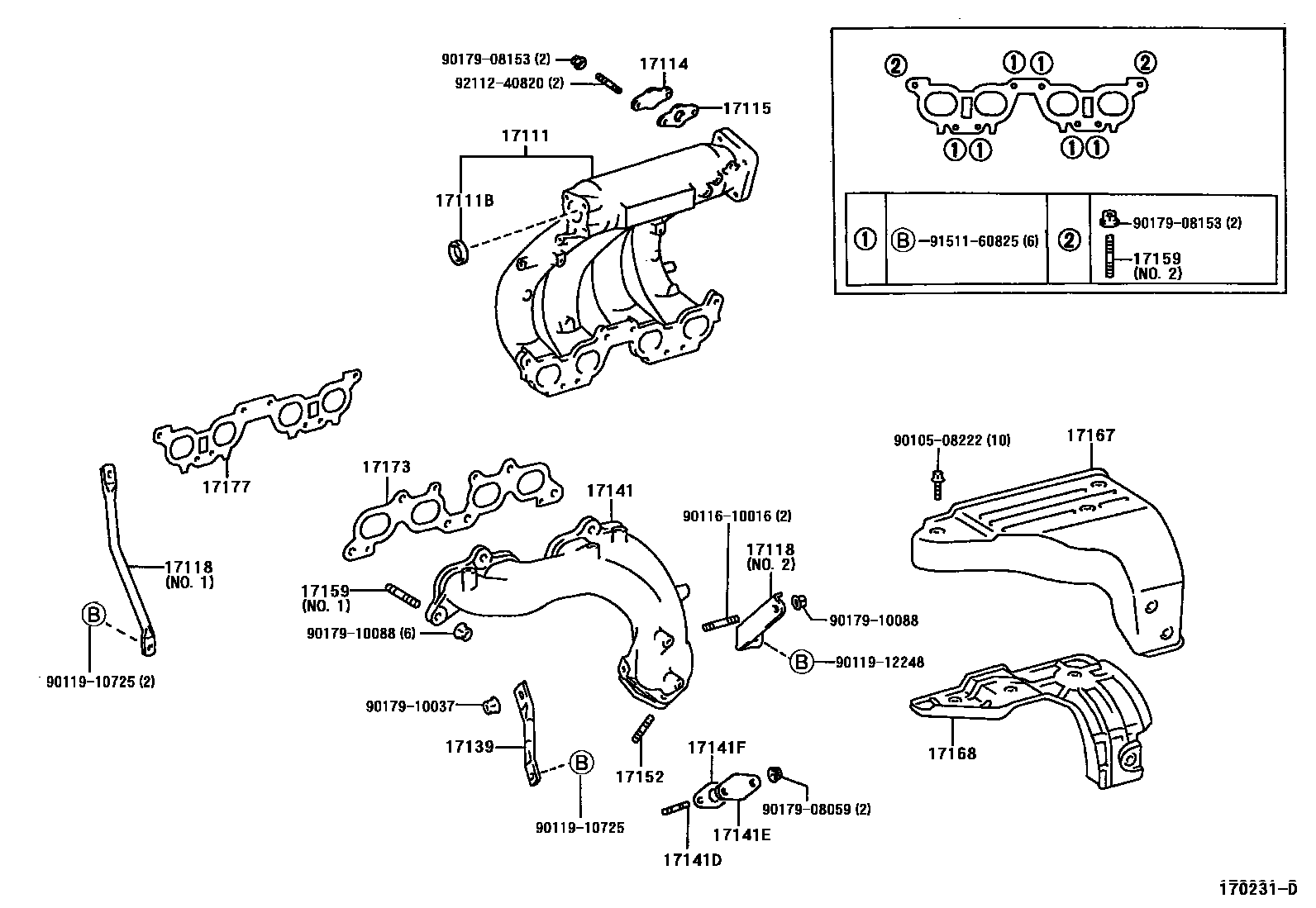

Toyota CAMRY Manifold EPC diagram — 170231D — Manifold — 170231D (199608 – 999999)

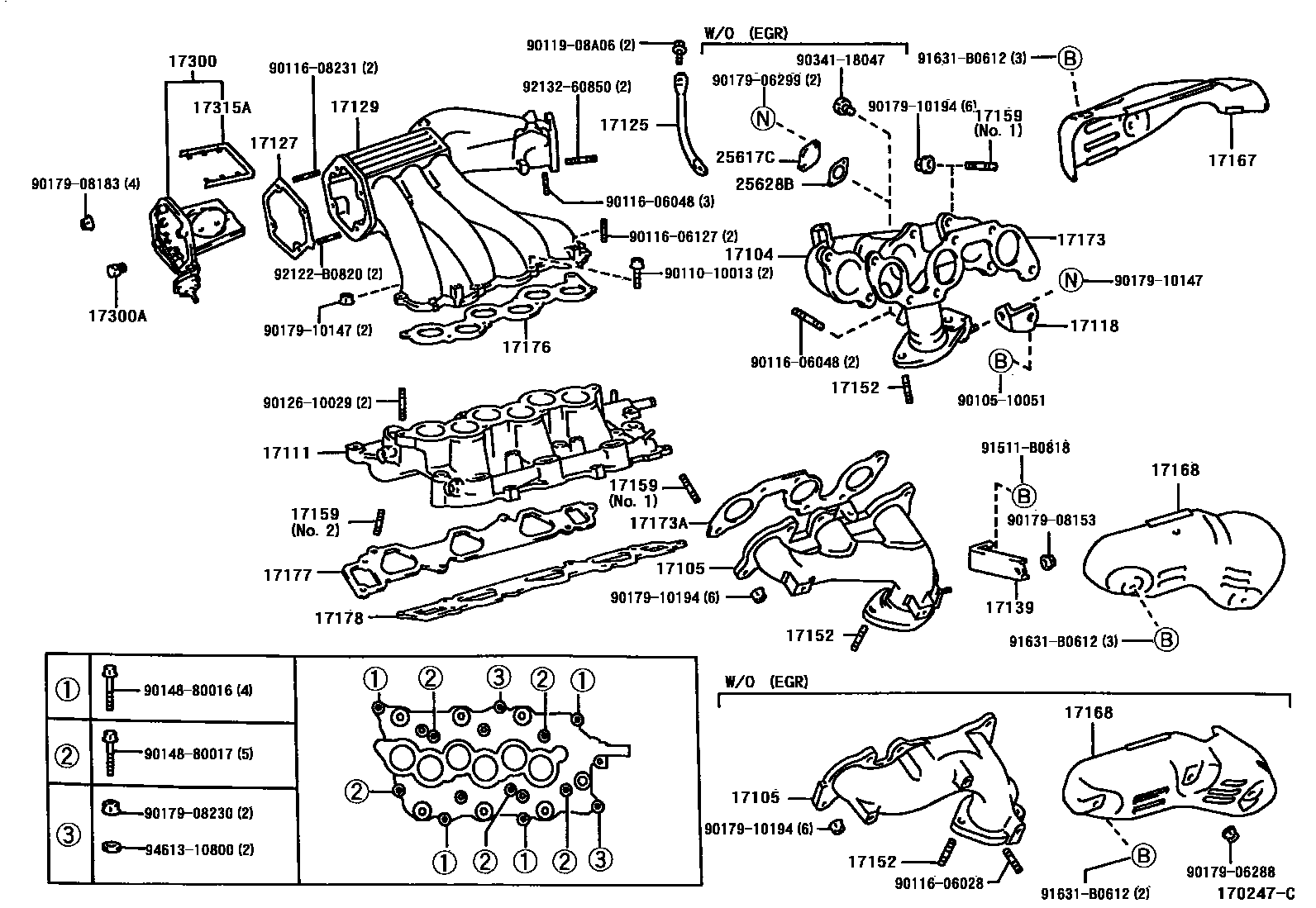

Toyota CAMRY Manifold EPC diagram — 170247C — Manifold — 170247C (199608 – 999999)

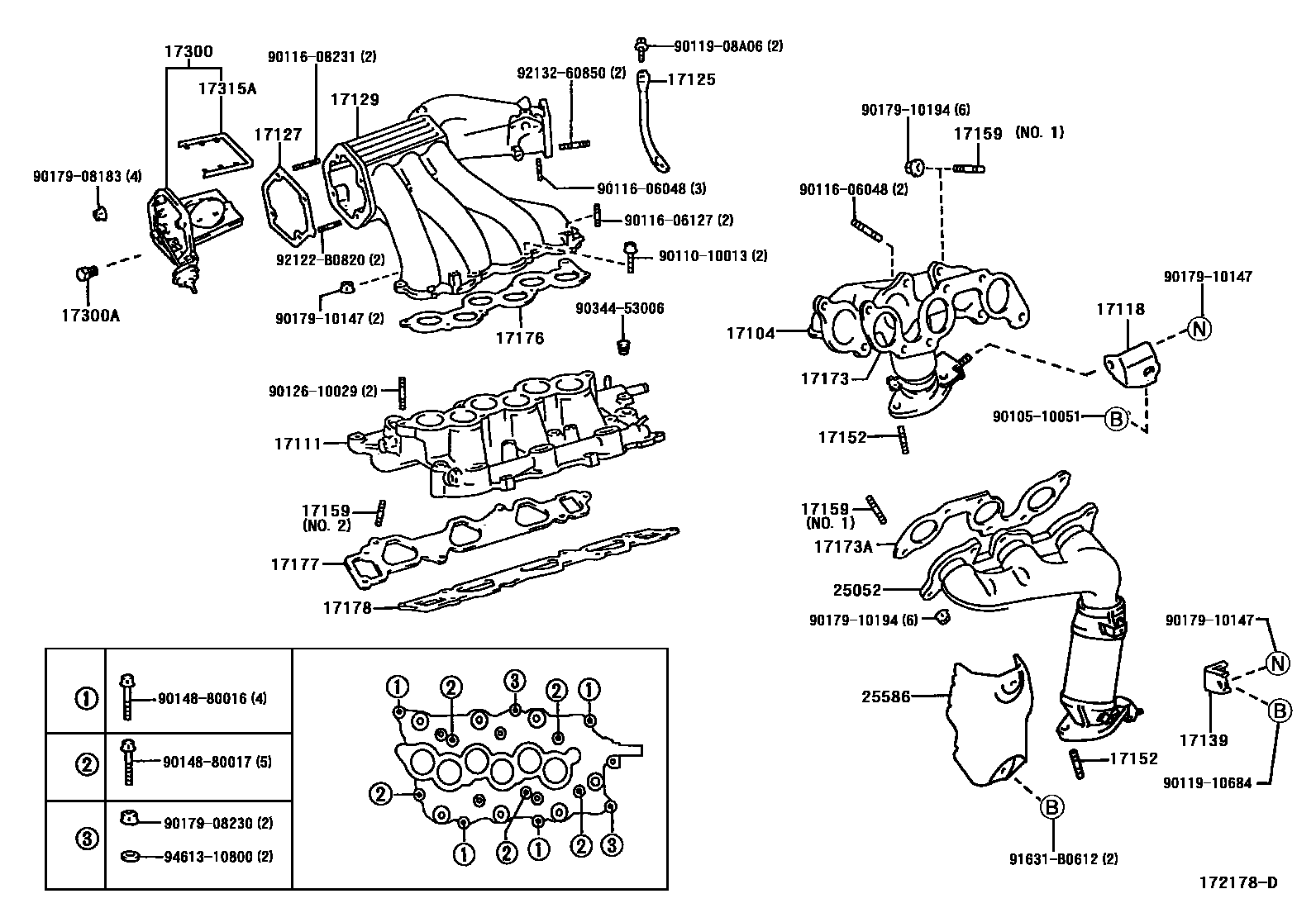

Toyota CAMRY Manifold EPC diagram — 172178D — Manifold — 172178D (199908 – 999999)

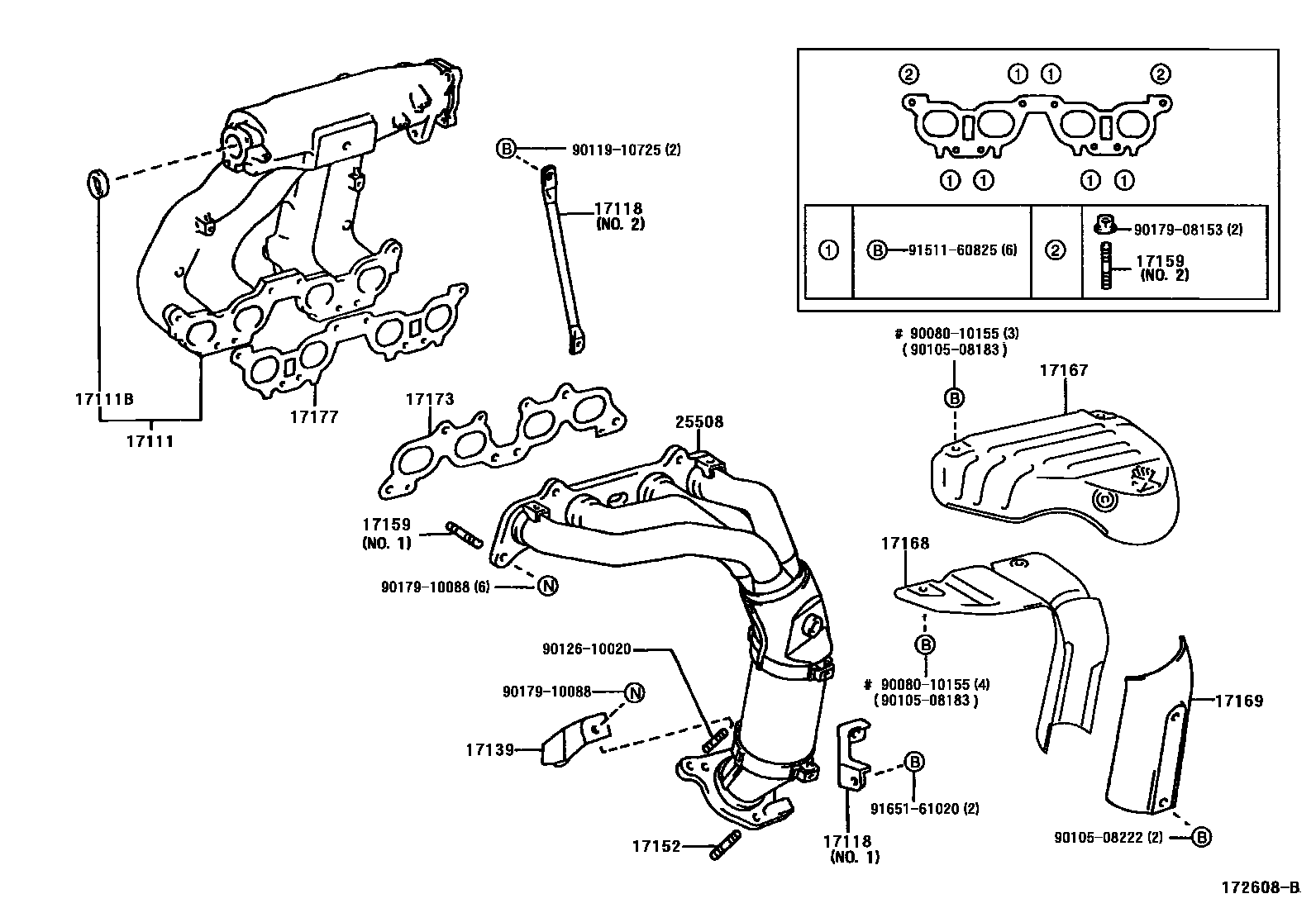

Toyota CAMRY Manifold EPC diagram — 172608B — Manifold — 172608B (200008 – 999999)

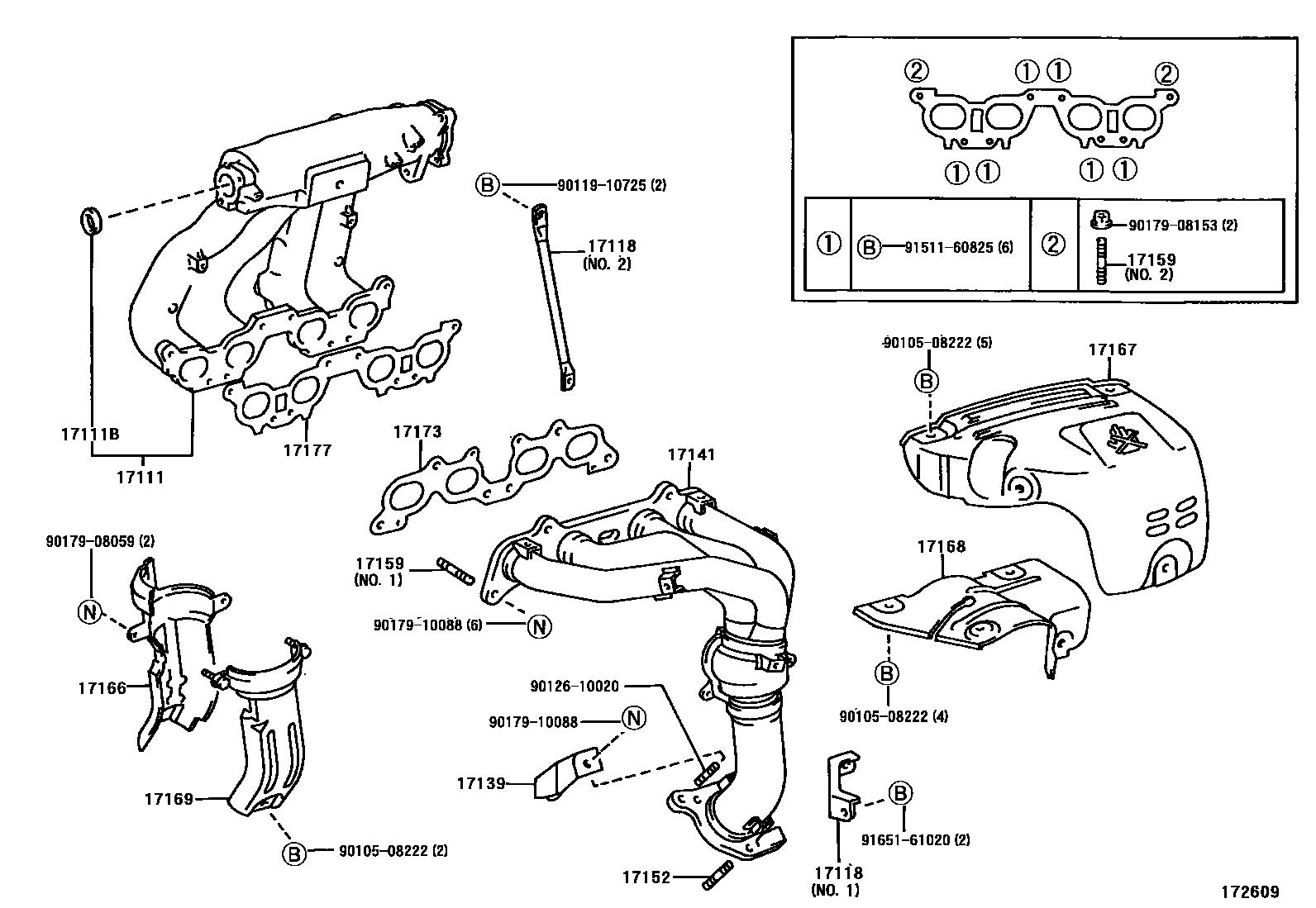

Toyota CAMRY Manifold EPC diagram — 172609 — Manifold — 172609 (200008 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17104	Right exhaust manifold sub-assembly	17104-20010 · 17141-20050
17105	Left exhaust manifold sub-assembly	17142-20030 · 17142-20050
17111	Intake Manifold	17101-20010 · 17101-20020 · 17101-20021 · 17101-74310 · 17101-74311
17111B	No. 2 screw plug	96411-44000
17114	Intake manifold hole cover	25617-74020
17115	Intake manifold hole cover gasket	25627-74011
17118	Manifold stays	17118-20020 · 17118-74230 · 17118-74350 · 17118-74370 · 17118-74390
17125	No. 1 pressure tank stay	17125-20010
17127	Pressure tank cover gasket	17127-62030
17129	Intake pressure tank	17109-20040 · 17109-20050 · 17109-20060 · 17109-20090
17139	No. 2 manifold stay	17139-20010 · 17139-20020 · 17139-74110 · 17139-74190
17141	exhaust manifold	17141-74130 · 17141-74200 · 17141-74270
17141D	Studs (for oxygen sensor)	90116-08253
17141E	Exhaust manifold plate	17148-41010
17141F	Gasket (for exhaust manifold plate)	89466-20020
17152	Studs (for manifold to exhaust)	90116-10058 · 90116-10149
17159	Studs (for manifold to cylinder head)	90116-10063 · 90116-10169 · 90126-08013 · 90126-10030 · 92122-60822
17166	Exhaust manifold No. 4 heat shield	17166-74020
17167	Exhaust manifold No. 1 heat shield	17167-20050 · 17167-74180 · 17167-74231 · 17167-74240
17168	Exhaust manifold No.2 insulation pad	17168-20020 · 17168-20050 · 17168-74080 · 17168-74131 · 17168-74140
17169	Exhaust manifold No. 3 heat shield	17169-74030 · 17169-74040
17173	Gasket (exhaust manifold to cylinder head)	17173-20010 · 17173-74040
17173A	Left side gasket (exhaust manifold to cylinder head)	17173-20010
17176	Gasket (intake surge tank to intake manifold)	17176-62030
17177	No. 1 gasket (intake manifold to cylinder head)	17177-20010 · 17177-20020 · 17177-74070
17178	No. 2 gasket (intake manifold to cylinder head)	17178-20010 · 17178-20020
17300	Intake control valve assembly	17300-20020
17300A	Headed tapered thread plug (for air control valves)	90345-51006
17315A	Intake control valve gasket	17315-62020
25052	No. 2 exhaust manifold three-way catalytic converter sub-assembly	25052-20060
25508	Manifold three-way catalytic converter sub-assembly	25051-74110
25586	No. 1 manifold three-way catalytic converter vibration isolation pad	25586-20010
25617C	EGR hole cover plate	25617-20010
25628B	EGR air intake gasket	25628-20010
