Toyota CAMRY Engine Oil Pump — Figure 1501

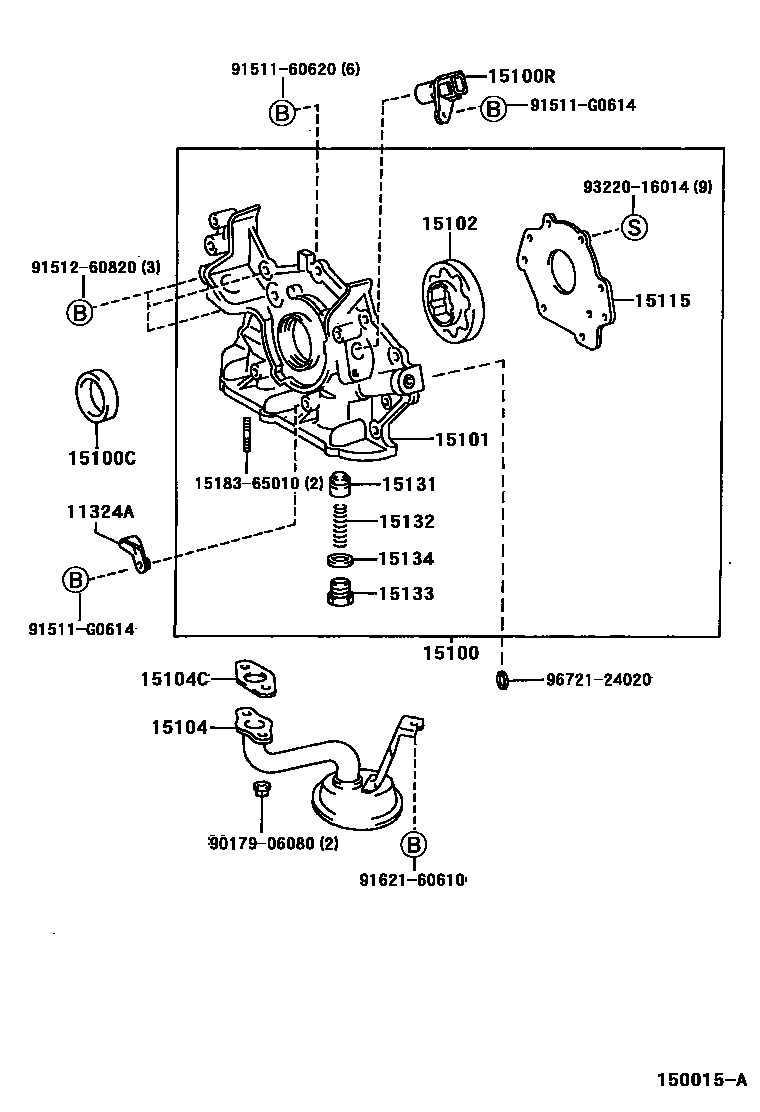

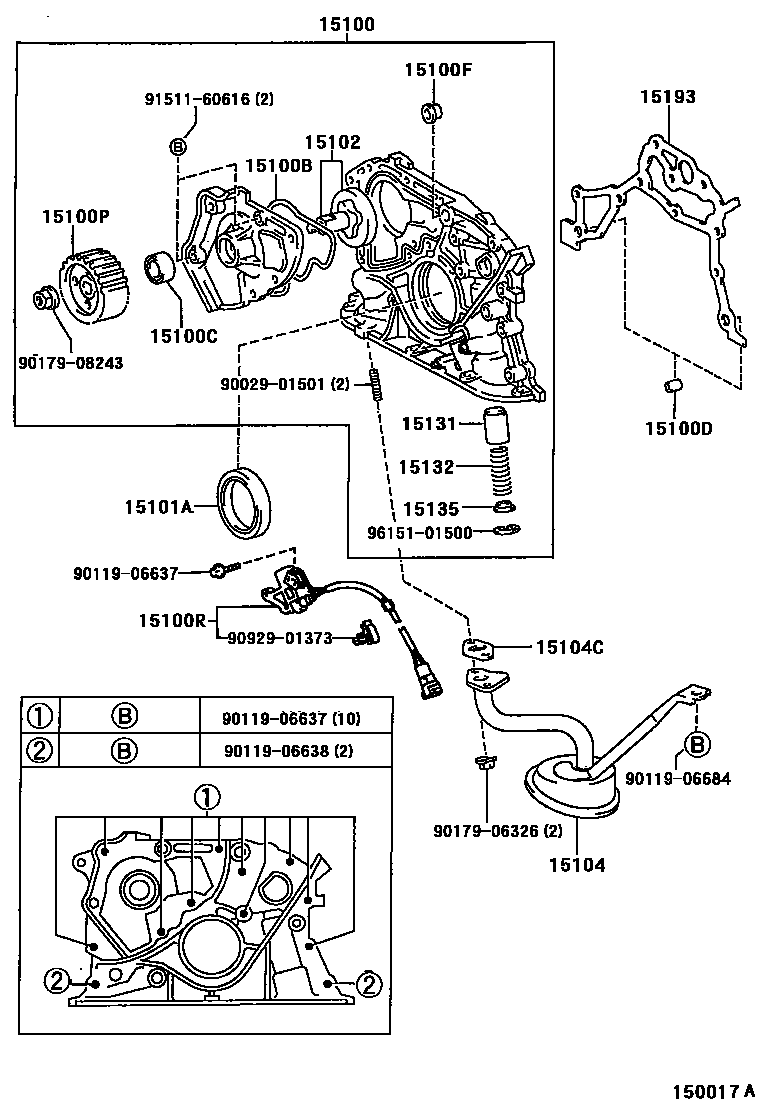

Toyota CAMRY EPC diagram 1501, Engine Oil Pump, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11324A | timing belt pulley | 11324-20010 |
| 15100 | Oil pump assembly | 15100-20020 · 15100-74030 |
| 15100B | O-ring (for oil pump) | 15188-74050 |
| 15100C | Seals (for oil pump) | 15165-74020 · 90311-40022 |
| 15100D | Pin (for oil pump assembly) | 90253-09001 |
| 15100F | Bushing (for oil pump) | 90029-38302 |
| 15100P | Oil pump drive shaft pulley | 13524-74020 |
| 15100R | crankshaft position sensor | 90919-05012 · 90919-05017 |
| 15101 | Oil pump body sub-assembly | 15101-20020 |
| 15101A | Seals (for crankshaft) | 90311-42026 · 90311-42032 · 90311-42035 |
| 15102 | Oil pump rotor assembly | 15102-74020 · 15103-62030 |
| 15104 | Oil filter sub-assembly | 15104-20020 · 15104-74110 |
| 15104C | Gasket (for oil filter) | 15147-20010 · 15149-74030 |
| 15115 | oil pump cover | 15115-20020 |
| 15131 | Oil pump pressure reducing valve | 15131-42021 · 15131-63011 |
| 15132 | Oil pump pressure reducing valve spring | 15132-20020 · 15132-88380 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-67010 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-15010 |
| 15193 | oil pump gasket | 15197-74040 |
