Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

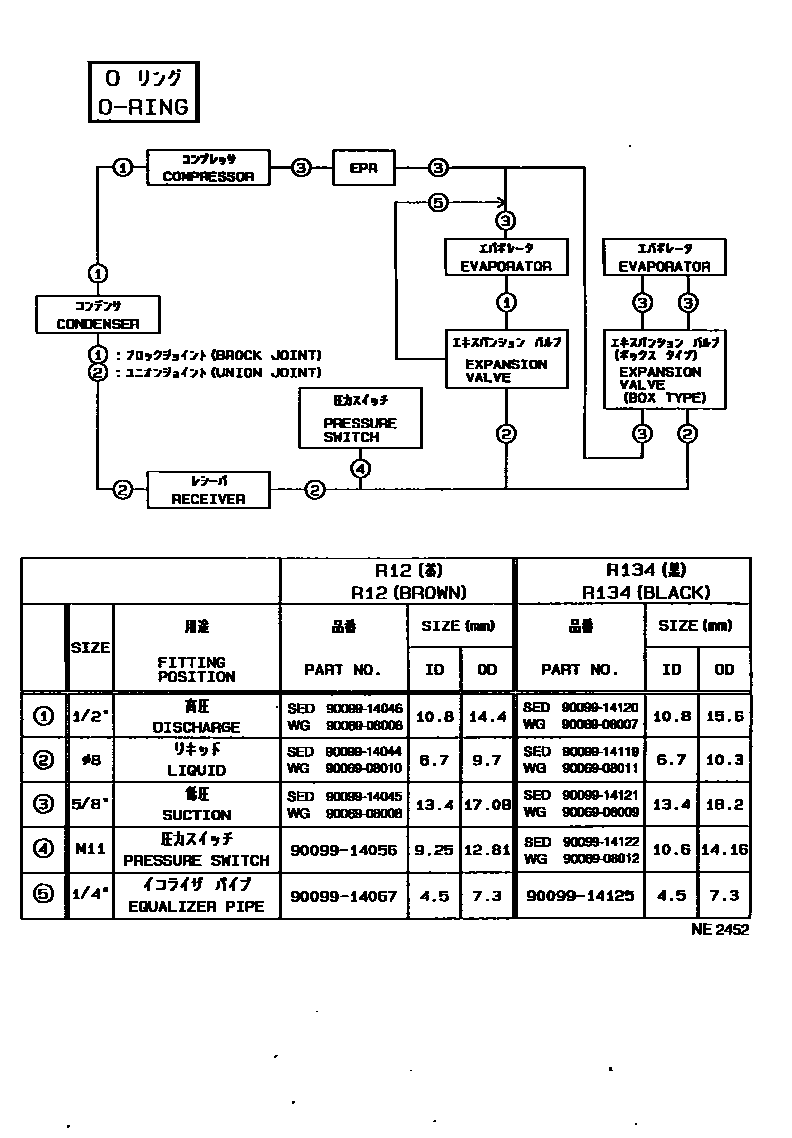

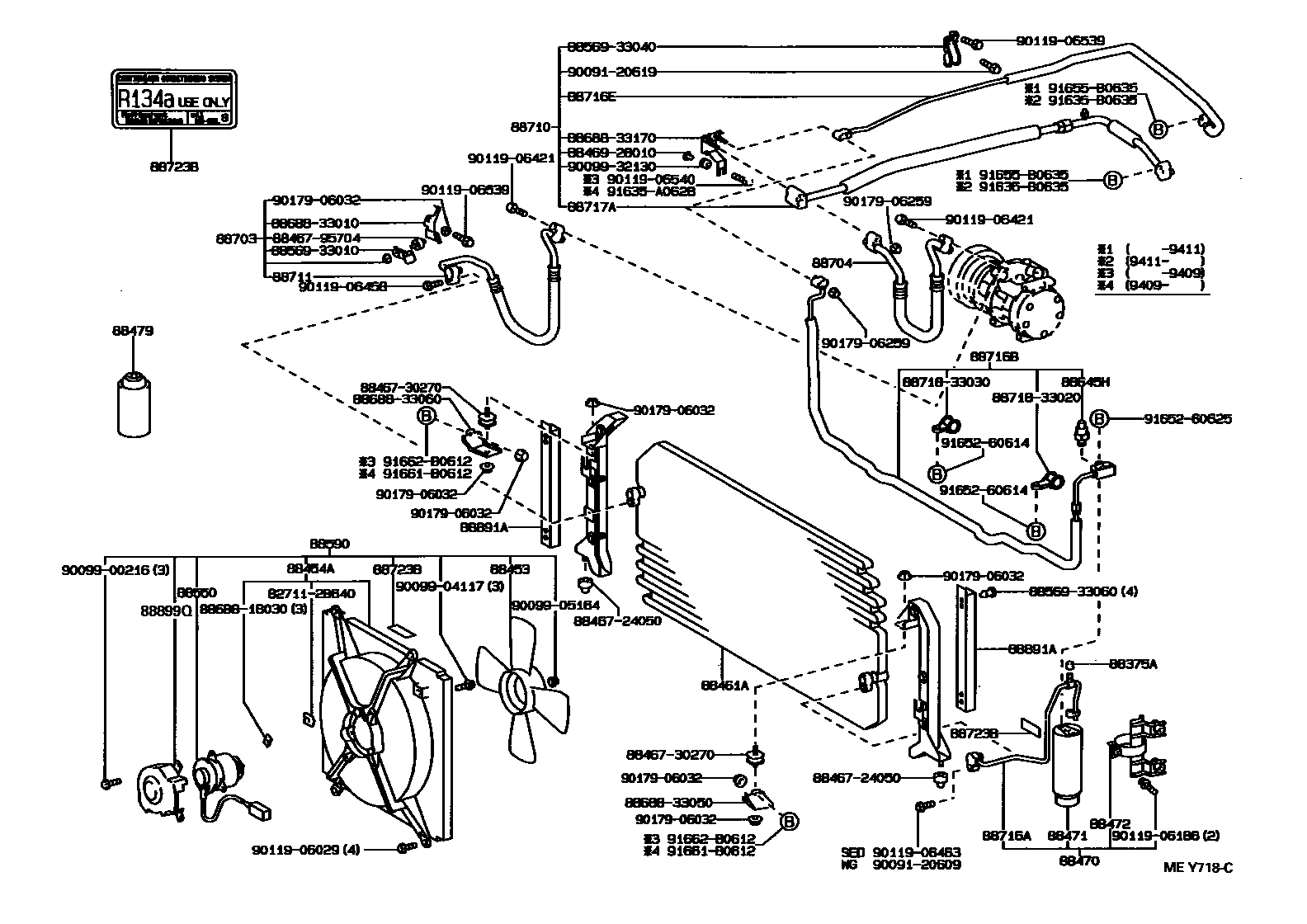

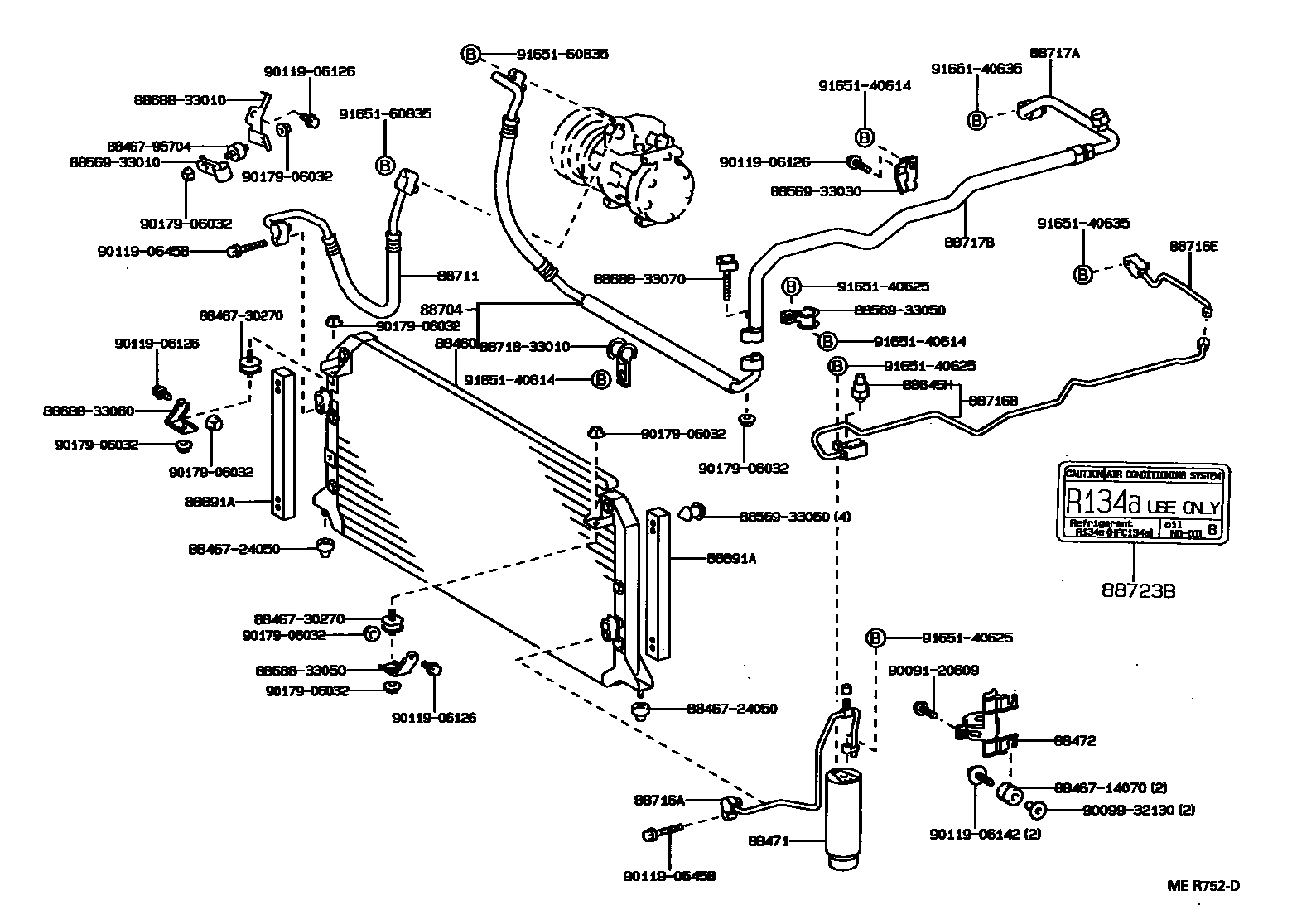

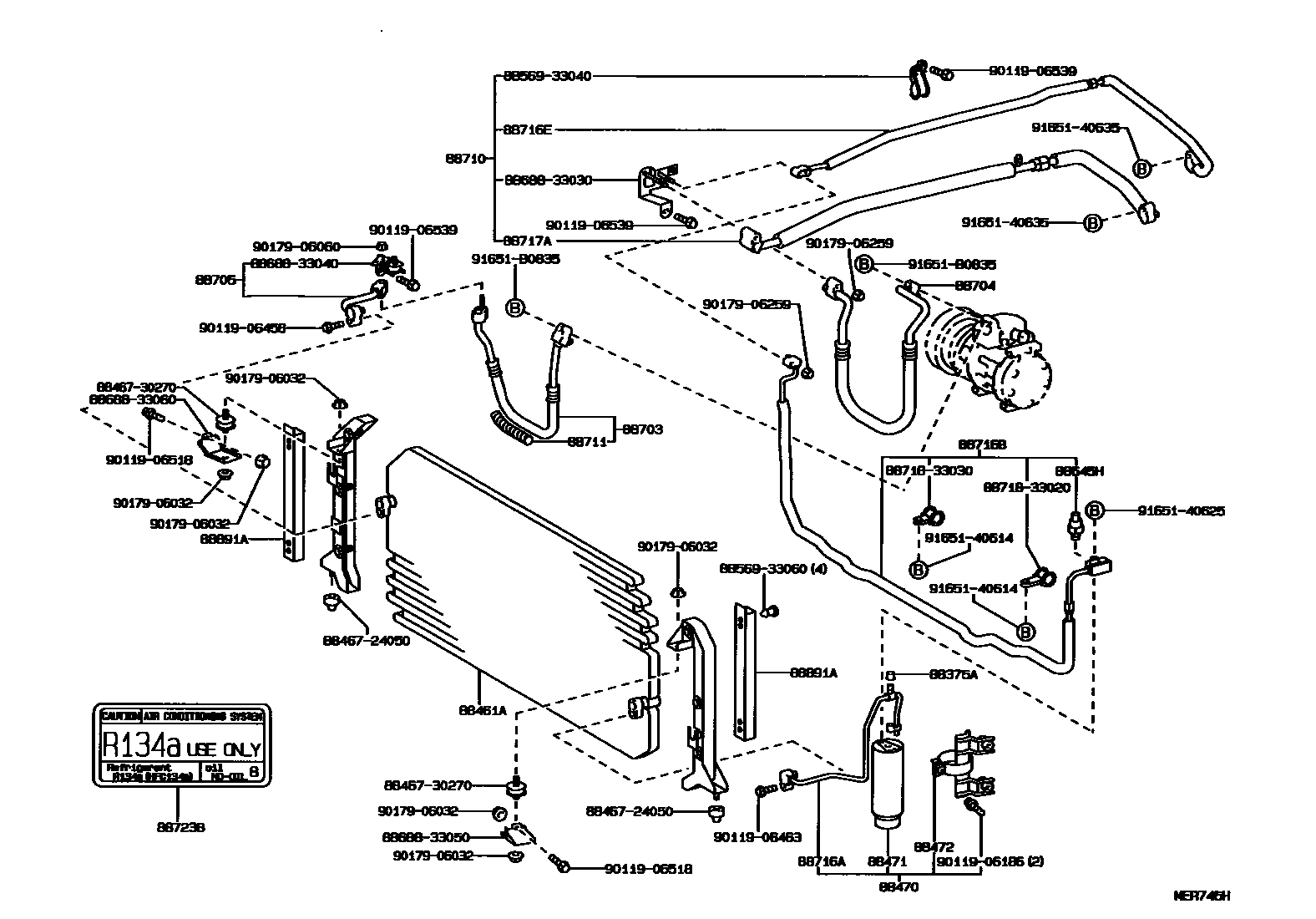

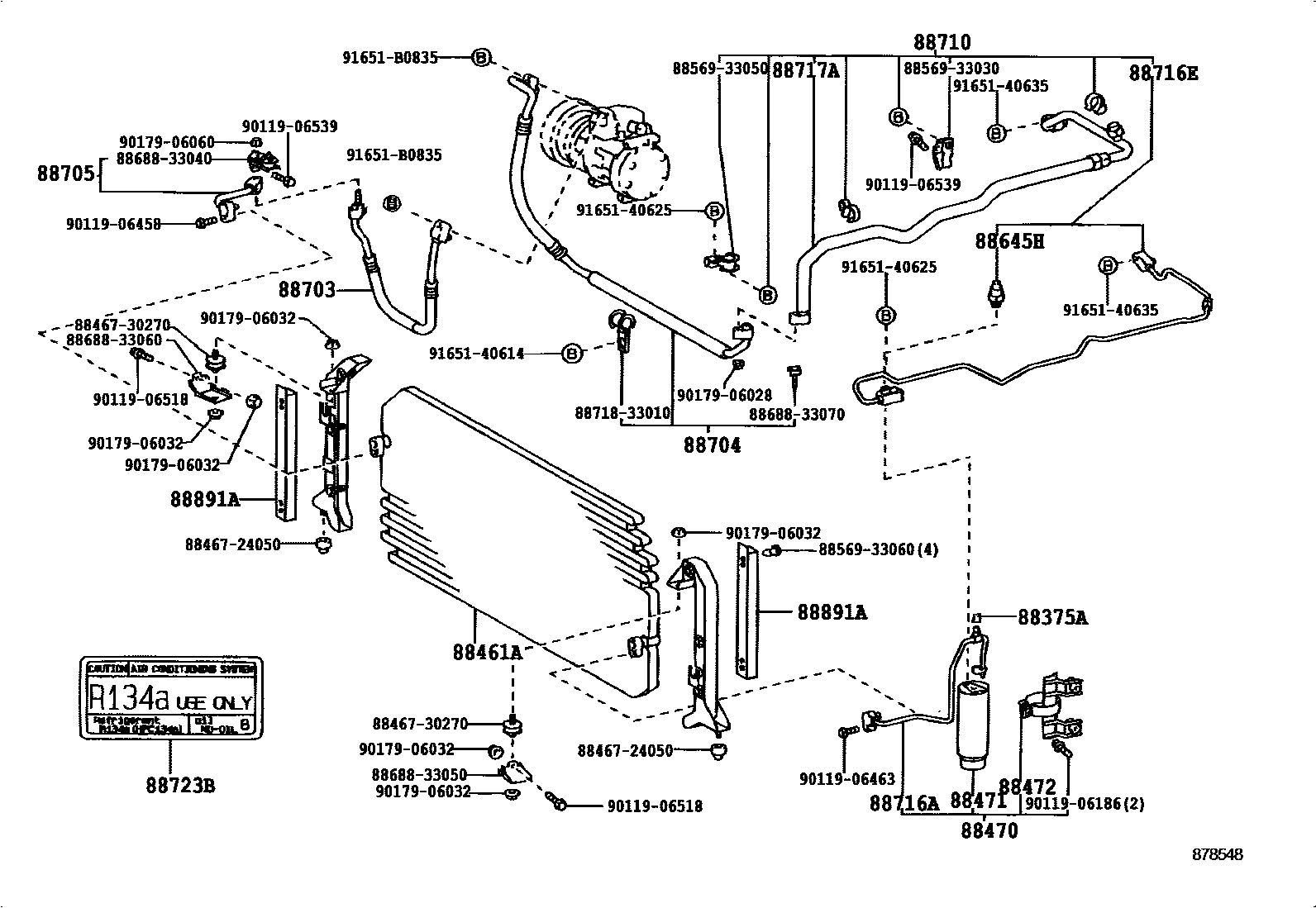

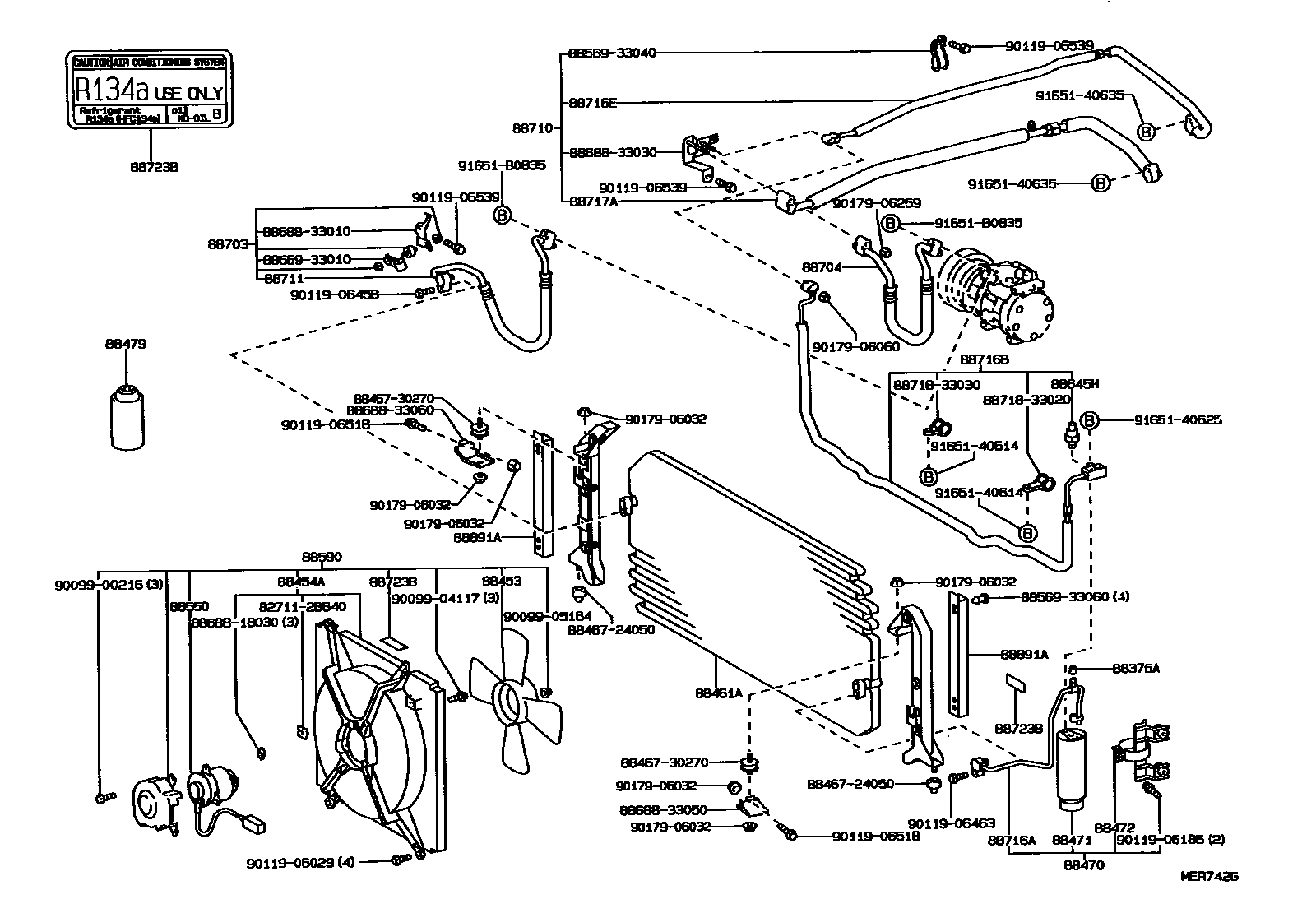

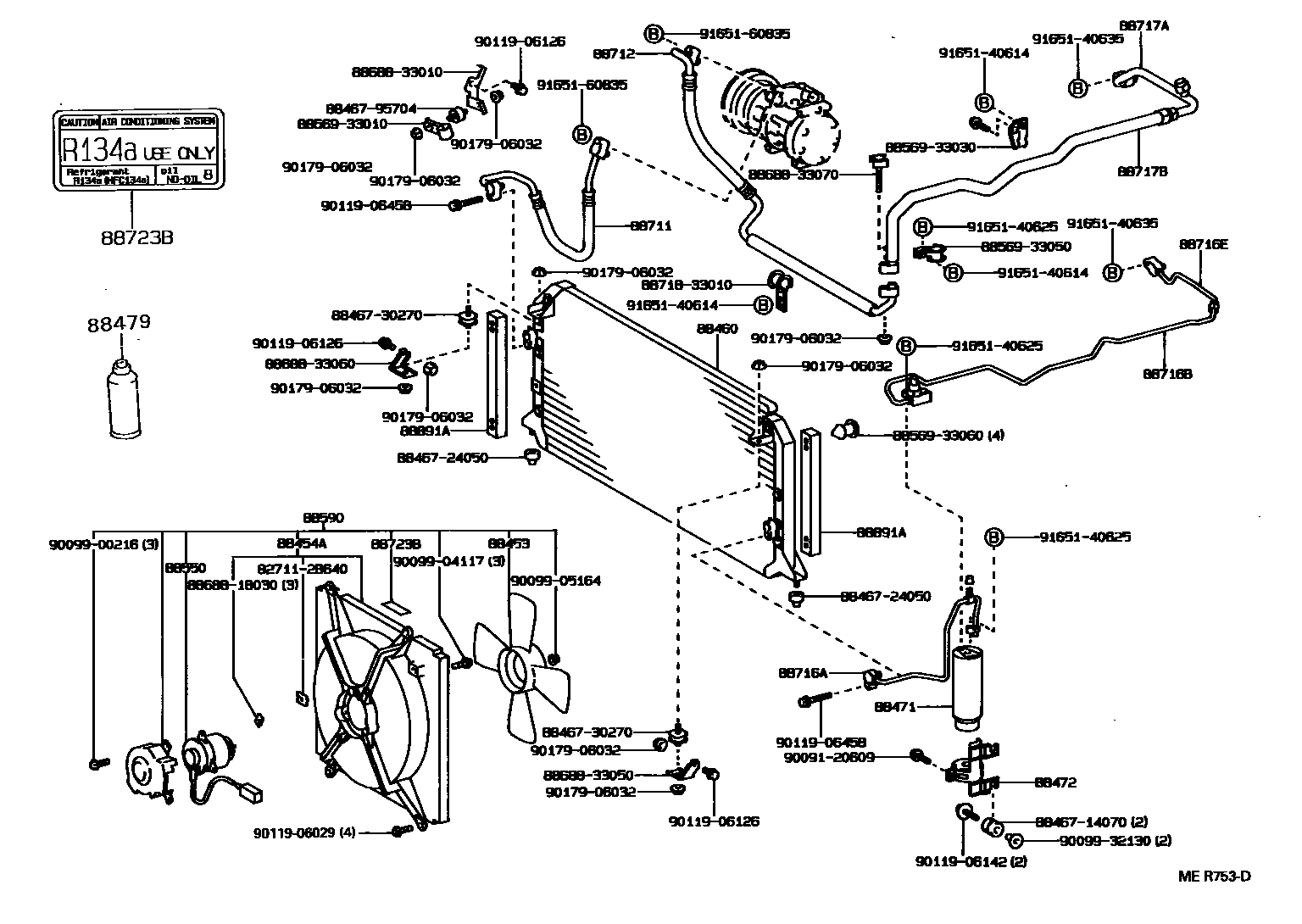

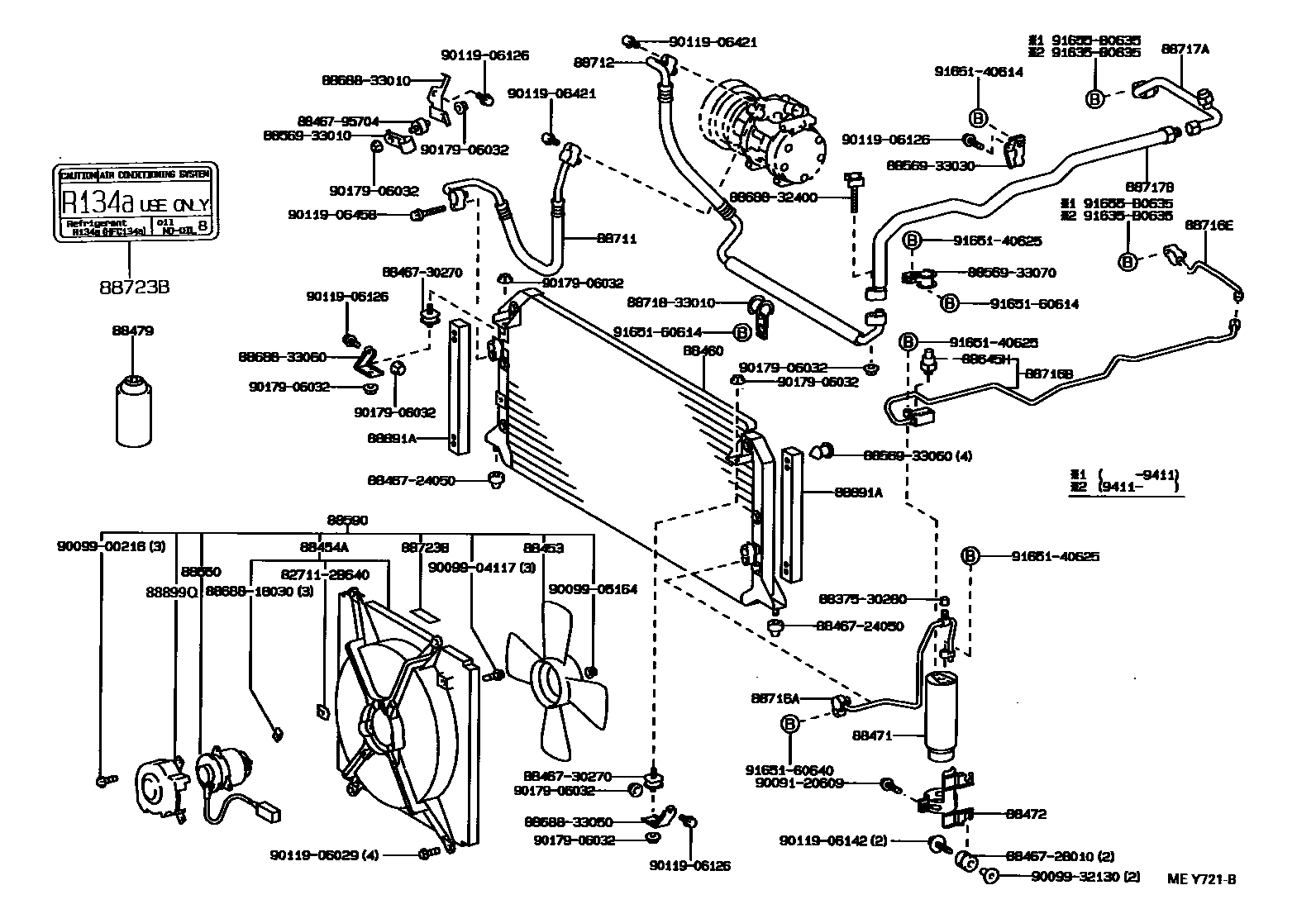

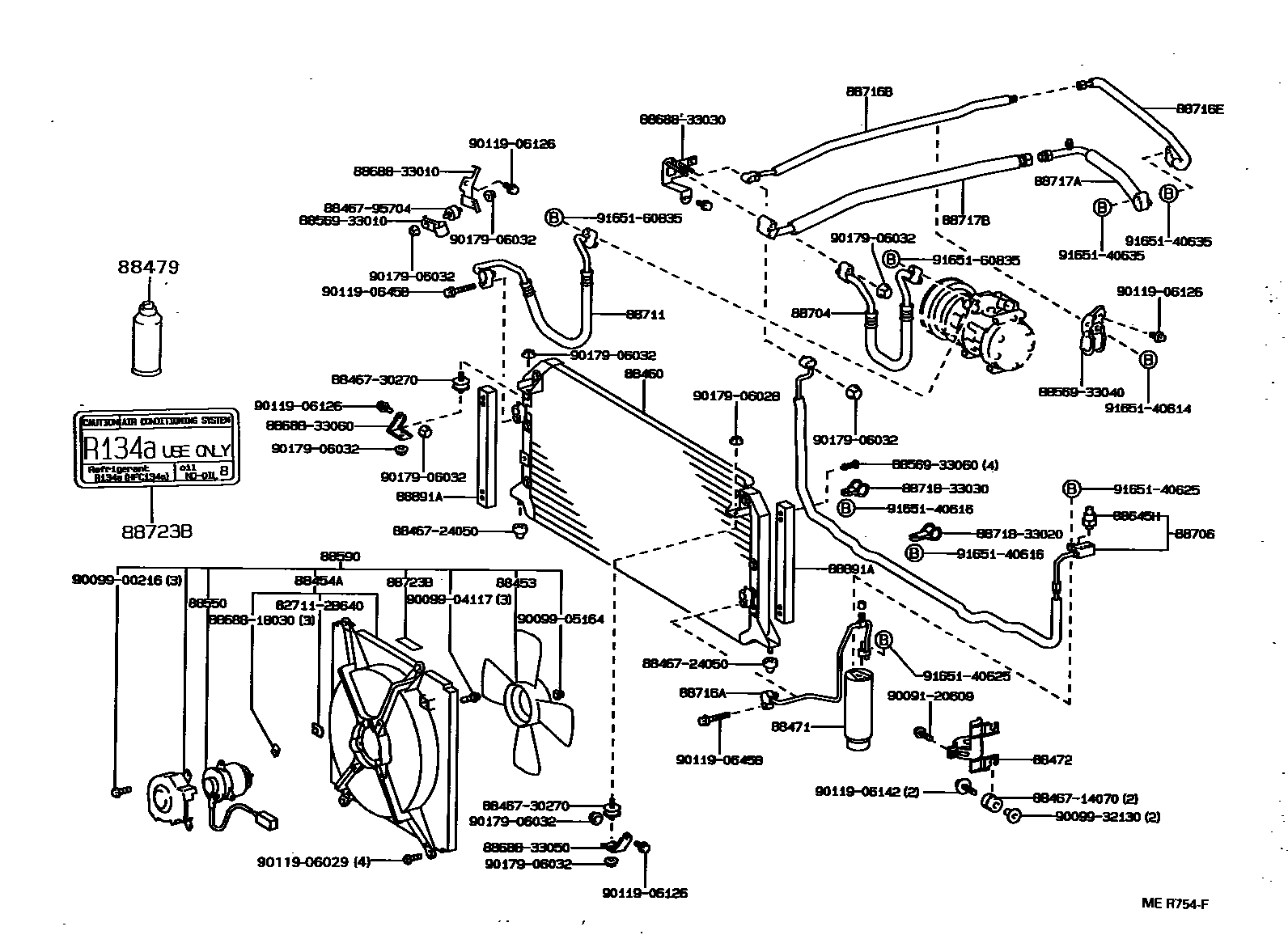

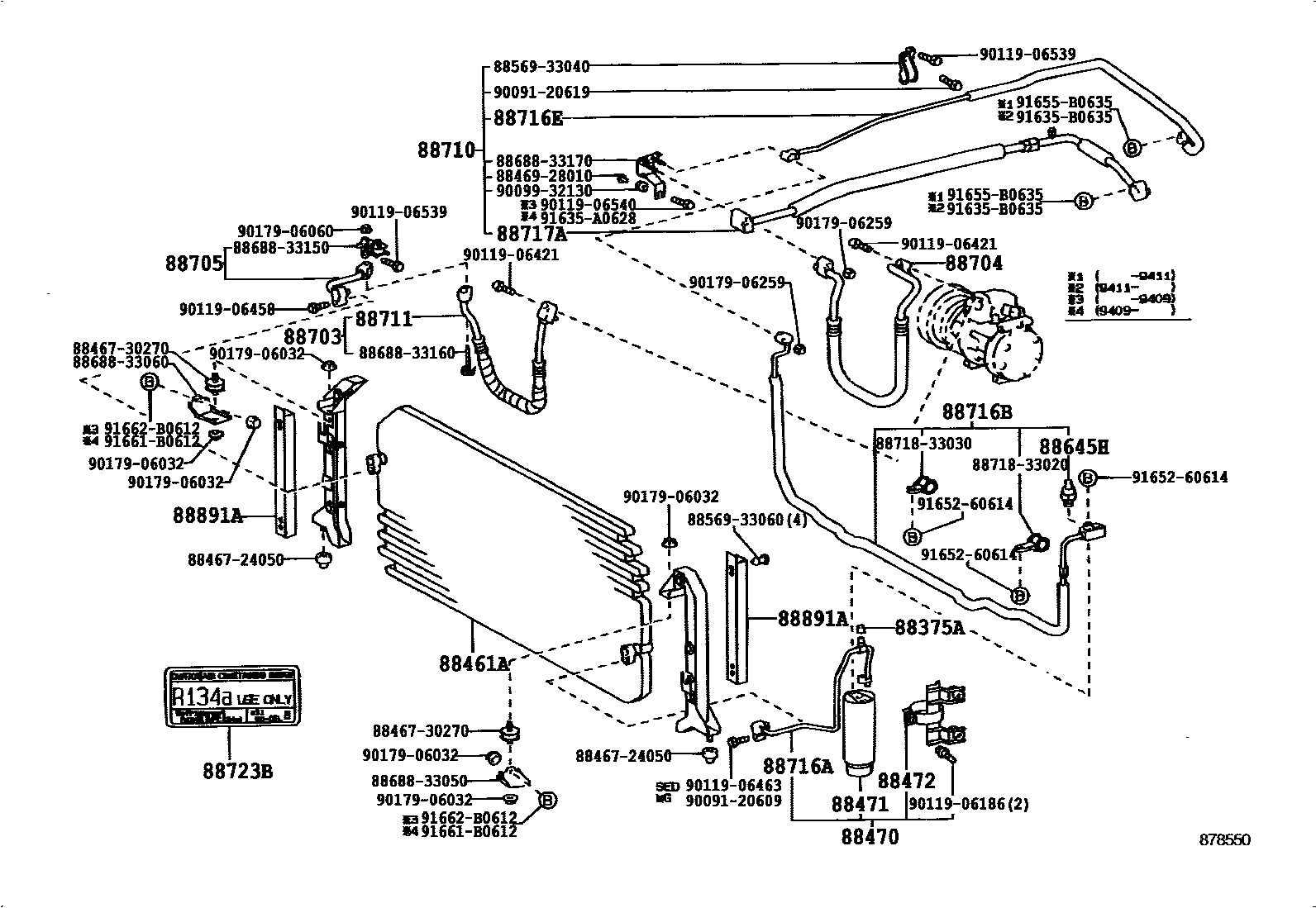

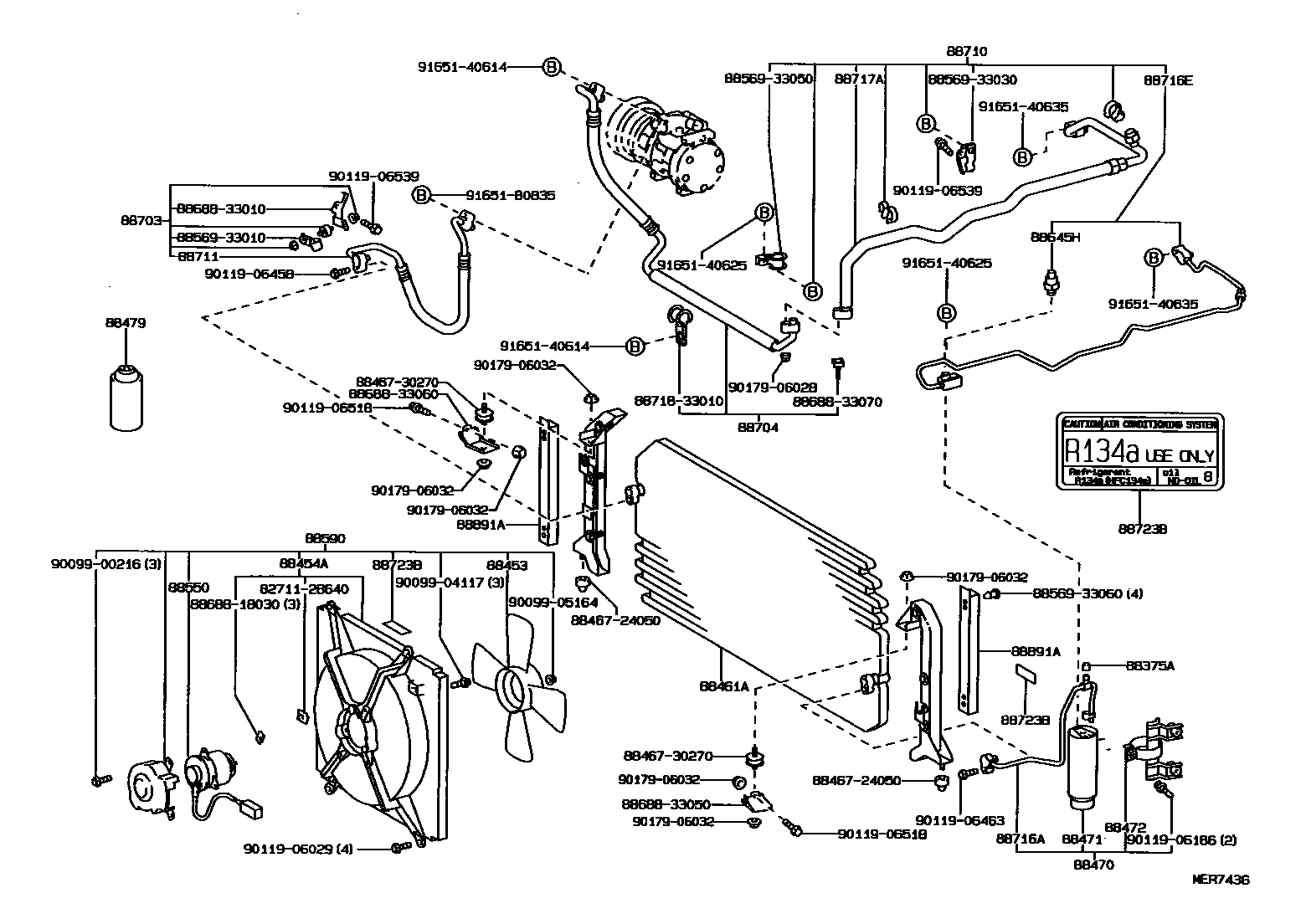

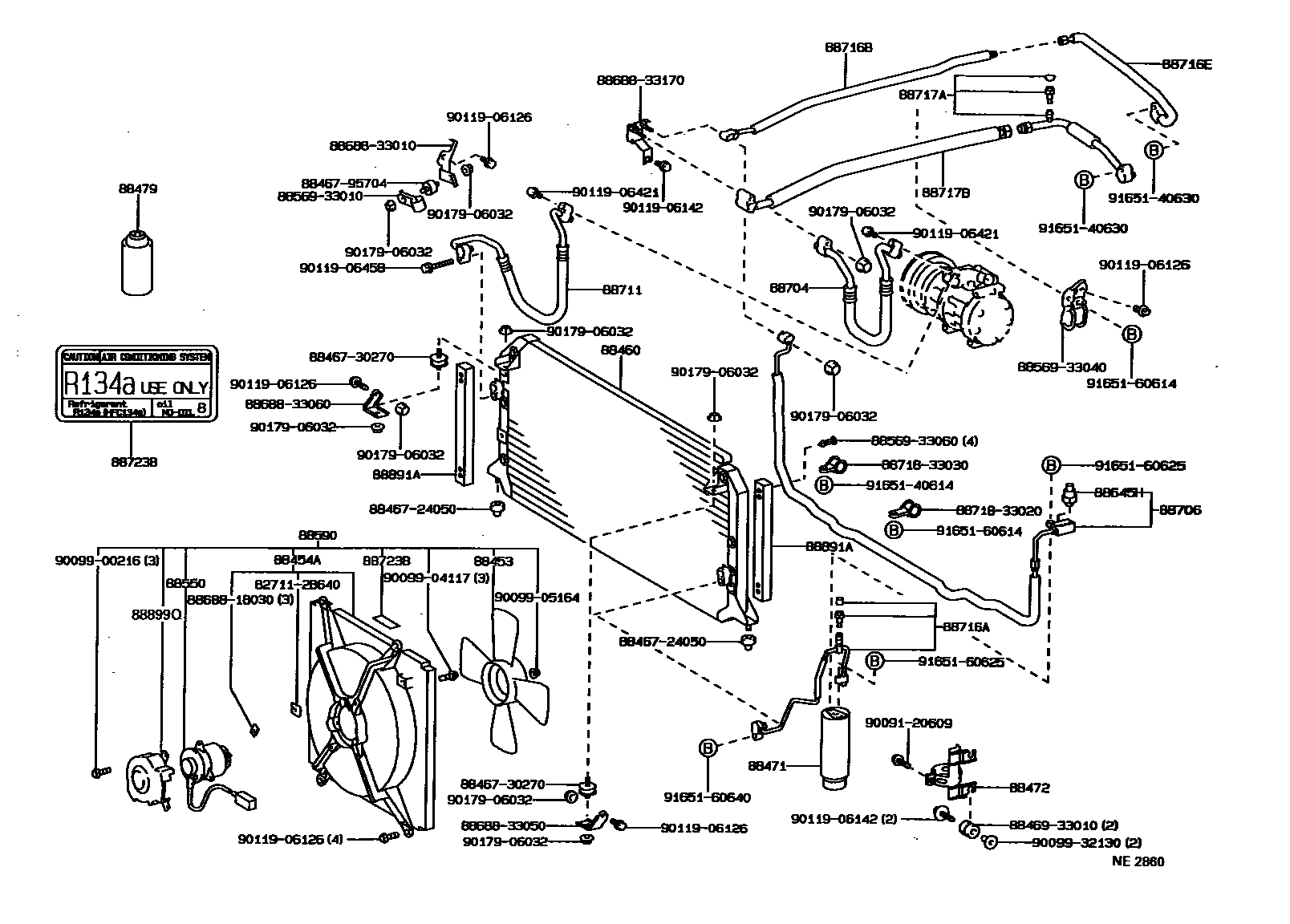

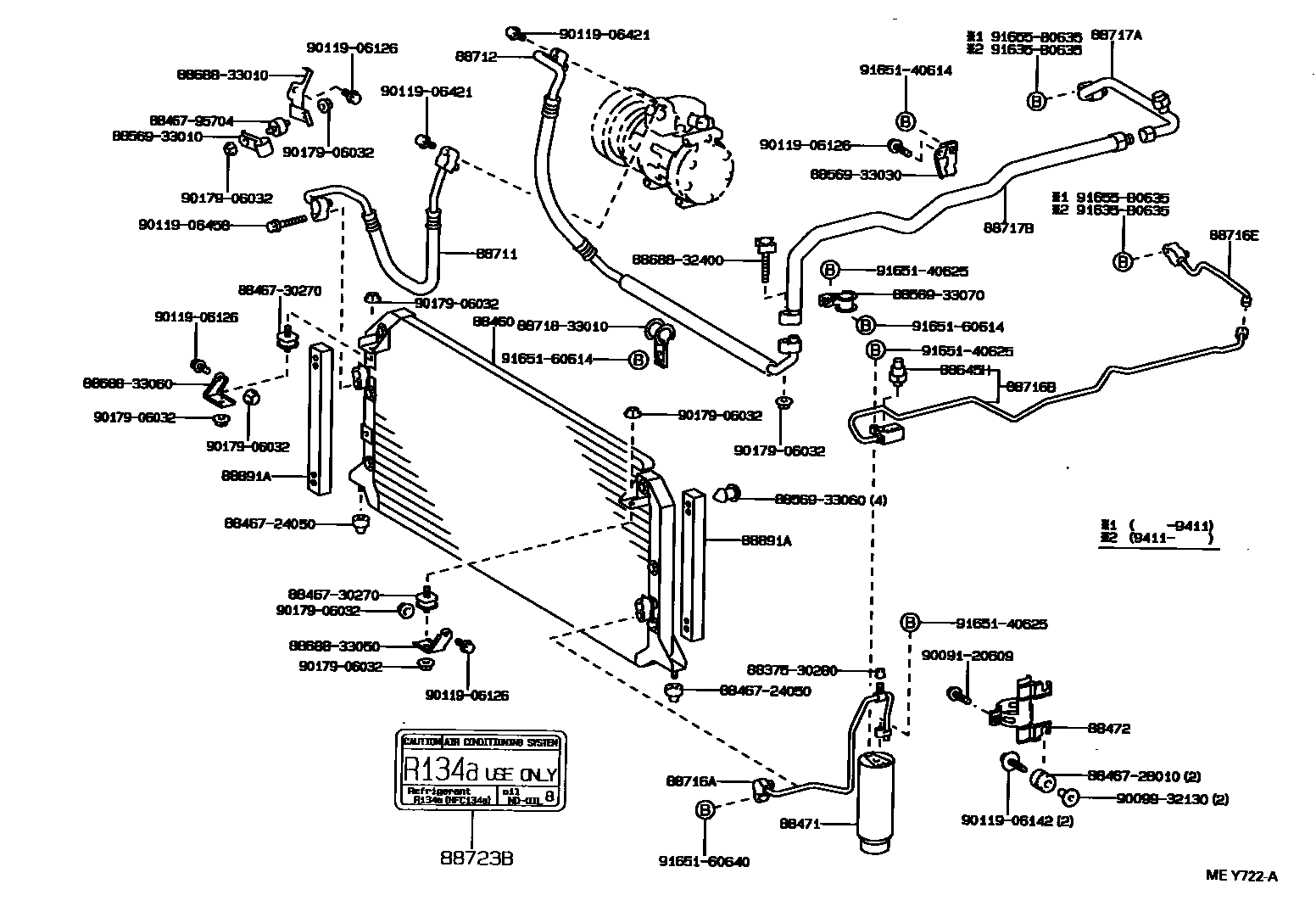

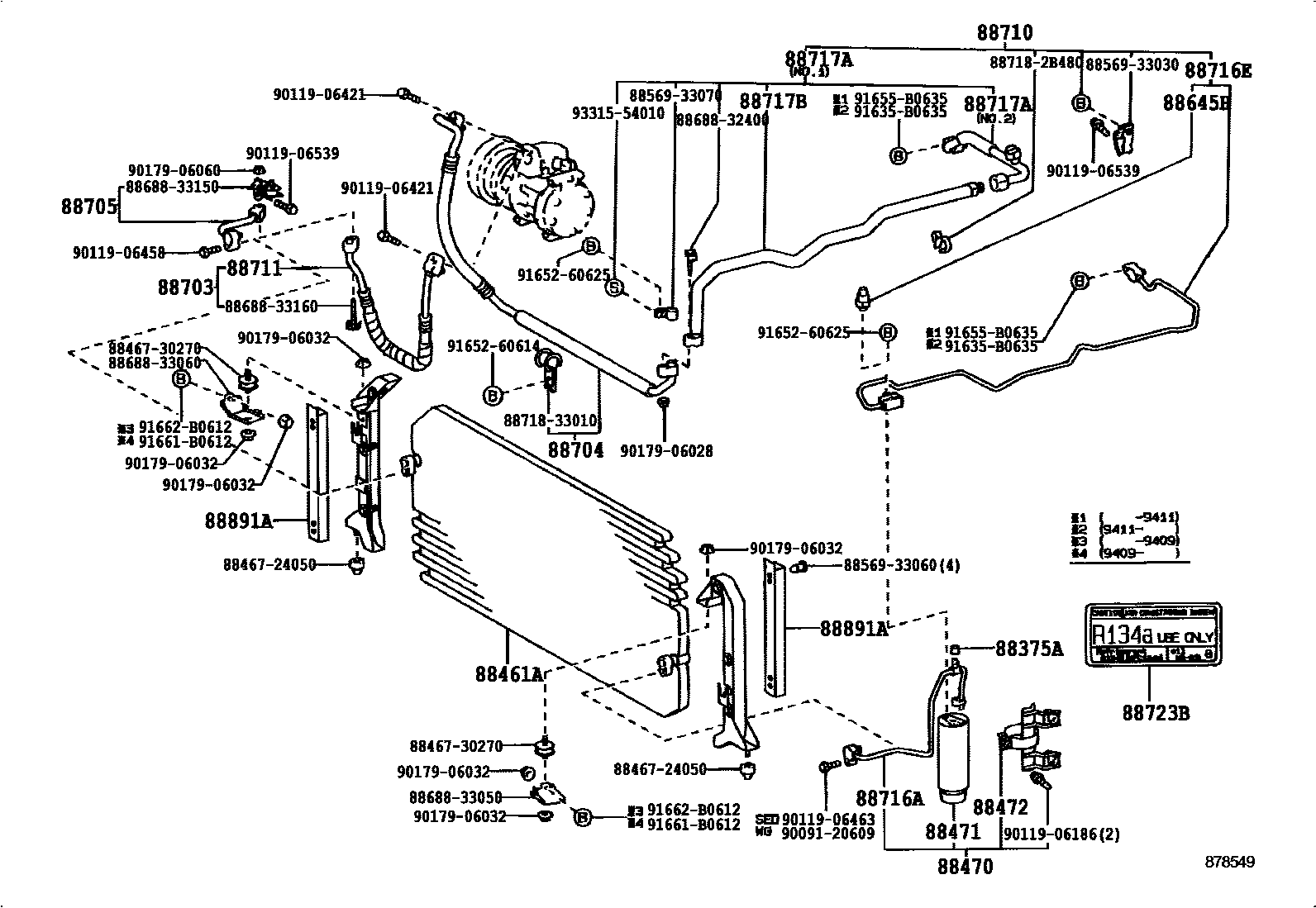

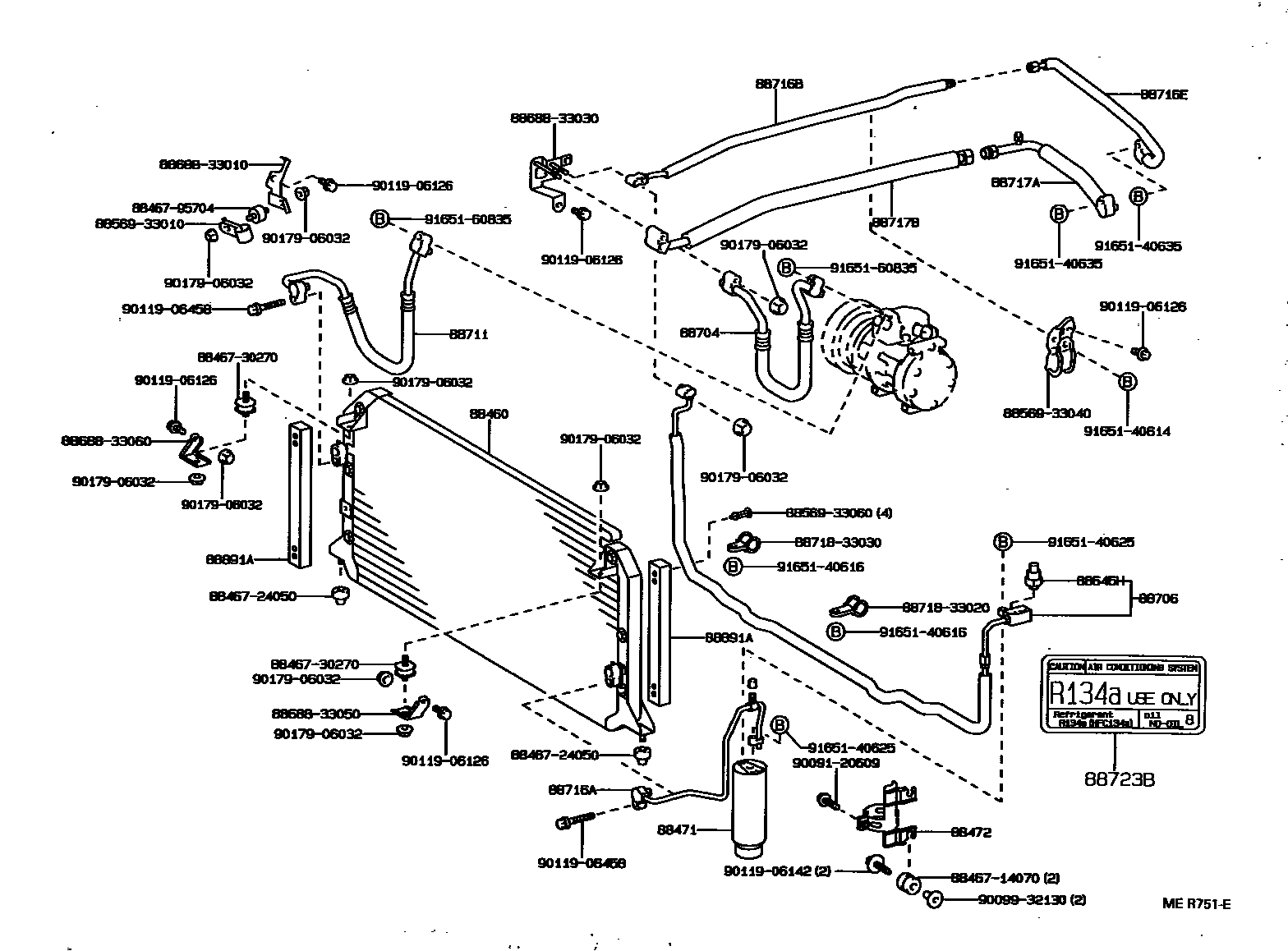

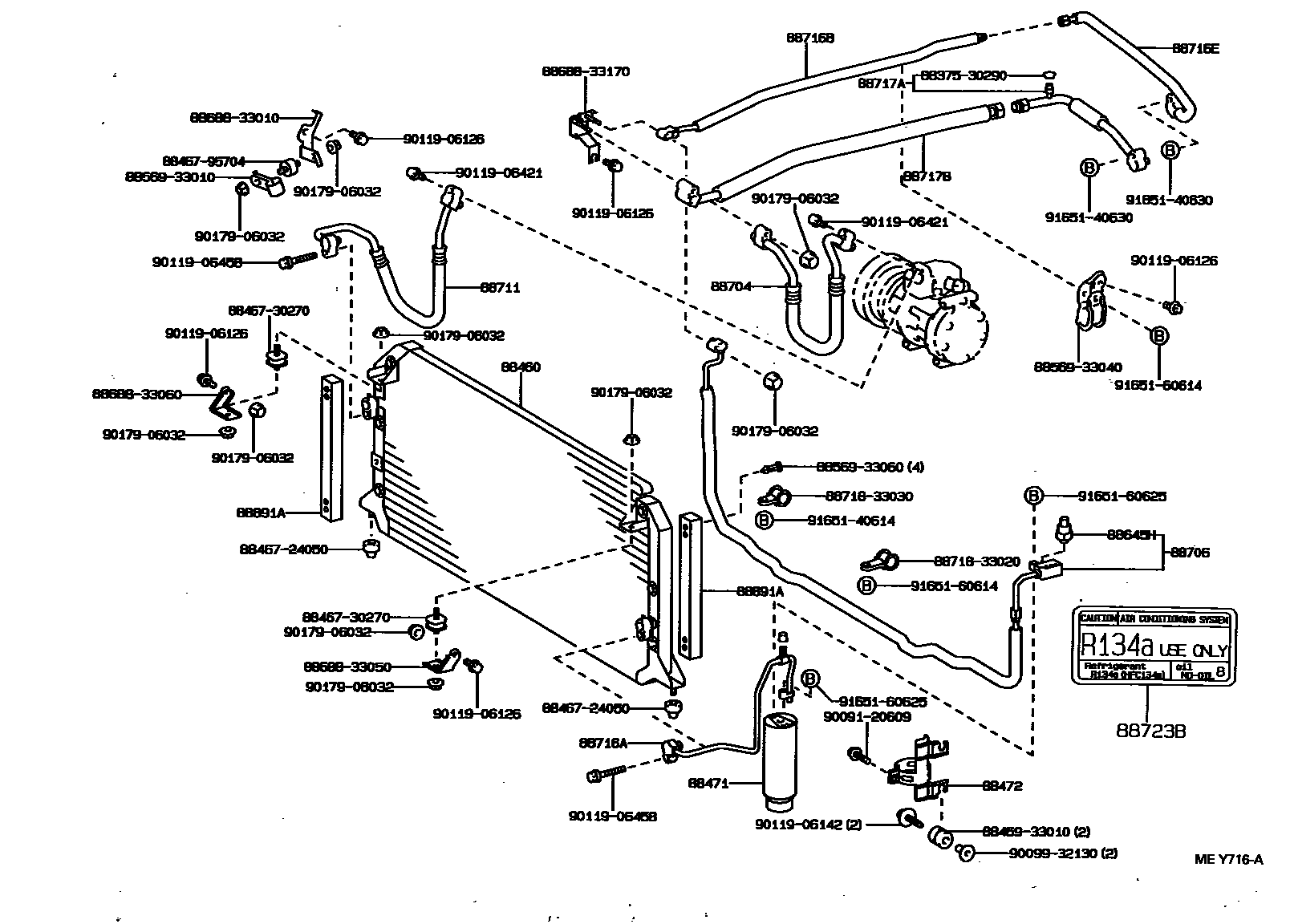

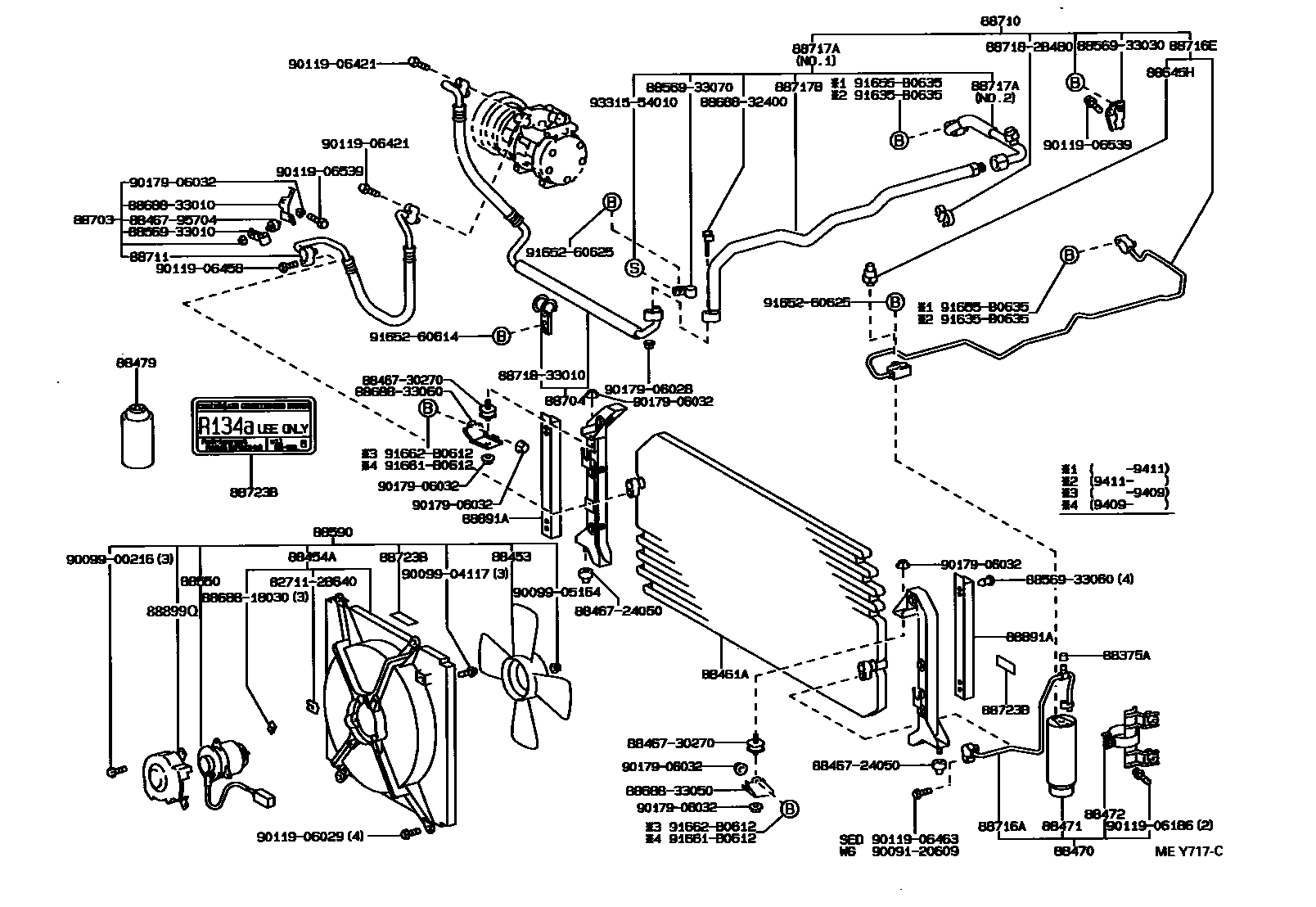

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 17 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375A | Repair valve cover (for cooler tube) | 88375-20010 · 88375-30280 |
| 88453 | Cooling fan (for condenser) | 88453-33010 |
| 88454A | fan cover | 88454-33010 |
| 88460 | Air conditioning condenser assembly | 88460-33010 · 88460-33020 · 88460-33030 · 88460-33040 |
| 88461A | Air conditioning condenser core | 88461-33010 |
| 88470 | Cooler reservoir and dryer assembly | 88470-33010 · 88470-33020 |
| 88471 | Air conditioning fluid storage tank | 88471-20050 · 88471-50010 |
| 88472 | No. 1 liquid storage tank bracket | 88473-33010 · 88473-33020 · 88473-33030 · 88473-33040 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02007 · 90986-02008 |
| 88550 | Blower motor assembly (for condenser) | 88550-33010 |
| 88590 | Blower assembly with hood | 88590-33010 · 88590-33011 |
| 88645H | No. 1 pressure switch | 88645-20040 · 88645-20050 |
| 88703 | Discharge hose sub-assembly | 88703-33010 · 88703-33030 · 88703-33040 · 88703-33050 · 88703-33060 · 88703-33070 · 88703-33071 · 88703-33080 · 88703-33090 |
| 88704 | Oil suction hose sub-assembly | 88704-33010 · 88704-33020 · 88704-33030 · 88704-33040 · 88704-33050 · 88704-33060 · 88704-33070 · 88704-33080 · 88704-33090 · 88704-33100 |
| 88705 | Discharge pipe sub-assembly | 88705-33010 · 88705-33020 |
| 88706 | Liquid pipe sub-assembly | 88706-33010 · 88716-33220 |
| 88710 | Air conditioning pipe assembly | 88710-33030 · 88710-33040 · 88710-33050 · 88710-33051 · 88710-33060 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-33010 · 88711-33020 · 88711-33030 · 88711-33040 · 88711-33041 · 88711-33050 · 88711-33060 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-33010 · 88712-33020 · 88712-33030 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-33040 · 88716-33120 · 88716-33230 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-33030 · 88716-33050 · 88716-33070 · 88716-33110 · 88716-33160 · 88716-33210 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-33010 · 88716-33020 · 88716-33060 · 88716-33080 · 88716-33090 · 88716-33100 · 88716-33170 · 88716-33200 |
| 88717A | Cooler refrigerant suction pipe A | 88717-33010 · 88717-33020 · 88717-33040 · 88717-33060 · 88717-33070 · 88717-33080 · 88717-33100 · 88717-33110 |
| 88717B | Cooler refrigerant suction pipe B | 88717-33030 · 88717-33050 · 88717-33090 · 88717-33120 |
| 88723B | Cooler maintenance warning label | 88723-12100 · 88723-14010 · 88723-24010 · 88723-28100 · 88723-33020 |
| 88891A | Seal A (for cooler) | 88578-33010 |
| 88899Q | Cover plate | 88899-33020 |
