Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

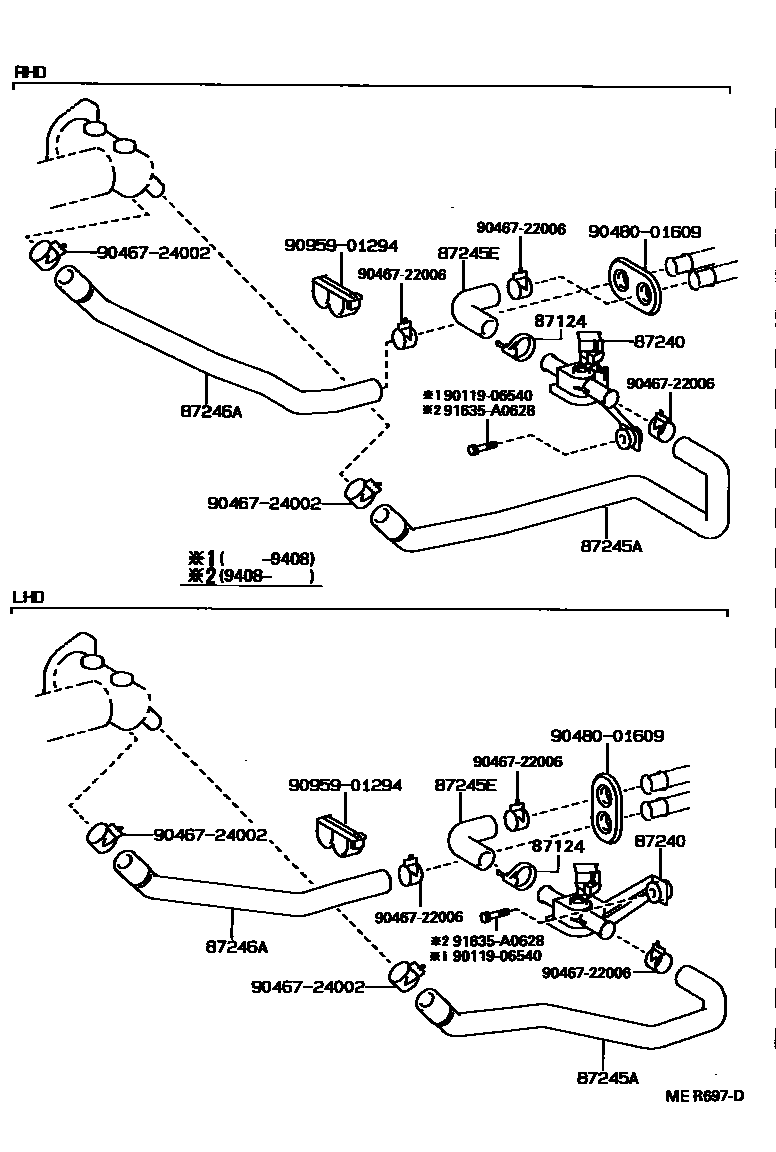

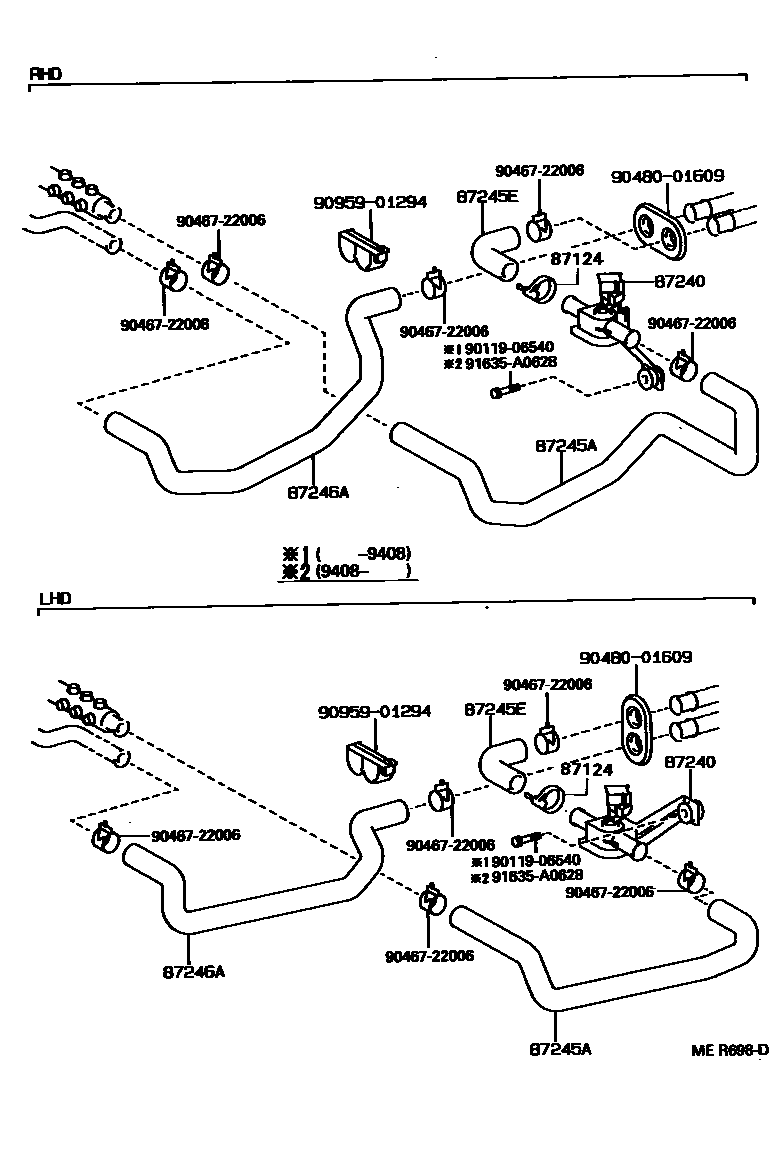

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124 | heater clip | 87124-28030 · 90467-22004 |
| 87240 | Heater water valve assembly | 87240-33010 · 87240-33020 |
| 87245A | Heater water inlet hose A | 87245-33010 · 87245-33030 · 87245-33060 · 87245-33070 |
| 87245E | Heater water inlet hose E | 87245-33100 · 87245-33110 |
| 87246A | Heater outlet hose A | 87245-33020 · 87245-33040 · 87245-33050 · 87245-33090 |
