Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

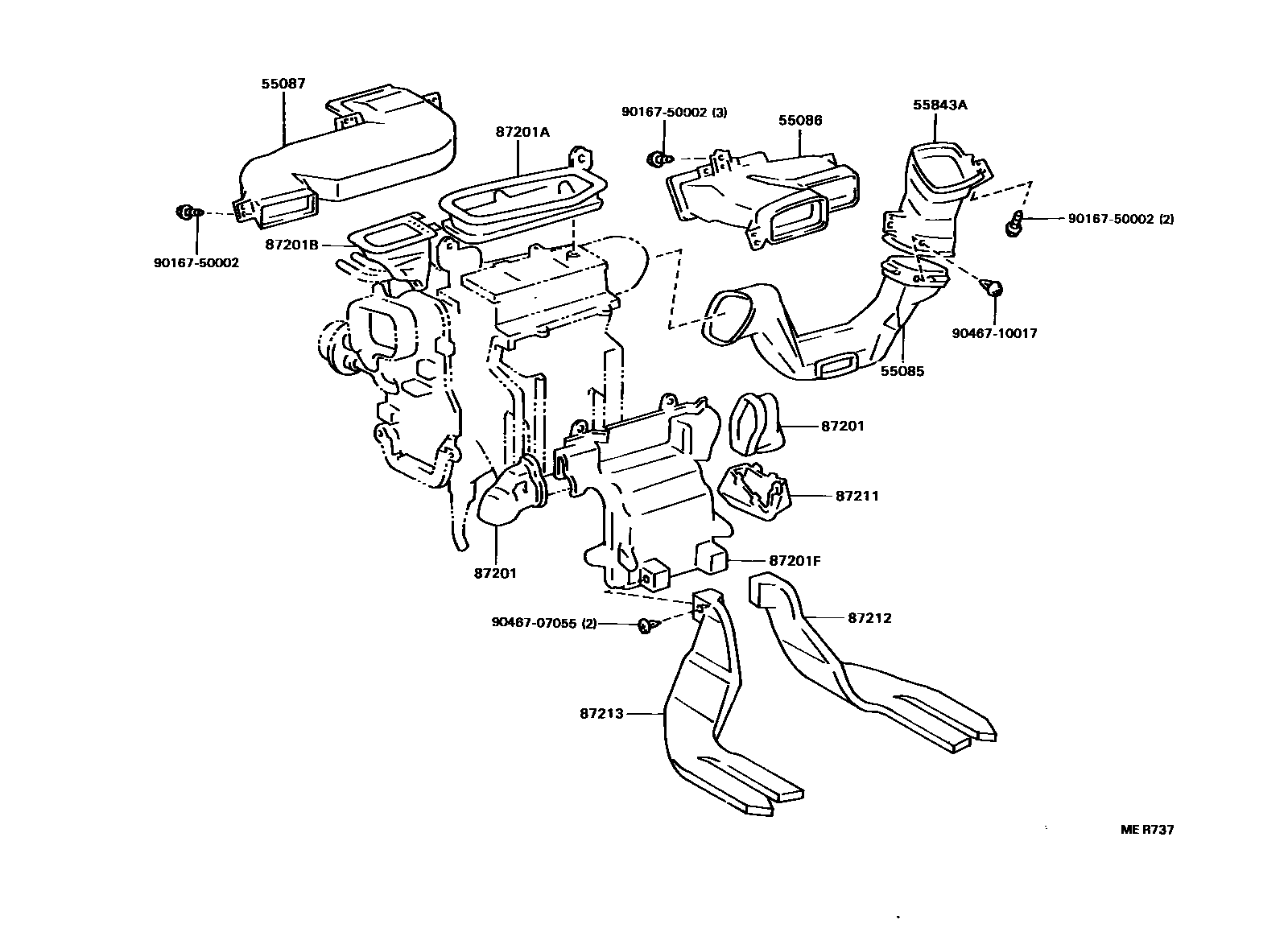

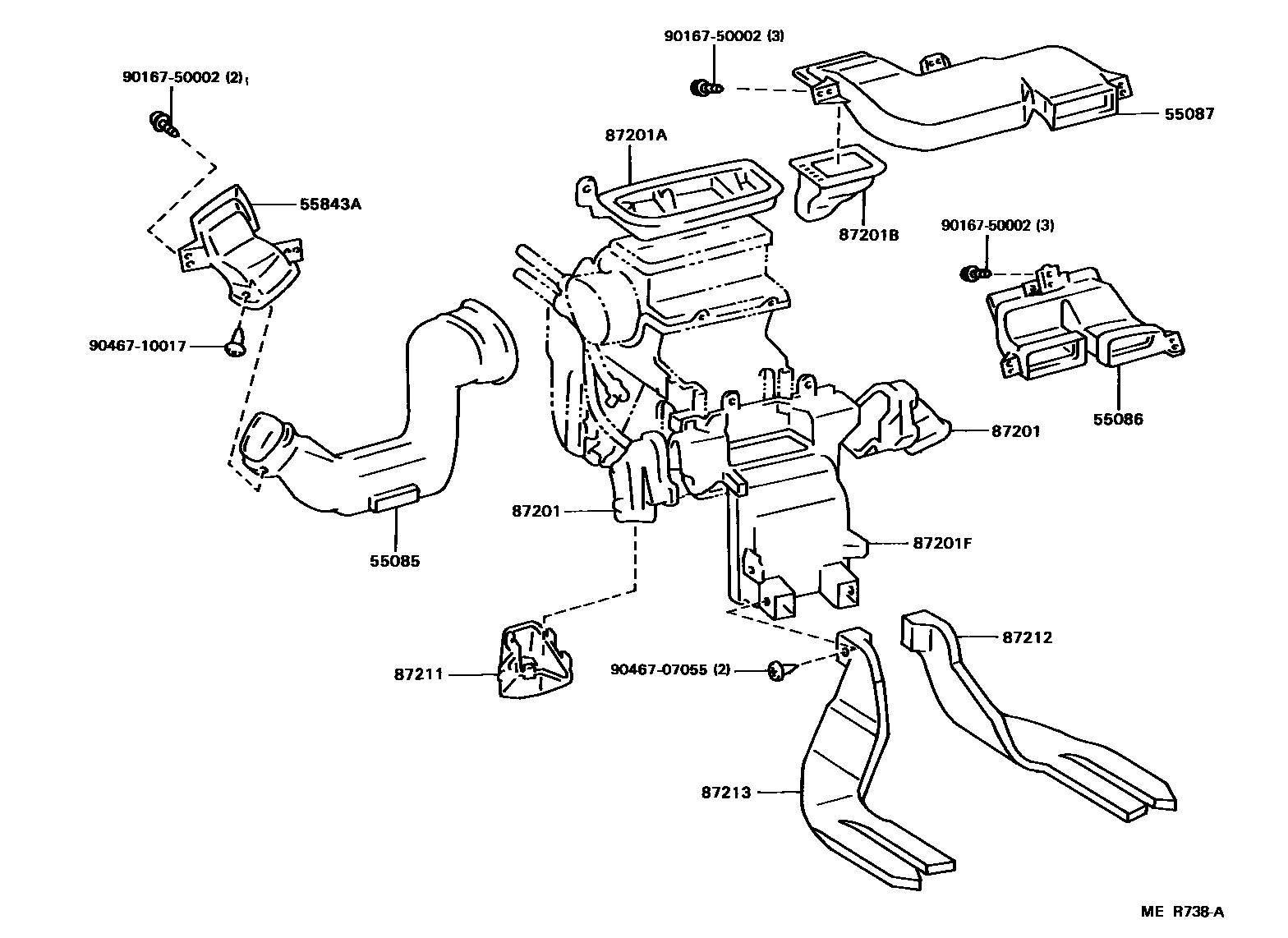

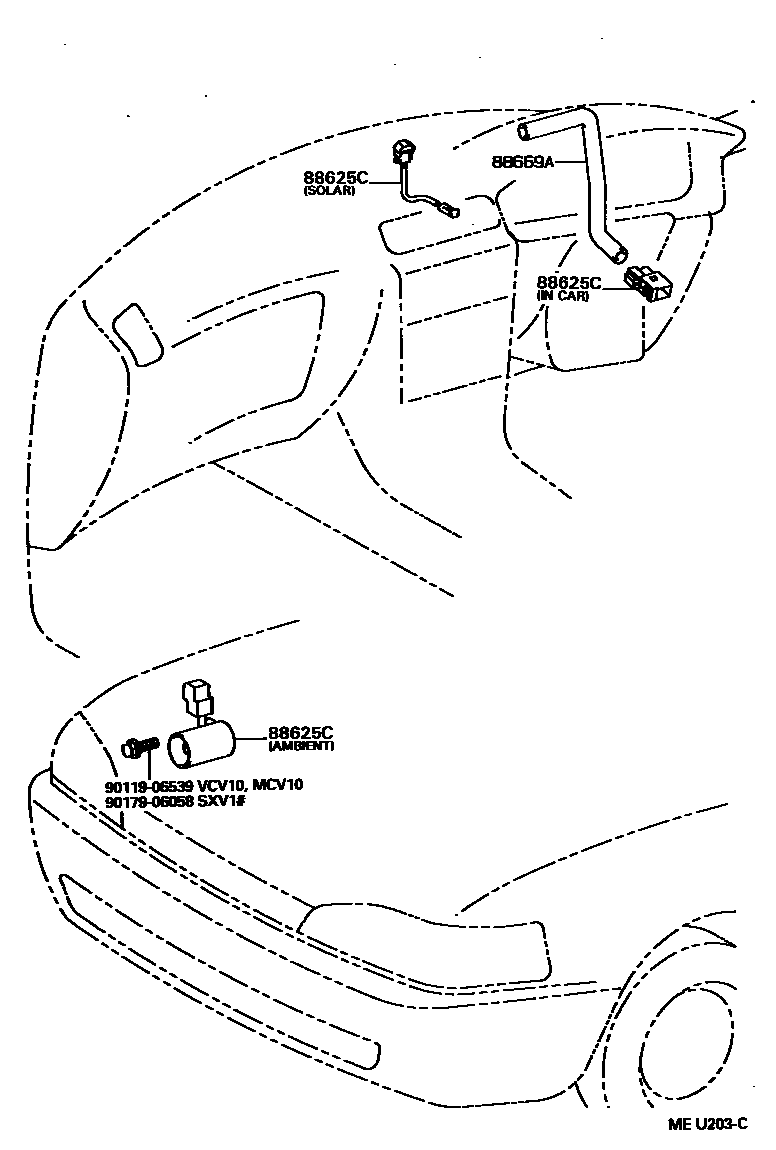

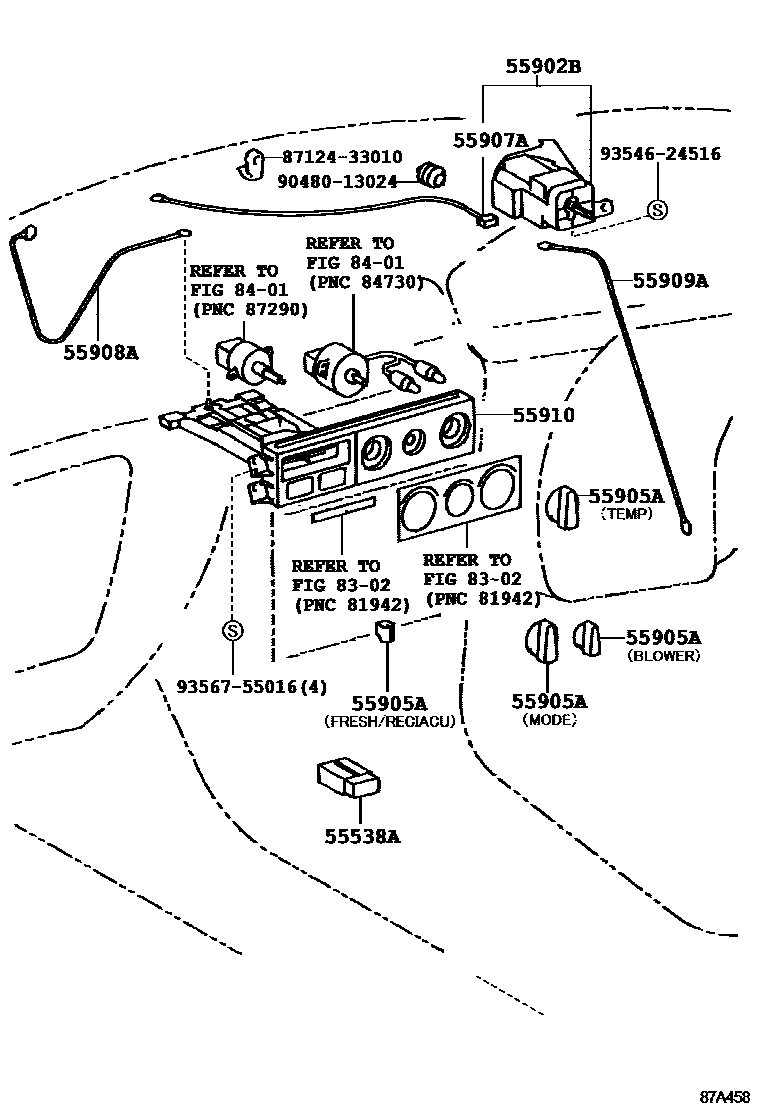

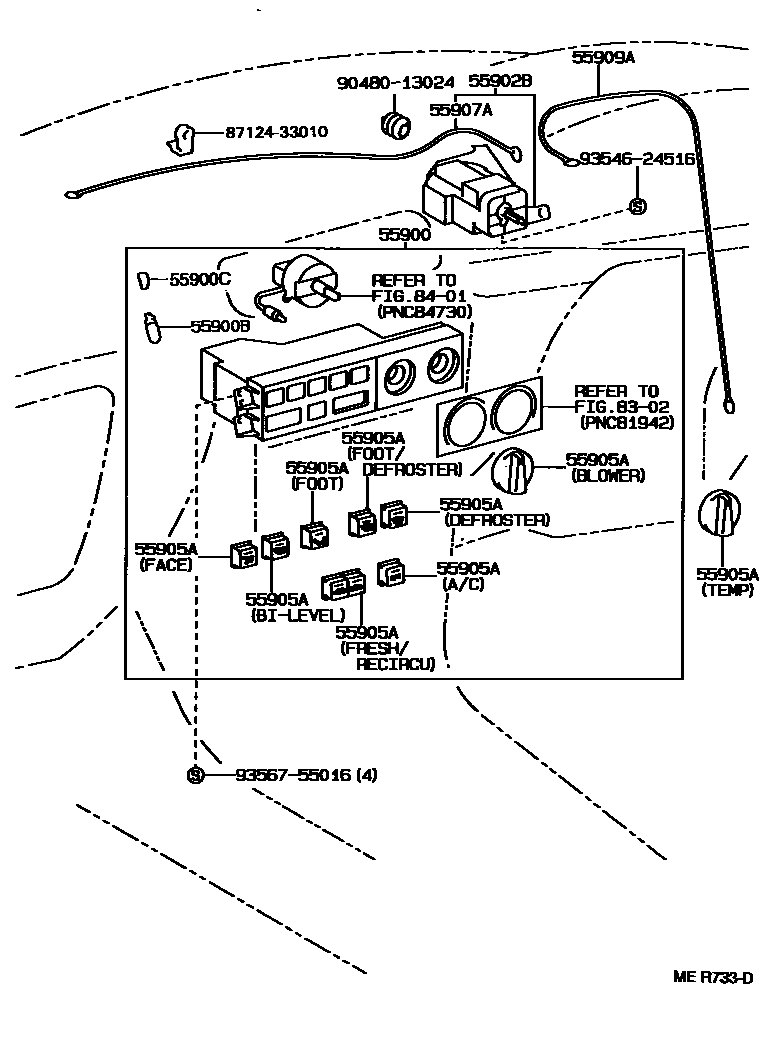

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-33010 · 55085-33020 · 55085-33030 · 55085-33040 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55086-06010 · 55086-33010 · 55086-33020 |
| 55087 | Heater to air regulator No. 4 air duct sub-assembly | 55087-33010 · 55087-33020 |
| 55538A | Cooler switch hole cover | 55538-33010 |
| 55843A | Air duct No. 1 from heater to air register | 55843-33020 · 55843-33030 |
| 55900 | Air conditioning control assembly | 55900-33010 · 55900-33020 · 55900-33030 · 55900-33031 · 55900-33040 · 55900-33041 · 55900-33120 · 55900-33200 |
| 55900B | air conditioning control light bulb | 84999-10480 · 84999-70005 |
| 55900C | Air conditioning control bulb cover | 84998-06010 |
| 55902B | Heater control sub-assembly | 55902-33010 · 55902-33011 · 55902-33012 · 55902-33020 · 55902-33021 · 55902-33022 · 55902-33030 · 55902-33031 · 55902-33032 · 55902-33040 · 55902-33041 · 55902-33042 |
| 55905A | Heater control button | 55905-33010 · 55905-33020 · 55905-33030 · 55905-33040 · 55905-33050 · 55905-33060 · 55905-33070 · 55905-33080 · 55905-33090 · 55905-33100 · 55905-33110 · 55905-33120 · 55905-33130 · 55905-33140 · 55905-33150 · 55905-33160 · 55905-33170 · 55905-33180 · 55905-89113 |
| 55907A | Water valve control cable sub-assembly | 55907-33010 · 55907-33020 · 55907-33030 |
| 55908A | Intake air valve control cable sub-assembly | 55908-06010 · 55908-33010 · 55908-33020 |
| 55909A | Air mix damper control cable sub-assembly | 55909-06010 · 55909-33010 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-33010 · 55910-33030 |
| 87201 | No. 1 air duct sub-assembly | 87201-33010 · 87201-33020 · 87201-33060 · 87201-33070 |
| 87201A | Air duct sub-assembly | 87201-33040 · 87201-33090 |
| 87201B | No. 2 air duct sub-assembly | 87201-33030 · 87201-33080 |
| 87201F | No. 3 air duct sub-assembly | 87201-33050 · 87201-33100 |
| 87211 | No. 1 air duct | 87211-33010 · 87211-33020 |
| 87212 | No. 1 rear air duct | 87212-33010 |
| 87213 | No. 2 rear air duct | 87213-33010 |
| 88625C | Cooler thermistor | 88625-33010 · 88625-33090 · 88625-33100 · 88625-33101 · 88625-33110 |
| 88669A | Hoses (for cooler thermistor) | 88669-33030 · 88669-33040 |
