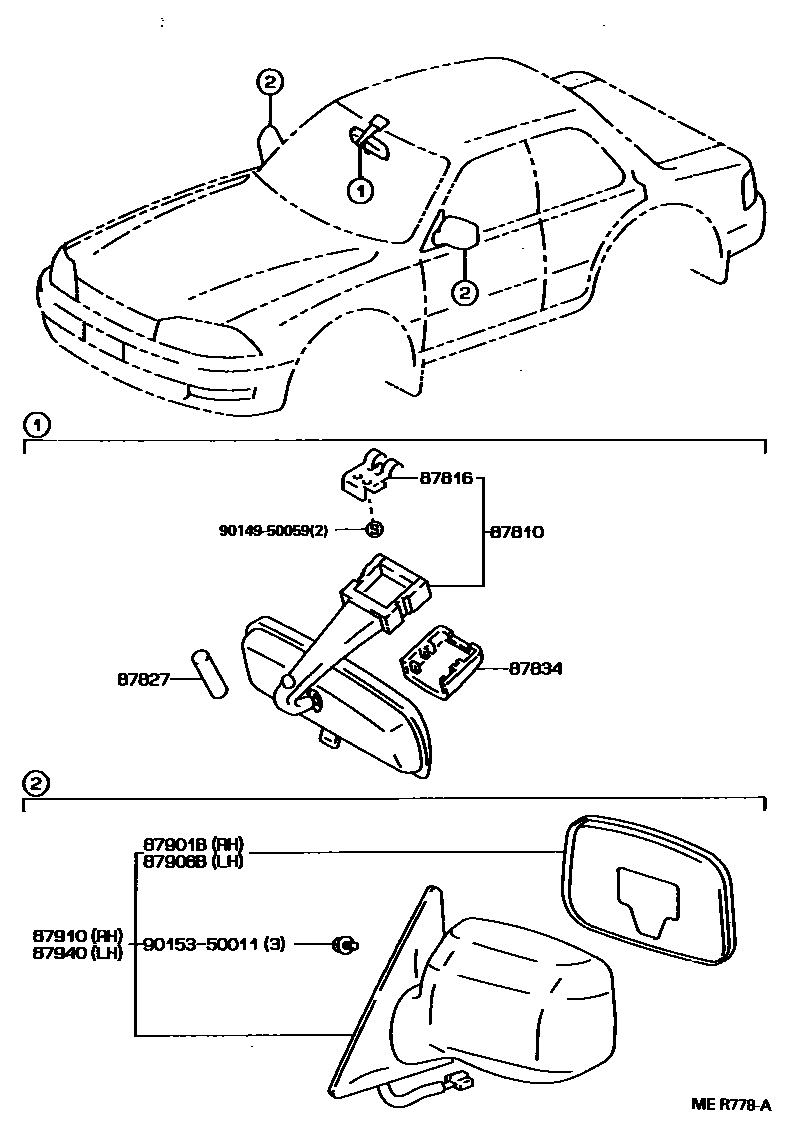

Toyota CAMRY 后视镜 — Figure 8701
Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87827 | Interior rearview mirror shock absorber | 87828-87003 · 87828-87005 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-33070 · 87931-33080 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-33070 · 87961-33080 |
| 87910 | Right exterior rearview mirror assembly | 87910-33050 |
| 87940 | Left exterior rearview mirror assembly | 87940-33050 |
