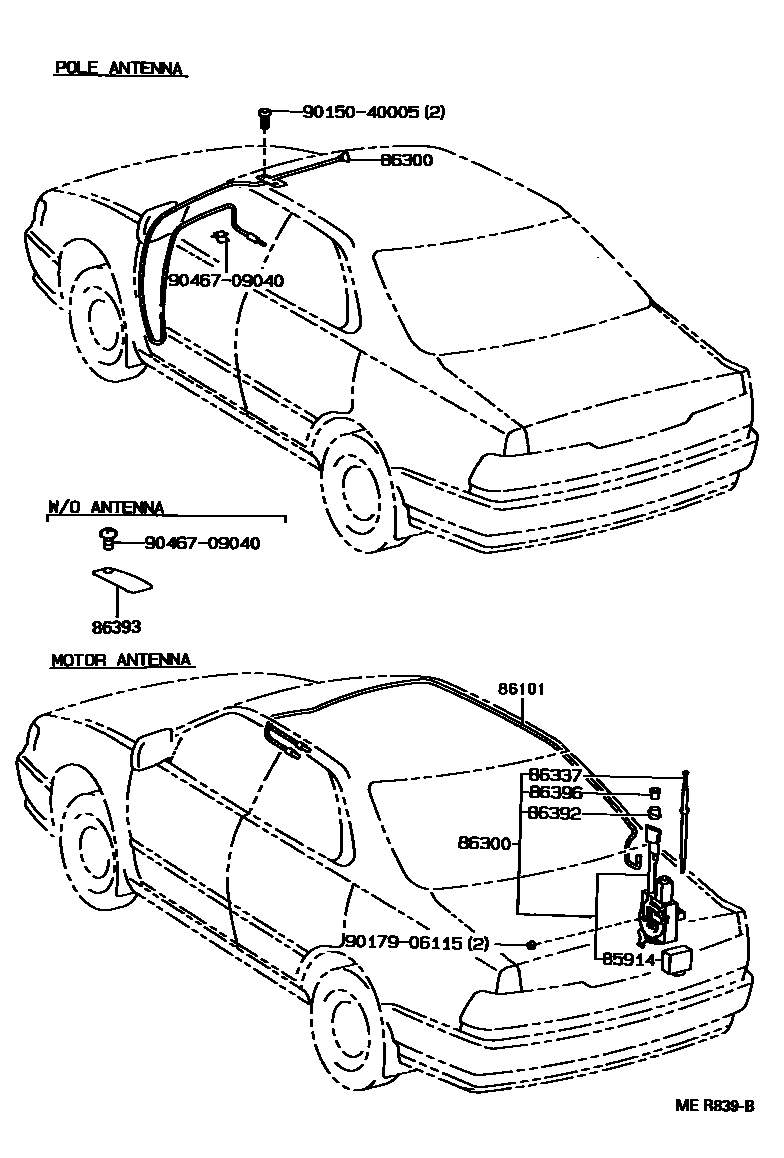

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85914 | Electric antenna control relay | 85914-06010 · 85914-33010 · 85914-AC010 |
| 86101 | Antenna wire sub-assembly | 86101-33010 · 86101-33030 · 86101-33080 · 86101-33090 |
| 86300 | Antenna assembly with fixing parts | 86300-06020 · 86300-06021 · 86300-33010 · 86300-33020 · 86300-33030 |
| 86337 | Sealing rods and sealing tubes with cables | 86337-06010 · 86337-32200 · 86337-33030 |
| 86392 | Antenna decorative parts | 86392-06020 · 86392-33040 |
| 86393 | Antenna decorative parts | 86392-33020 · 86392-33030 |
| 86396 | Antenna nut | 86396-06010 · 86396-50010 |
