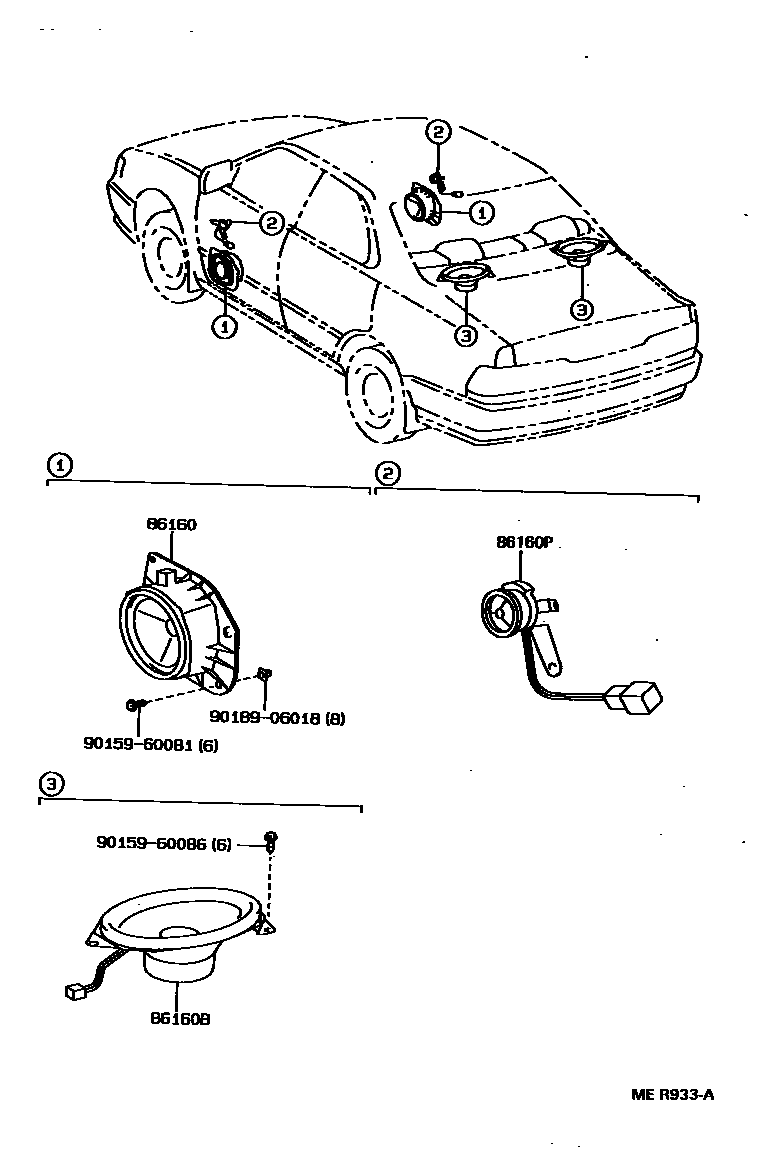

Toyota CAMRY 扬声器 — Figure 8602
Toyota CAMRY EPC diagram 8602, 扬声器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-32280 · 86160-32290 · 86160-32340 · 86160-32350 |
| 86160B | Rear speaker assembly | 86160-33010 · 86160-33011 · 86160-33110 · 86160-33111 |
| 86160P | No. 2 front speaker assembly | 86160-32240 · 86160-32250 |
