Toyota CAMRY 座椅电机和座椅加热器 — Figure 8513

Toyota CAMRY EPC diagram 8513, 座椅电机和座椅加热器, with 1 images and 7 PNC and OE references.

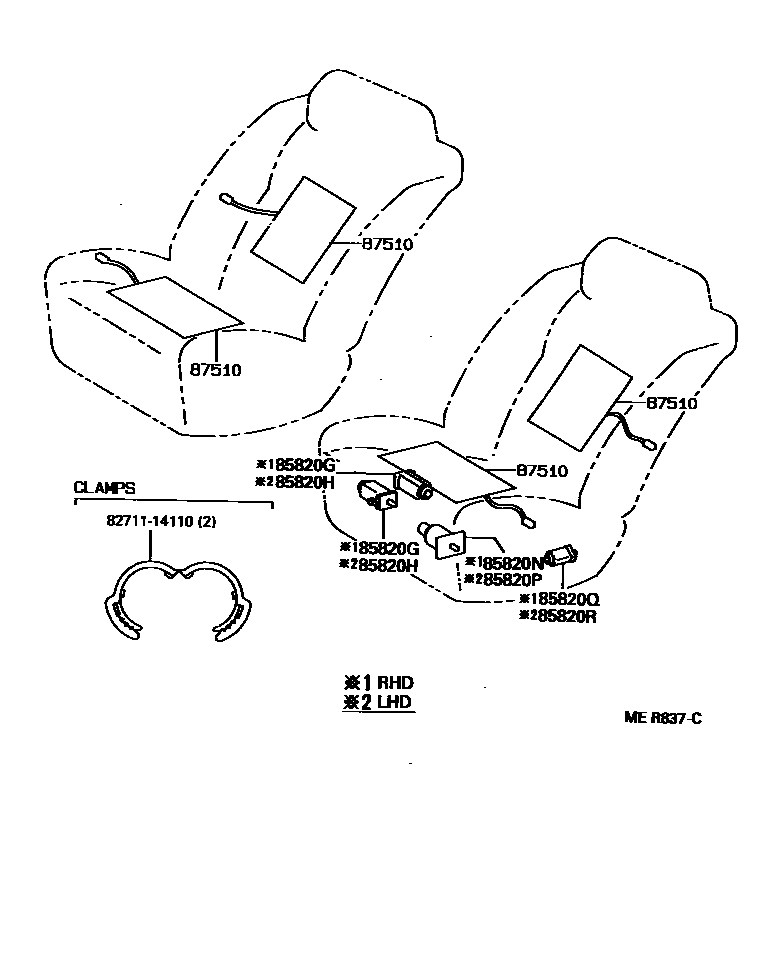

Toyota CAMRY 座椅电机和座椅加热器 EPC diagram — MER837C
座椅电机和座椅加热器 — MER837C (199106 – 199608)

PNC and OE references

PNCPart nameOE numbers
85820GElectric seat motor assembly85820-22030
85820HElectric seat motor assembly85820-14030
85820NElectric seat motor assembly (for front right seat sliding)85820-50090
85820PElectric seat motor assembly (for front left seat sliding)85820-50010
85820QElectric seat motor assembly (for front right seat tilt)85820-32020
85820RElectric seat motor assembly (for front left seat tilt)85820-33010
87510Seat heater assembly87510-33010 · 87510-33020 · 87510-33050 · 87510-33060
